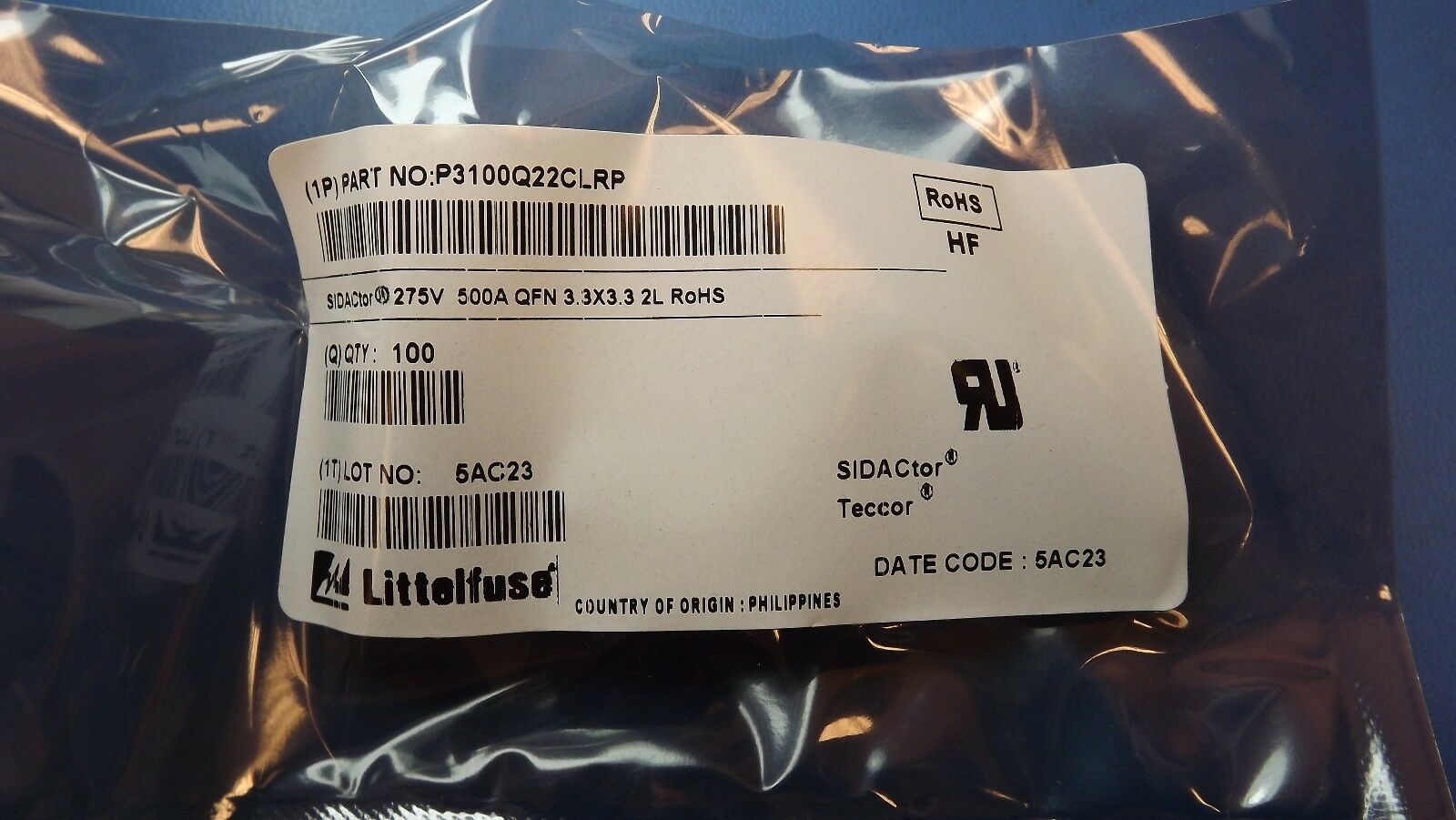

(5PCS) P3100Q22CLRP LITTELFUSE Sidacs 275V 500A SIDACtor
Tax included.

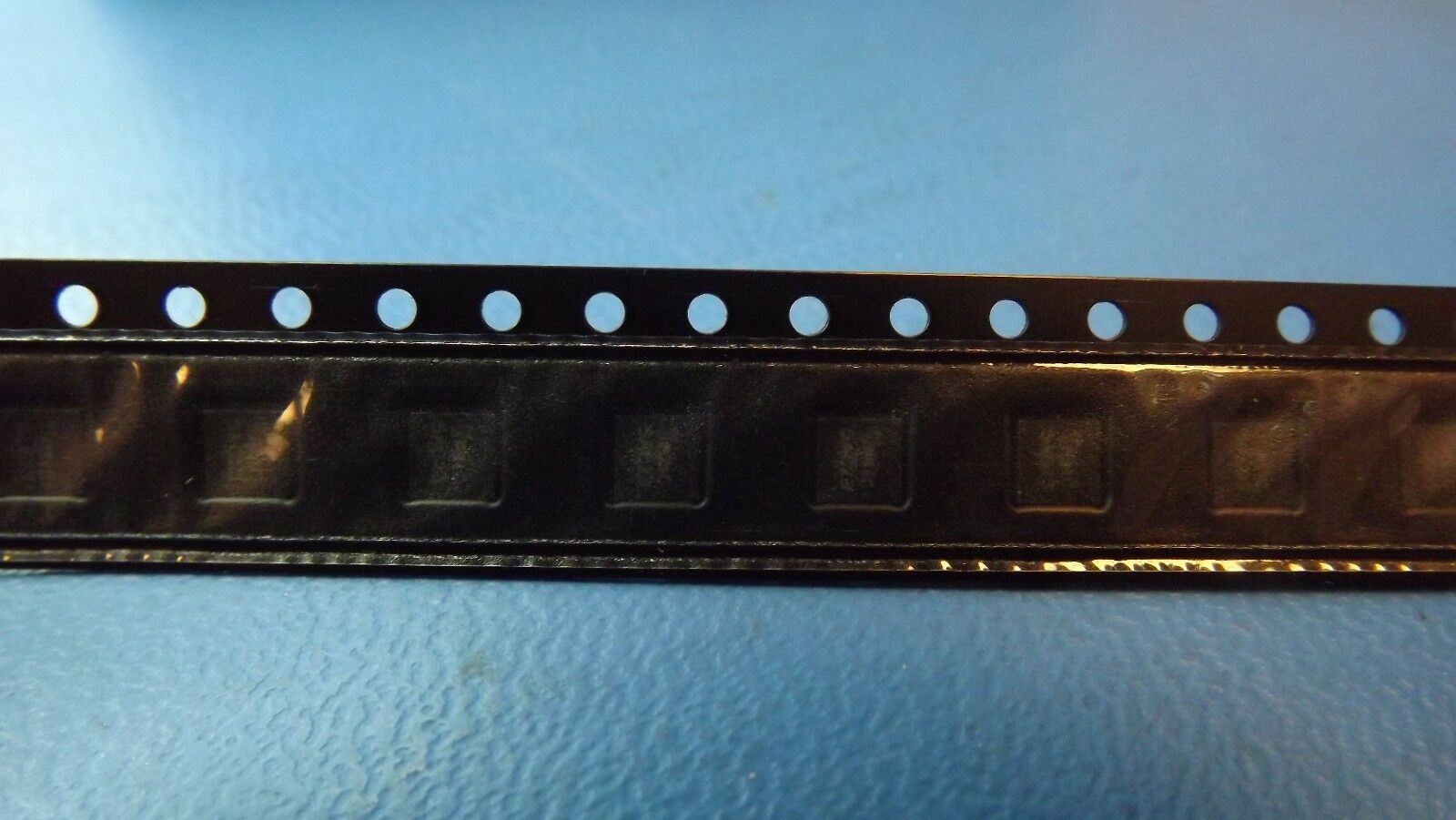

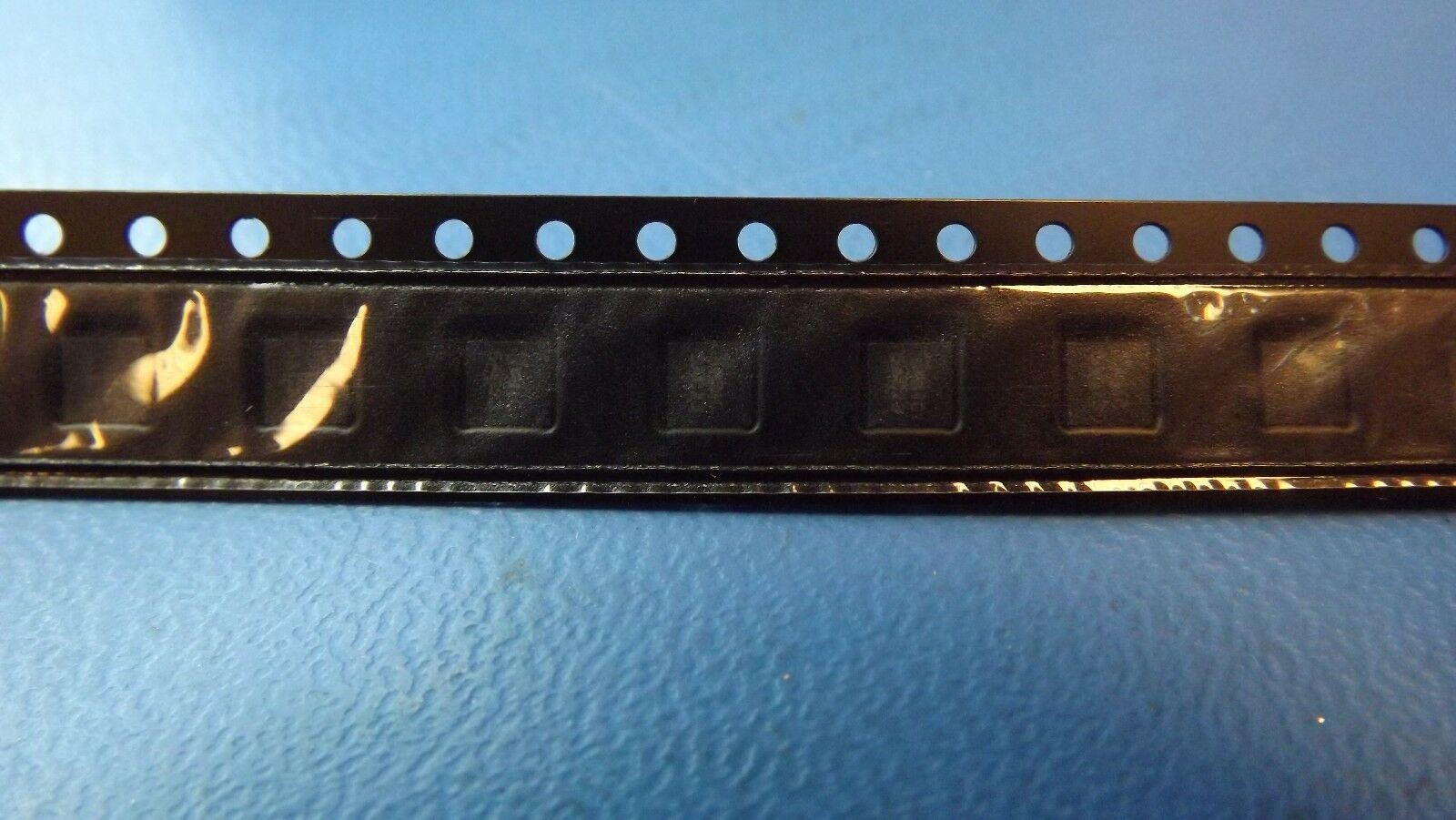

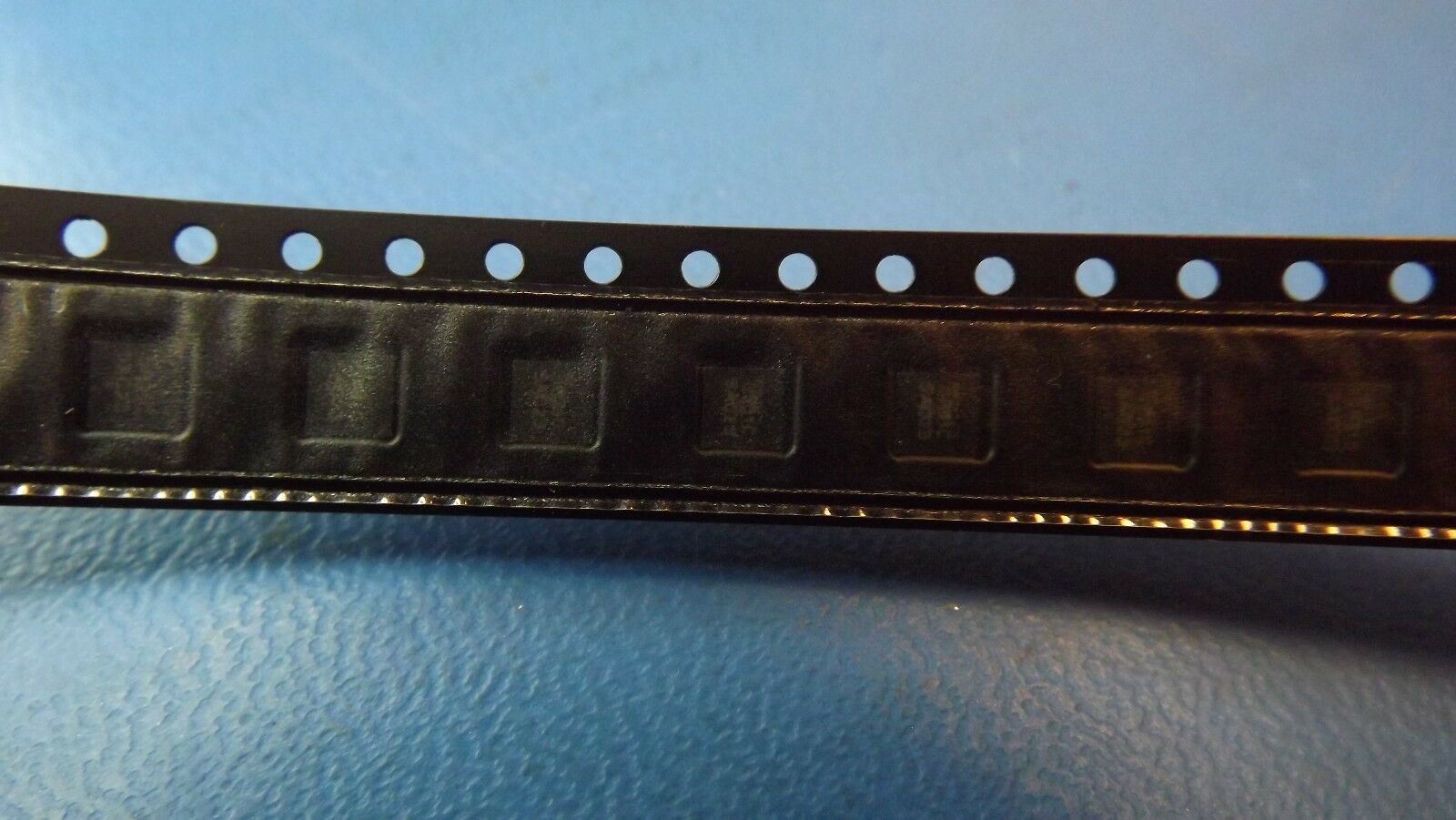

THIS LISTING IS FOR (5PCS) OF P3100Q22CLRP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | QFN-2 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SIDAC |
| Breakover Voltage-Max | 350.0 V |
| Configuration | SINGLE |
| Holding Current-Nom | 150.0 mA |
| Holding Current-Max | 150.0 mA |
| JESD-30 Code | S-PBCC-N2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-Repetitive Pk On-state Cur | 30.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Repetitive Peak Reverse Voltage | 175.0 V |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | NO LEAD |
| Terminal Position | BOTTOM |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | UL RECOGNIZED |
