(5PCS) P1803ACMCL Sidacs 500A 150V Modified 3Chip TO220

  • $12.50
    Unit price per
Tax included.

Only 9 left!

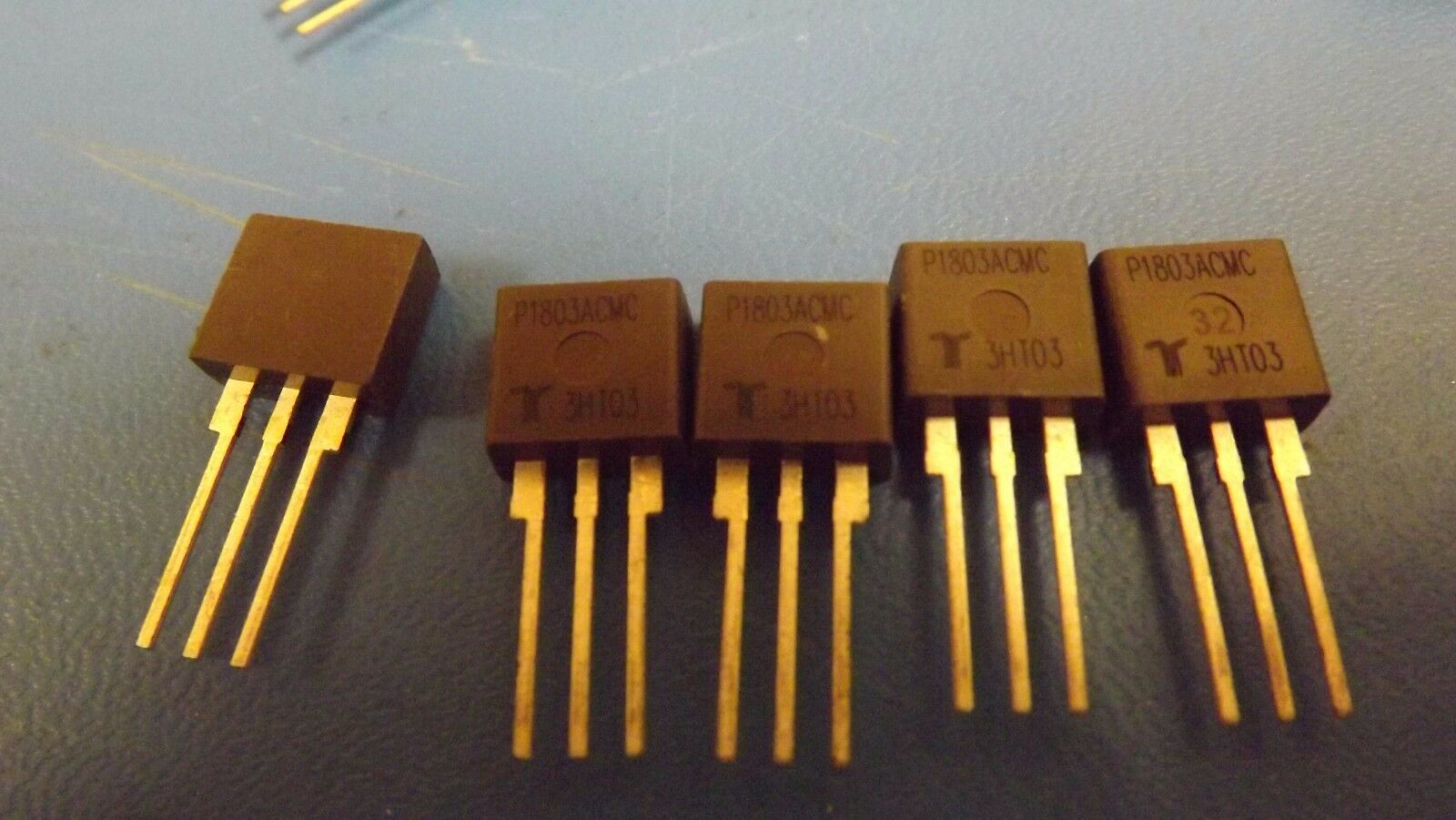

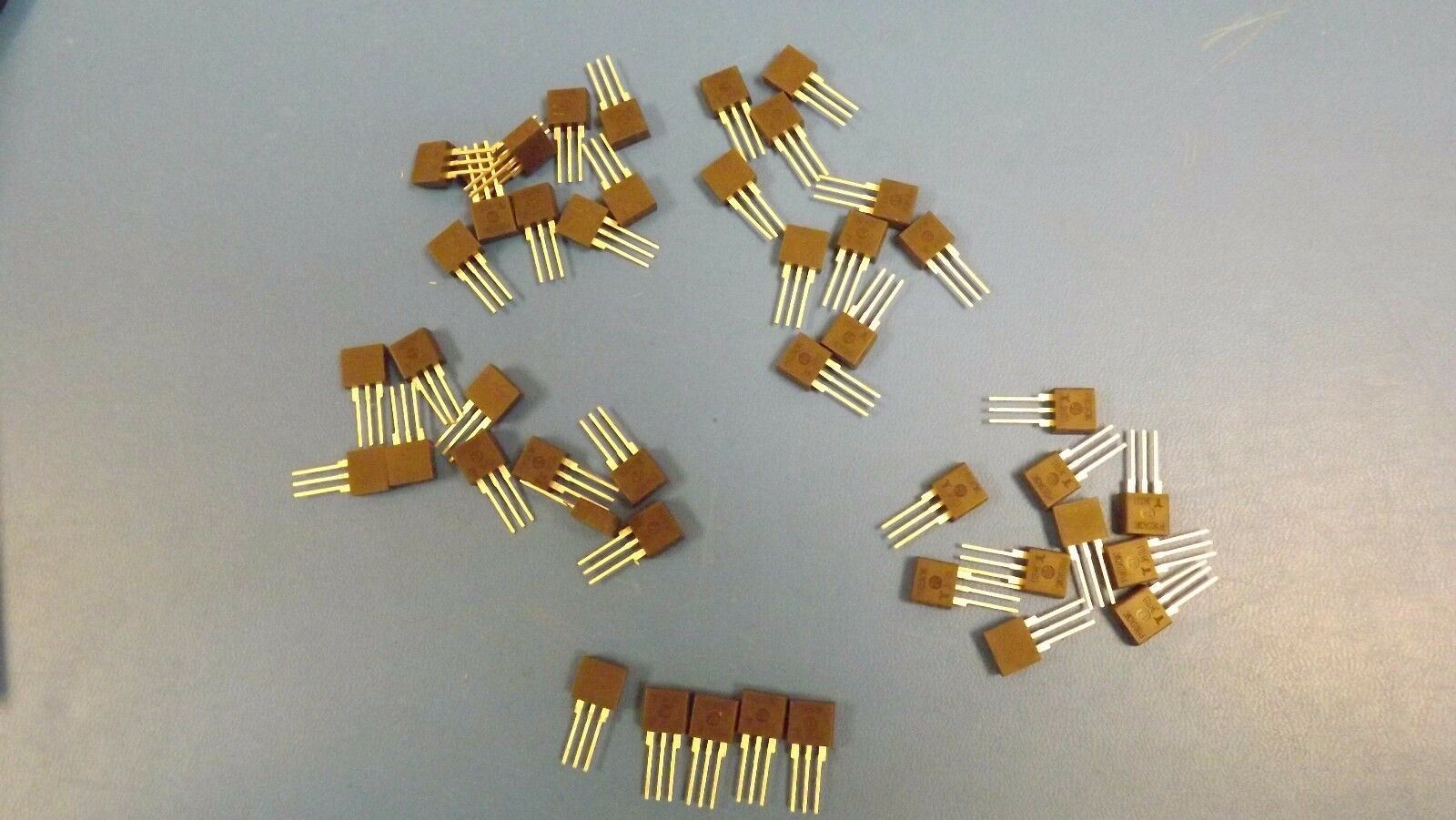

THIS LISTING IS FOR (5PCS) OF P1803ACMCL BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, PLASTIC, MODIFIED TO-220, 3 PIN
EU RoHS Compliant Yes
Status Active
Trigger Device Type SILICON SURGE PROTECTOR
Breakover Voltage-Max 210 V
Configuration STAR CONNECTED, 3 ELEMENTS
DC Off-state Voltage-Max 150 V
Holding Current-Max 150 mA
JESD-30 Code R-PSIP-T3
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-Repetitive Pk On-state Cur 30 A
Number of Elements 3
Number of Terminals 3
Operating Temperature-Min -40 Cel
Operating Temperature-Max 150 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Sub Category Silicon Surge Protectors
Surface Mount NO
Terminal Finish TIN
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Additional Feature UL RECOGNIZED
