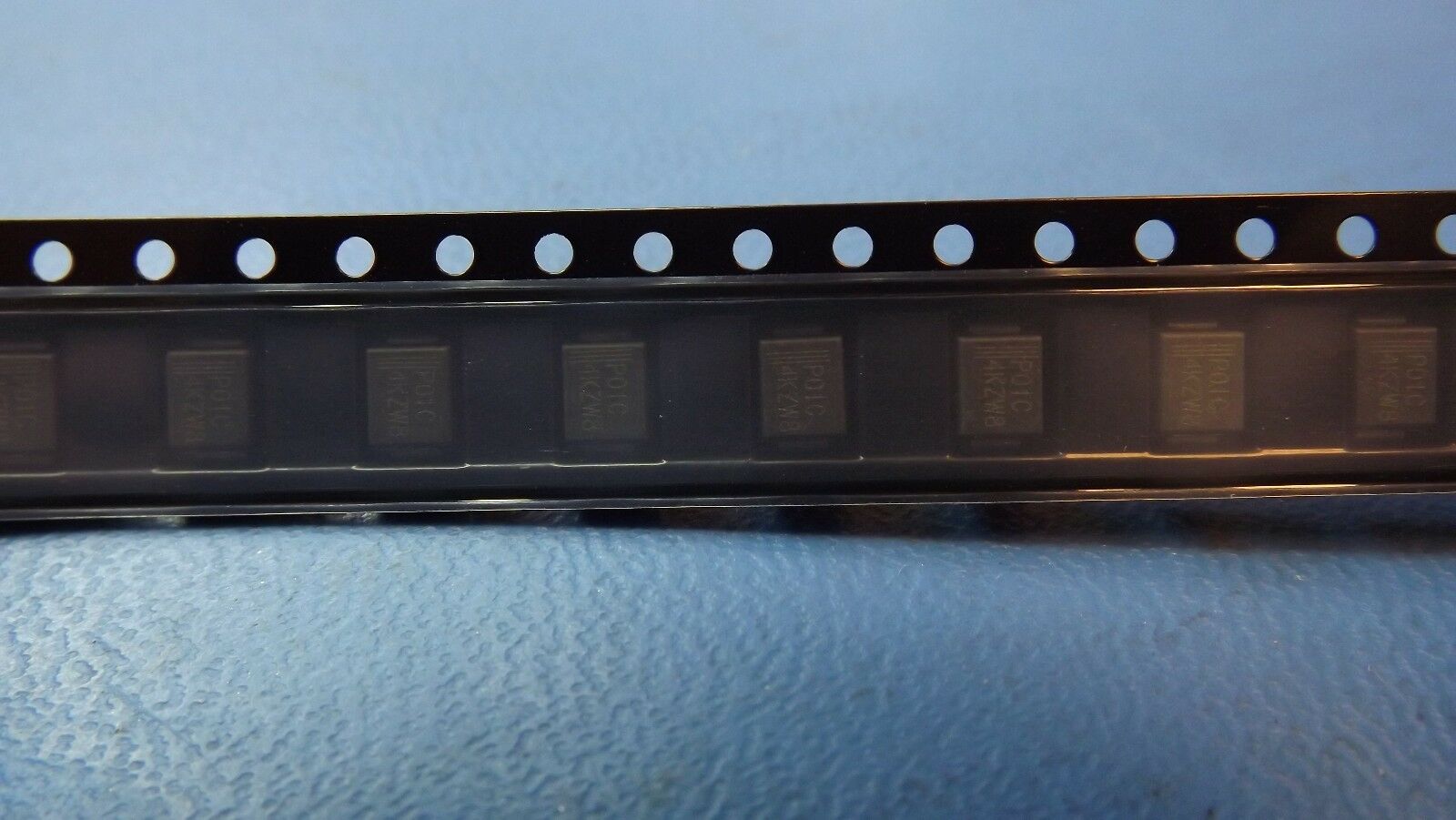

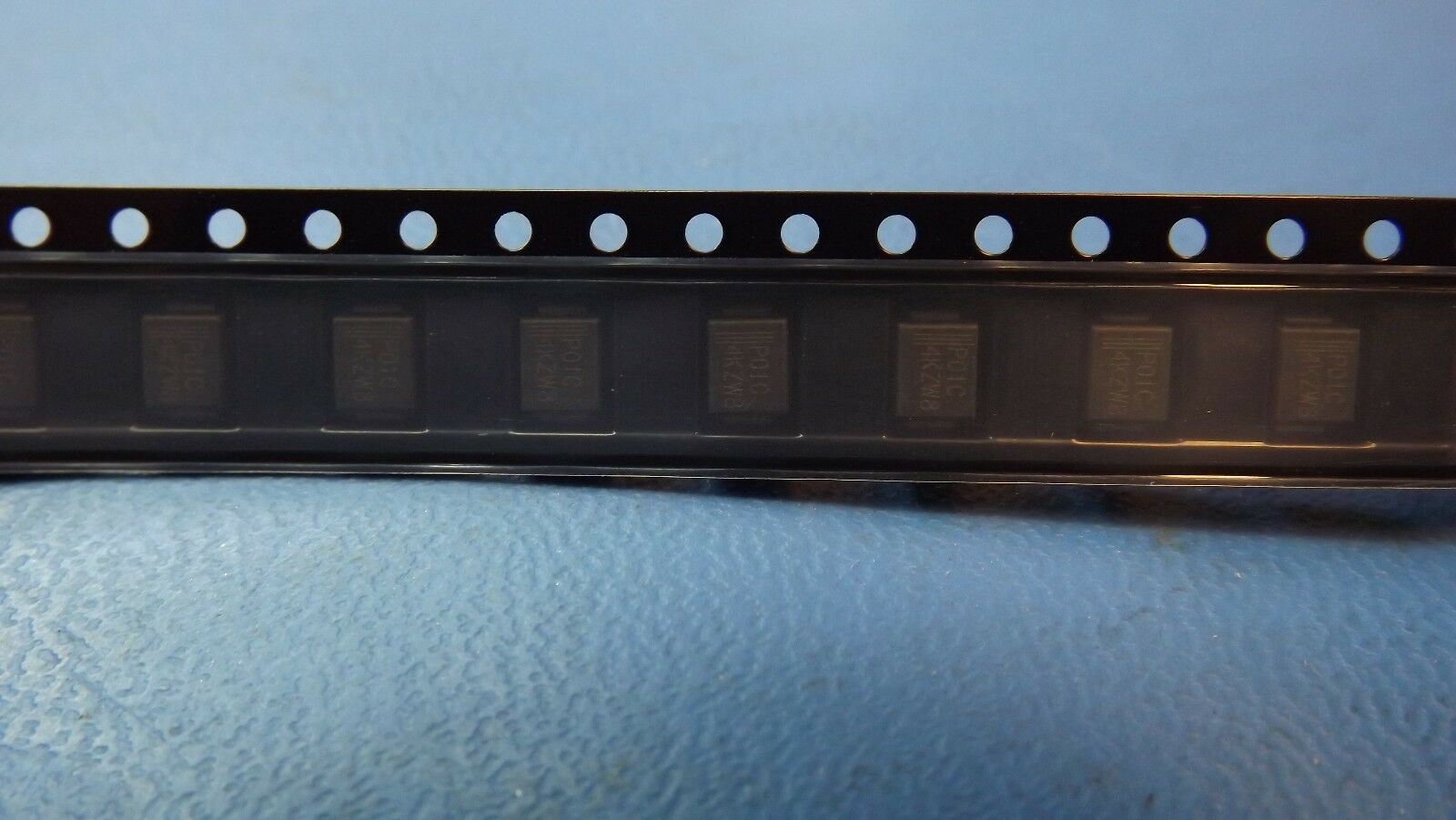

(5PCS) P1101SCLRP LITTELFUSE Thyristor Surge Protection Devices 95V 30A 2-Pin
Tax included.
THIS LISTING IS FOR (5PCS) OF P1101SCLRP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SILICON SURGE PROTECTOR |
| Breakover Voltage-Max | 98.0 V |
| Configuration | SINGLE |
| JEDEC-95 Code | DO-214AA |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Repetitive Peak Reverse Voltage | 75.0 V |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Additional Feature | UL RECOGNIZED |
