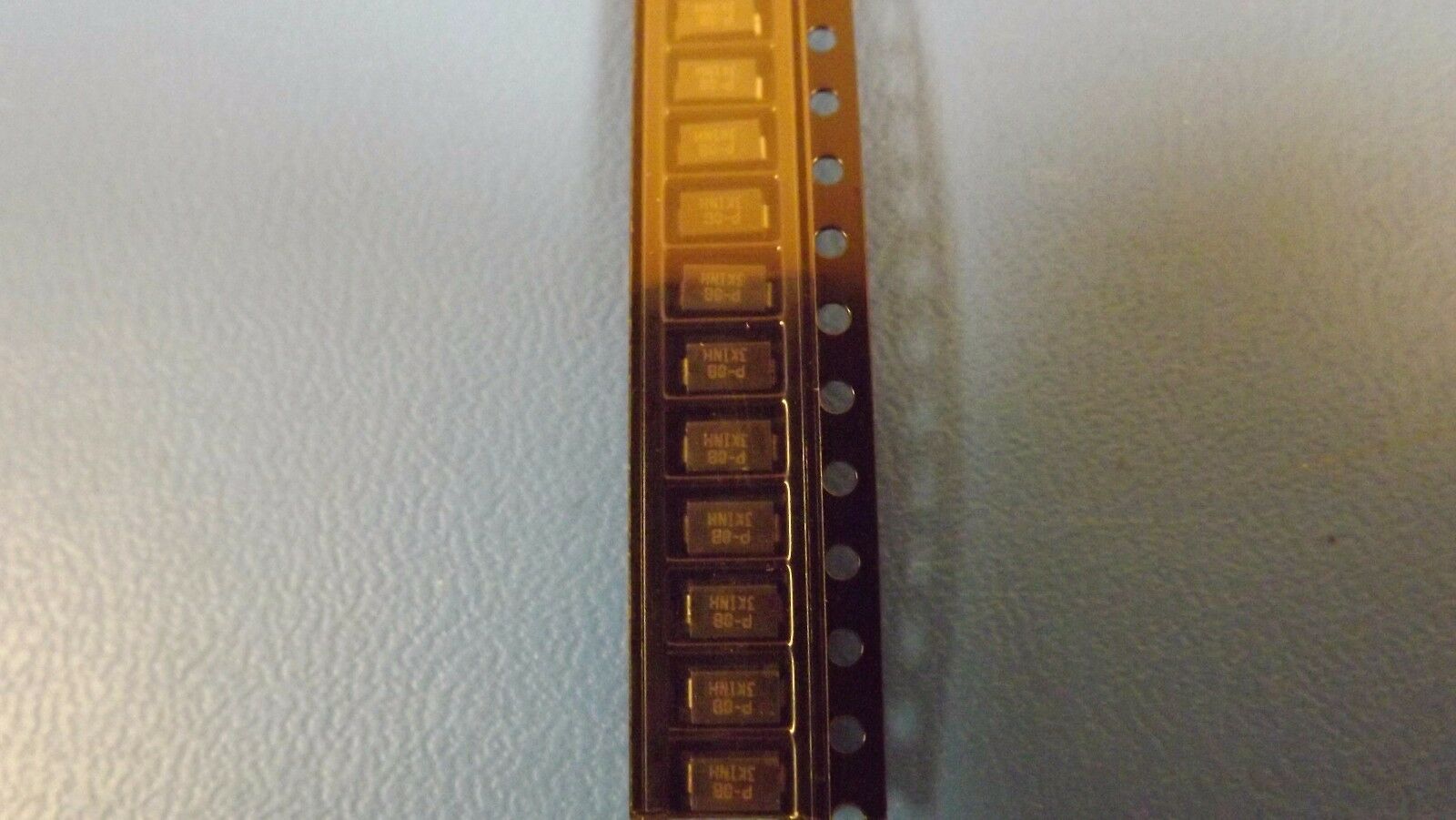

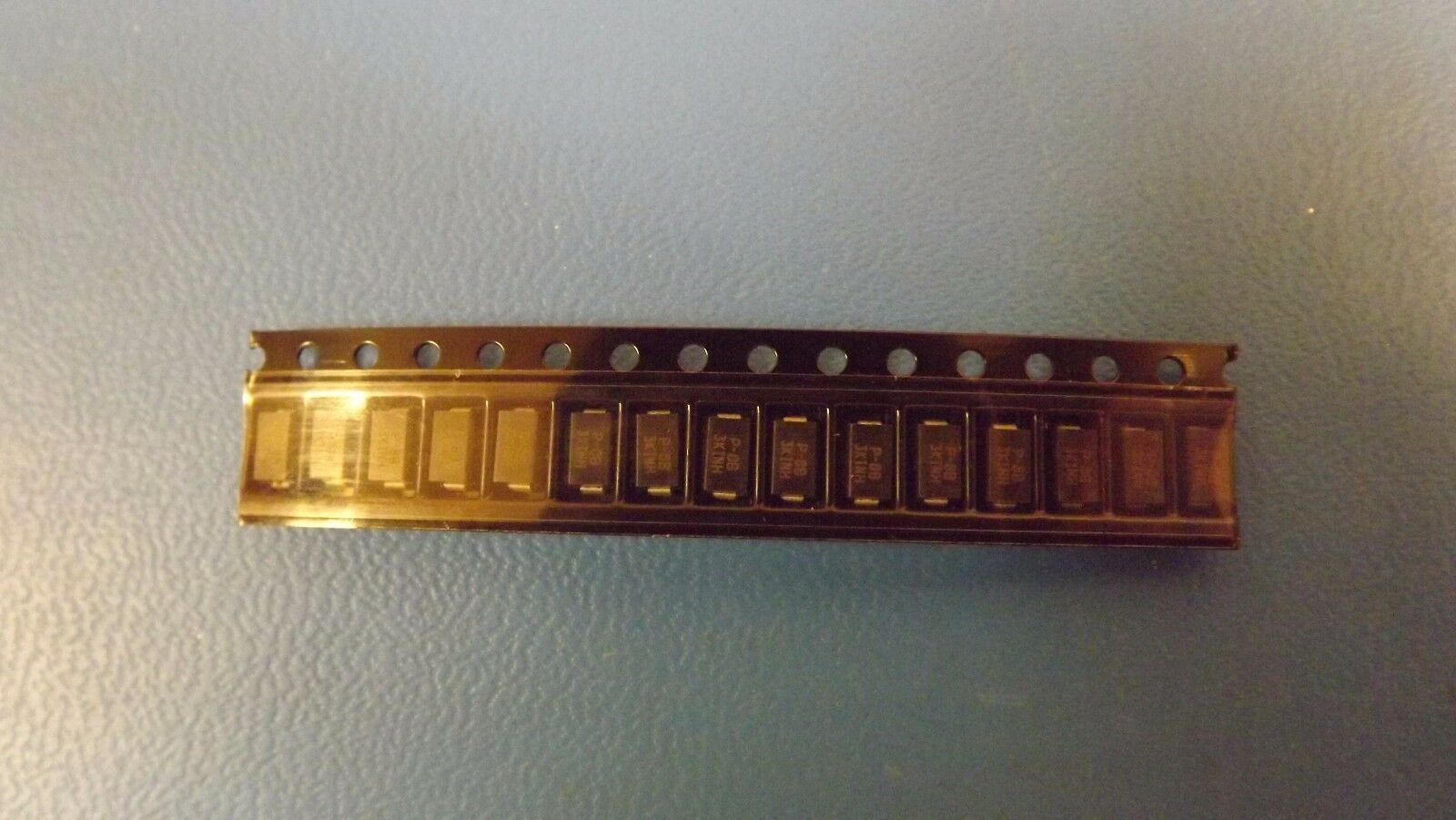

(5PCS) P0080S1BLRP SIDACTOR BI 8V 50A DO214AC 2L
Tax included.
THIS LISTING IS FOR (5PCS) OFP0080S1BLRP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-2 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SILICON SURGE PROTECTOR |
| Breakover Voltage-Max | 25 V |
| Configuration | SINGLE |
| DC Off-state Voltage-Max | 6 V |
| JEDEC-95 Code | DO-214AA |
| JESD-30 Code | R-PDSO-C2 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Non-Repetitive Pk On-state Cur | 25 A |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Reverse Voltage | 6 V |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | C BEND |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Additional Feature | UL RECOGNIZED |
