(5PCS) OP77HS ANALOG DEVICES OP Amp Single GP ±22V 8-Pin SOIC
Tax included.

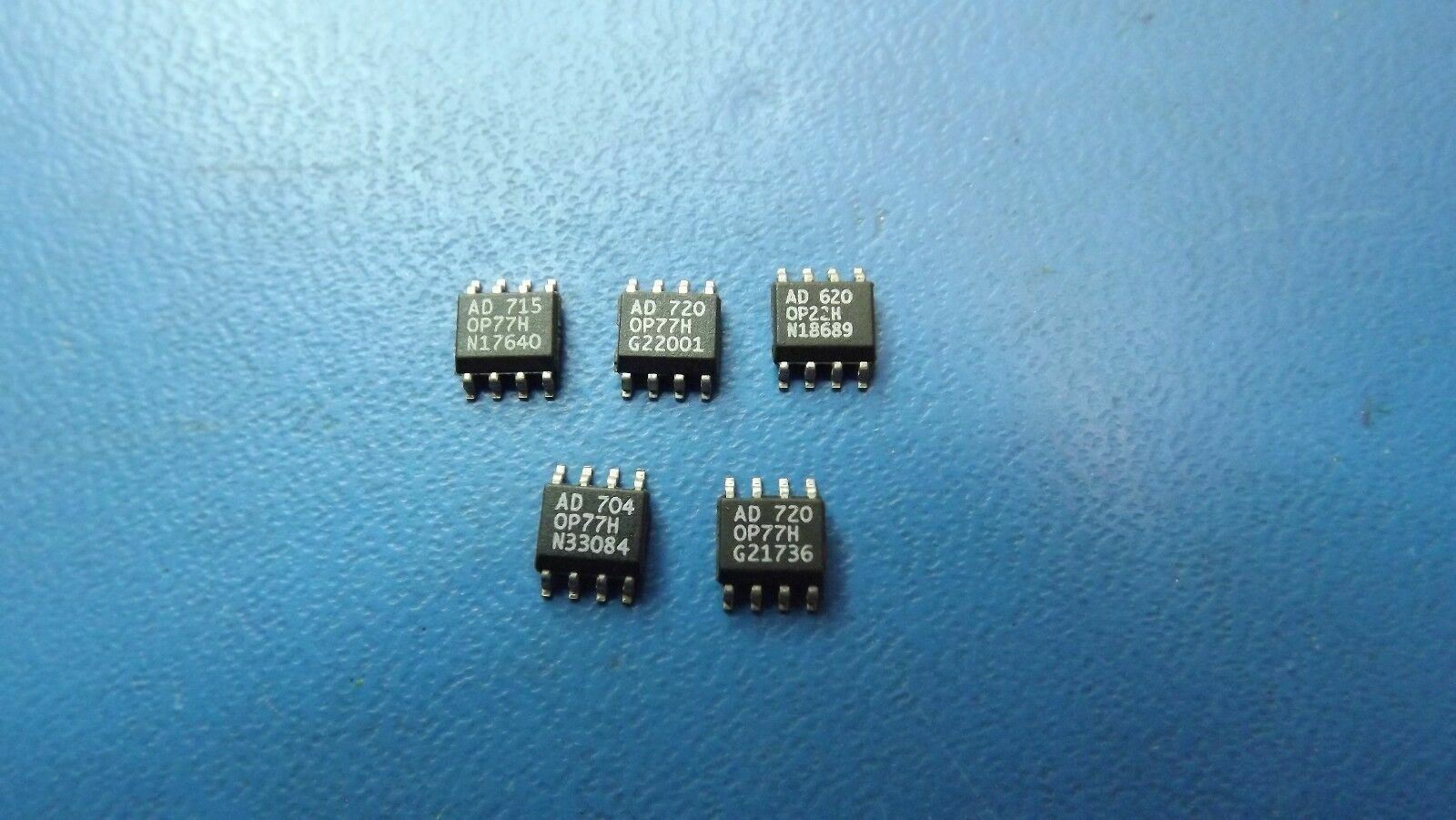

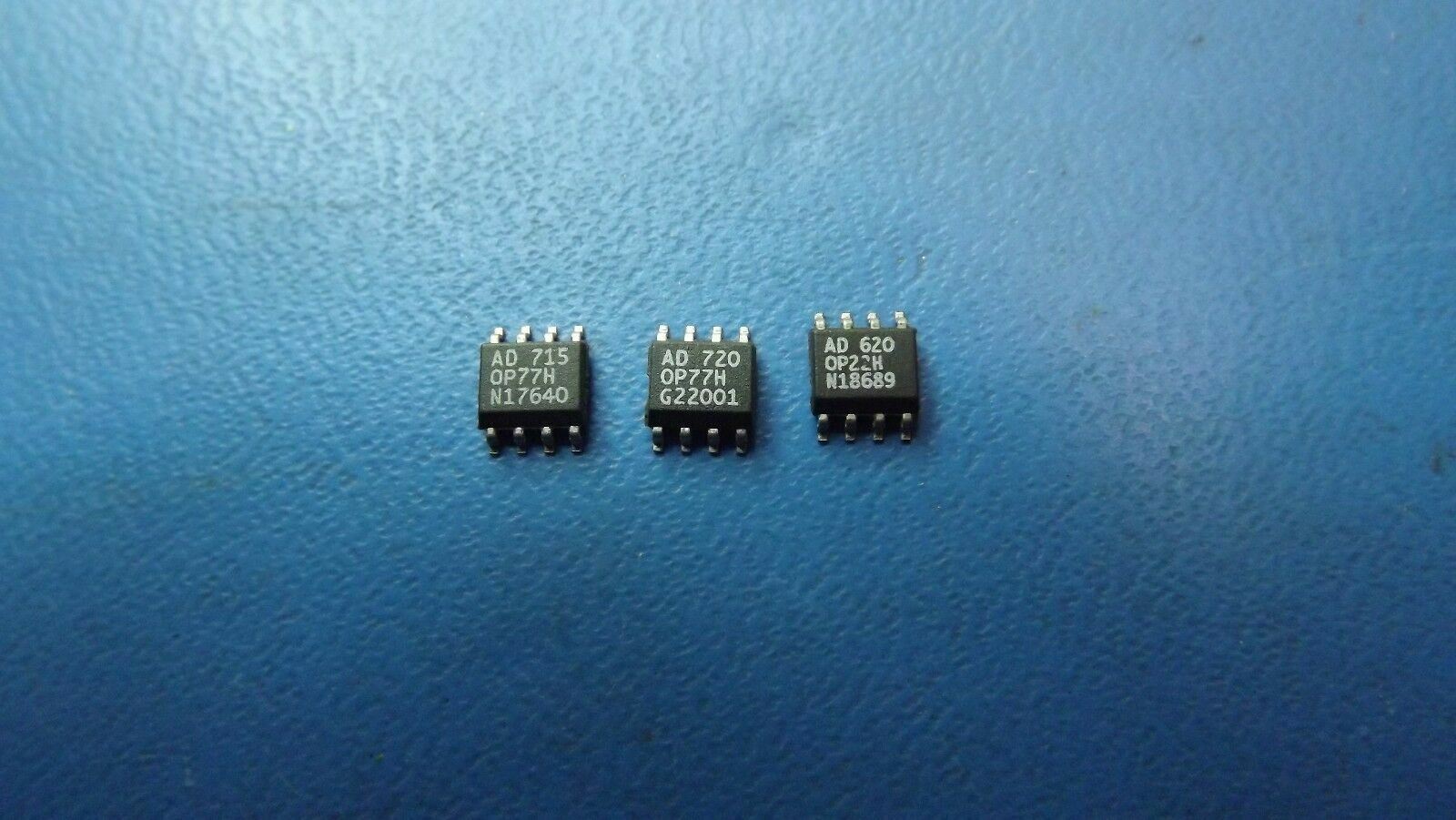

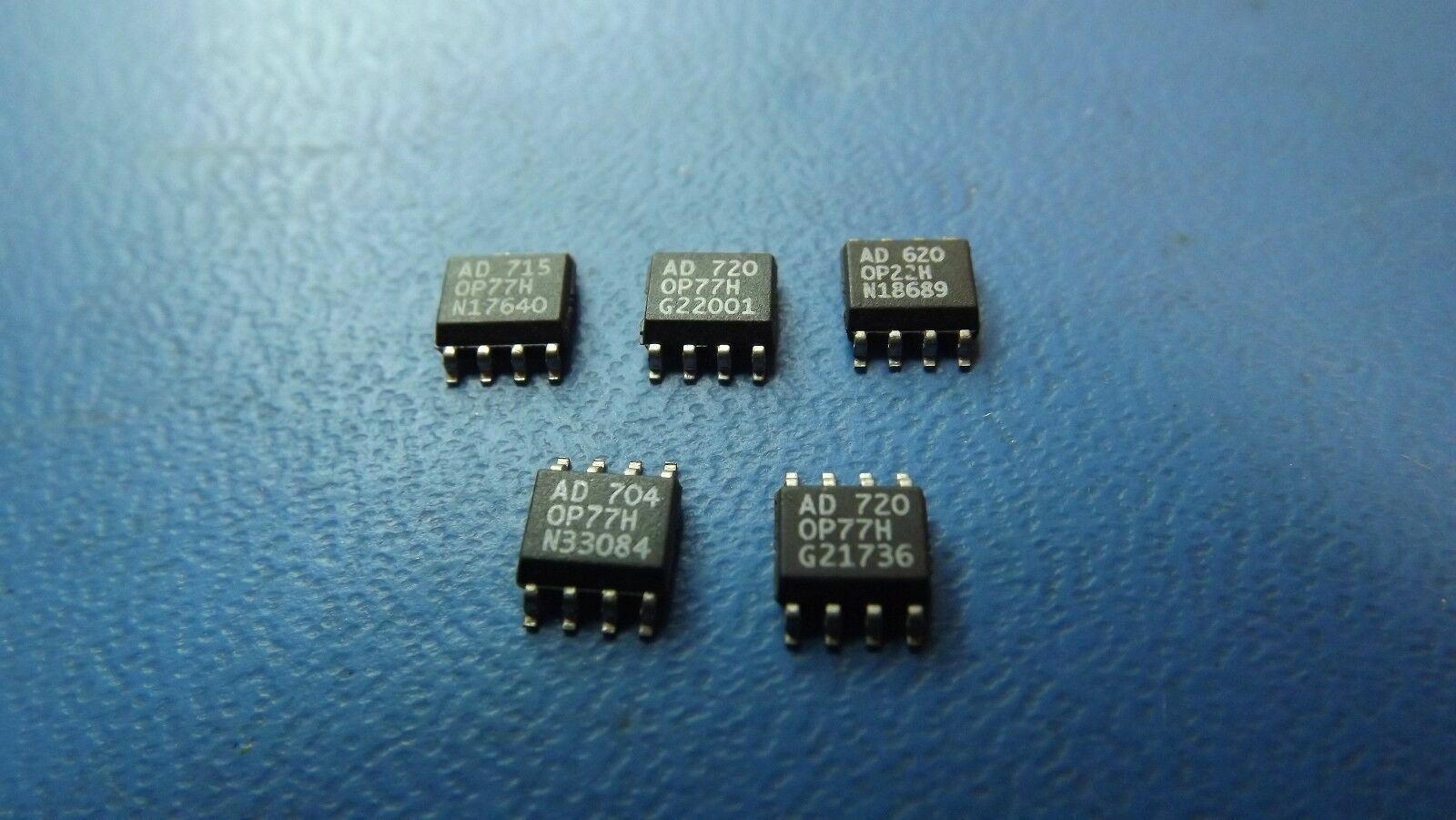

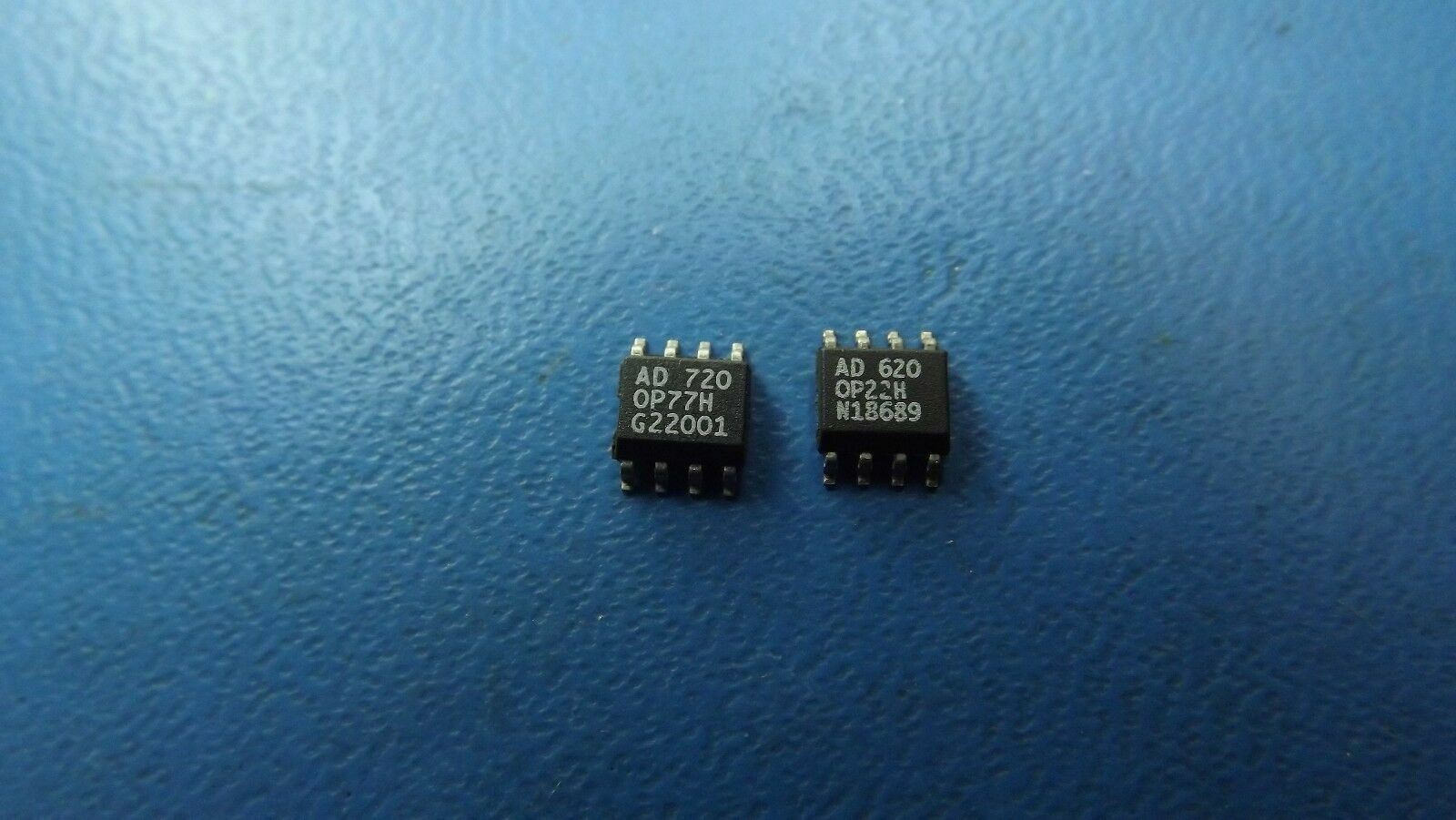

THIS LISTING IS FOR (5PCS) OF OP77HS BY ANALOG DEVICES
**THESE PARTS HAVE NEVER BEEN USED. LEADS STRAIGHTENED. POSSIBLE TOOL MARKS ON LEADS.
SPECIFICATIONS
| Mfr Package Description | SO-8 |
| Status | Discontinued |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.006 µA |
| Bias Current-Max (IIB) @25C | 0.0028 µA |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 150.0 µV |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Low-Offset | YES |
| Neg Supply Voltage Limit-Max | -22.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | +-15 |
| Qualification Status | Not Qualified |
| Slew Rate-Nom | 0.3 V/us |
| Slew Rate-Min | 0.1 V/us |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 22.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 600.0 kHz |
| Voltage Gain-Min | 1000000.0 |
