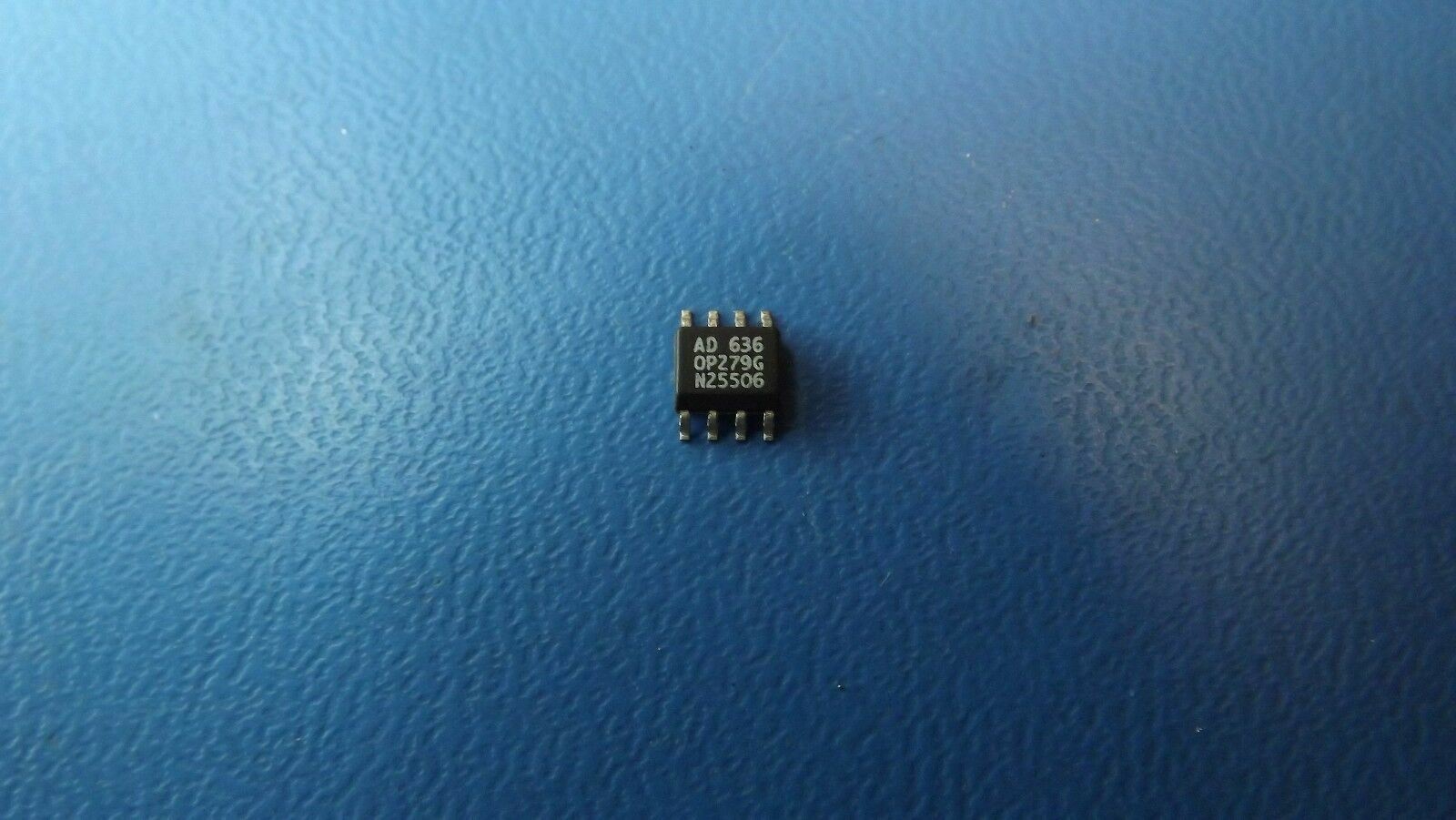

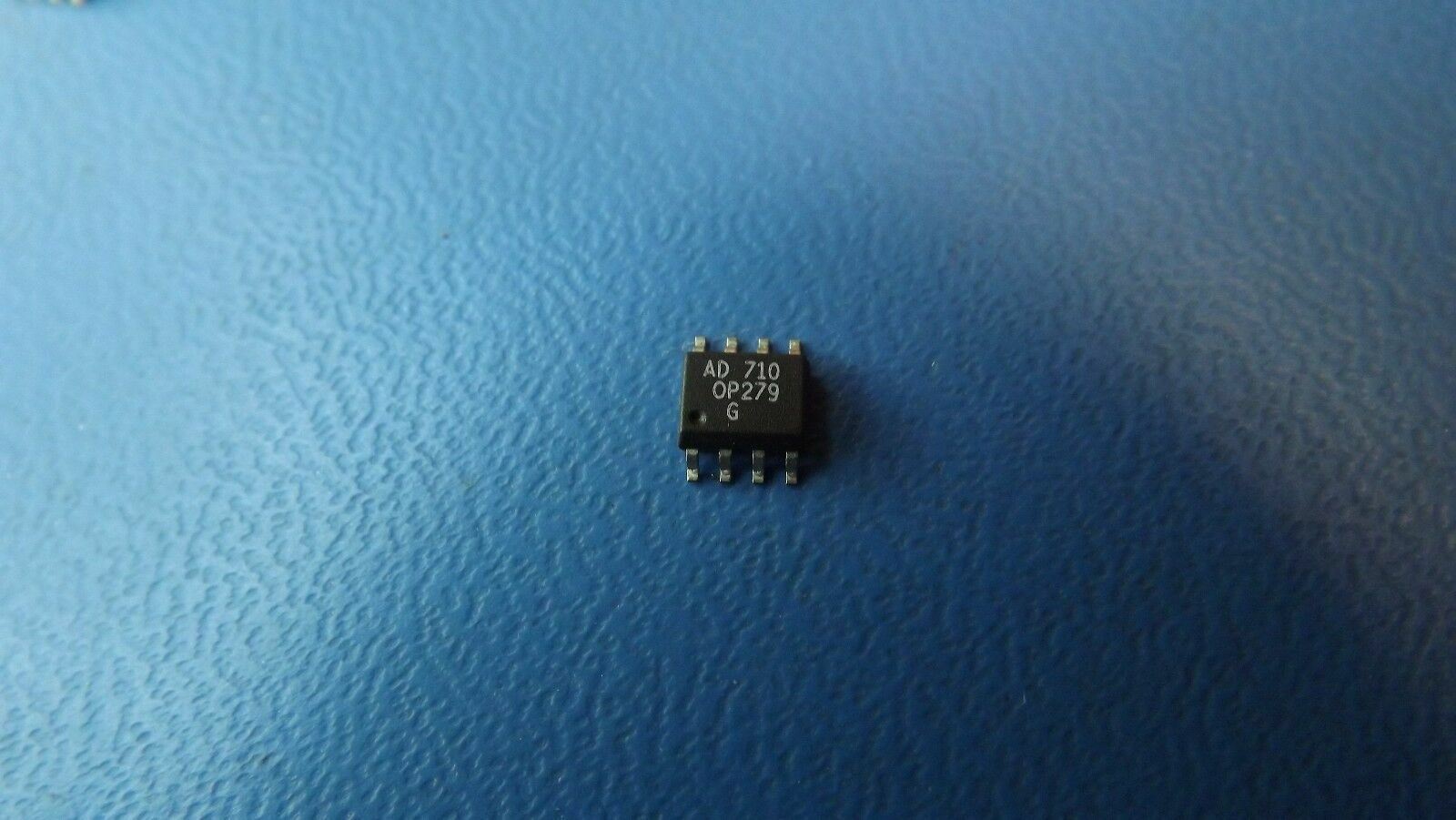

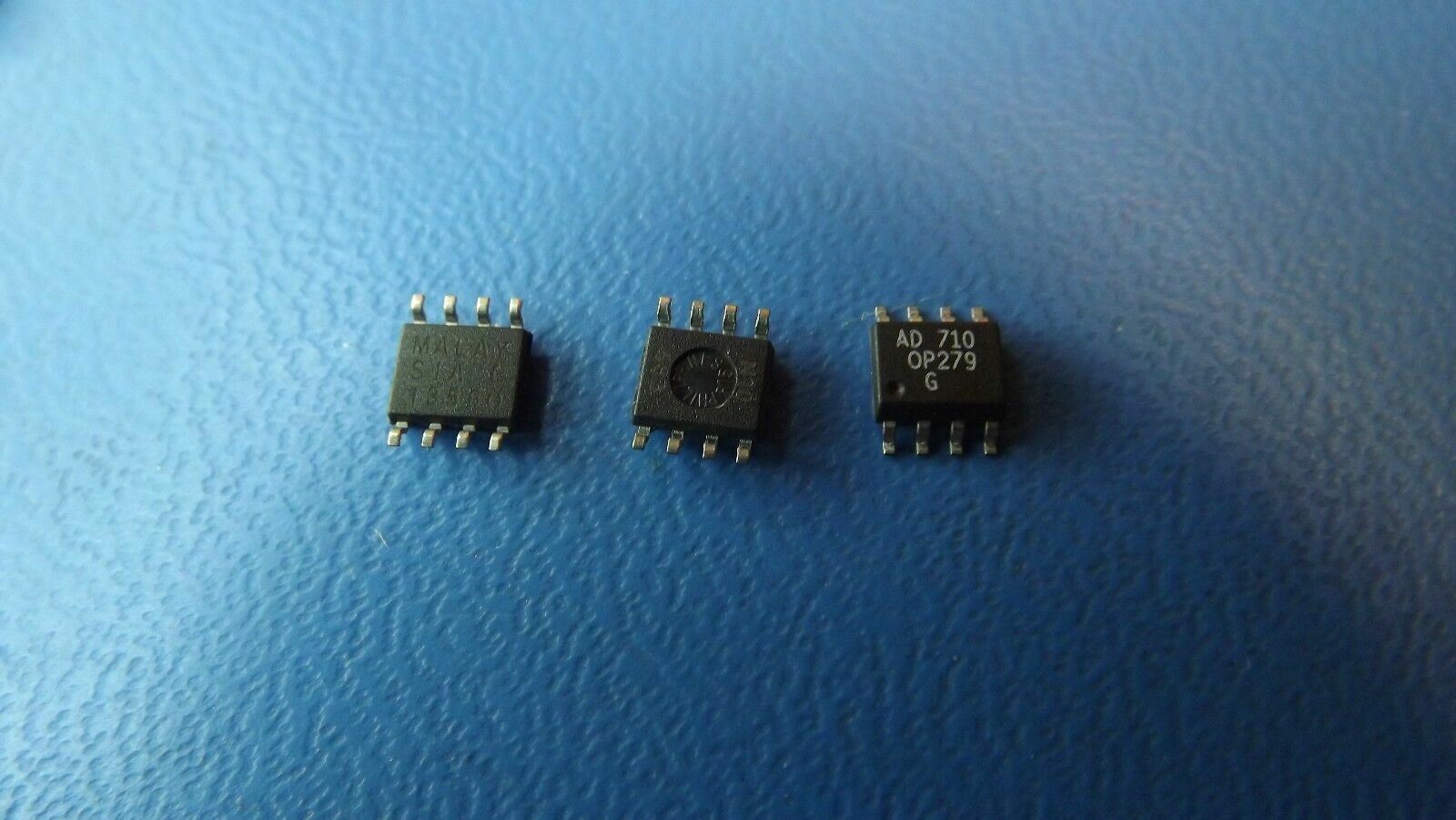

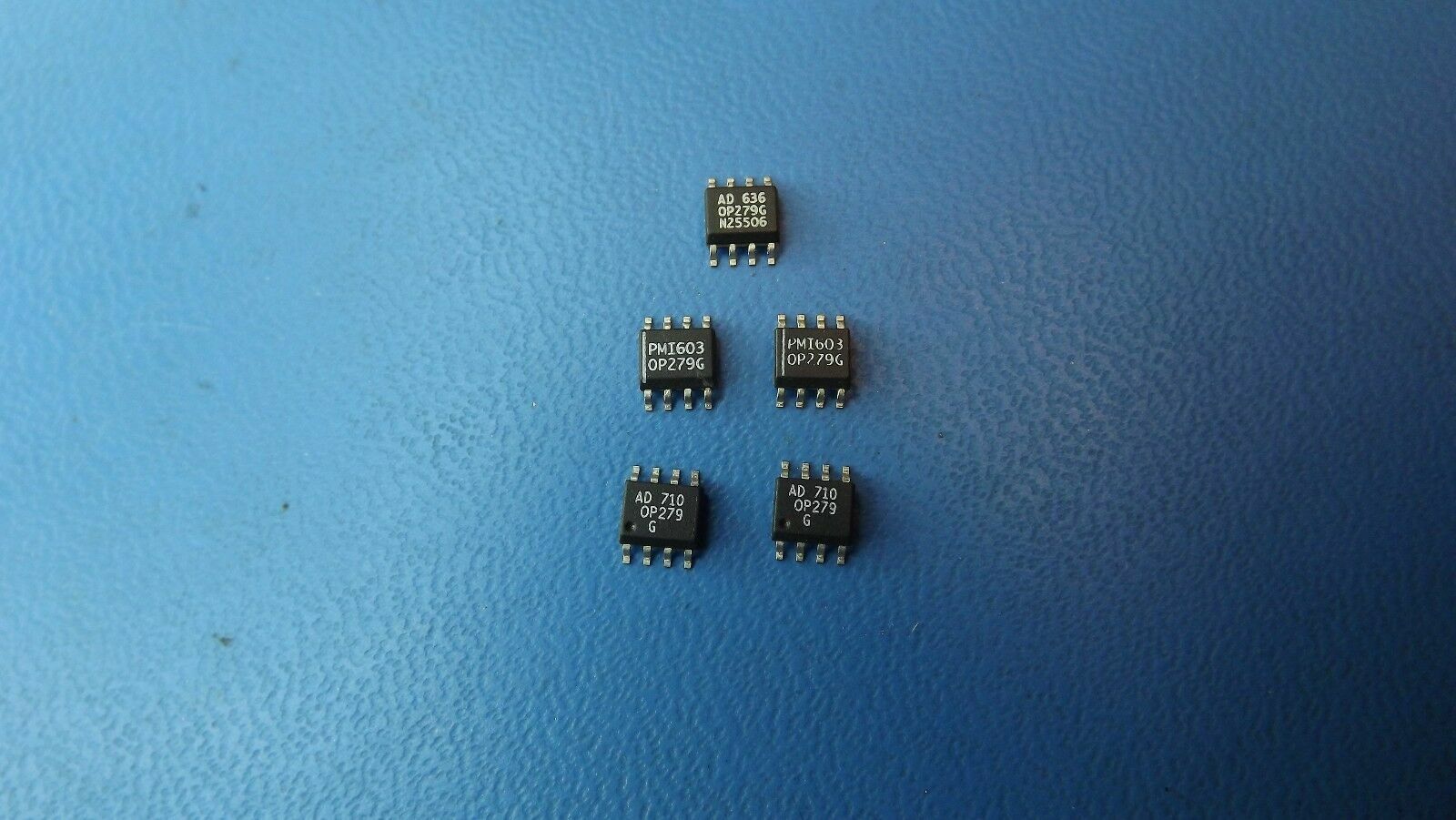

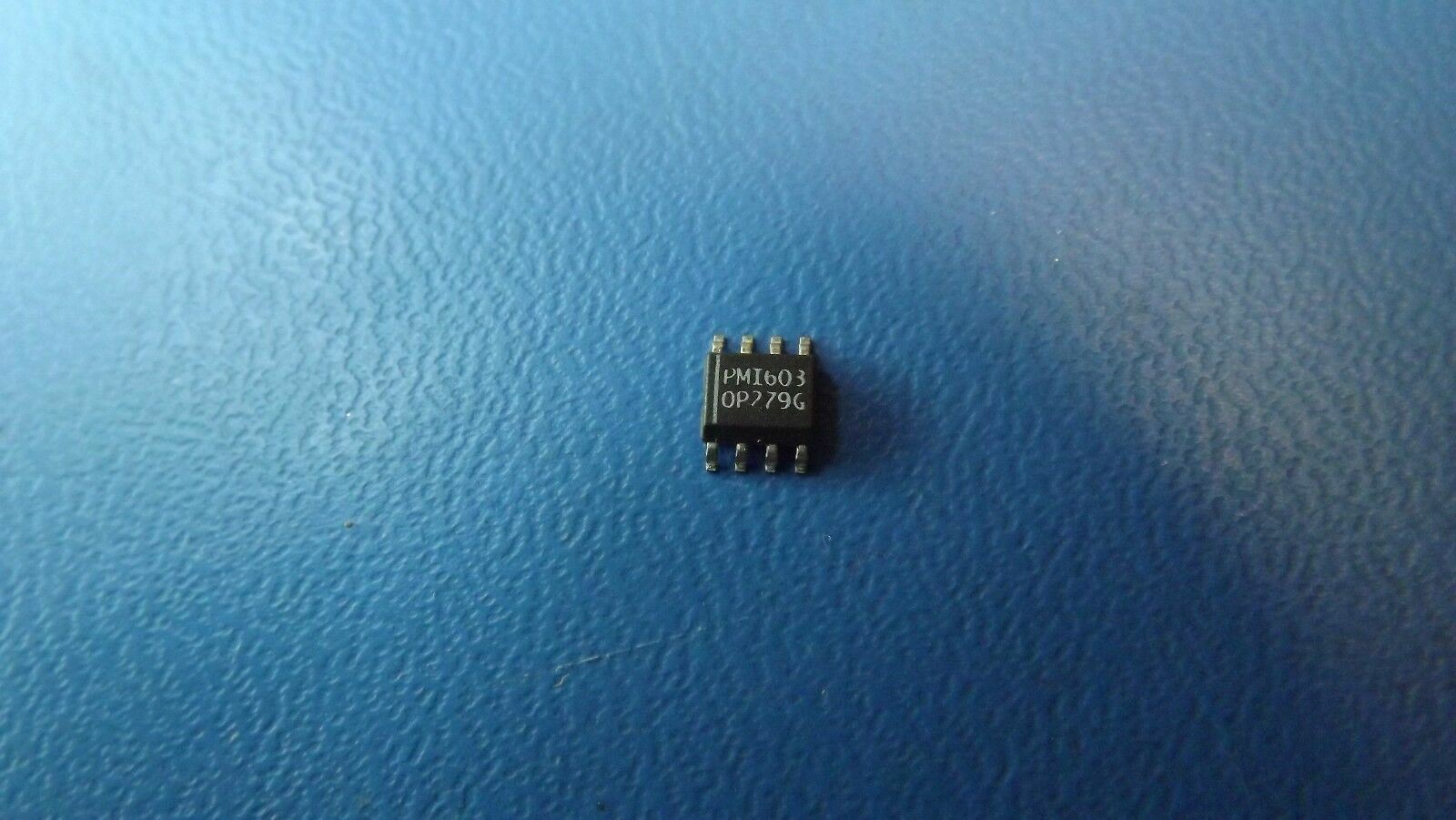

(5PCS) OP279GS ANALOG DEVICES Buffer Amplifier 2 Circuit Rail-to-Rail 8-SOIC

**THESE PARTS HAVE NEVER BEEN USED.  LEADS STRAIGHTENED. POSSIBLE TOOL MARKS ON LEADS.

Manufacturer: Analog Devices Inc.

Product Category: Operational Amplifiers - Op Amps

RoHS: N

Mounting Style: SMD/SMT

Package / Case: SOIC-8

Number of Channels: 2 Channel

Supply Voltage - Max: 12 V, +/- 6 V

GBP - Gain Bandwidth Product: 5 MHz

SR - Slew Rate: 3 V/us

Vos - Input Offset Voltage: 4 mV

Supply Voltage - Min: 4.5 V, +/- 2.25 V

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Ib - Input Bias Current: 300 nA

Operating Supply Current: 7 mA

Shutdown: No Shutdown

en - Input Voltage Noise Density: 22 nV/sqrt Hz

Series: OP279

Packaging: Tube

Amplifier Type: General Purpose Amplifier

Brand: Analog Devices

Dual Supply Voltage: +/- 3 V, +/- 5 V

Height: 1.5 mm (Max)

In - Input Noise Current Density: 1 pA/sqrt Hz

Input Type: Rail-to-Rail

Length: 5 mm (Max)

Maximum Dual Supply Voltage: +/- 6 V

Minimum Dual Supply Voltage: +/- 2.25 V

Operating Supply Voltage: 5 V, 9 V

Output Type: Rail-to-Rail

Product: Operational Amplifiers

Product Type: Op Amps - Operational Amplifiers
