(5PCS) OP270GP PMI OP Amp Dual GP ±18V 8-Pin PDIP
Tax included.

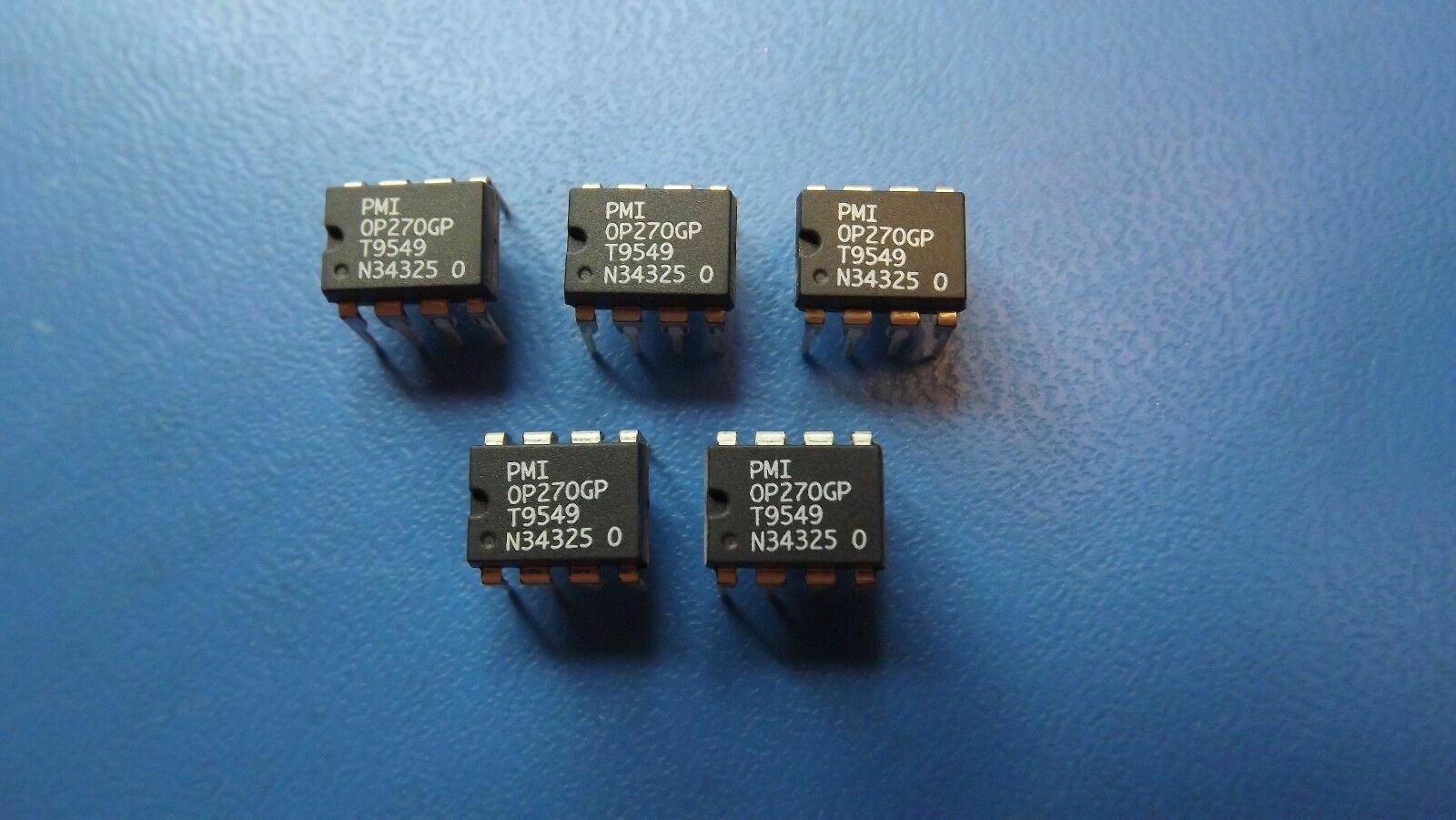

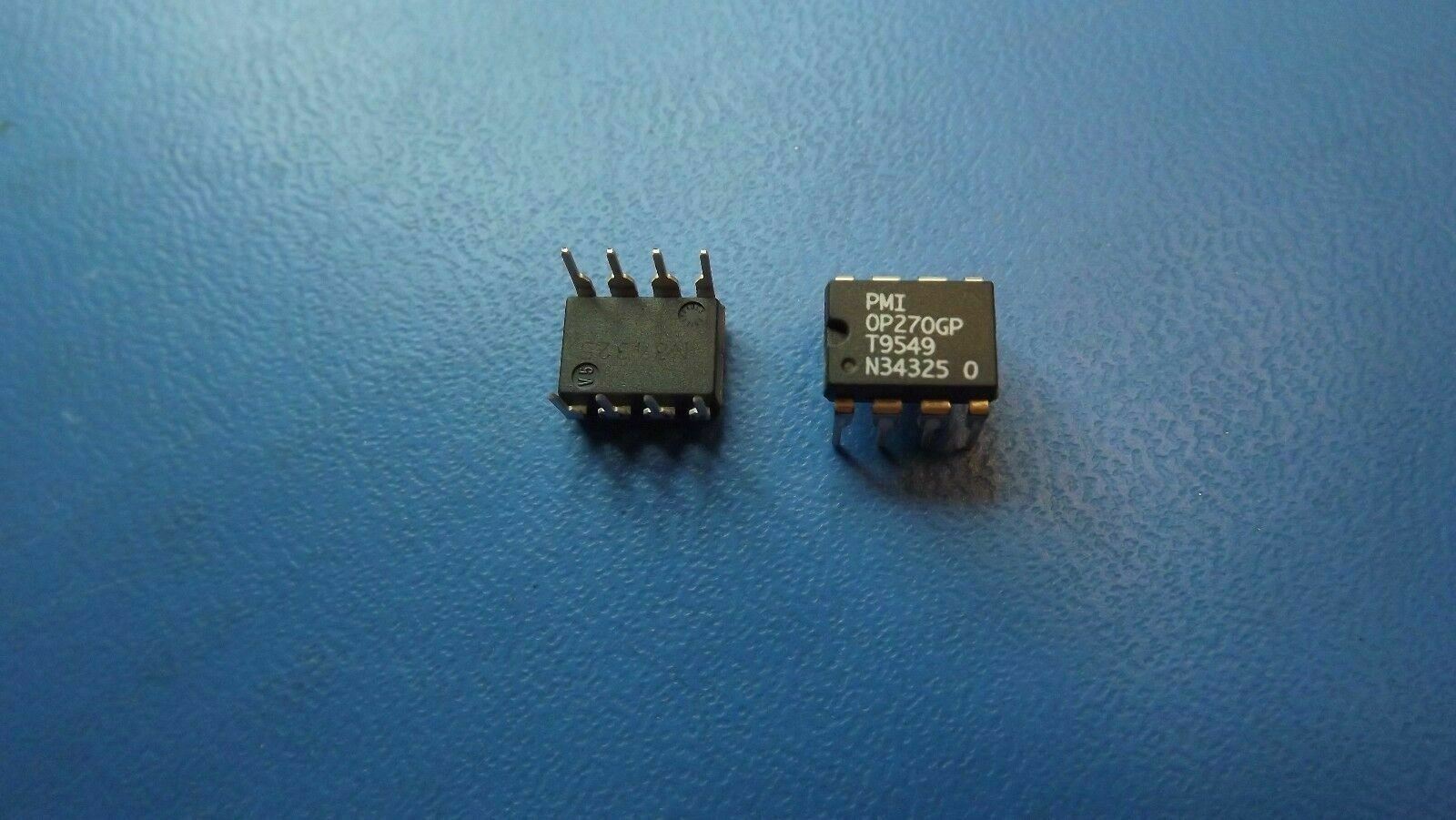

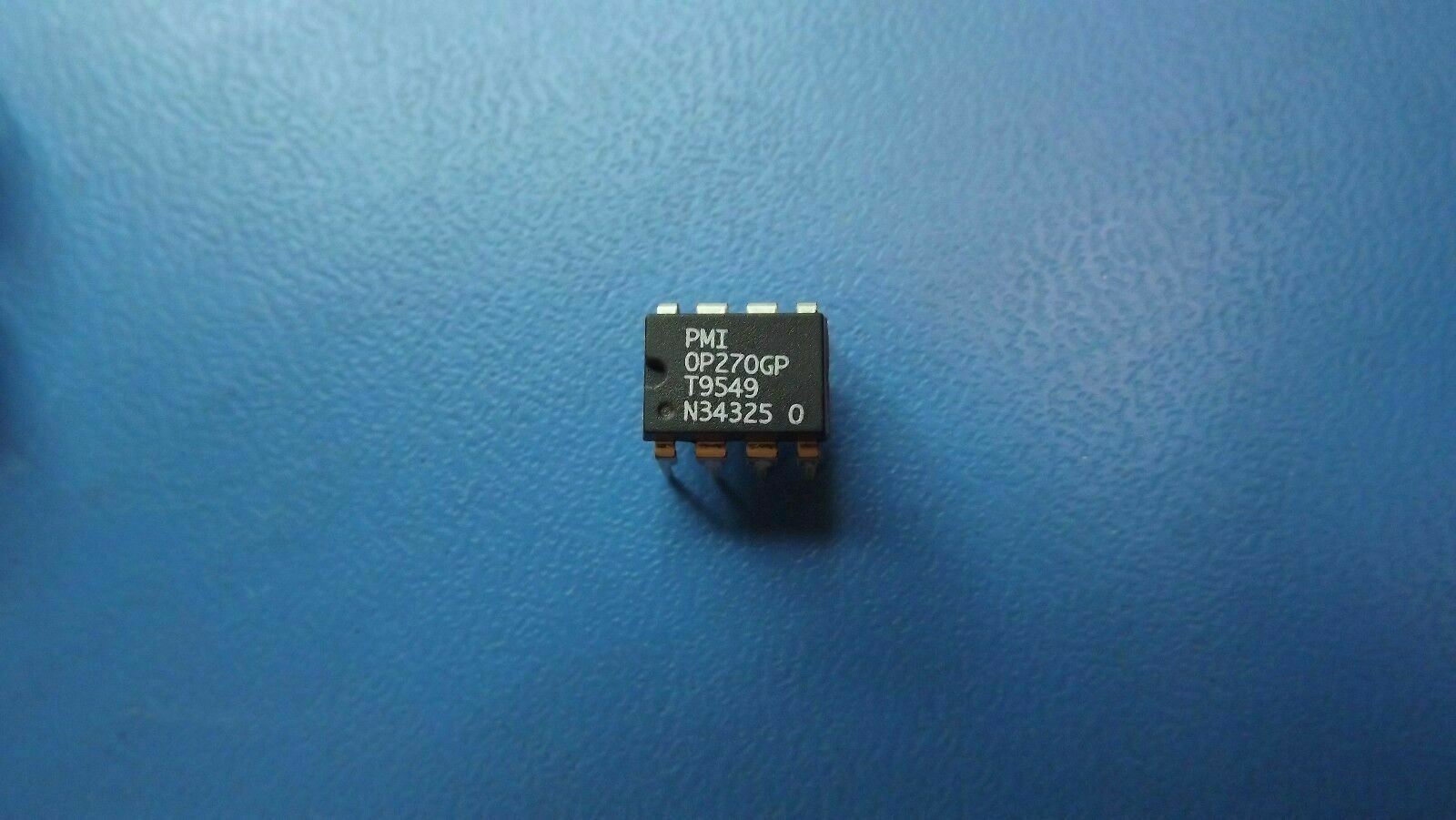

THIS LISTING IS FOR (5PCS) OF OP270GP BY PMI
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MS-001, DIP-8 |
| REACH Compliant | Yes |
| Status | Active |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.08 µA |
| Bias Current-Max (IIB) @25C | 0.06 µA |
| Common-mode Reject Ratio-Nom | 100.0 dB |
| Common-mode Reject Ratio-Min | 90.0 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 400.0 µV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | YES |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Neg Supply Voltage Limit-Max | -18.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Power Supplies (V) | +-15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.33 mm |
| Slew Rate-Nom | 2.4 V/us |
| Slew Rate-Min | 1.7 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 7.2 mA |
| Supply Voltage Limit-Max | 18.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Unity Gain BW-Nom | 5000.0 kHz |
| Voltage Gain-Min | 350000.0 |
| Length | 9.27 mm |
| Width | 7.62 mm |
