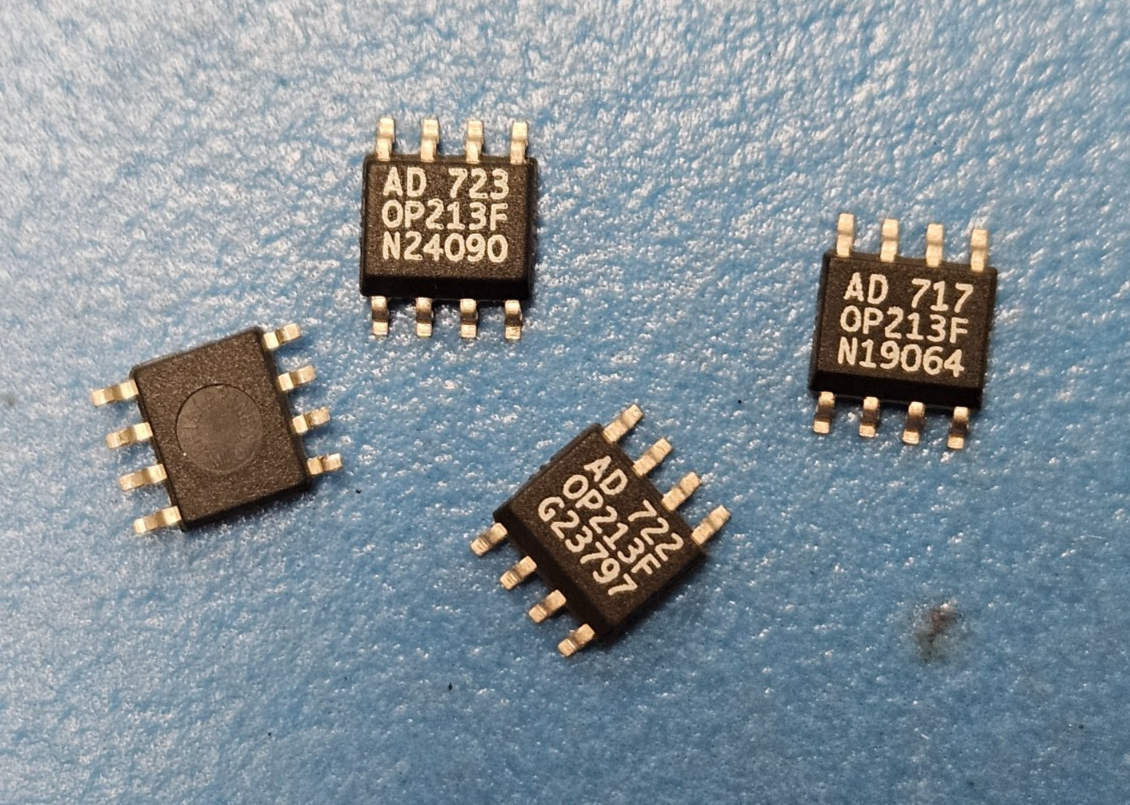

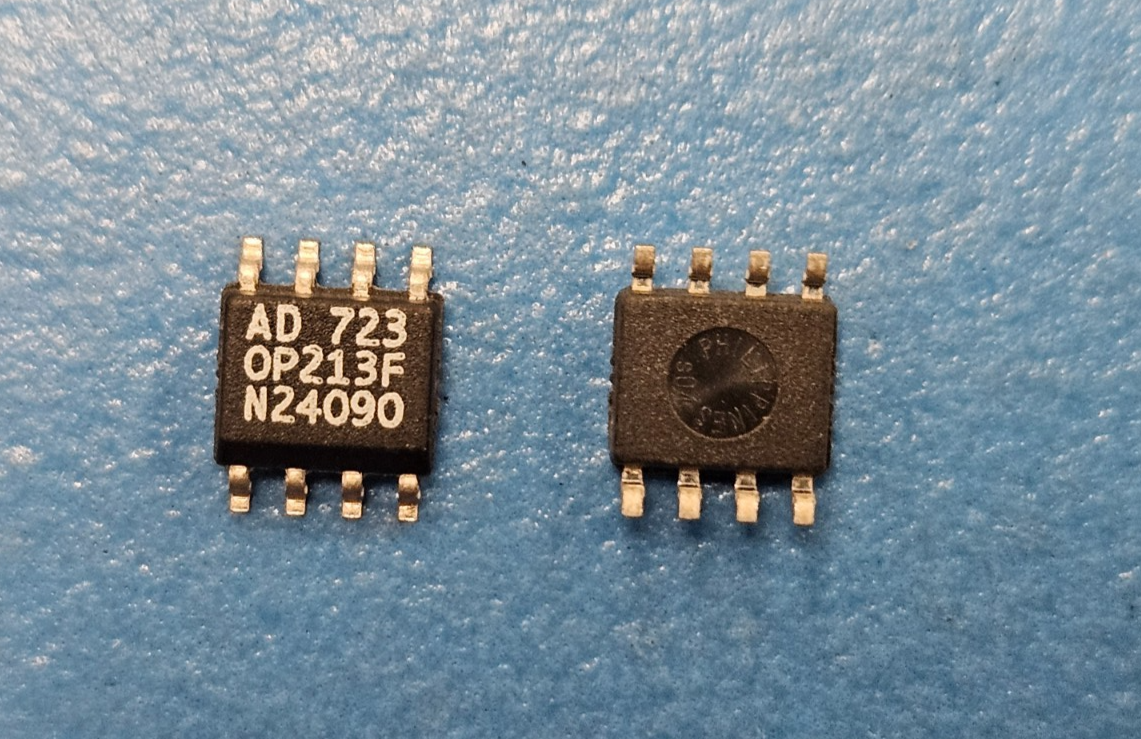

(5PCS) OP213FS Operational Amplifier, 2 Func, 325uV Offset-Max, BIPolar, SOIC8
Tax included.
This listing is for (5PCS) of OP213FS by Analog Devices
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Amp Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) (uA) 0.7000000000000000
Bias Current-Max (IIB) @25C (uA) 0.6500000000000000
Common-mode Reject Ratio-Min (dB) 87
Common-mode Reject Ratio-Nom (dB) 94
Frequency Compensation YES
Input Offset Voltage-Max (uV) 325.00000000
JESD-30 Code R-PDSO-G8
J-STD-609 Code e0
Length (mm) 4.9000
Low-Bias YES
Low-Offset YES
Micropower NO
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max (V) -18.0000
Negative Supply Voltage-Nom (V) -15.0000
Number of Functions 2
Number of Terminals 8
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40.0000
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE

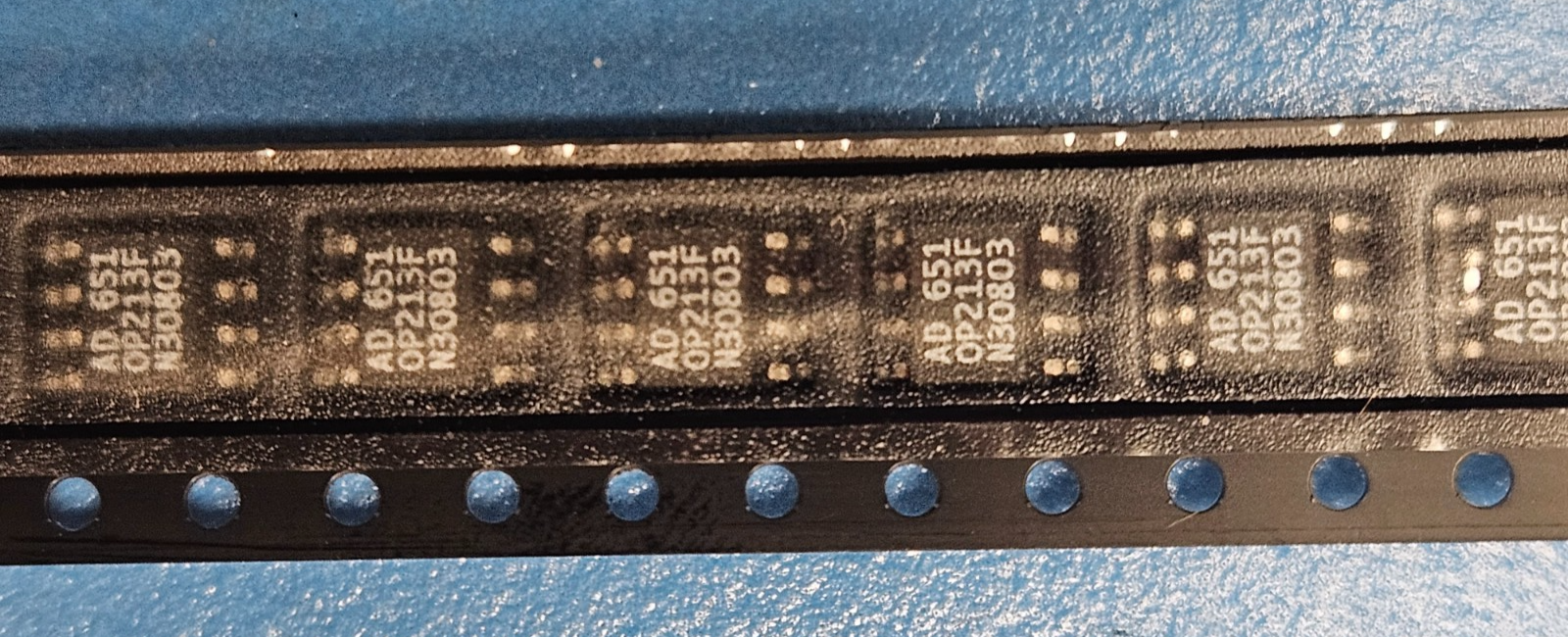

Packing Method TR
Peak Reflow Temperature (Cel) 240
Power YES
Programmable Power YES
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.7500
Slew Rate-Min (V/us) 0.60000000
Slew Rate-Nom (V/us) 1.20000000
Supply Current-Max (mA) 5.00000000
Supply Voltage Limit-Max (V) 18.0000
Supply Voltage-Nom (V) 15
Surface Mount YES
Technology BIPOLAR
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Unity Gain BW-Nom (kHz) 3400.0000000000000000
Voltage Gain-Min 2000000.0000000000000000
Wideband YES
Width (mm) 3.9000
