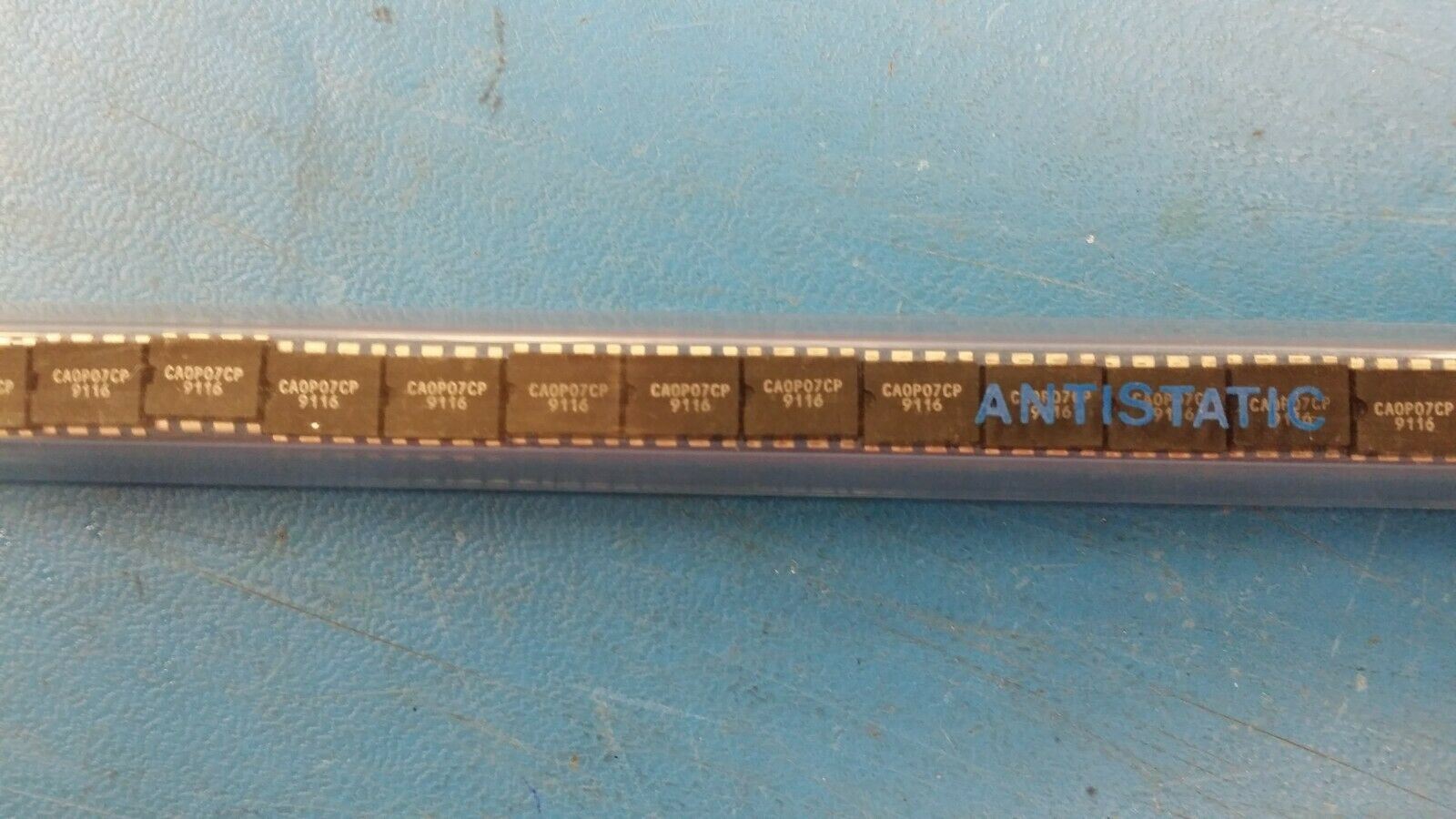

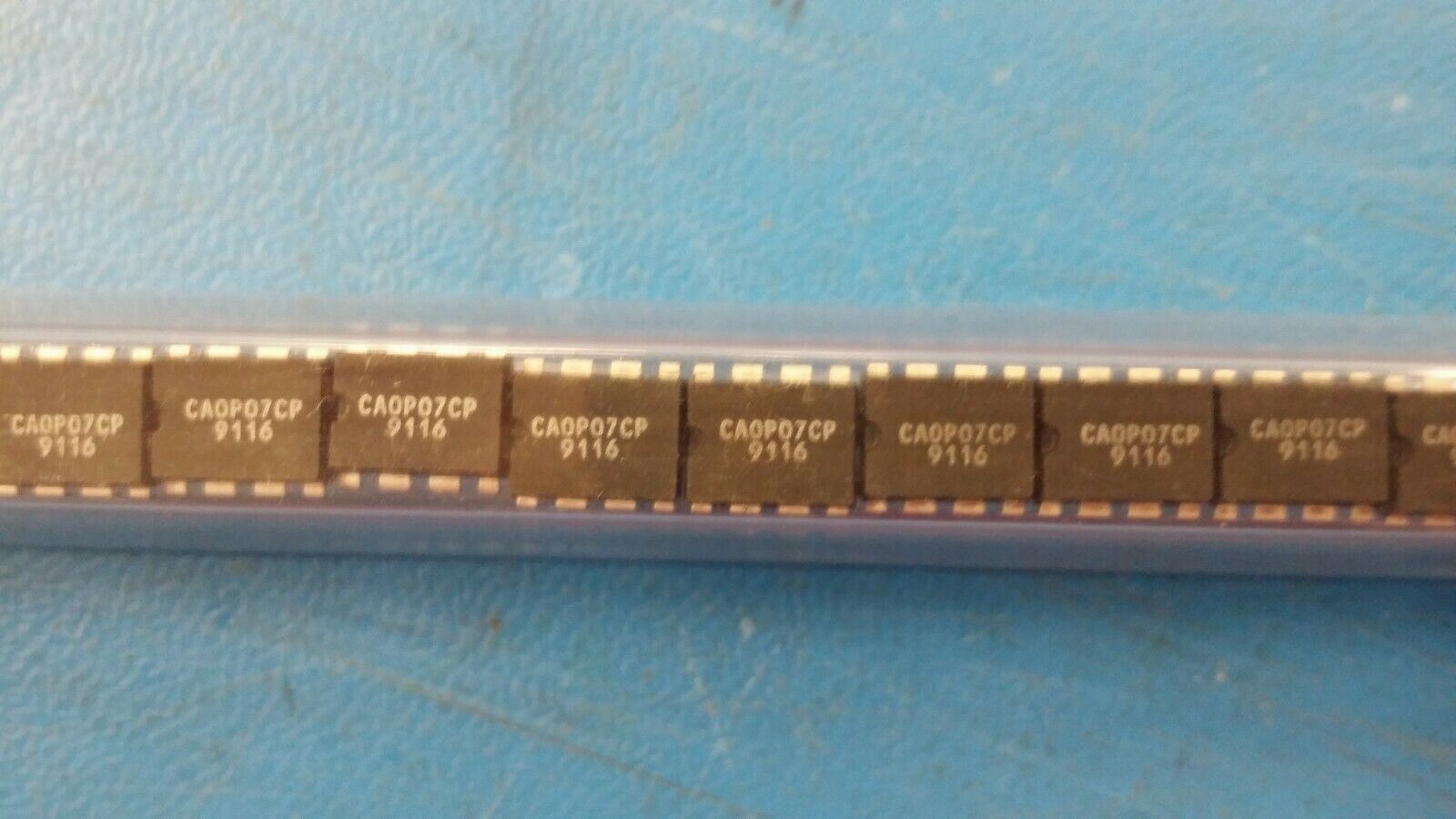

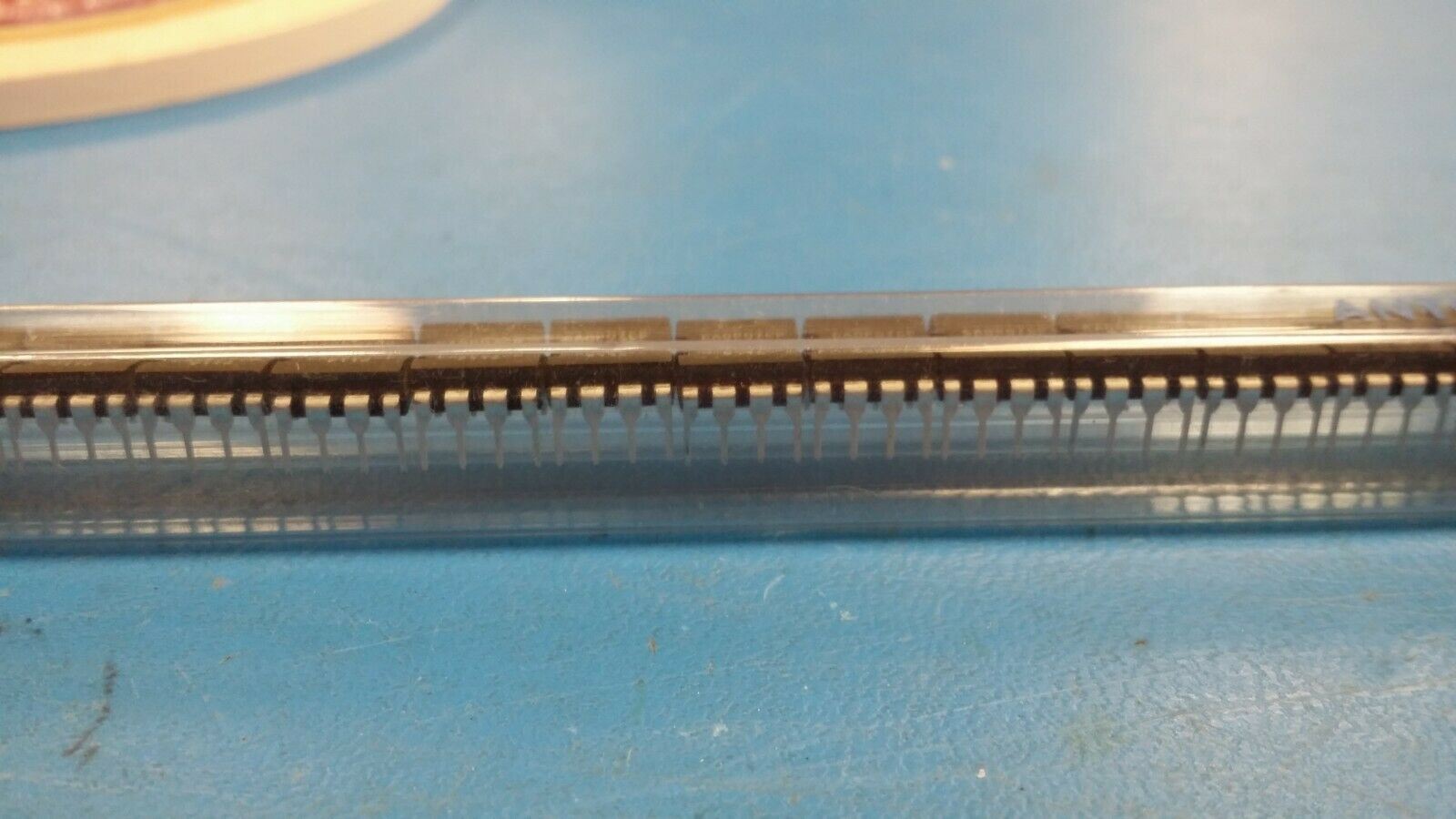

(5pcs) OP07CP Op Amp Single Precision Amplifier ±18V 8-Pin PDIP Tube

$12.95
Unit price per

Tax included.

Each order is for 5pcs.

Series: OP07C
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 600 kHz
SR - Slew Rate: 300 mV/us
CMRR - Common Mode Rejection Ratio: 120 dB
Output Current per Channel: 1.2 mA
Ib - Input Bias Current: 1.8 nA
Vos - Input Offset Voltage: 60 uV
en - Input Voltage Noise Density: 10.2 nV/sqrt Hz
Supply Voltage - Max: 18 V
Supply Voltage - Min: 3 V
Operating Supply Current: 2 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Mounting Style: Through Hole
Package / Case: PDIP-8
Packaging: Tube
Amplifier Type: Low Offset Amplifier
Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 4.57 mm
In - Input Noise Current Density: 0.35 pA/sqrt Hz
Length: 9.81 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 3 V
Operating Supply Voltage: 6 V to 36 V, +/- 3 V to +/- 18 V
