(5PCS) OP02EP PMI OP-AMP,SINGLE,BIPOLAR,DIP,8PIN
Tax included.

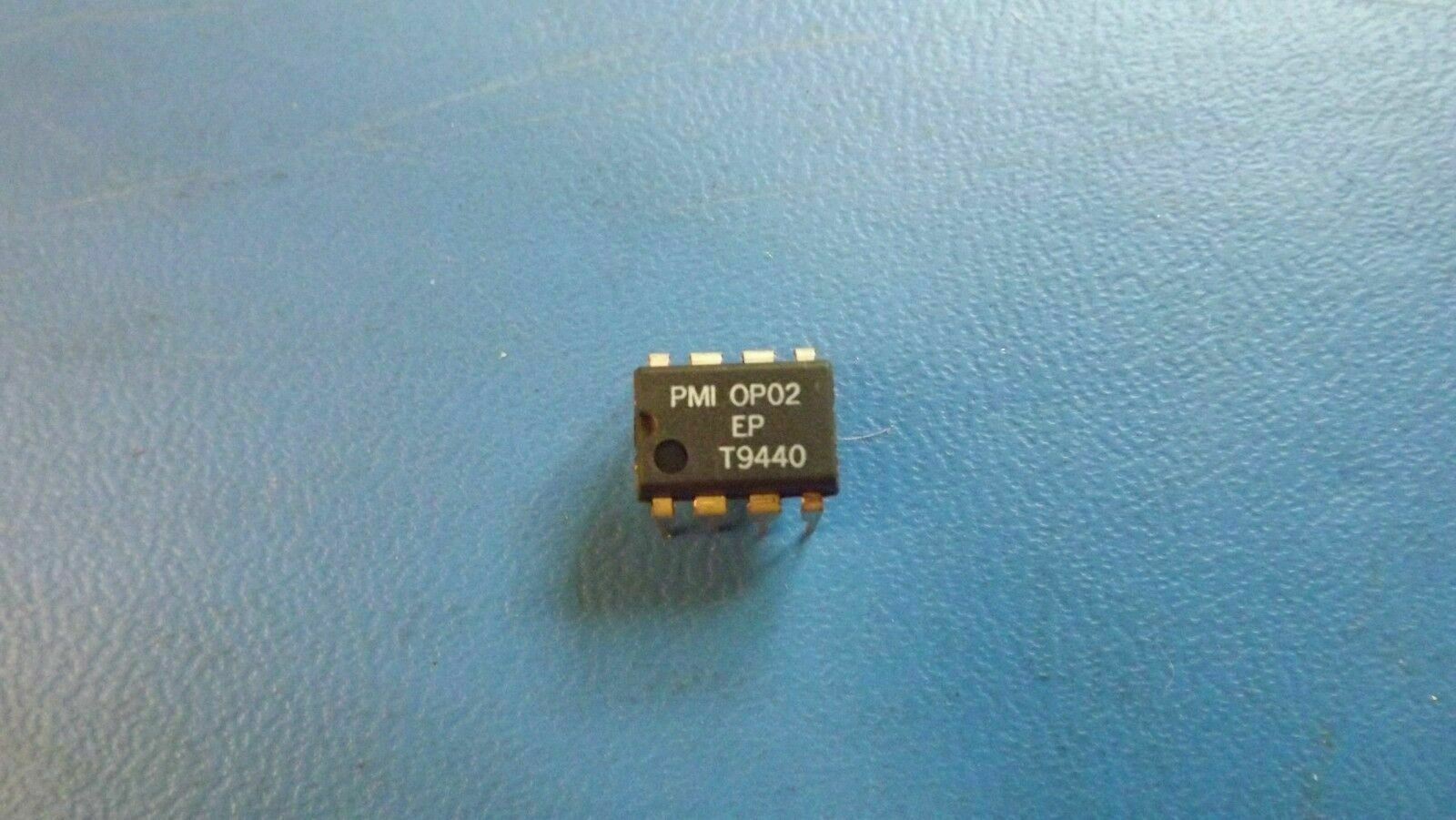

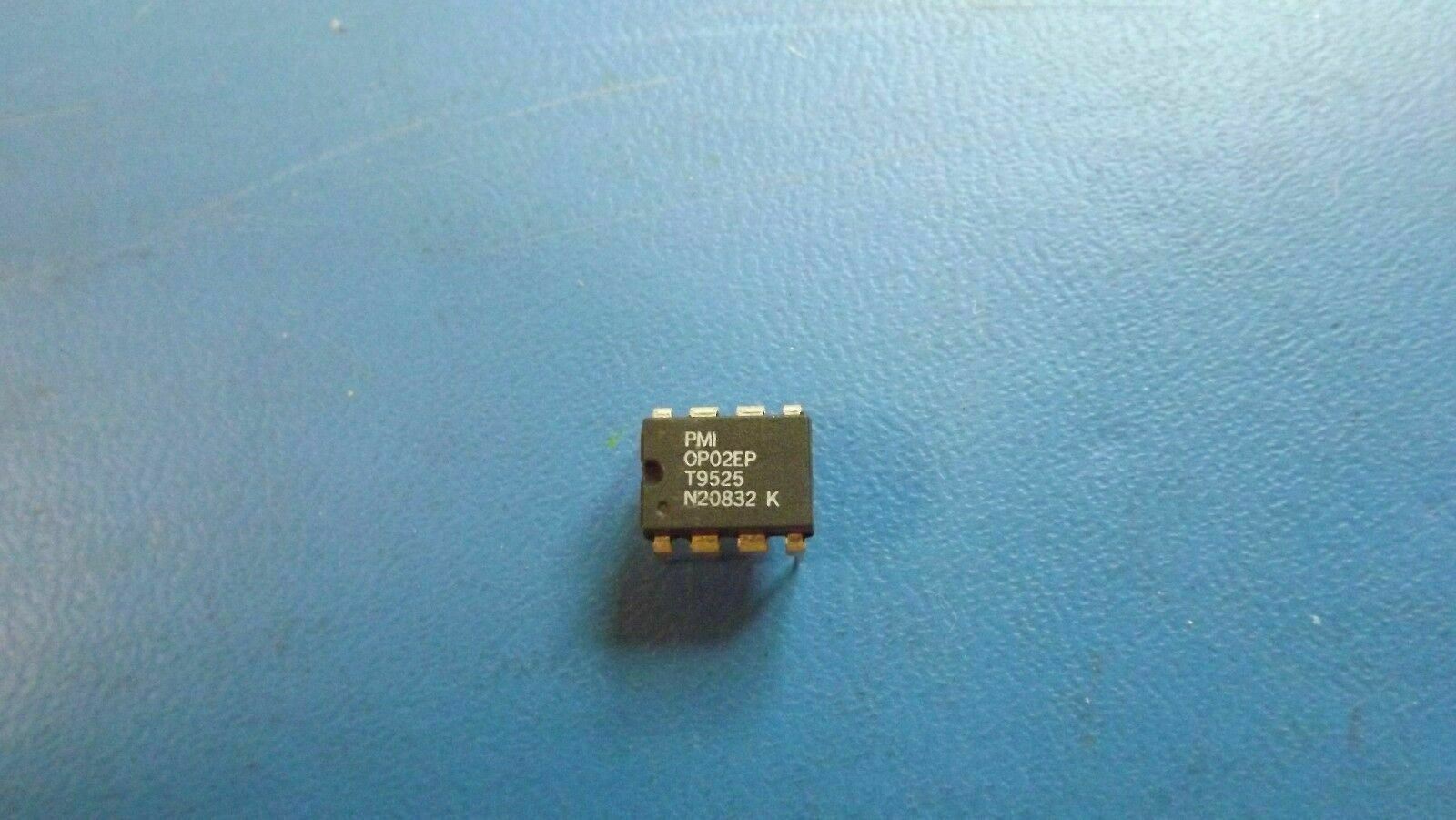

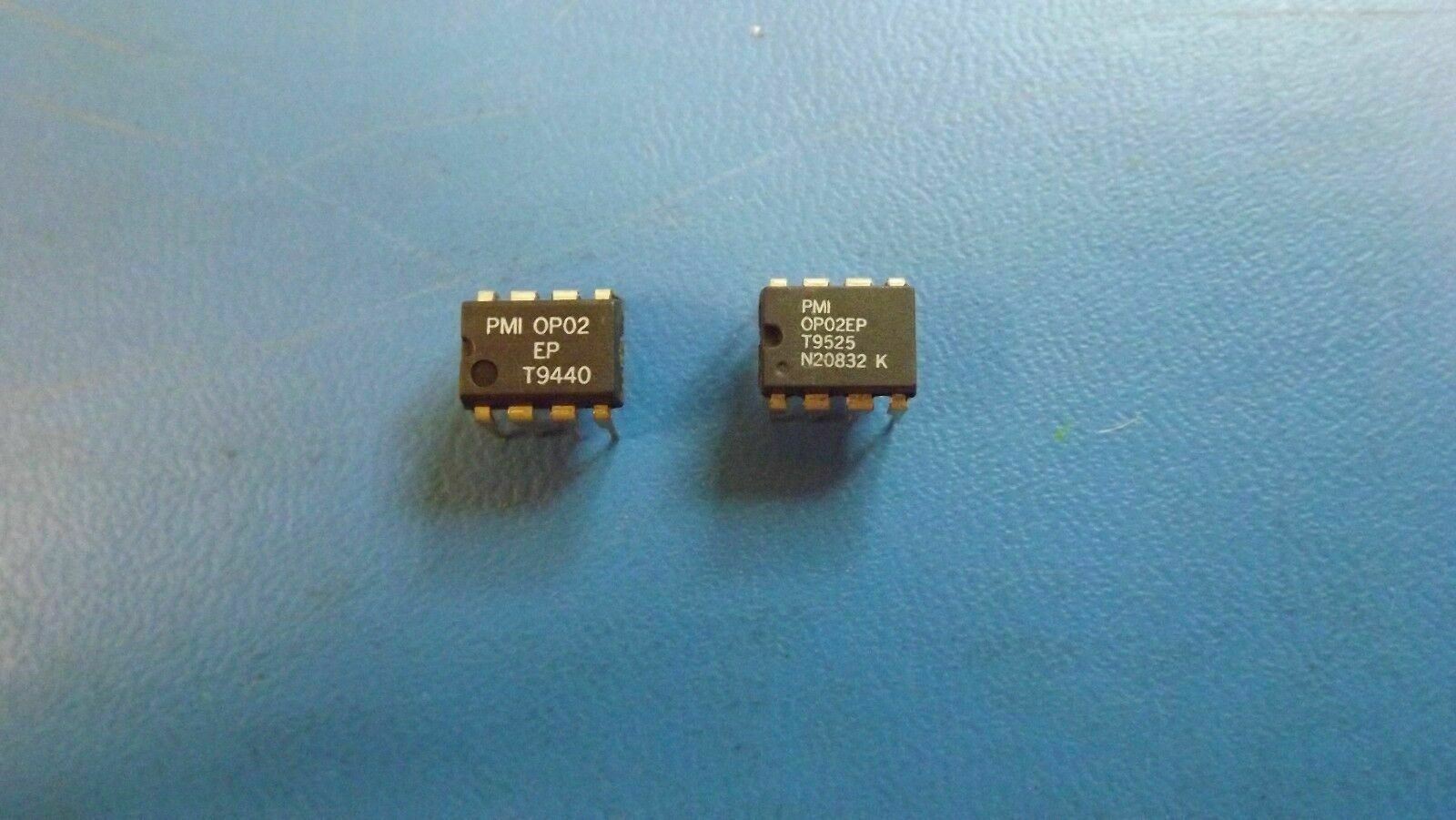

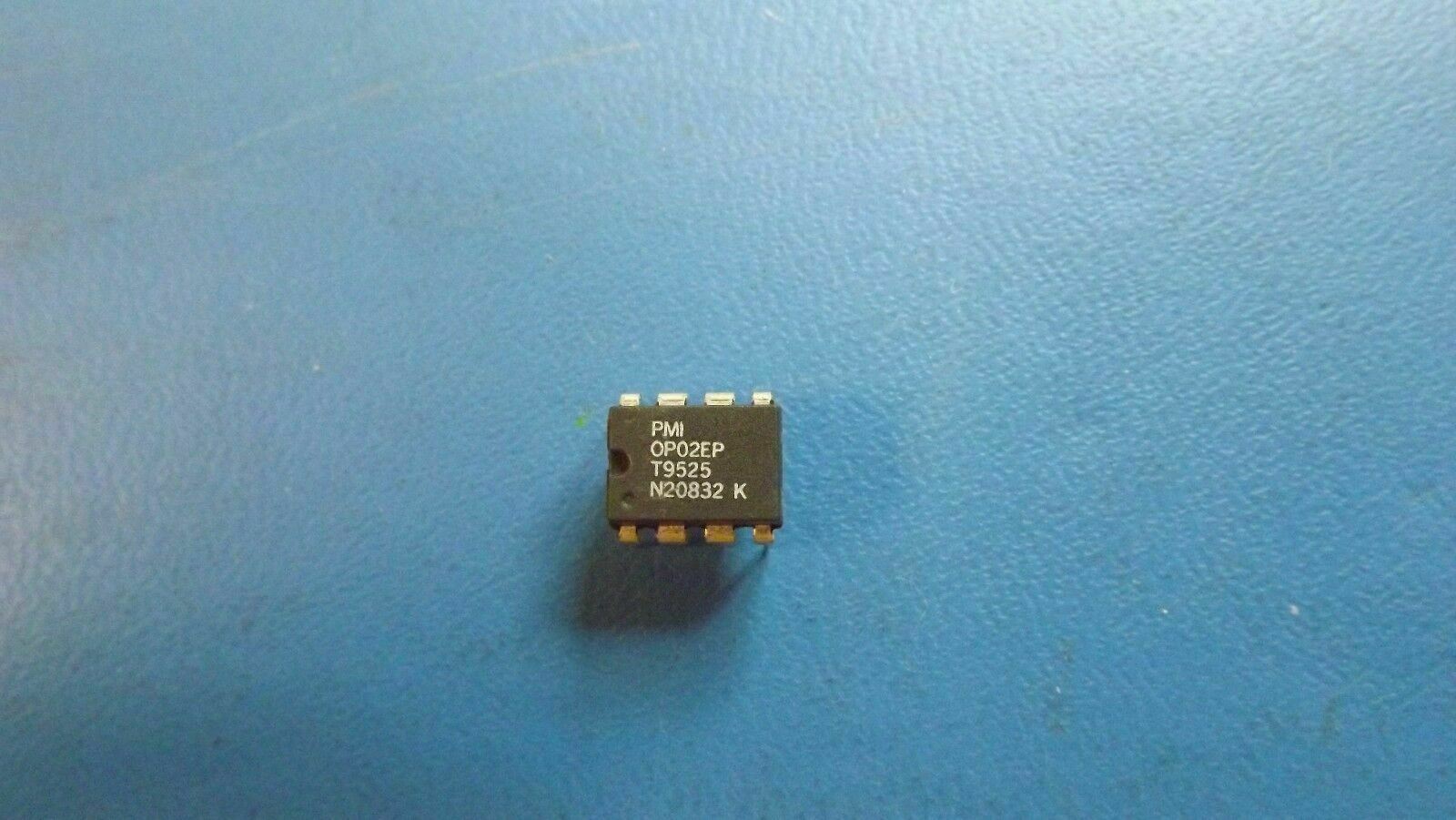

THIS LISTING IS FOR (5PCS) OF OP02EP PMI

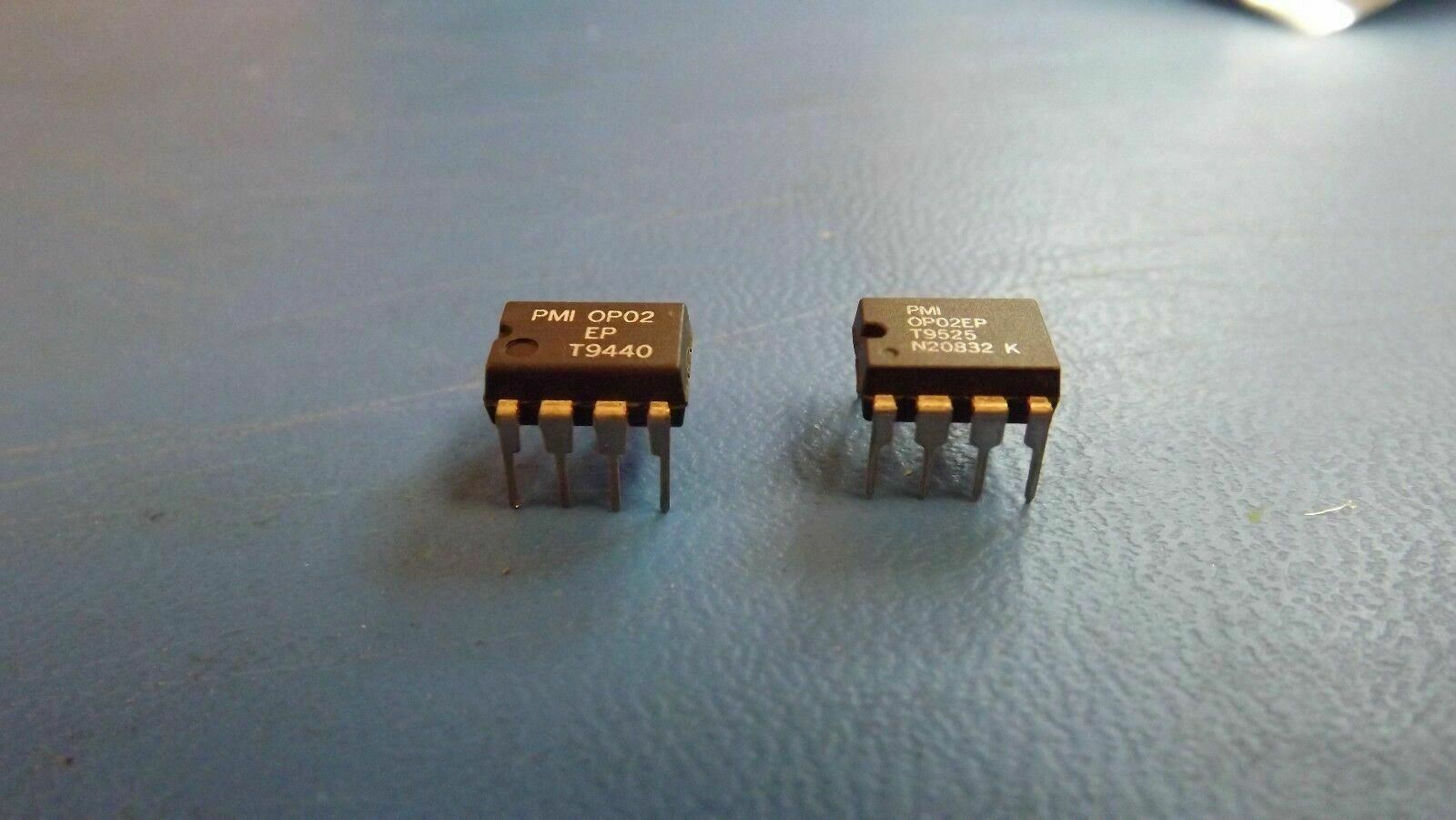

**LISTED AS REFURBISHED BECAUSE LEADS NEEDED STRAIGHTENING AND TOPS HAVE SOME SCRATCHES, BUT THEY HAVE NEVER BEEN USED.
SPECIFICATIONS
| Status | Transferred |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 1000.0 µV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Low-Offset | NO |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | +-15 |
| Qualification Status | Not Qualified |
| Slew Rate-Min | 0.25 V/us |
| Sub Category | Operational Amplifiers |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
