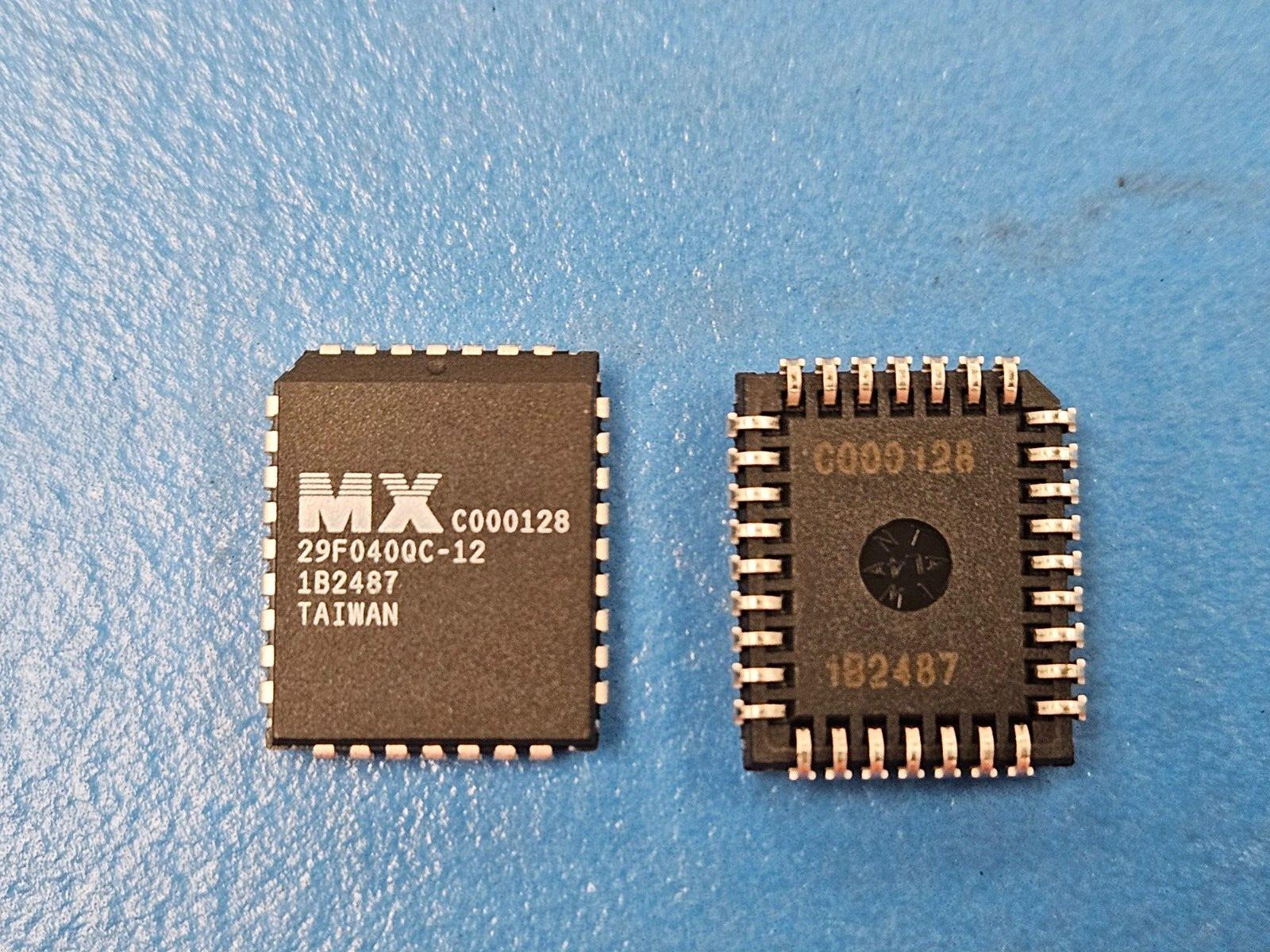

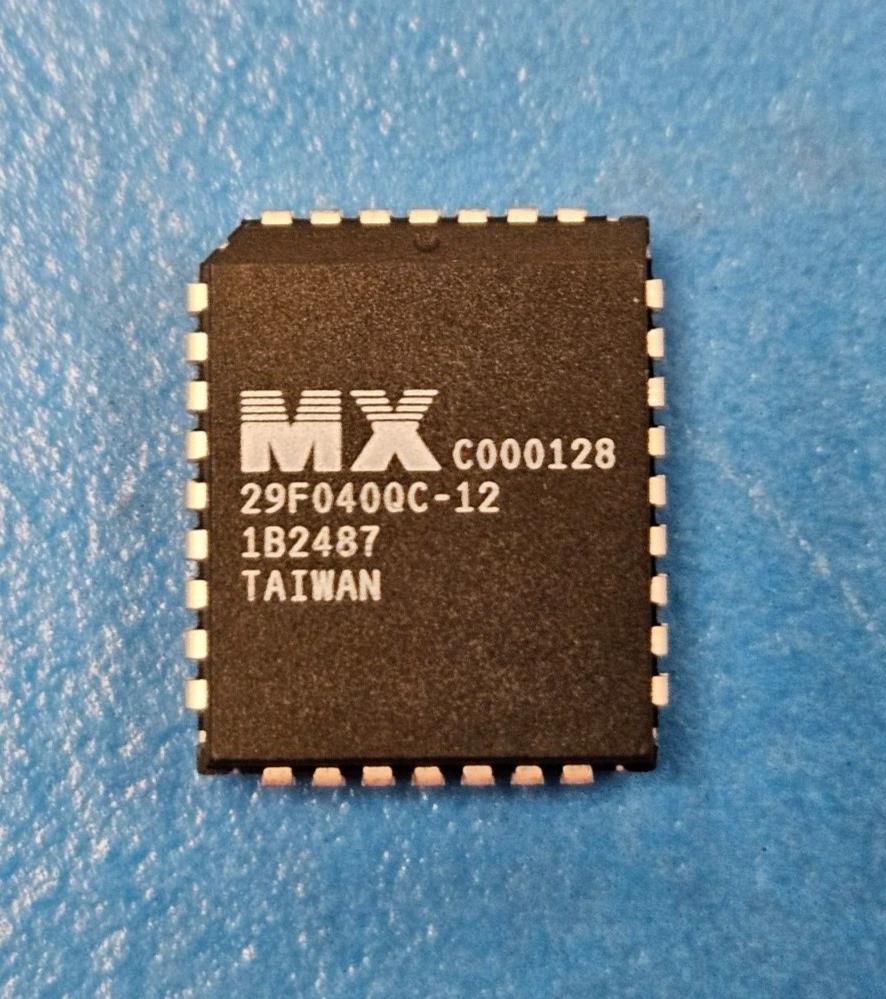

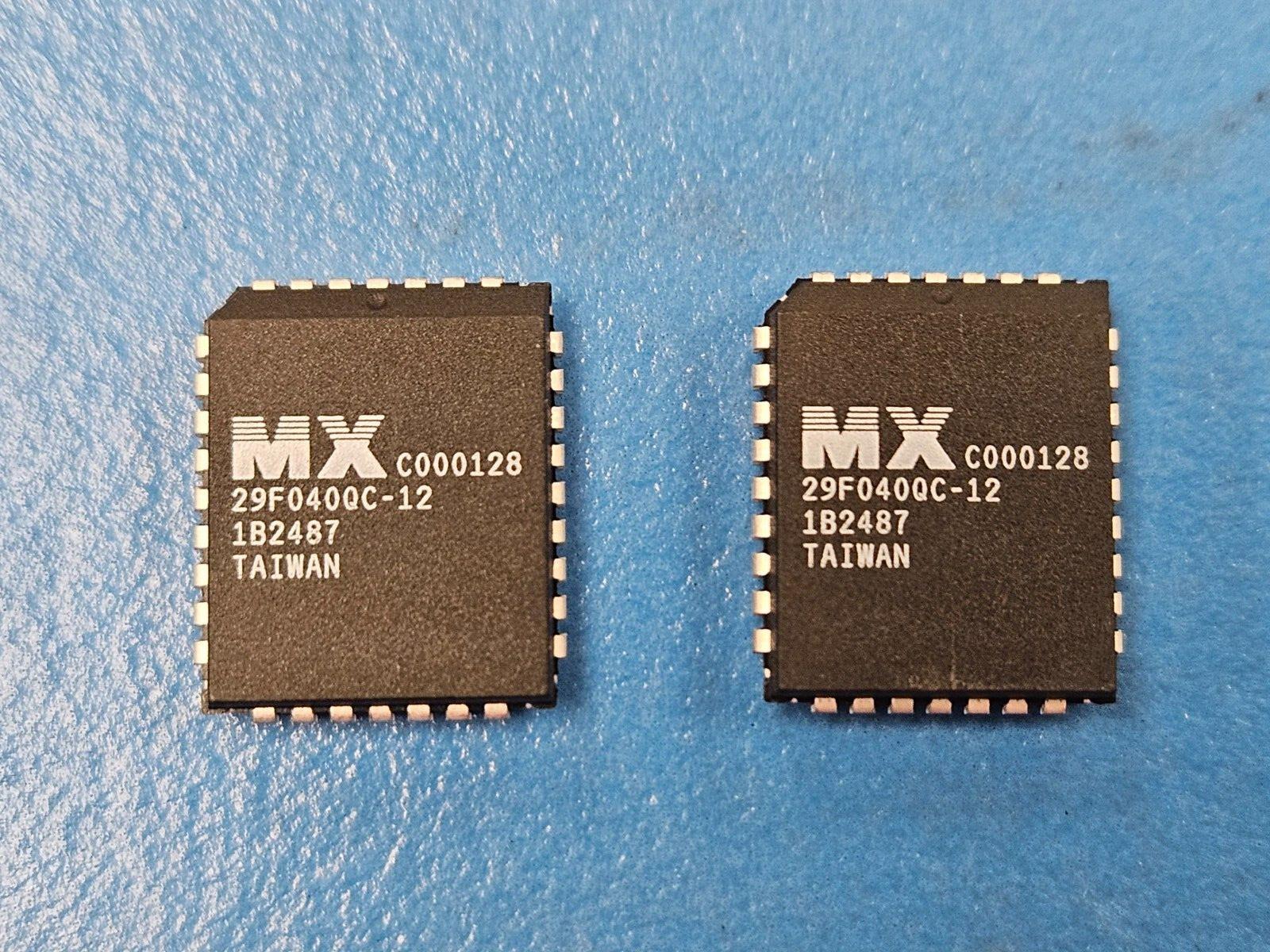

(5PCS) MX29F040QC-12 Flash, 512KX8, 120ns, PLCC-32
Tax included.
This listing is for (5PCS) of MX29F040QC12 by Macronix
Mfr Package Description PLASTIC, MS-016, LCC-32
Status Discontinued
Type NOR TYPE
Sub Category Flash Memories
Access Time-Max 120.0 ns
Command User Interface YES
Data Polling YES
Endurance 100000.0 Write/Erase Cycles
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type FLASH
Memory Width 8
Number of Functions 1
Number of Sectors/Size 8
Number of Terminals 32
Number of Words 524288.0 words
Number of Words Code 512K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 512KX8
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.55 mm
Standby Current-Max 5.0E-6 Amp
Supply Current-Max 0.03 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Toggle Bit YES
Length 14.05 mm
Width 11.43 mm
