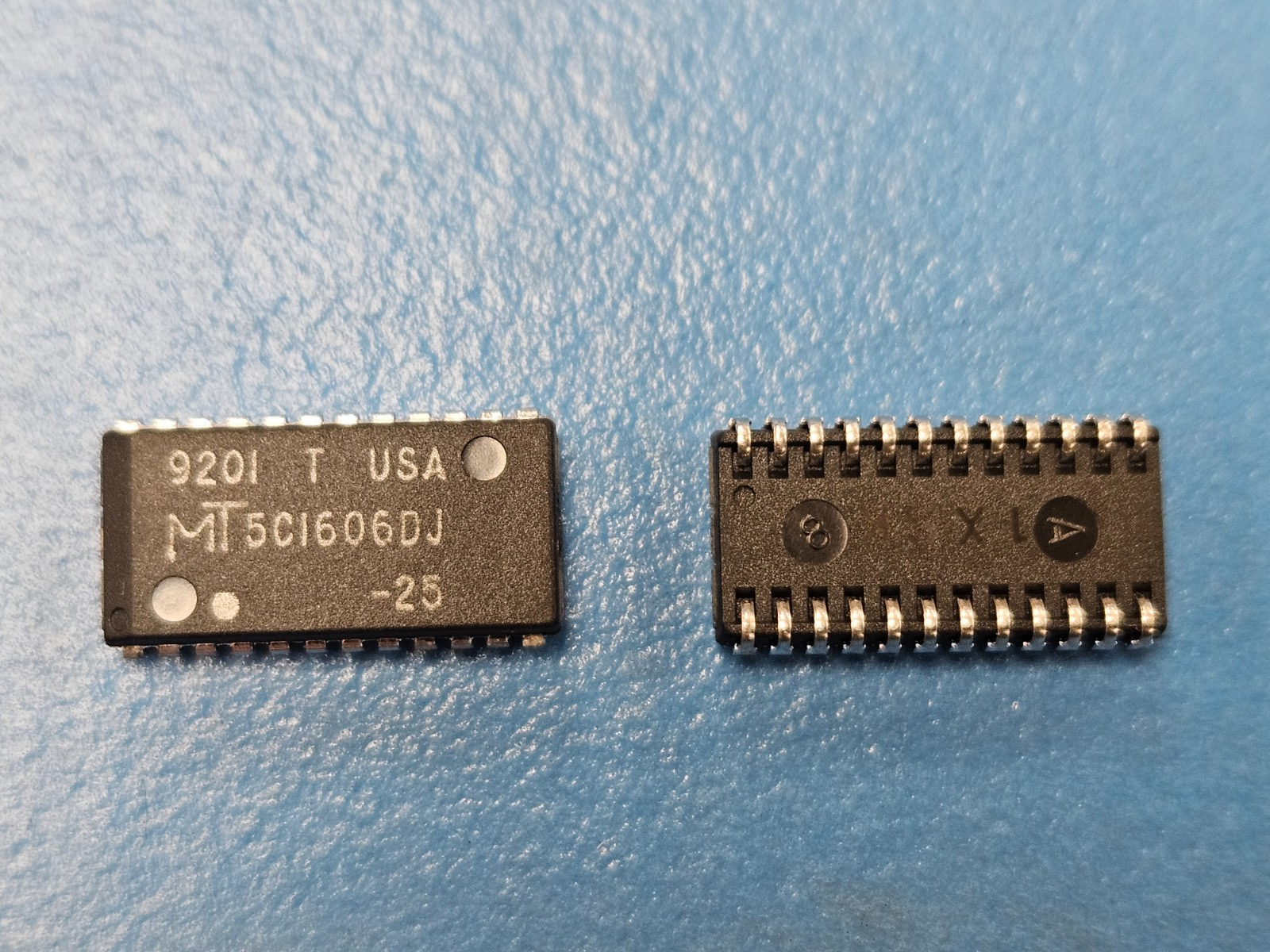

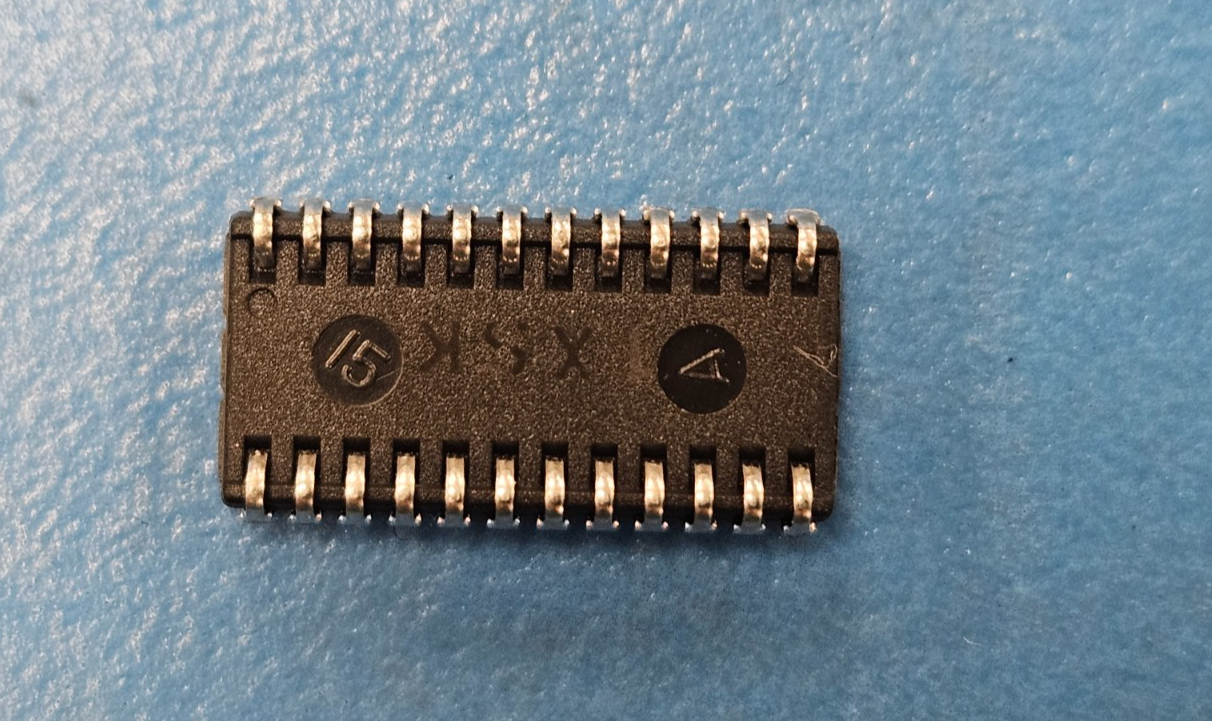

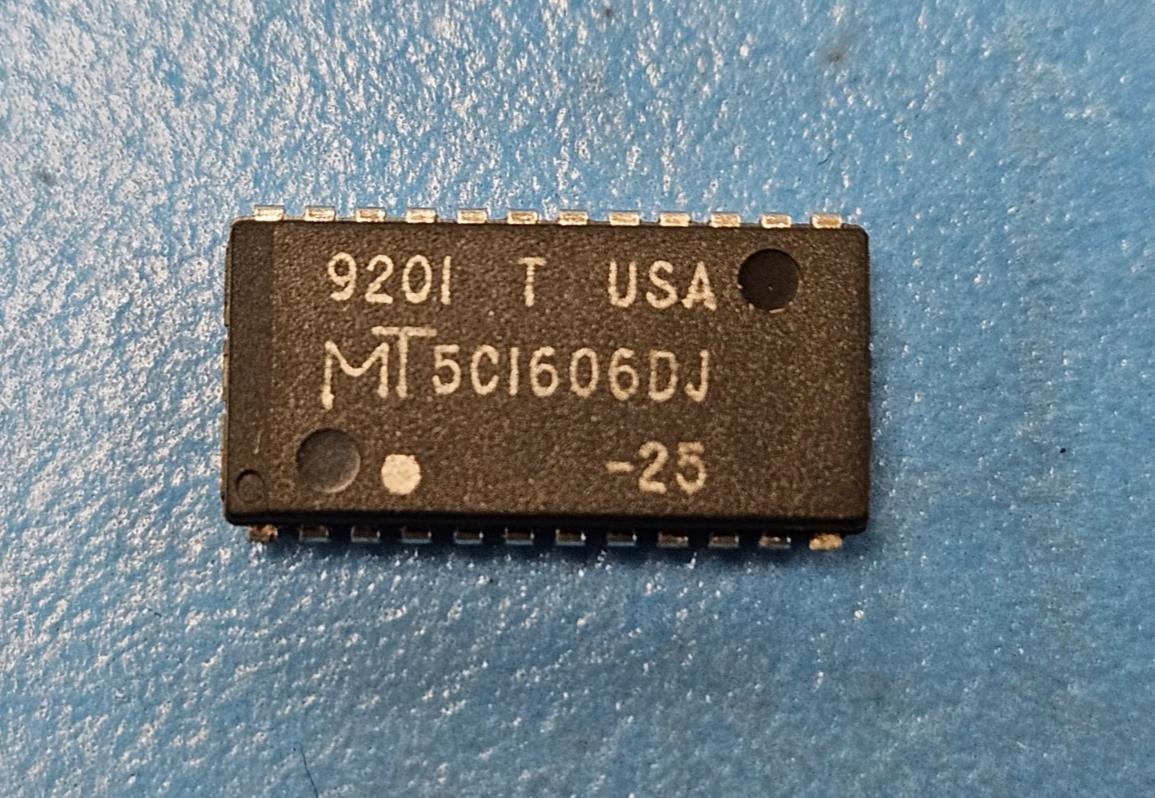

(5PCS) MT5C1606DJ-25 Standard SRAM, 4KX4, 25ns, CMOS, SOJ24
(5PCS) MT5C1606DJ-25 Standard SRAM, 4KX4, 25ns, CMOS, SOJ24
(5PCS) MT5C1606DJ-25 Standard SRAM, 4KX4, 25ns, CMOS, SOJ24

(5PCS) MT5C1606DJ-25 Standard SRAM, 4KX4, 25ns, CMOS, SOJ24

Tax included.
Only 160 left!
This listing is for (5PCS) of MT5C1606DJ-25 by Micron

Status Discontinued
Access Time-Max (ns) 25.0000000000000000
I/O Type SEPARATE
JESD-30 Code R-PDSO-J24
J-STD-609 Code e0
Length (mm) 15.9000
Memory Density (bits) 16384.0000000000000000
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Terminals 24
Number of Words (words) 4096.0000000000000000
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 4KX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ24,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.6100
Standby Current-Max (A) 0.003000000000000
Standby Voltage-Min (V) 4.500000
Supply Current-Max (mA) 100.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 7.6200
