(5PCS) MIC2954-03WS MICROCHIP TECHNOLOGY IC REG LINEAR 5V 250MA SOT223
Tax included.

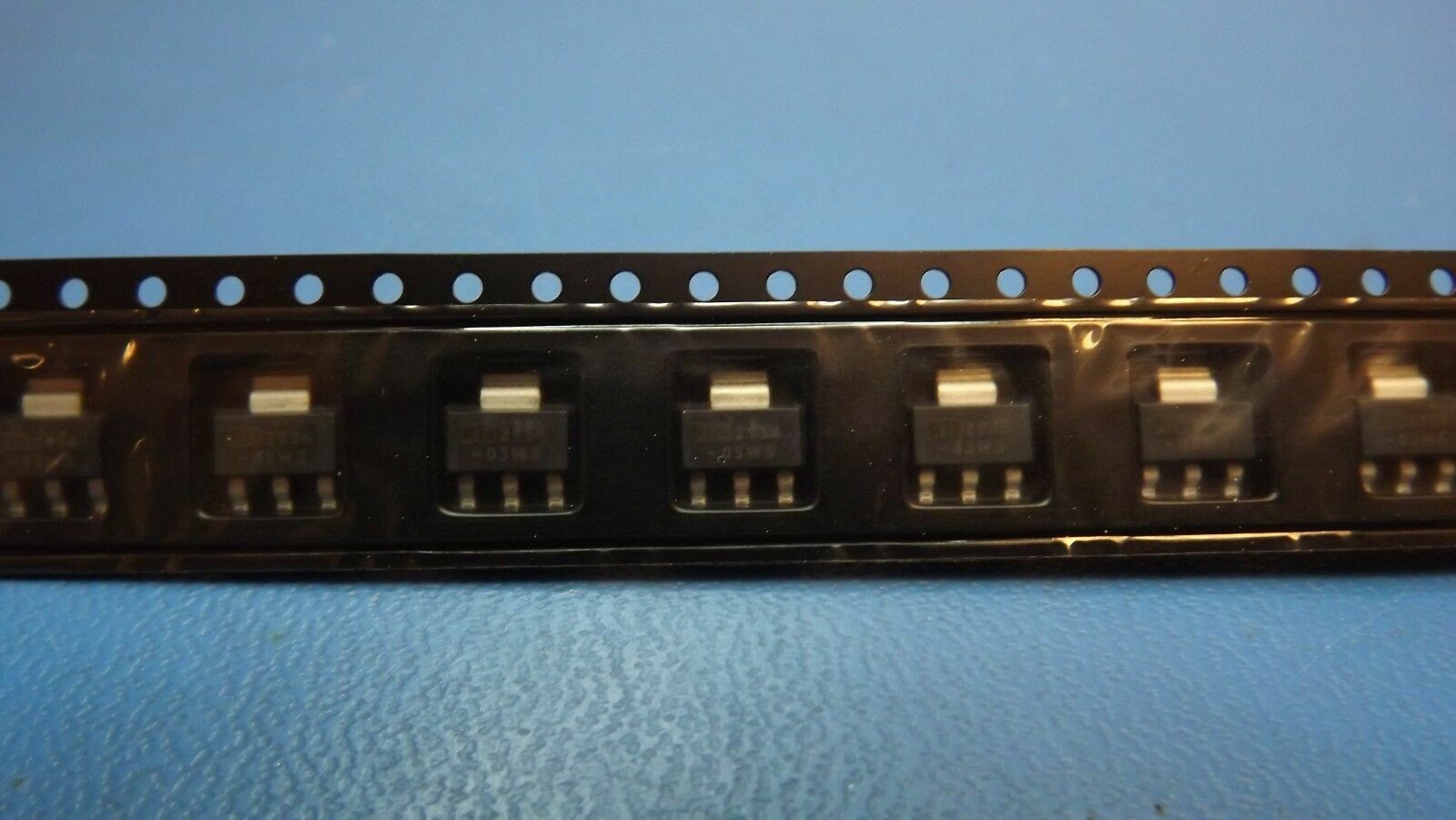

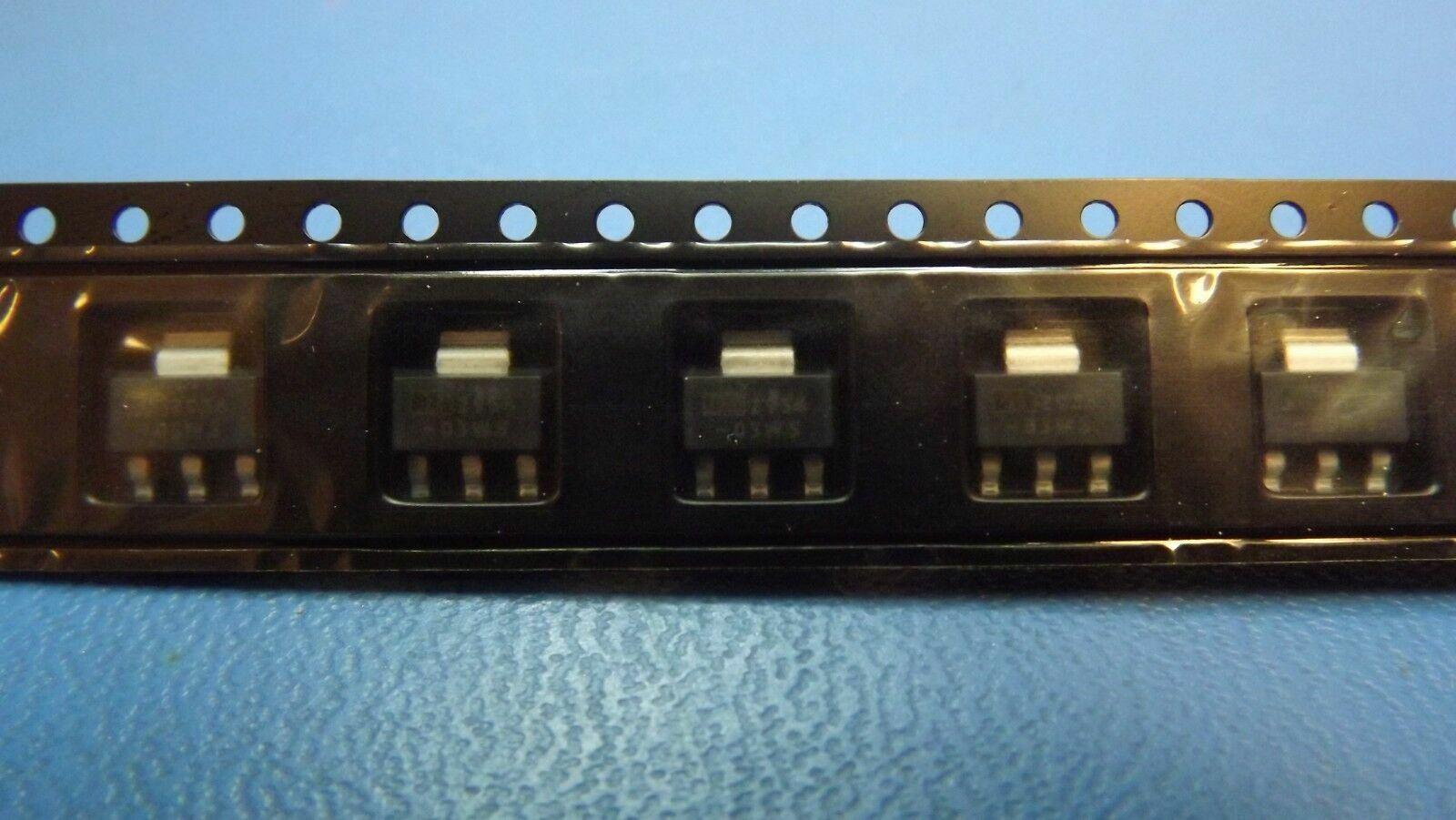

THIS LISTING IS FOR (5PCS) OF MIC2954-03WS BY MICROCHIP TECHNOLOGY
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, TO-261, SOT-223, 4 PIN |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Transferred |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Dropout Voltage1-Max | 0.6 V |
| Input Voltage-Min | 2.0 V |
| Input Voltage-Max | 30.0 V |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 3 |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.25 A |
| Output Voltage1-Nom | 5.0 V |
| Output Voltage1-Min | 4.88 V |
| Output Voltage1-Max | 5.12 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.8 mm |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 2.3 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 6.5 mm |
| Width | 3.5 mm |
