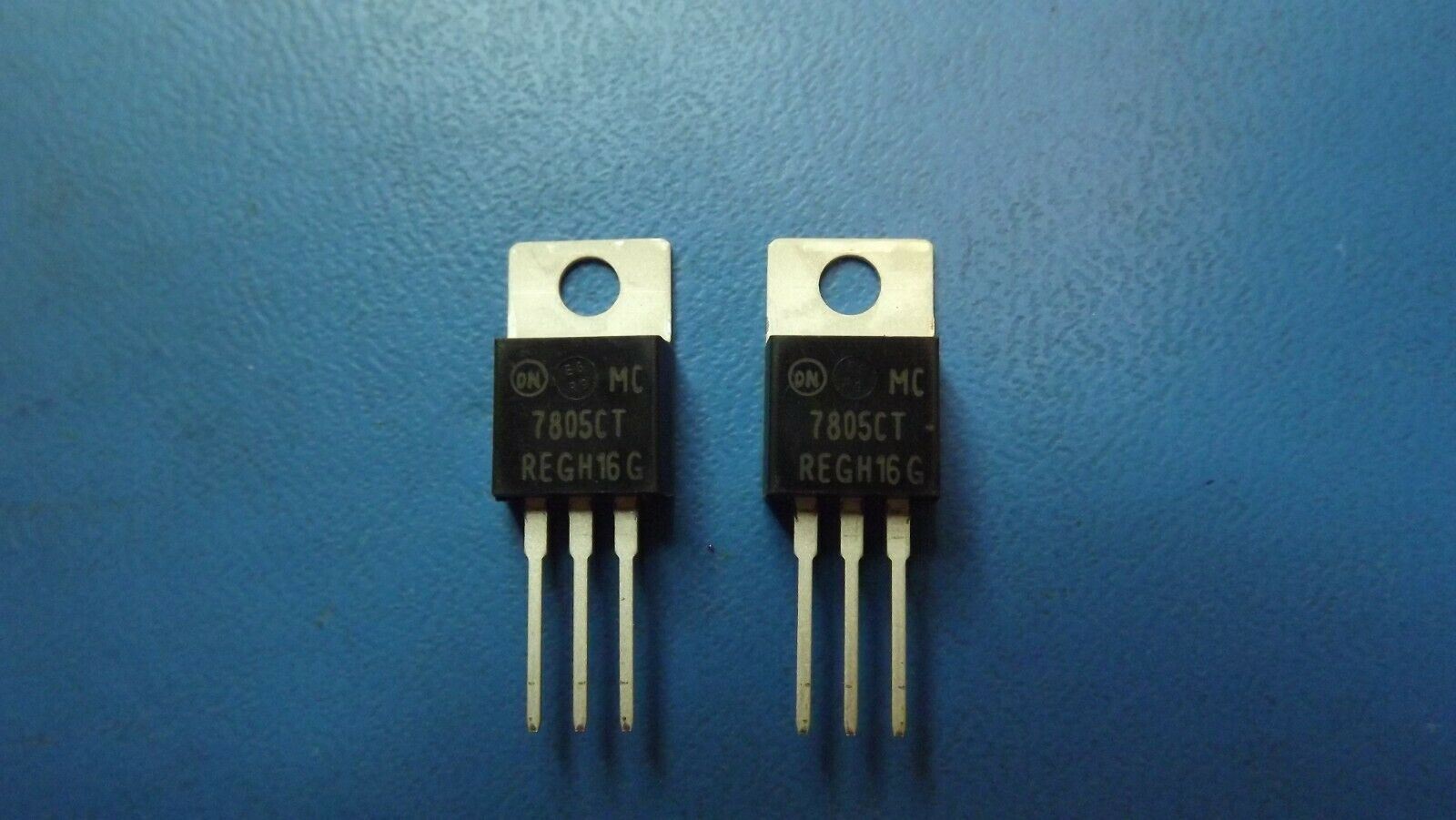

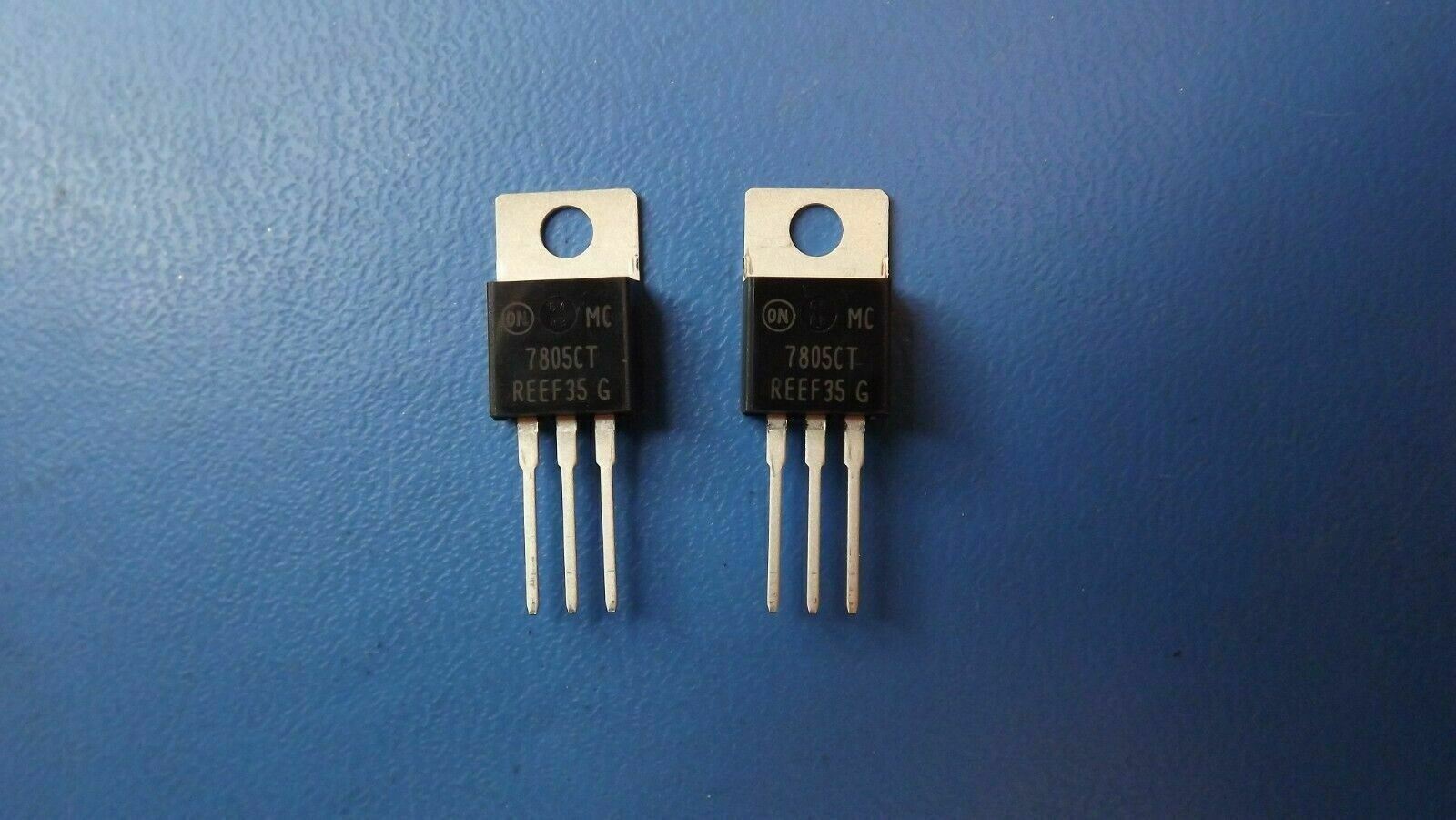

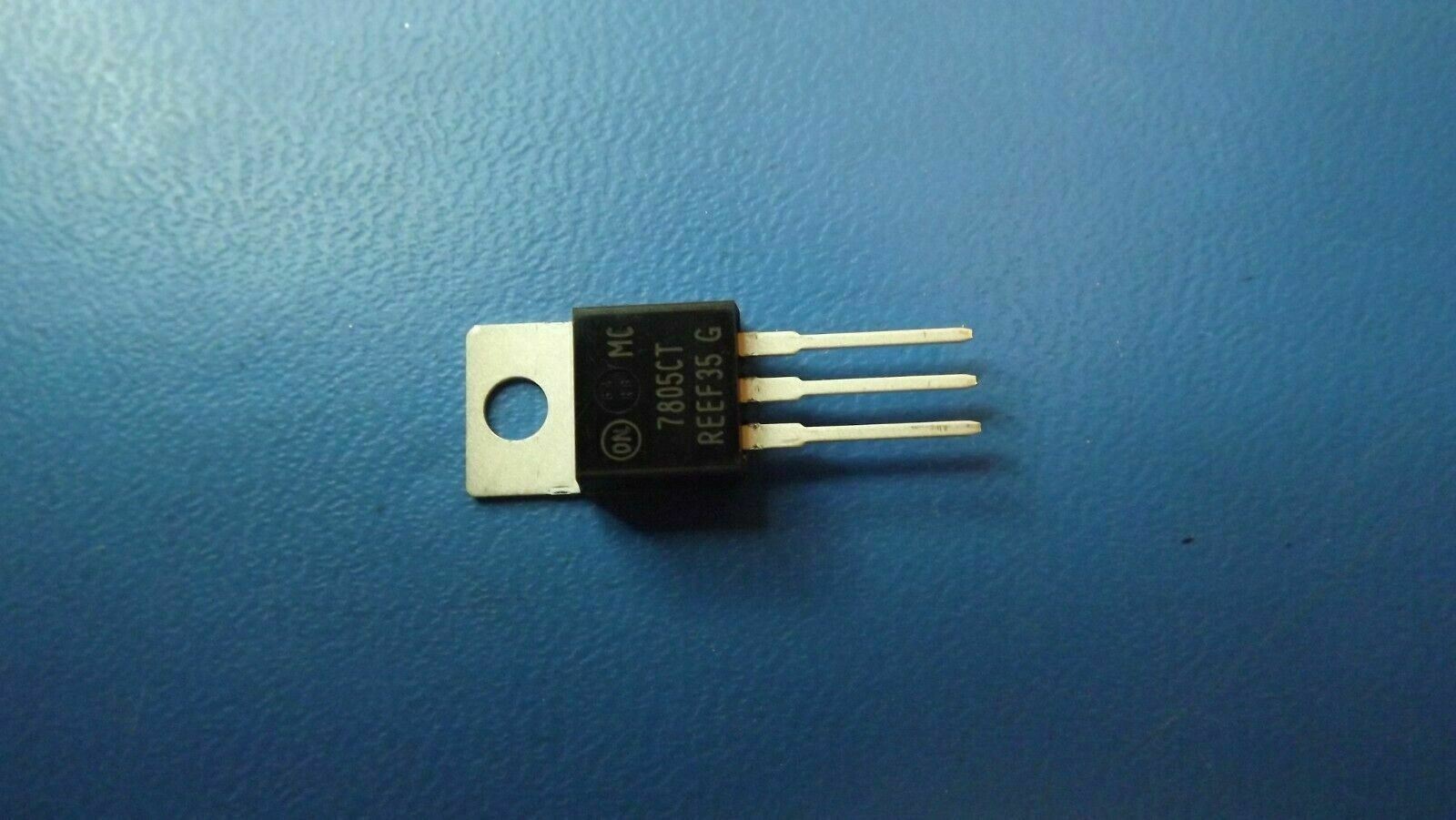

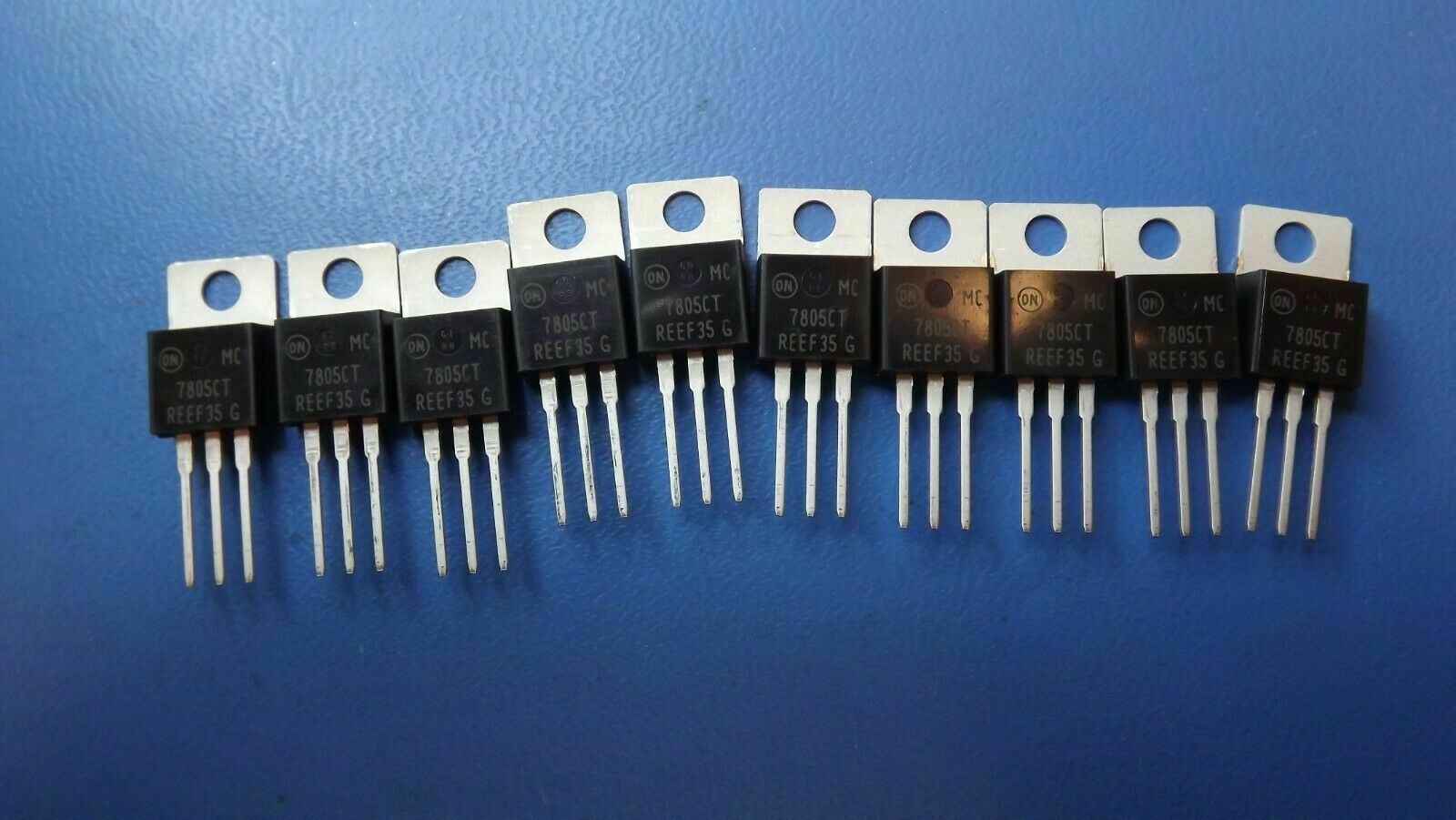

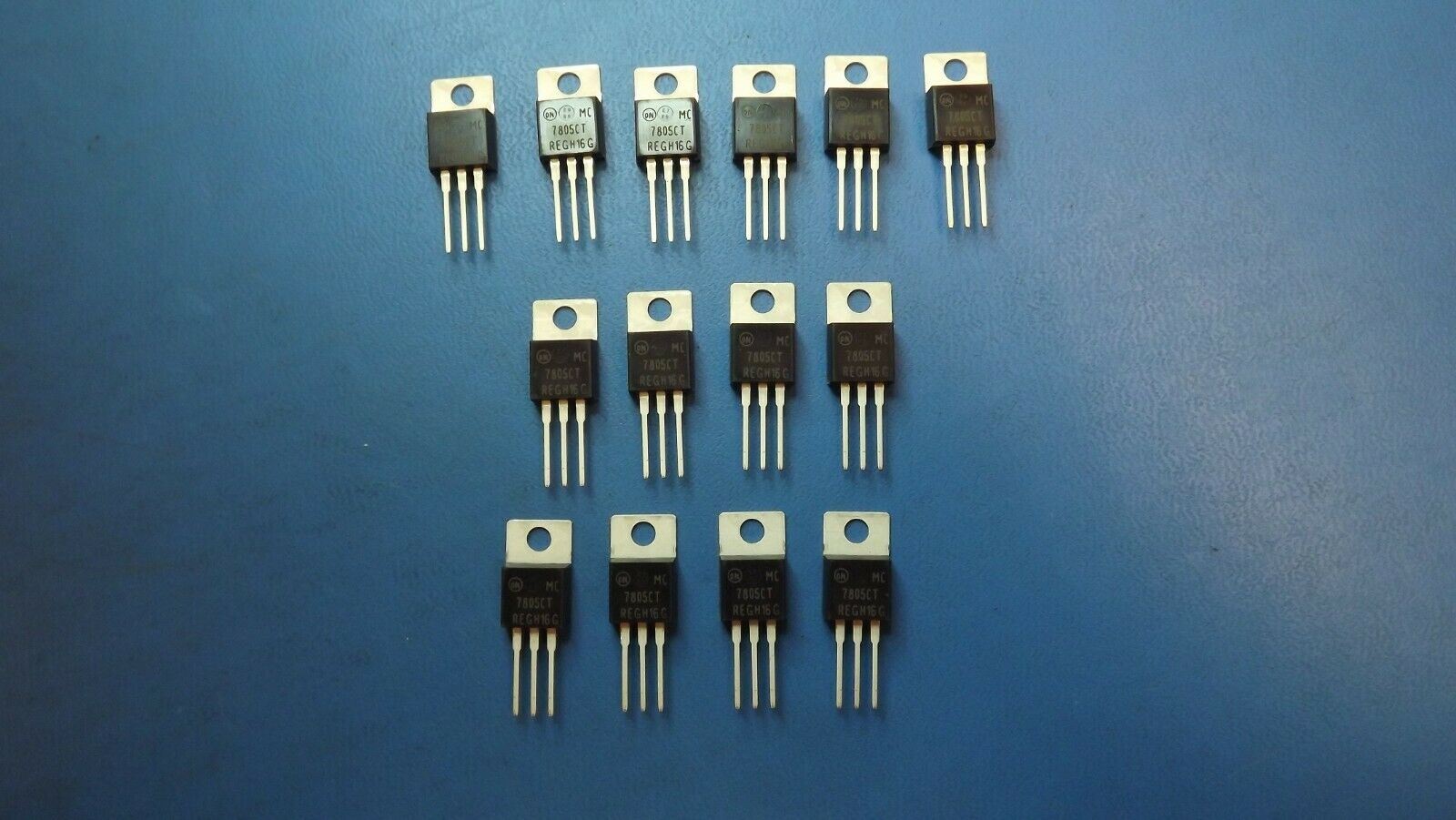

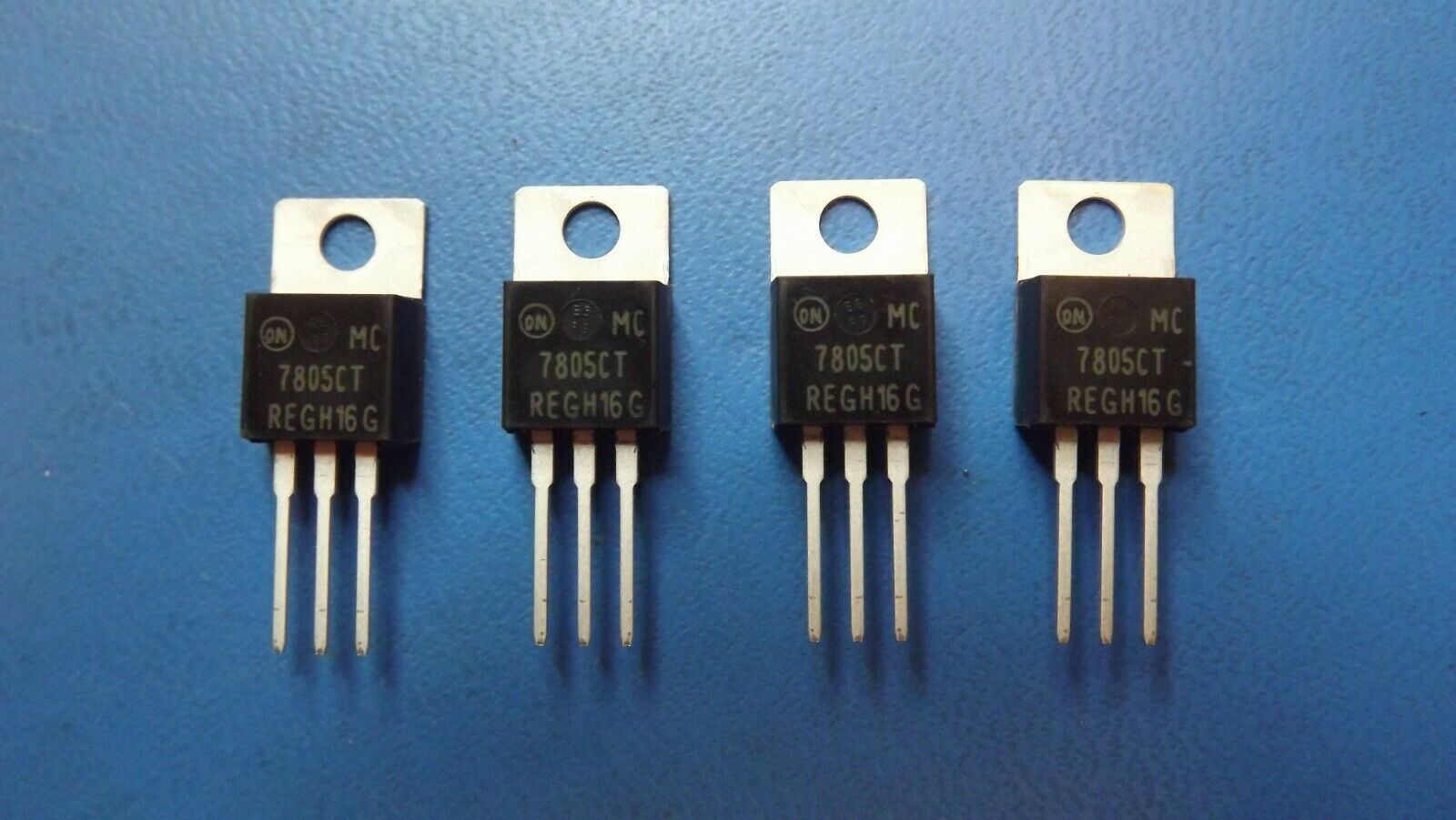

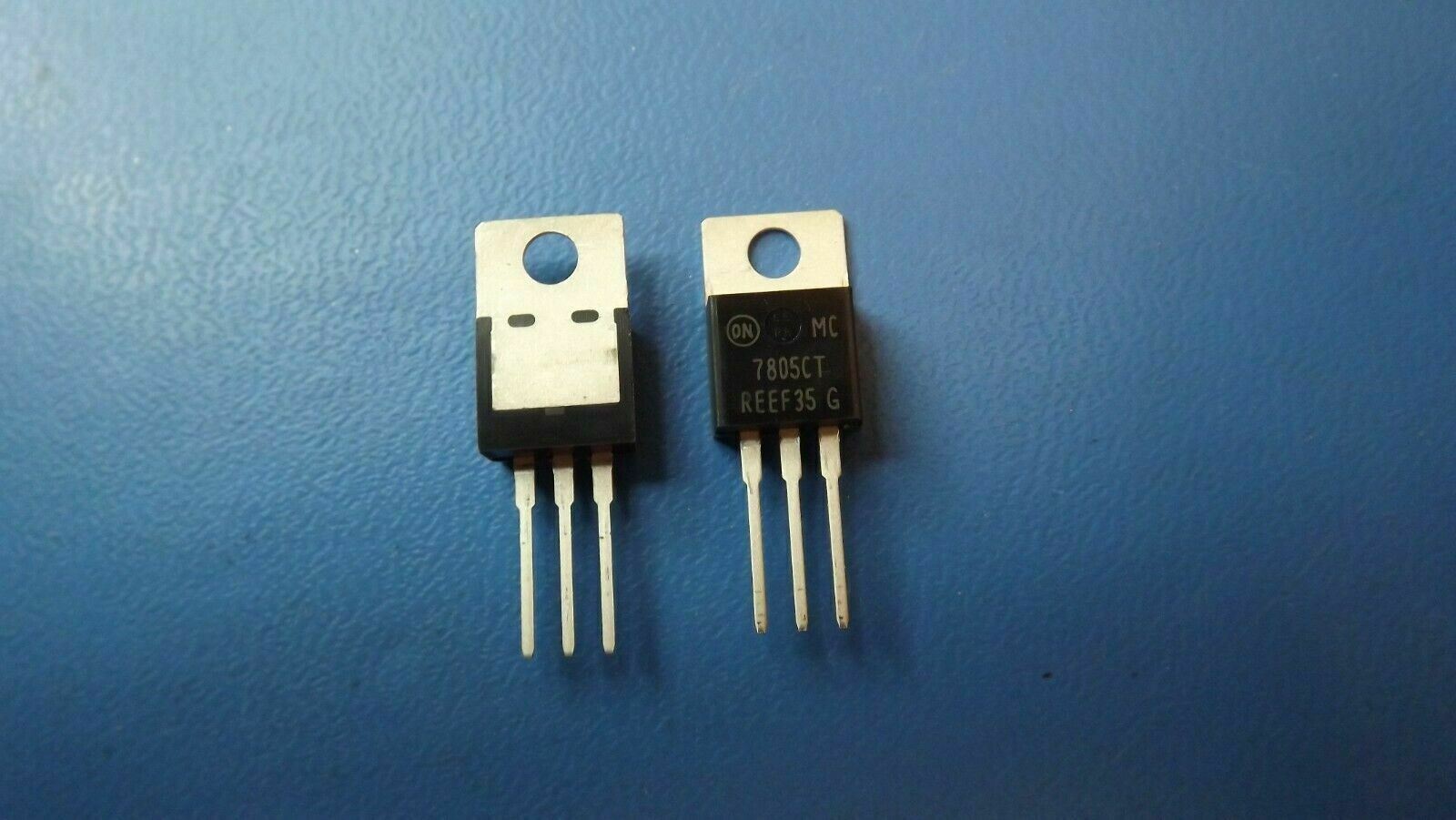

(5PCS) MC7805CTG ON SEMI Standard Regulator Pos 5V 1A 3-Pin(3+Tab) TO-220 Rail
Tax included.
THIS LISTING IS FOR (4PCS) FO MC7805CTG BY ON SEMICONDUCTOR
SPECIFICATIONS
| Mfr Package Description | LEAD FREE, TO-220, 3 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Adjustability | FIXED |
| Dropout Voltage1-Nom | 2.0 V |
| Input Voltage Absolute-Max | 35.0 V |
| Input Voltage-Min | 7.5 V |
| Input Voltage-Max | 20.0 V |
| JESD-30 Code | R-XSFM-T3 |
| JESD-609 Code | e3 |
| Line Regulation-Max | 0.02 V |
| Load Regulation-Max | 0.025 V |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature, TJ-Min | 0.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 1.0 A |
| Output Voltage1-Nom | 5.0 V |
| Output Voltage1-Min | 4.75 V |
| Output Voltage1-Max | 5.25 V |
| Package Body Material | UNSPECIFIED |
| Package Equivalence Code | SIP3,.1TB |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Packing Method | RAIL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Sub Category | Other Regulators |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Terminal Finish | Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Voltage Tolerance-Max | 5.0 % |
