(5PCS) MC74HCT374AN MOTOROLA IC FF D-TYPE SNGL 8BIT 20DIP
Tax included.

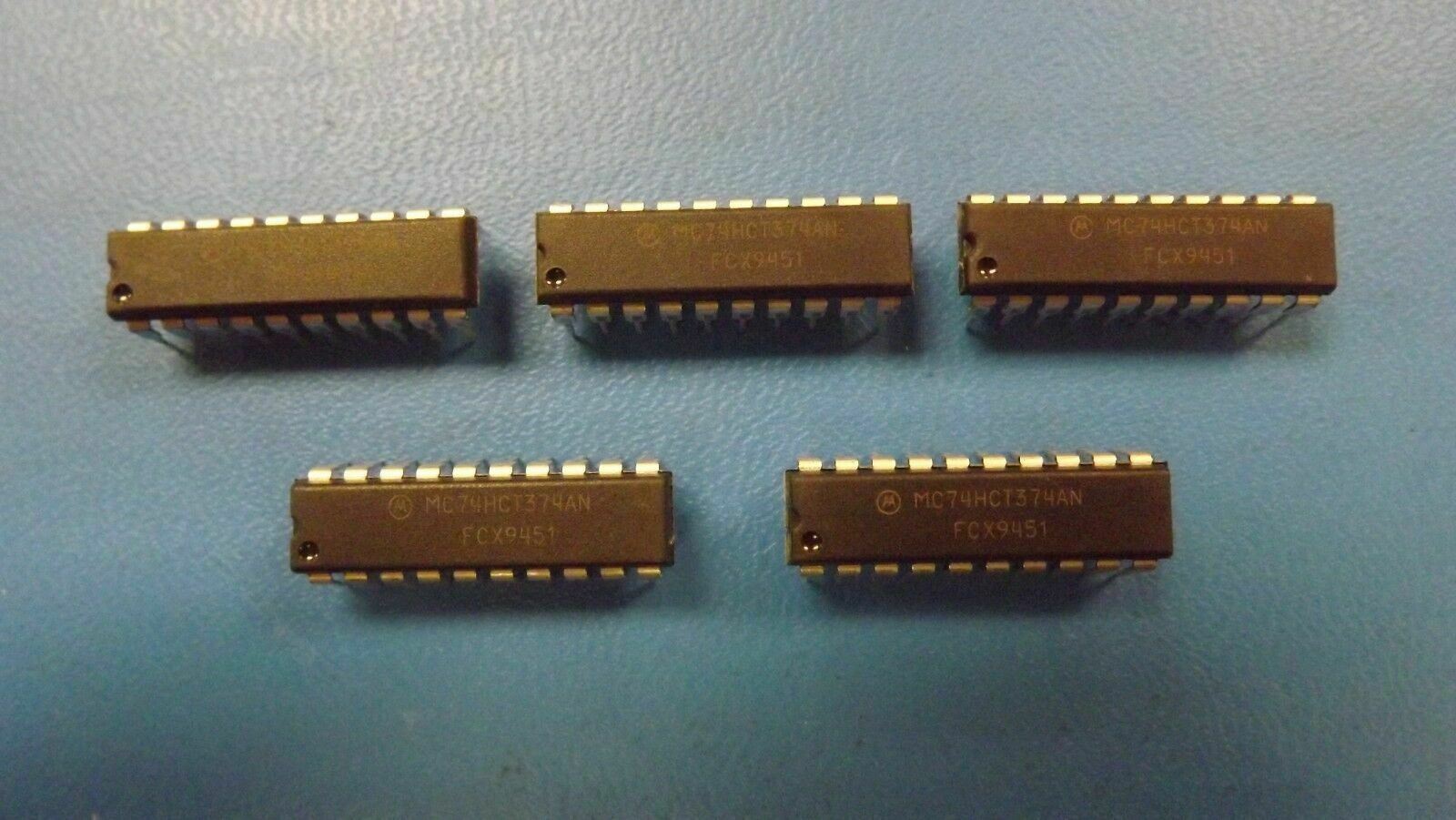

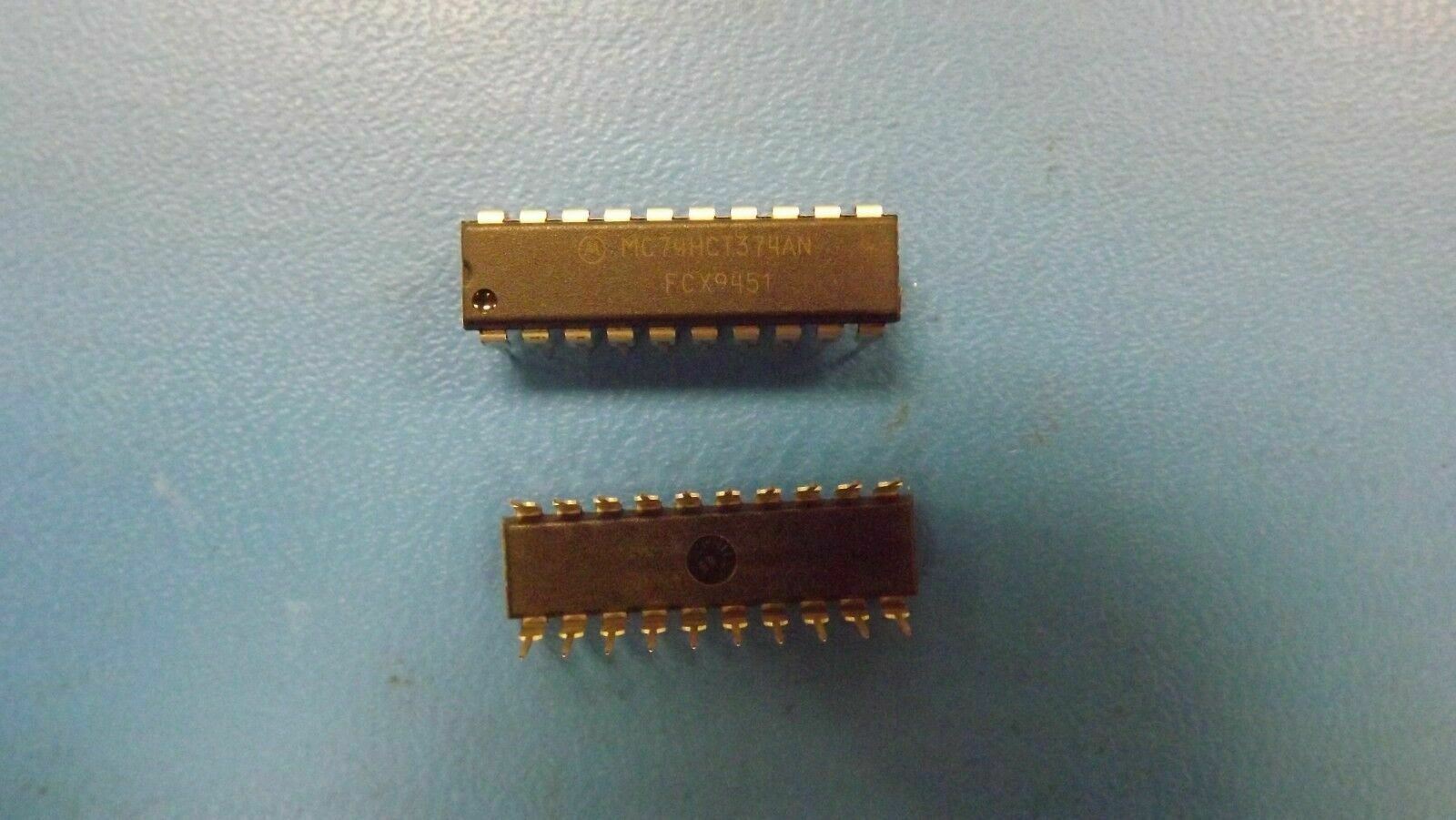

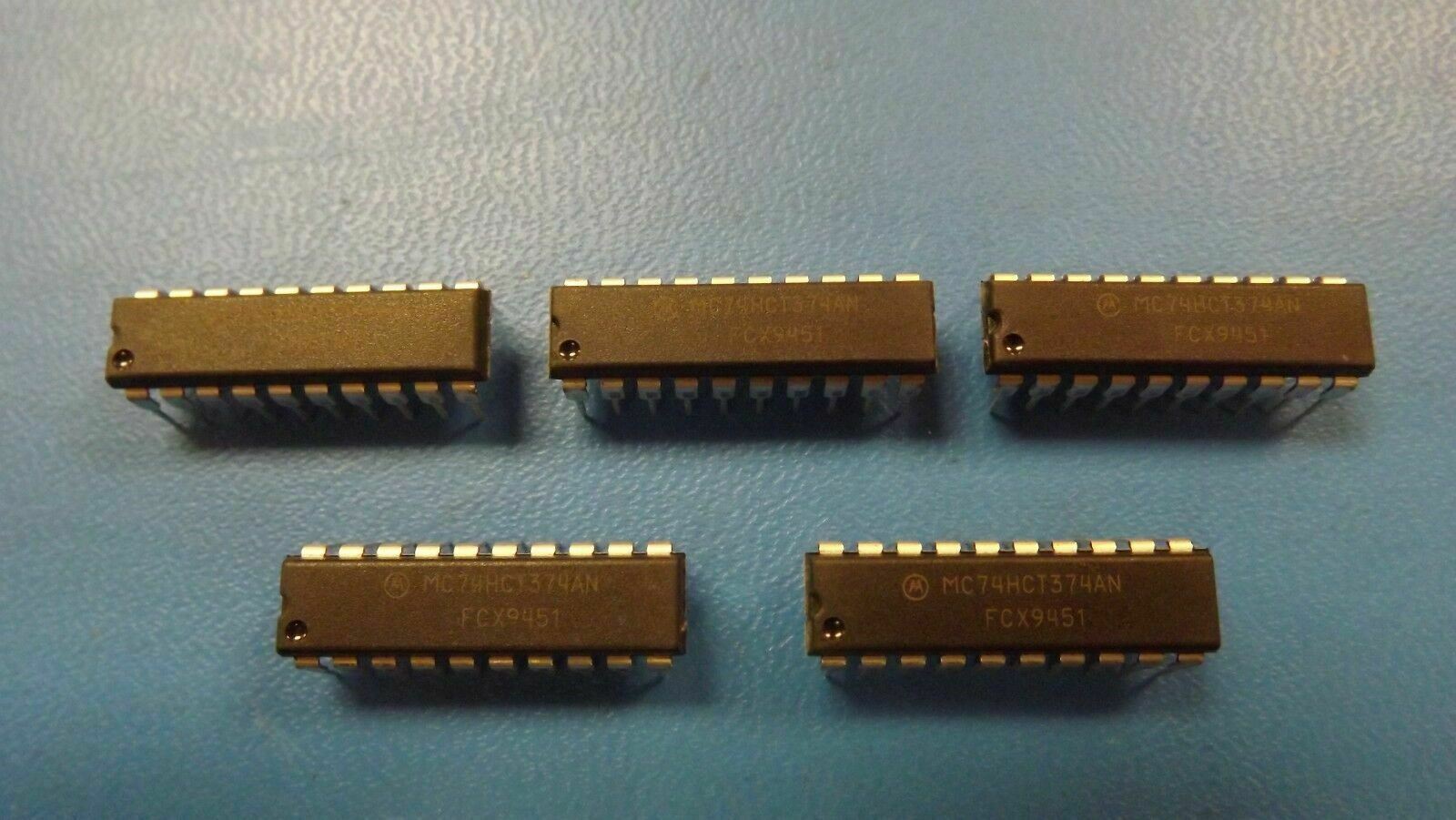

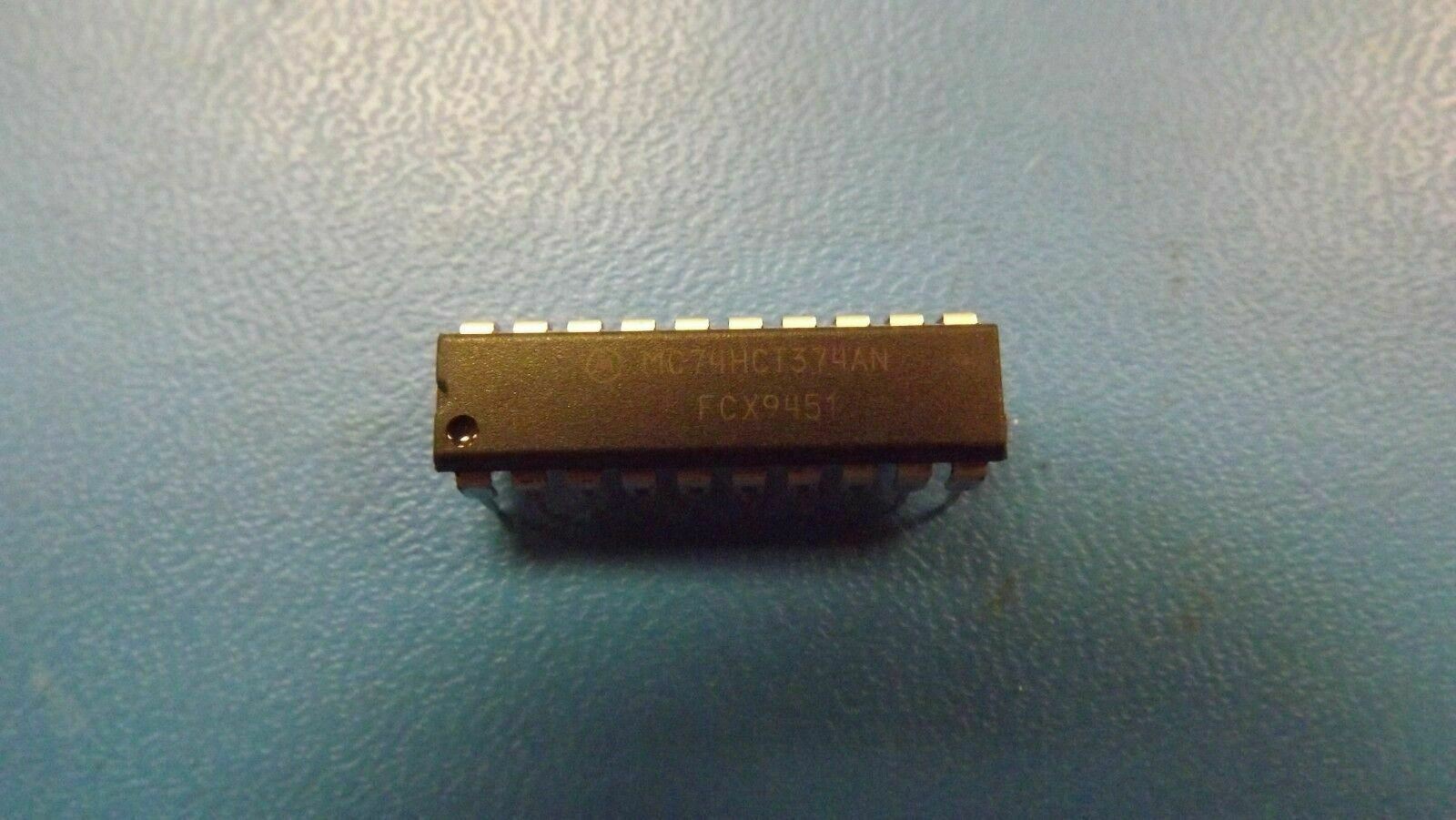

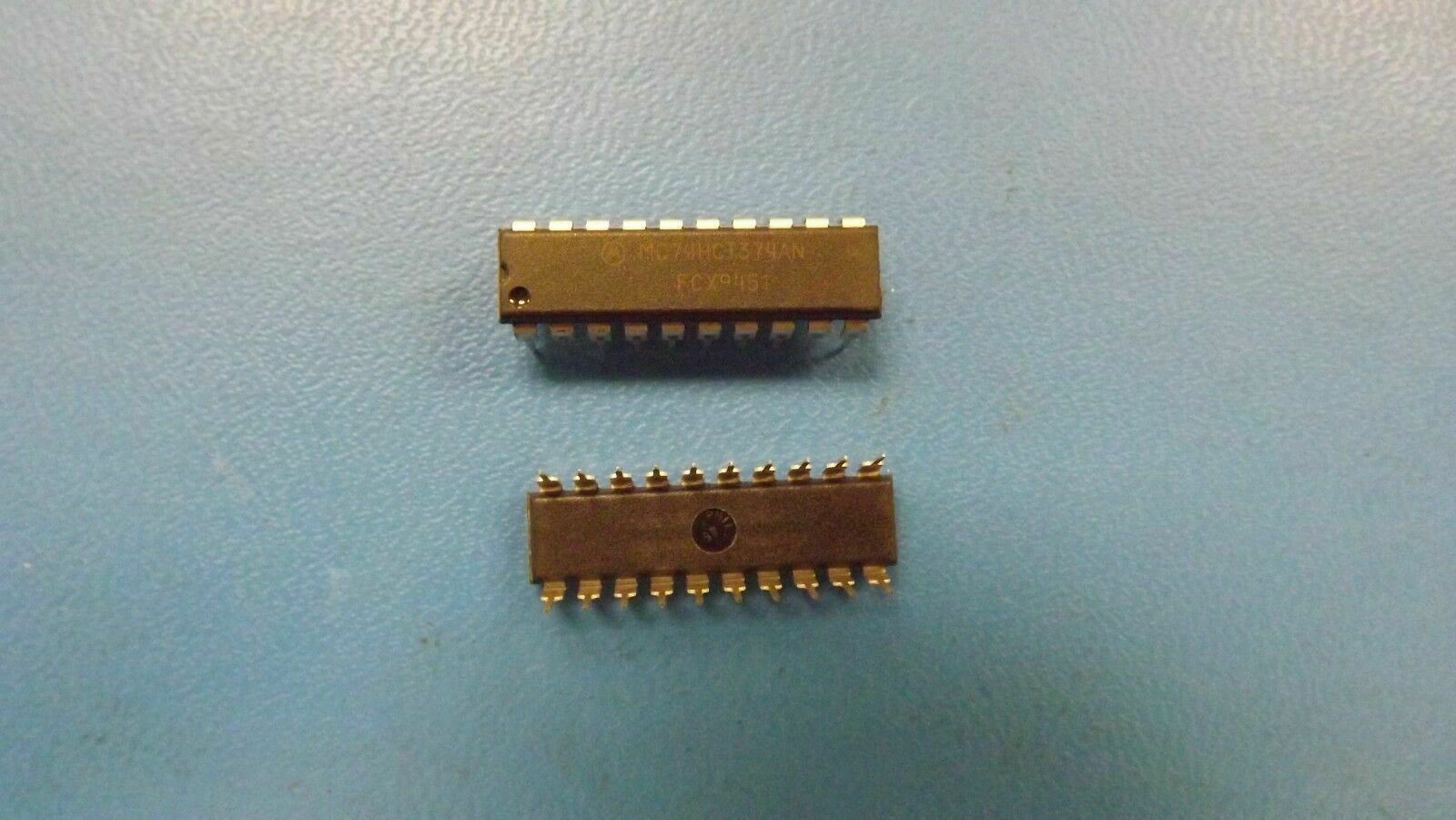

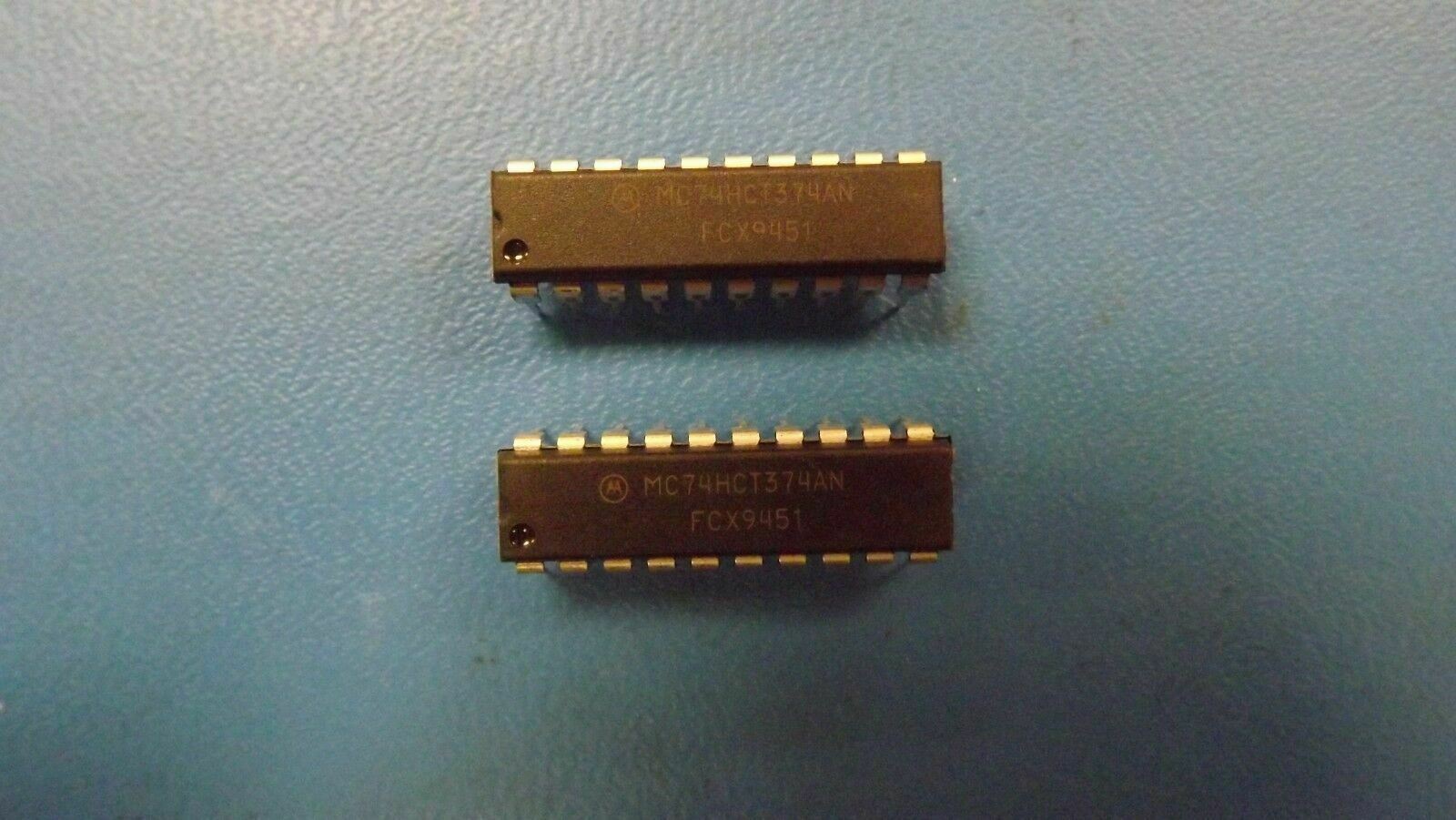

THIS LISTING IS FOR (5PCS) OF MC74HCT374AN BY MOTOROLA
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-20 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | HCT |
| JESD-30 Code | R-PDIP-T20 |
| JESD-609 Code | e0 |
| Load Capacitance (CL) | 50.0 pF |
| Max Frequency@Nom-Sup | 2.0E7 Hz |
| Max I(ol) | 0.006 Amp |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | -55.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Propagation Delay (tpd) | 47.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Trigger Type | POSITIVE EDGE |
| Length | 26.415 mm |
| Width | 7.62 mm |
