(5PCS) MC74HC86N XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14
(5PCS) MC74HC86N XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14
(5PCS) MC74HC86N XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14

(5PCS) MC74HC86N XOR Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14

Tax included.
Only 2 left!

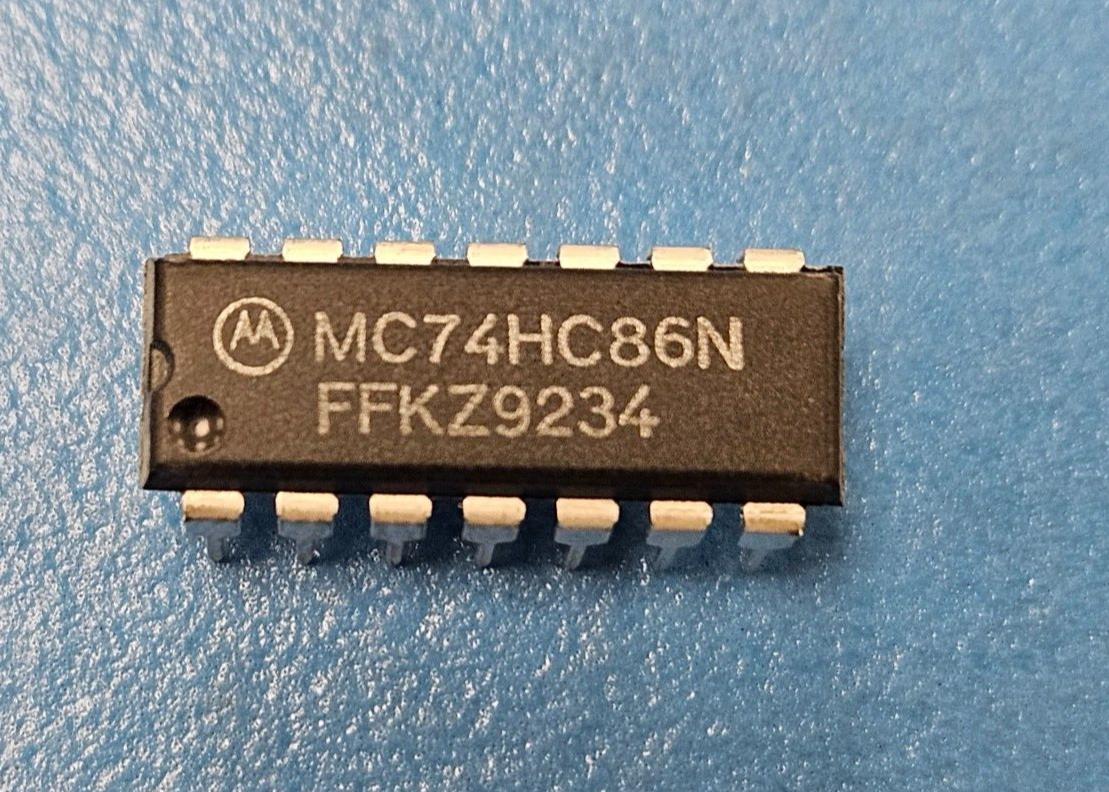

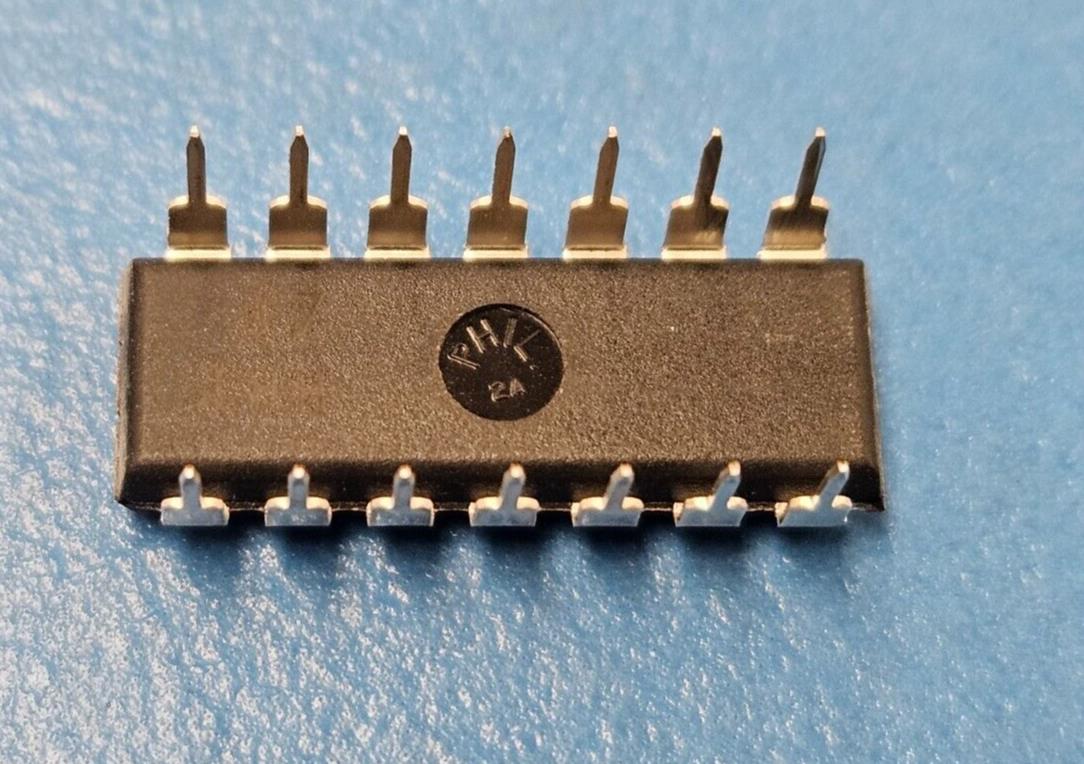

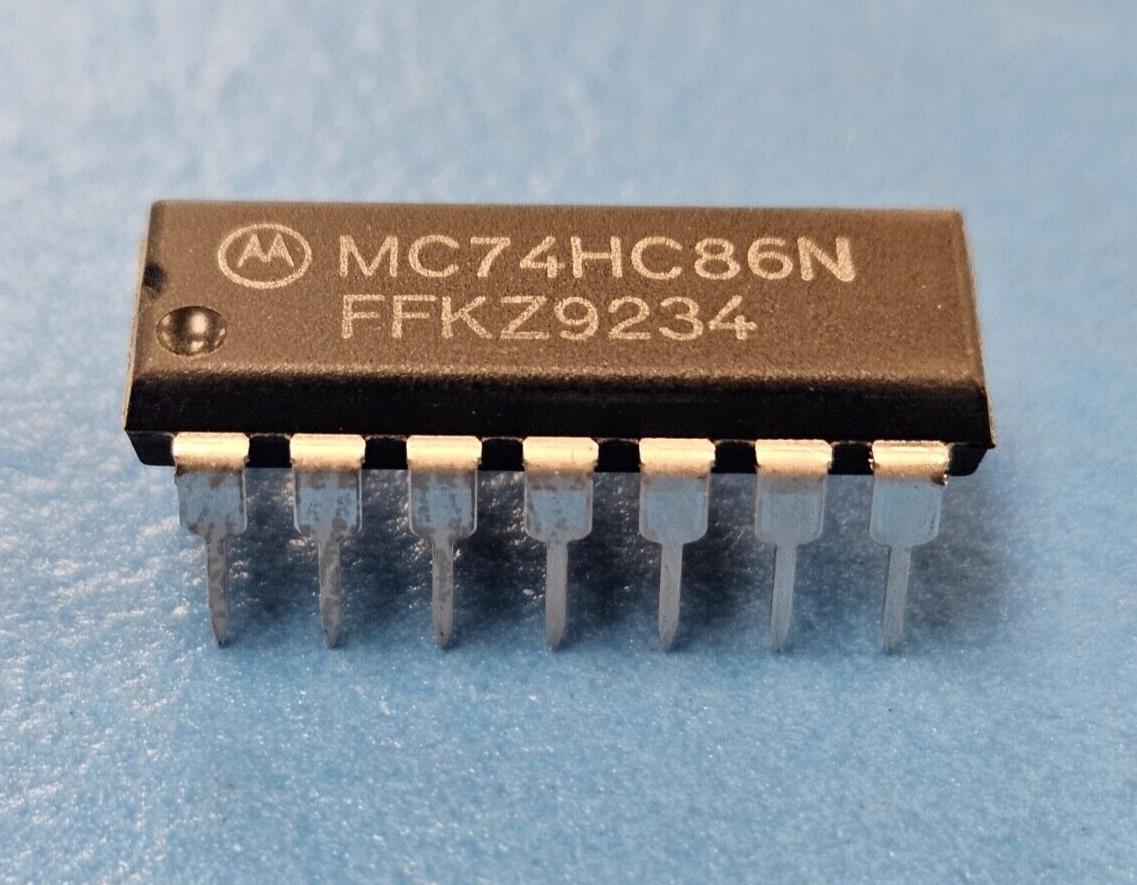

This listing is for (5pcs) of MC74HC86N by Motorola


Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Logic IC Type XOR GATE
Family HC/UH
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Load Capacitance (CL) 50.0  pF
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 125.0  Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Shape RECTANGULAR
Package Style IN-LINE
Propagation Delay (tpd) 36.0  ns
Qualification Status Not Qualified
Seated Height-Max 4.69  mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 2.0  V
Supply Voltage-Max (Vsup) 6.0  V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Length 18.86  mm
Width 7.62  mm
