(5PCS) MAX881REUB Switched Capacitor Regulator, 0.004A, 120kHz, CMOS, SSOP10
Tax included.

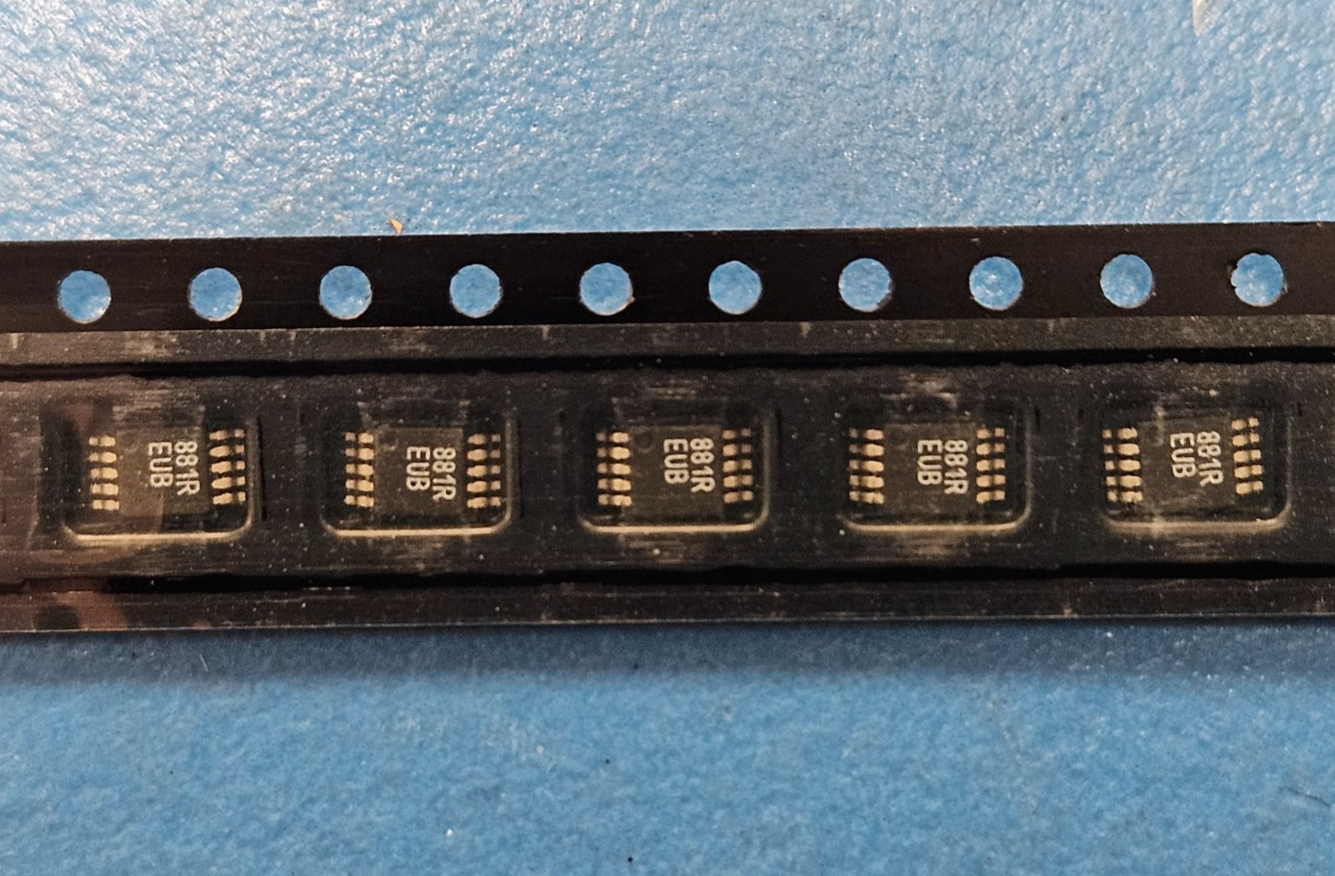

This listing is for (5PCS) of MAX881REUB by Maxim
Status Discontinued
Analog IC - Other Type SWITCHED CAPACITOR REGULATOR
Input Voltage-Max (V) 5.5000000000000000
Input Voltage-Min (V) 2.5000000000000000
Input Voltage-Nom (V) 3.6
JESD-30 Code S-PDSO-G10
J-STD-609 Code e0
Length (mm) 3.0000
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 10
Operating Temperature-Max (Cel) 85
Operating Temperature-Min (Cel) -40
Output Current-Max (A) 0.0040000000000000
Output Voltage-Max (V) -4.9000000000000000
Output Voltage-Min (V) -0.5000000000000000
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP10,.19,20
Package Shape SQUARE
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.1000
Surface Mount YES
Switcher Configuration DOUBLER INVERTER
Switching Frequency-Max (kHz) 120.0000000000000000
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form GULL WING
Terminal Pitch (mm) 0.500
Terminal Position DUAL
Width (mm) 3.0000
