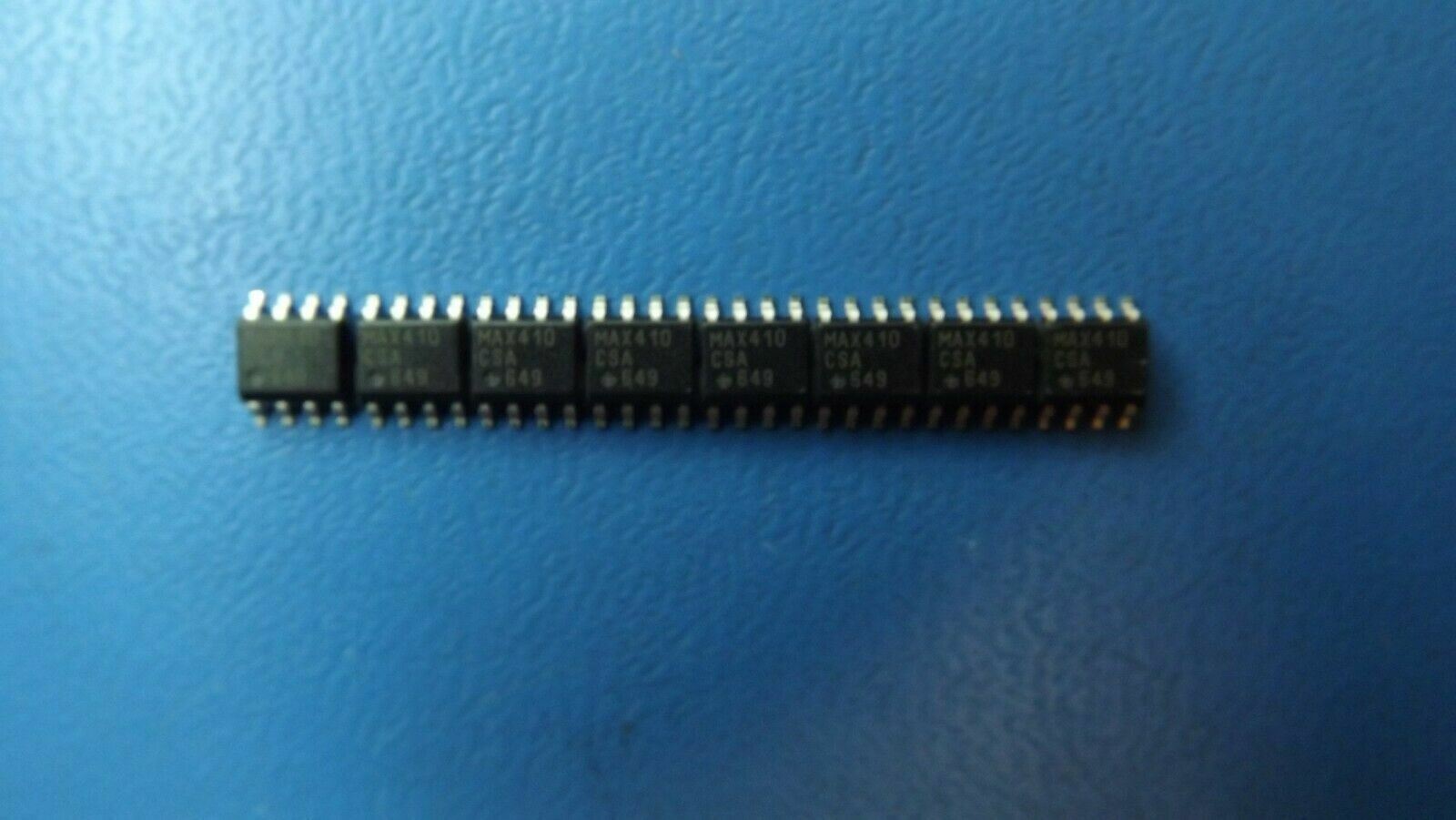

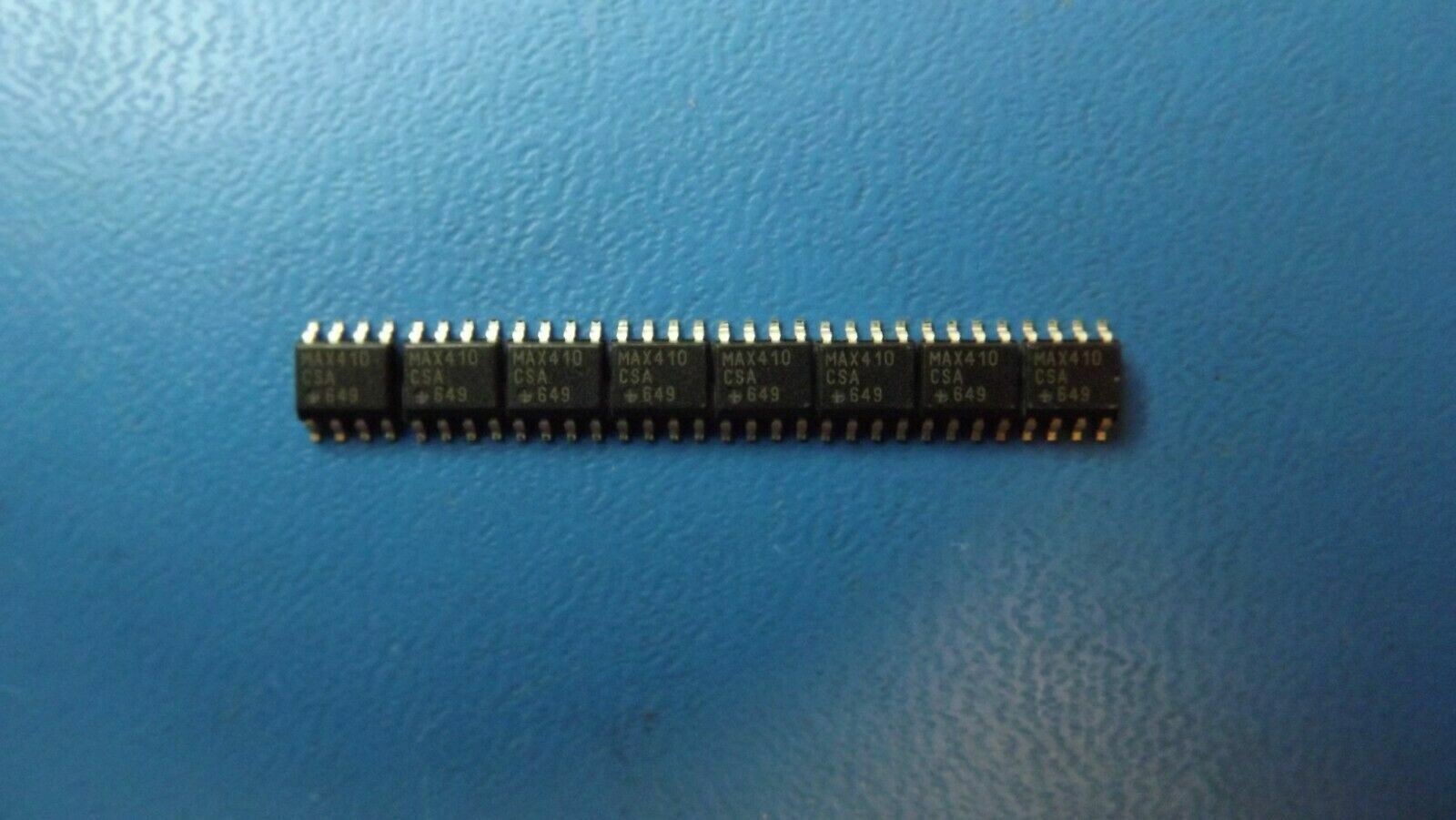

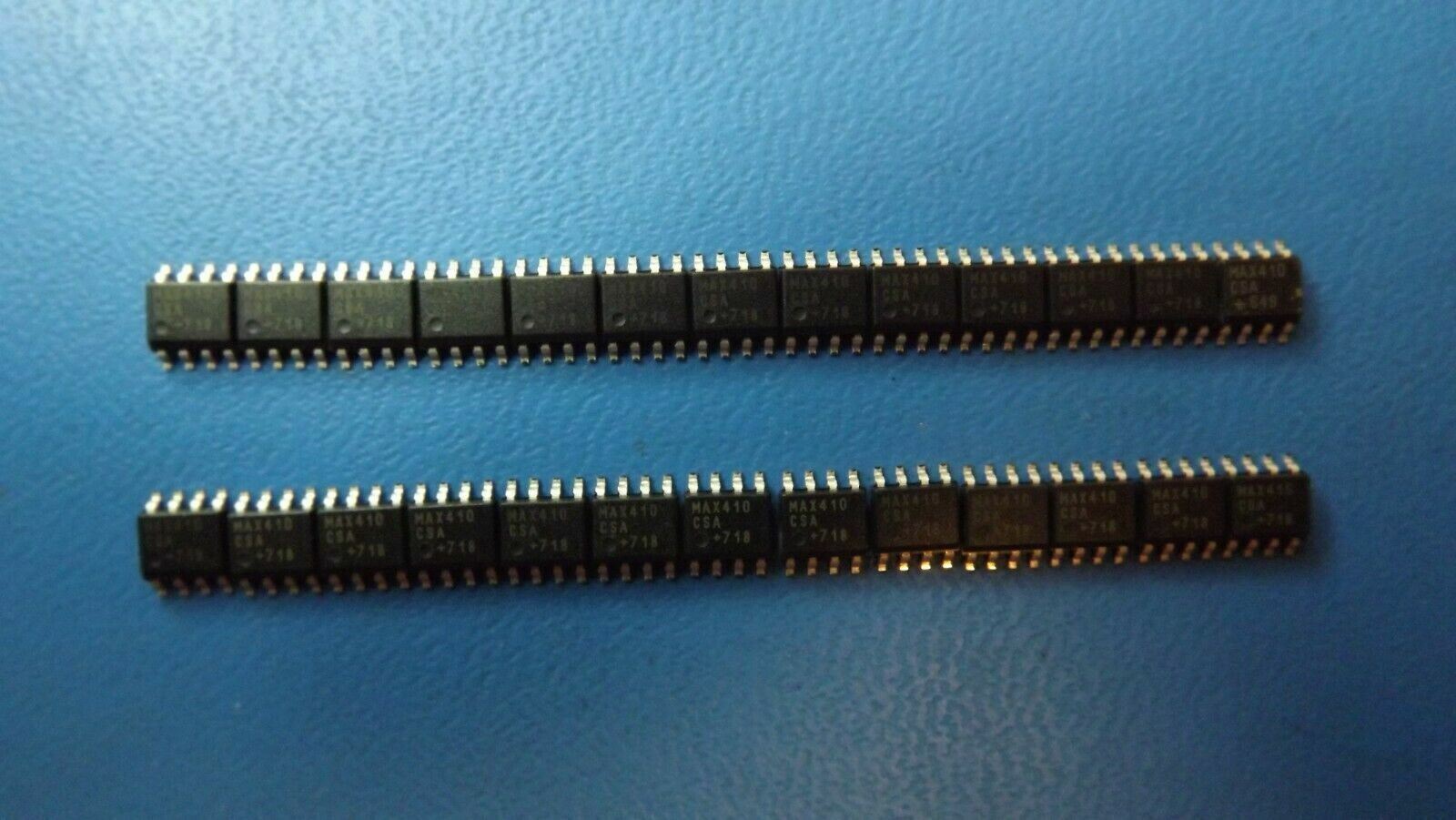

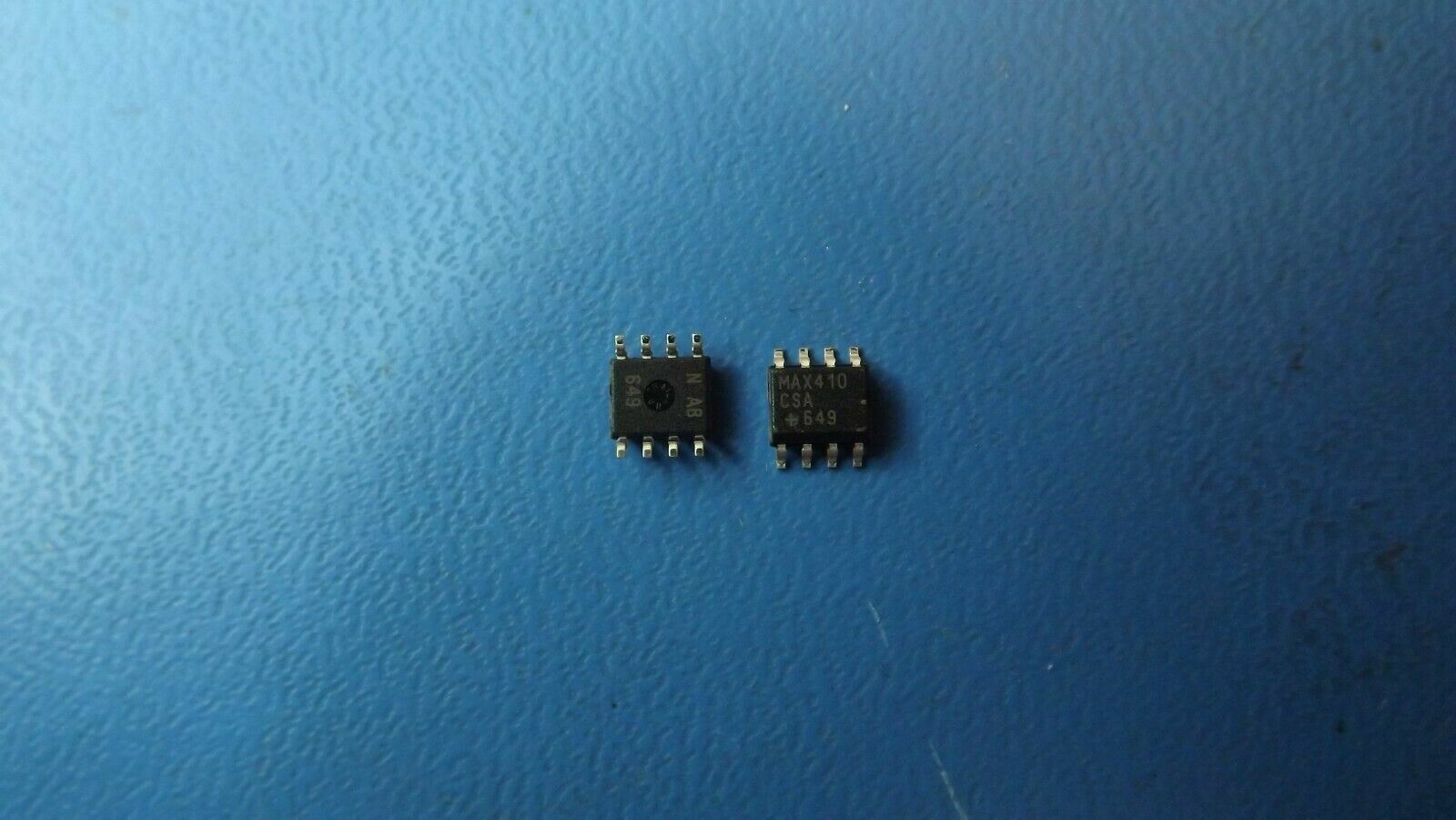

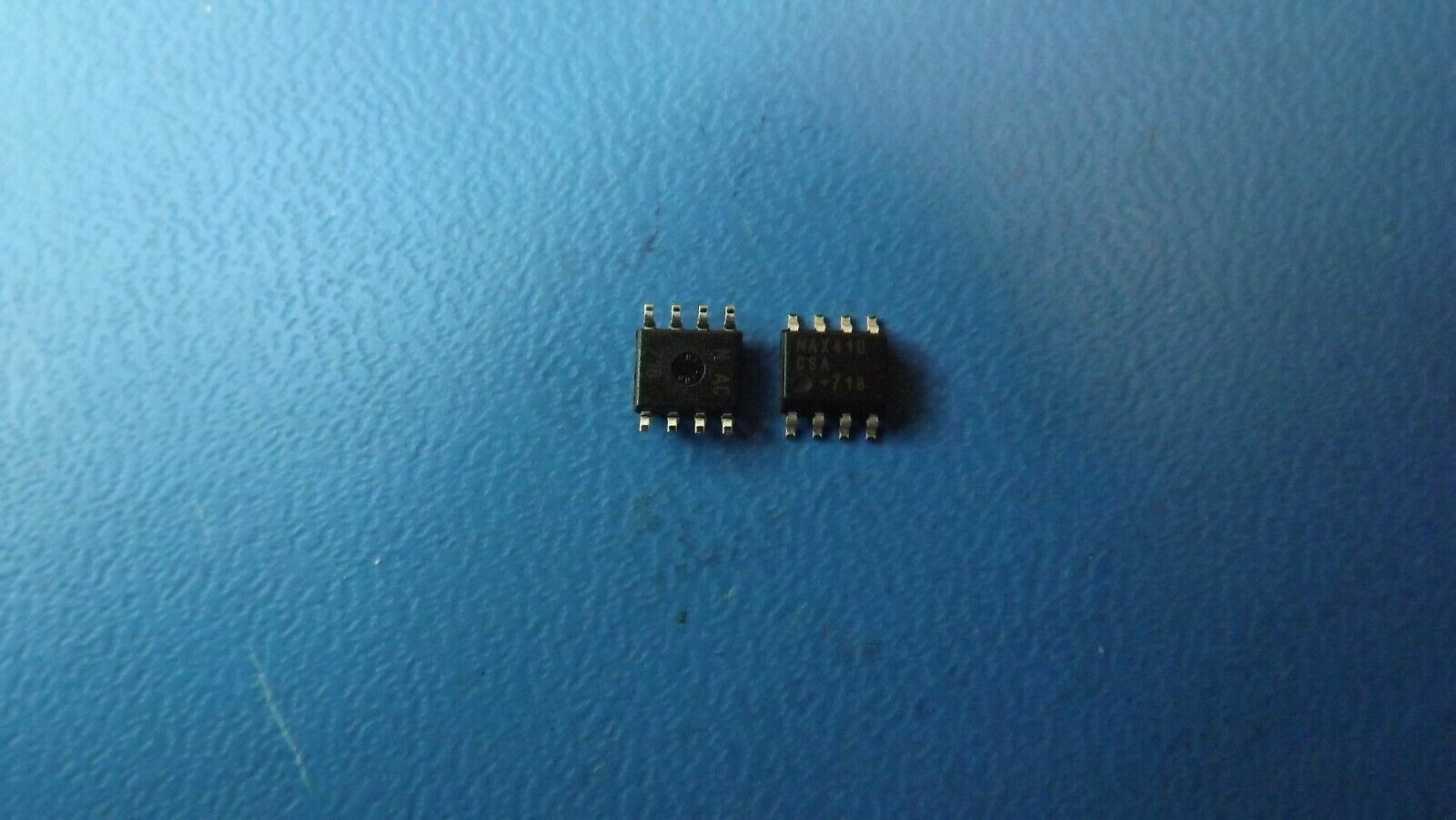

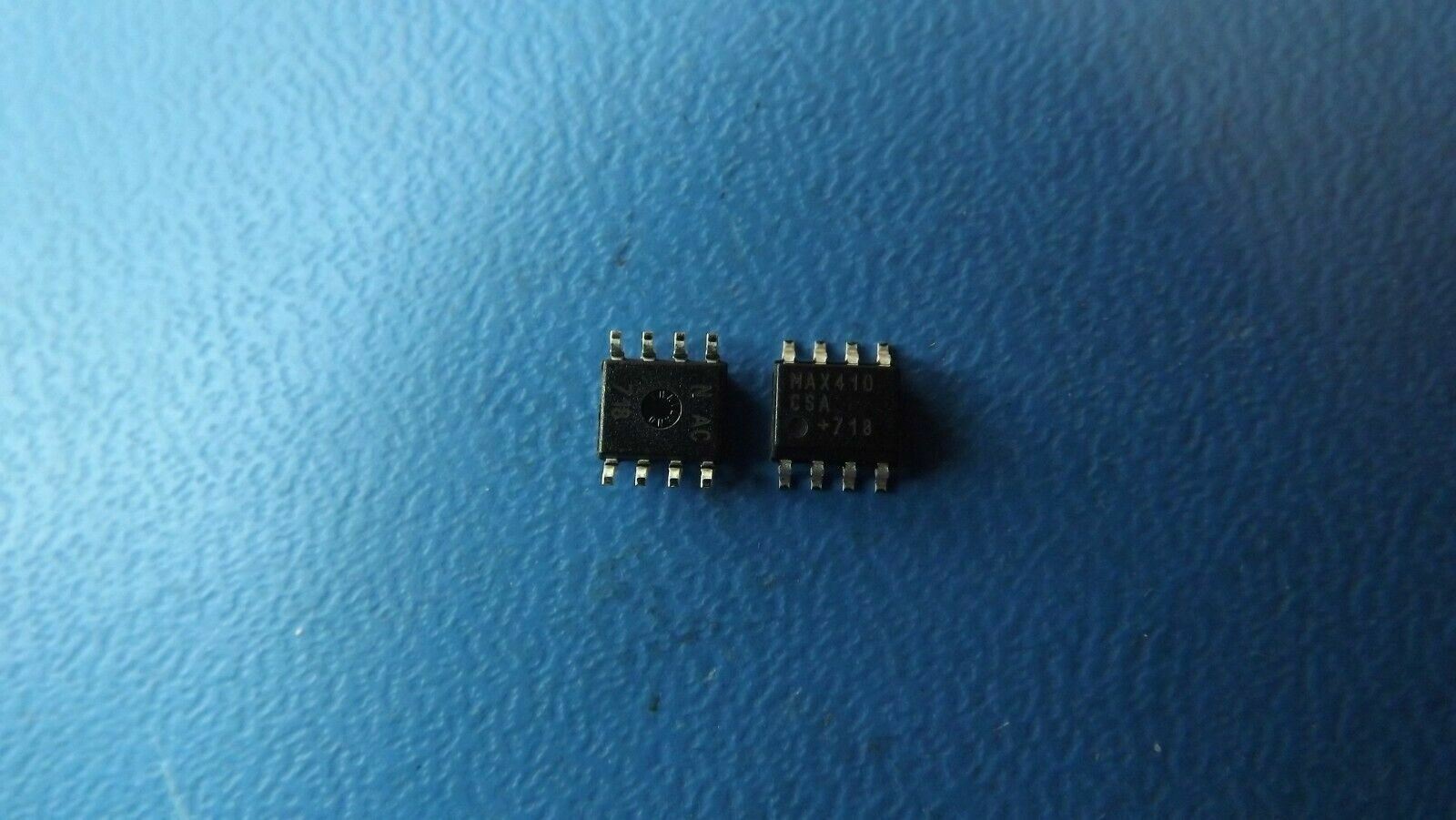

(5PCS) MAX410CSA+ MAXIM IC OPAMP GP 28MHZ 8SOIC
Tax included.
THIS LISTING IS FOR (5PCS) OF MAX410CSA+ BY MAXIM
Number of Channels: 1 Channel
GBP - Gain Bandwidth Product: 28 MHz
SR - Slew Rate: 4.5 V/us
CMRR - Common Mode Rejection Ratio: 115 dB
Output Current per Channel: 35 mA
Ib - Input Bias Current: 150 nA
Vos - Input Offset Voltage: 250 uV
en - Input Voltage Noise Density: 7 nV/sqrt Hz
Supply Voltage - Max: 10.5 V
Supply Voltage - Min: 2.4 V
Operating Supply Current: 2.7 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Packaging: Tube
Amplifier Type: Low Noise Amplifier
Height: 1.5 mm (Max)
Length: 5 mm (Max)
Product: Precision Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 4 mm (Max)
Brand: Maxim Integrated
Dual Supply Voltage: +/- 3 V, +/- 5 V
In - Input Noise Current Density: 2.6 pA/sqrt Hz
Maximum Dual Supply Voltage: +/- 5.25 V
Minimum Dual Supply Voltage: +/- 2.4 V
Operating Supply Voltage: 2.4 V to 10.5 V, +/- 2.4 V to +/- 5.25 V
Pd - Power Dissipation: 471 mW
Product Type: Precision Amplifiers
PSRR - Power Supply Rejection Ratio: 96 dB
Factory Pack Quantity: 100
Subcategory: Amplifier ICs
Voltage Gain dB: 122 dB
