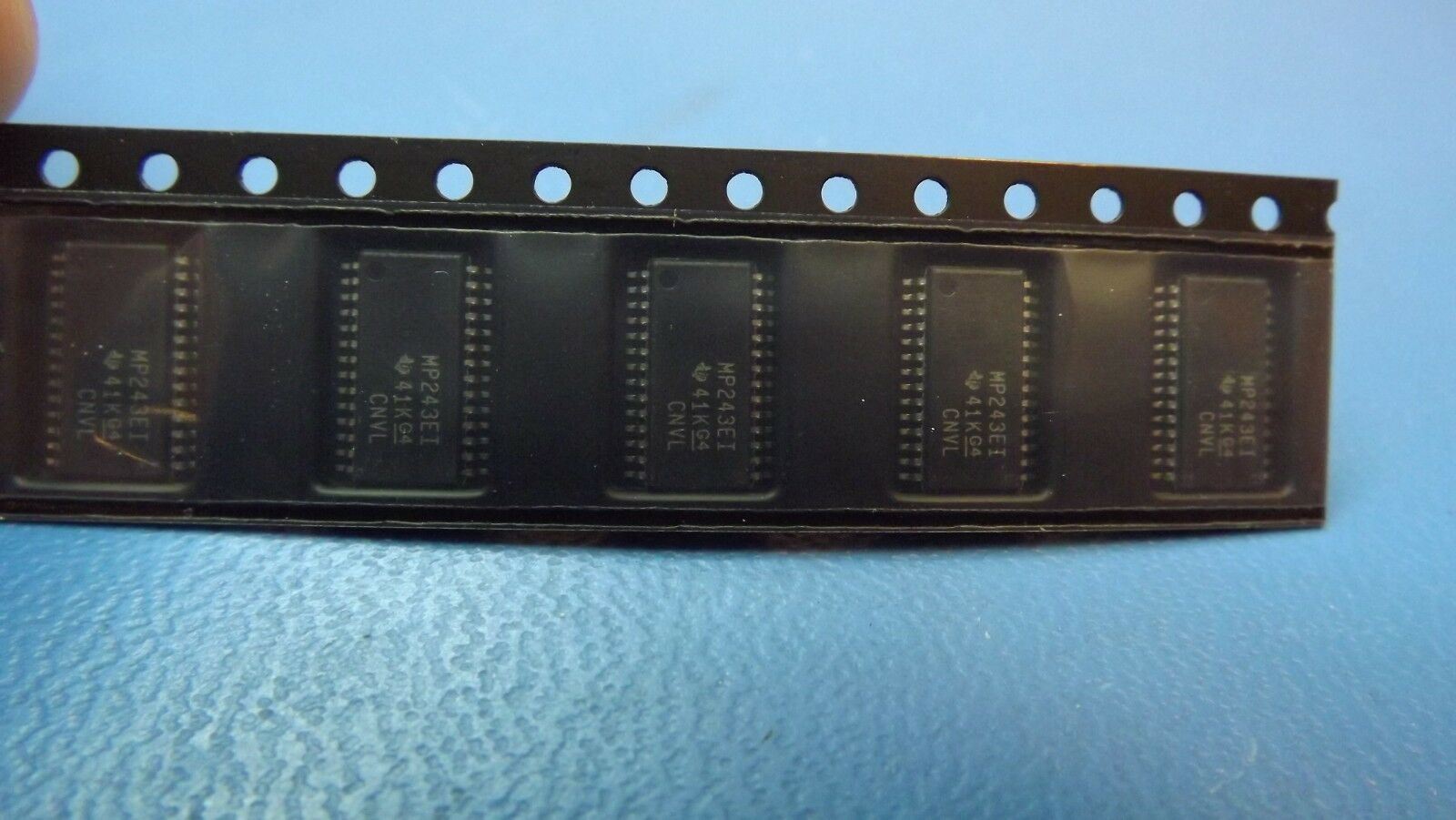

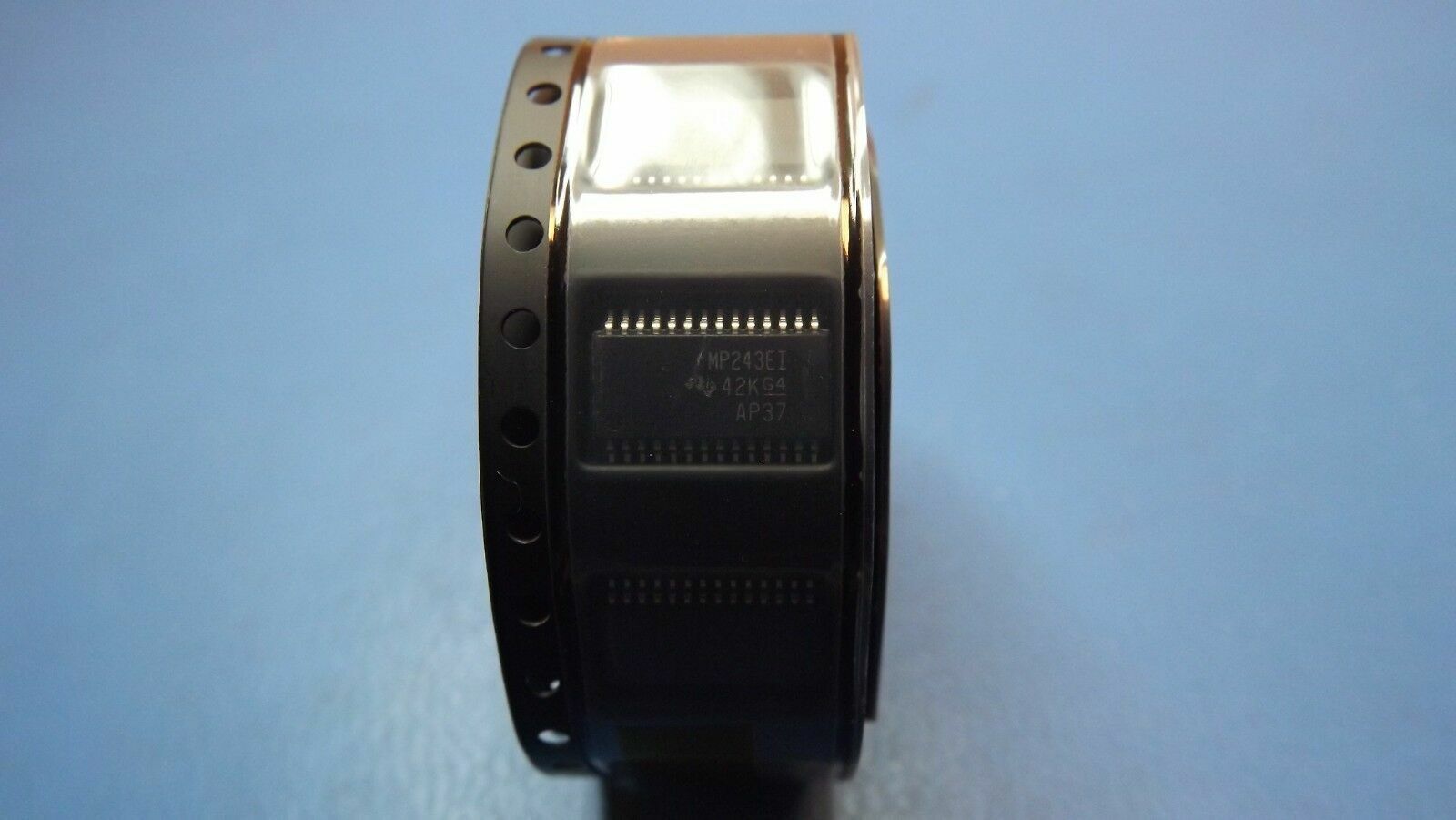

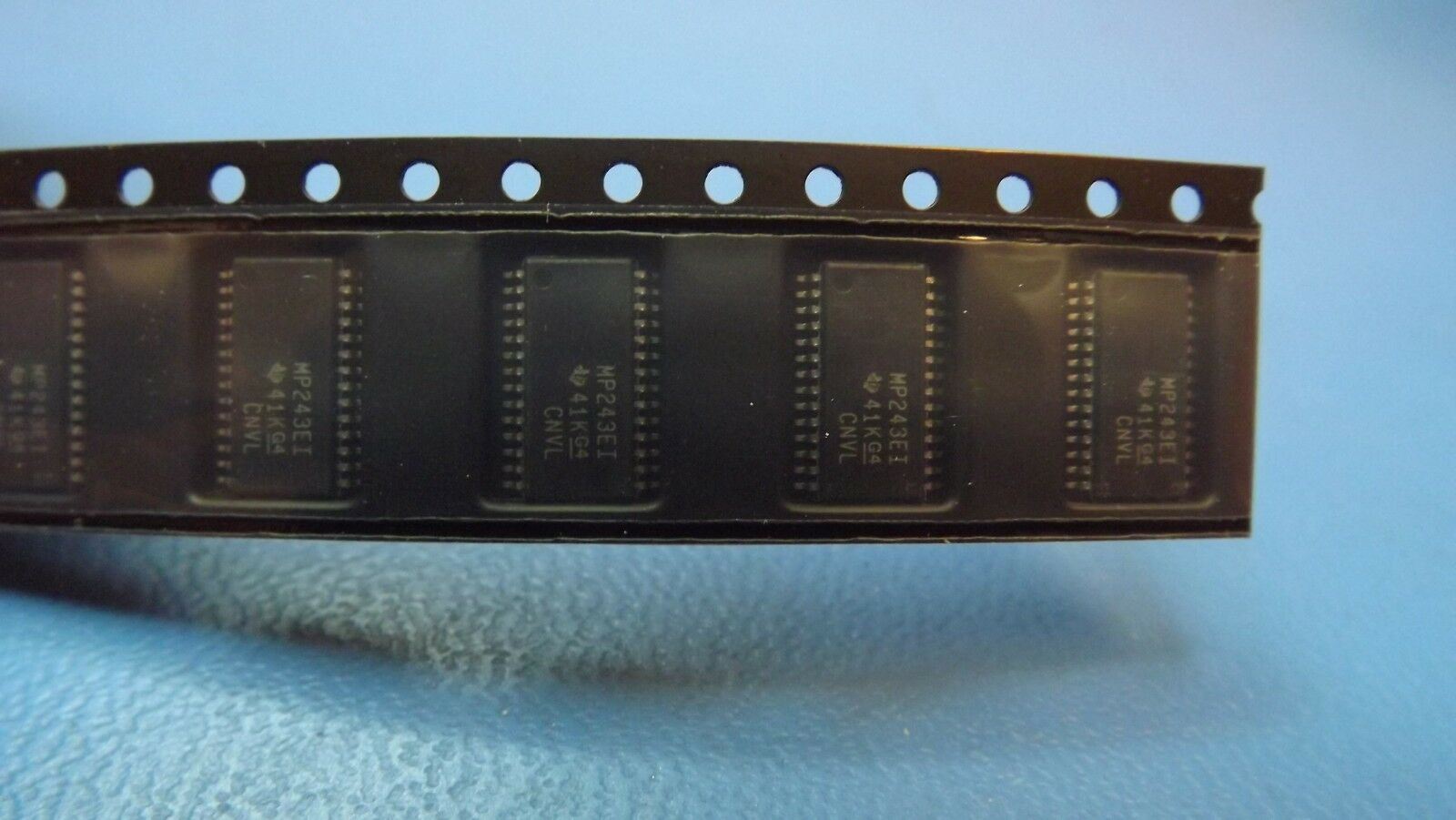

(5PCS) MAX3243EIPWR TI IC RS232 3V-5.5V DRVR 28-TSSOP
Tax included.
THIS LISTING IS FOR (5PCS) OF MAX3243EIPWR BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | GREEN, PLASTIC, TSSOP-28 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Interface IC Type | LINE TRANSCEIVER |
| Differential Output | NO |
| Driver Number of Bits | 3.0 |
| High Level Input Current-Max | 1.0E-6 Amp |
| Input Characteristics | SCHMITT TRIGGER |
| Interface Standard | EIA-232-F; TIA-232-F; V.28 |
| JESD-30 Code | R-PDSO-G28 |
| JESD-609 Code | e4 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 3 |
| Number of Terminals | 28 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Out Swing-Min | 5.0 V |
| Output Low Current-Max | 0.0016 Amp |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP28,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | 3.3/5 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 150.0 ns |
| Receiver Number of Bits | 5.0 |
| Seated Height-Max | 1.2 mm |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 1.0 mA |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 3.0 V |
| Supply Voltage-Max | 3.6 V |
| Supply Voltage1-Nom | 5.0 V |
| Supply Voltage1-Min | 4.5 V |
| Supply Voltage1-Max | 5.5 V |
| Surface Mount | YES |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 9.7 mm |
| Width | 4.4 mm |
| Additional Feature | ALSO OPERATES AT 5V SUPPLY |
