(5PCS) M68Z128W-70N1 SRAM 3.3V 1M-Bit 128K x 8 70ns 32-Pin TSOP
Tax included.

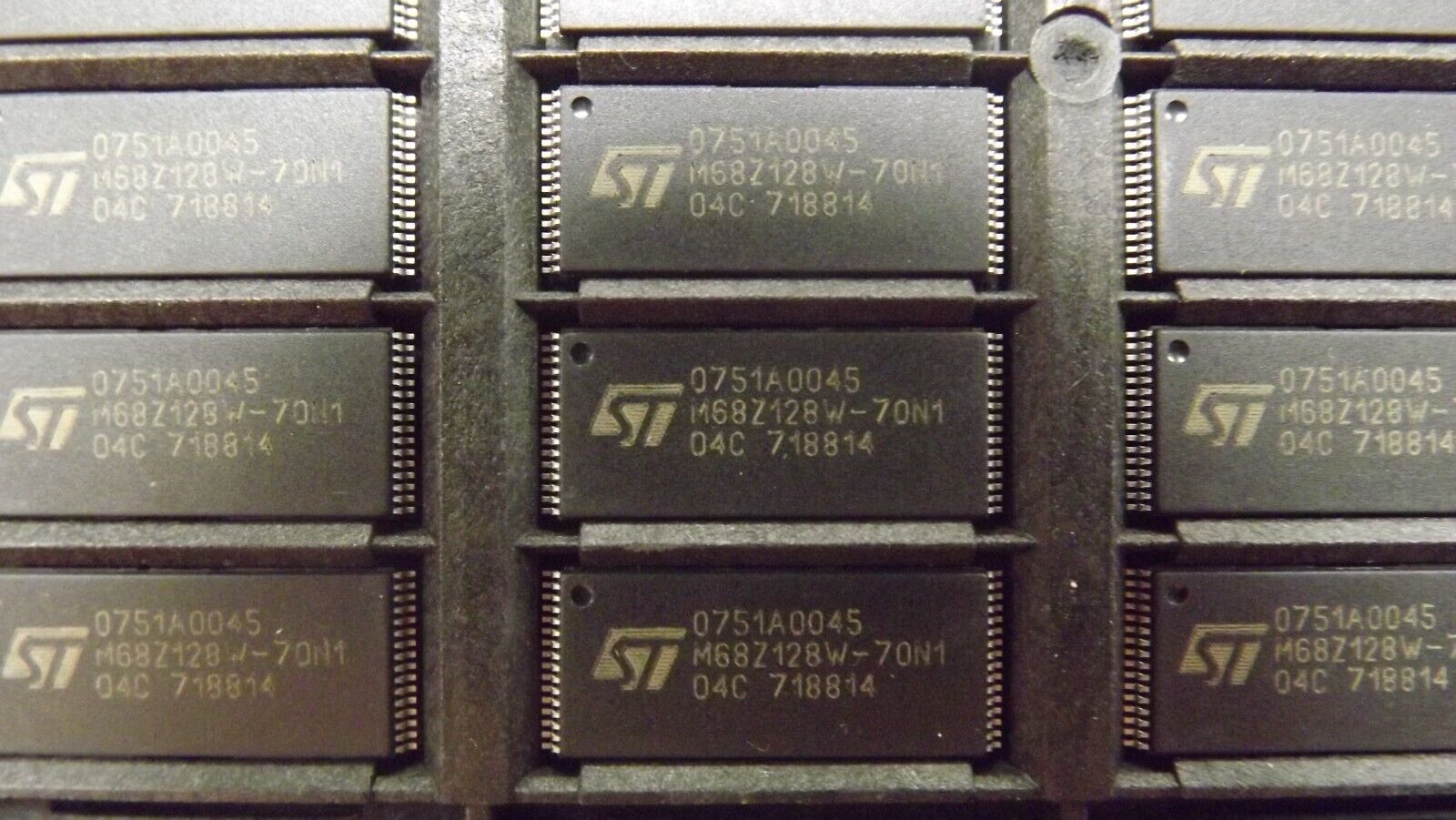

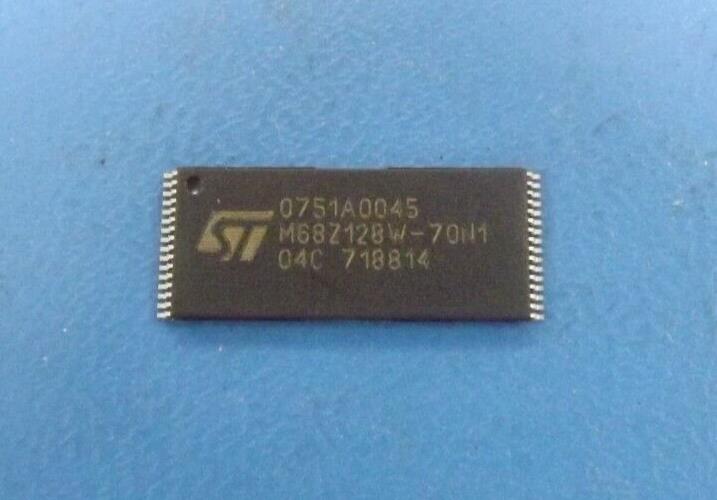

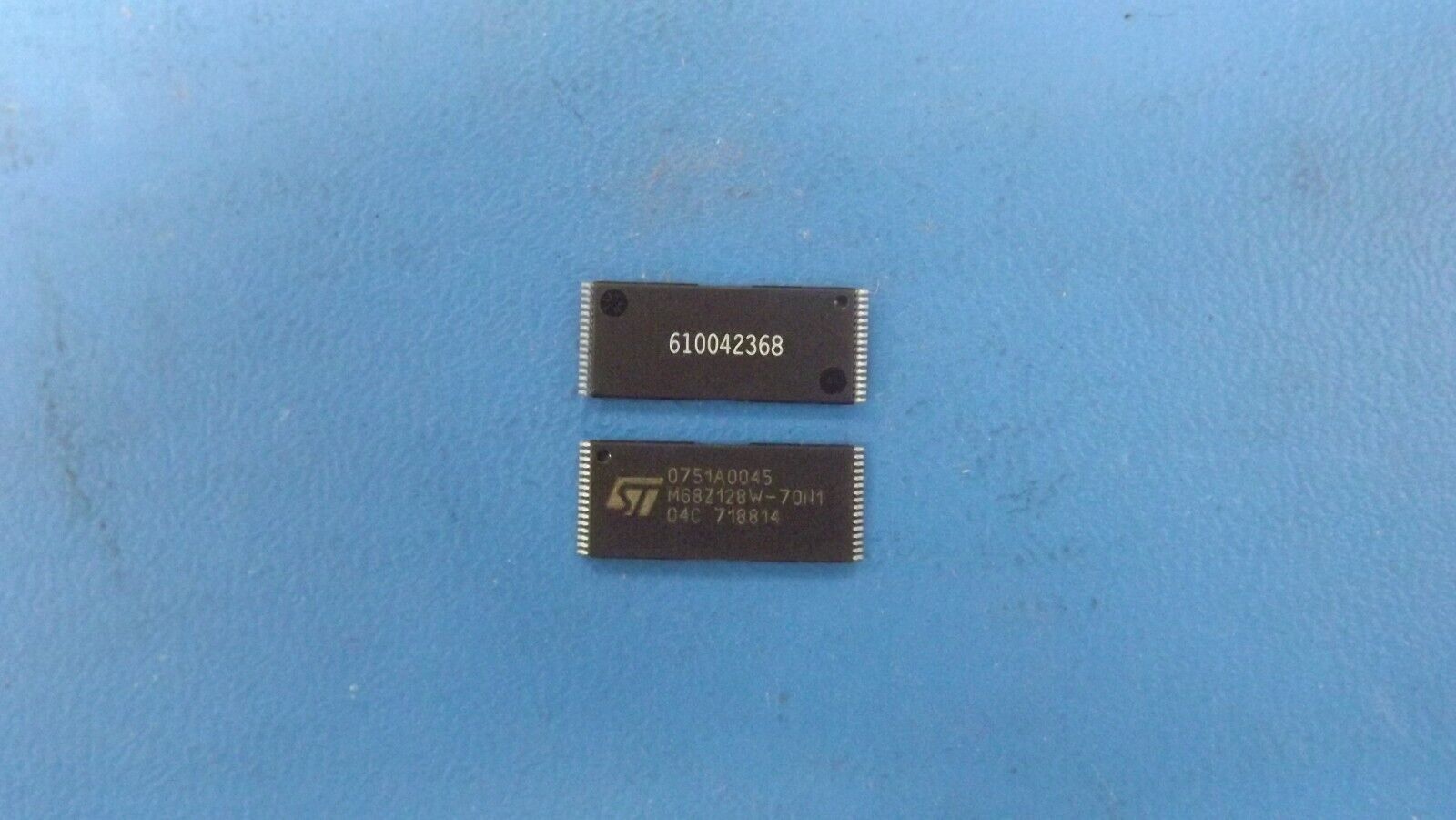

THIS LISTING IS FOR (5PCS) OF M68Z128W-70N1 BY ST MICRO
Mfr Package Description 8 X 20 MM, PLASTIC, TSOP-32
Status Discontinued
Sub Category SRAMs
Access Time-Max 70.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G32
JESD-609 Code e0
Memory Density 1048576.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words 131072.0 words
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP1
Package Equivalence Code TSSOP32,.8,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Standby Voltage-Min 1.4 V
Supply Current-Max 0.04 Amp
Supply Voltage-Nom (Vsup) 3.0 V
Supply Voltage-Min (Vsup) 2.7 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Length 18.4 mm
Width 8.0 mm
