(5PCS) LX807ME LITTELFUSE TRIAC SENS GATE 600V 0.8A TO92

  • $4.95
    Unit price per
Tax included.

Only 5 left!

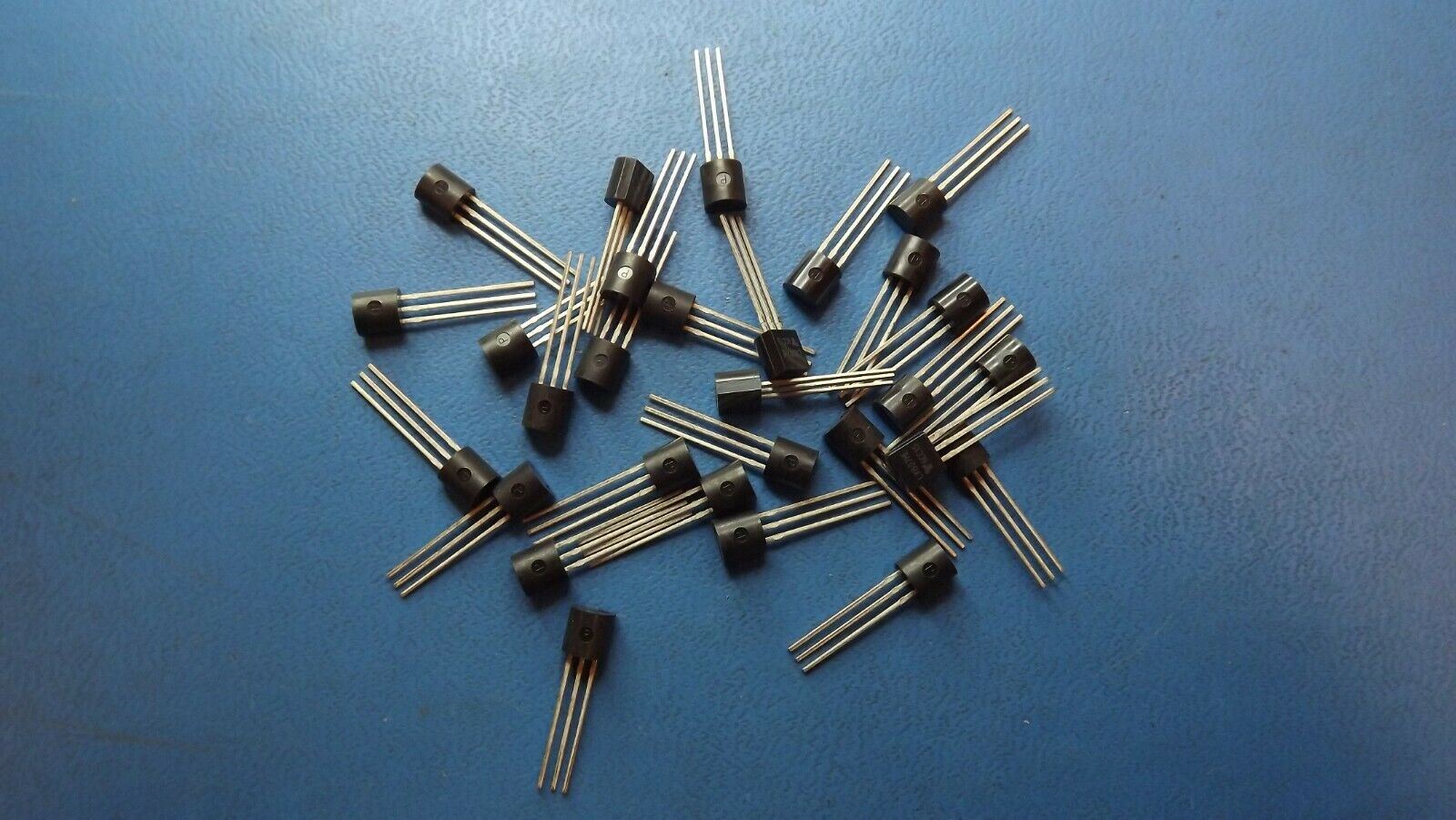

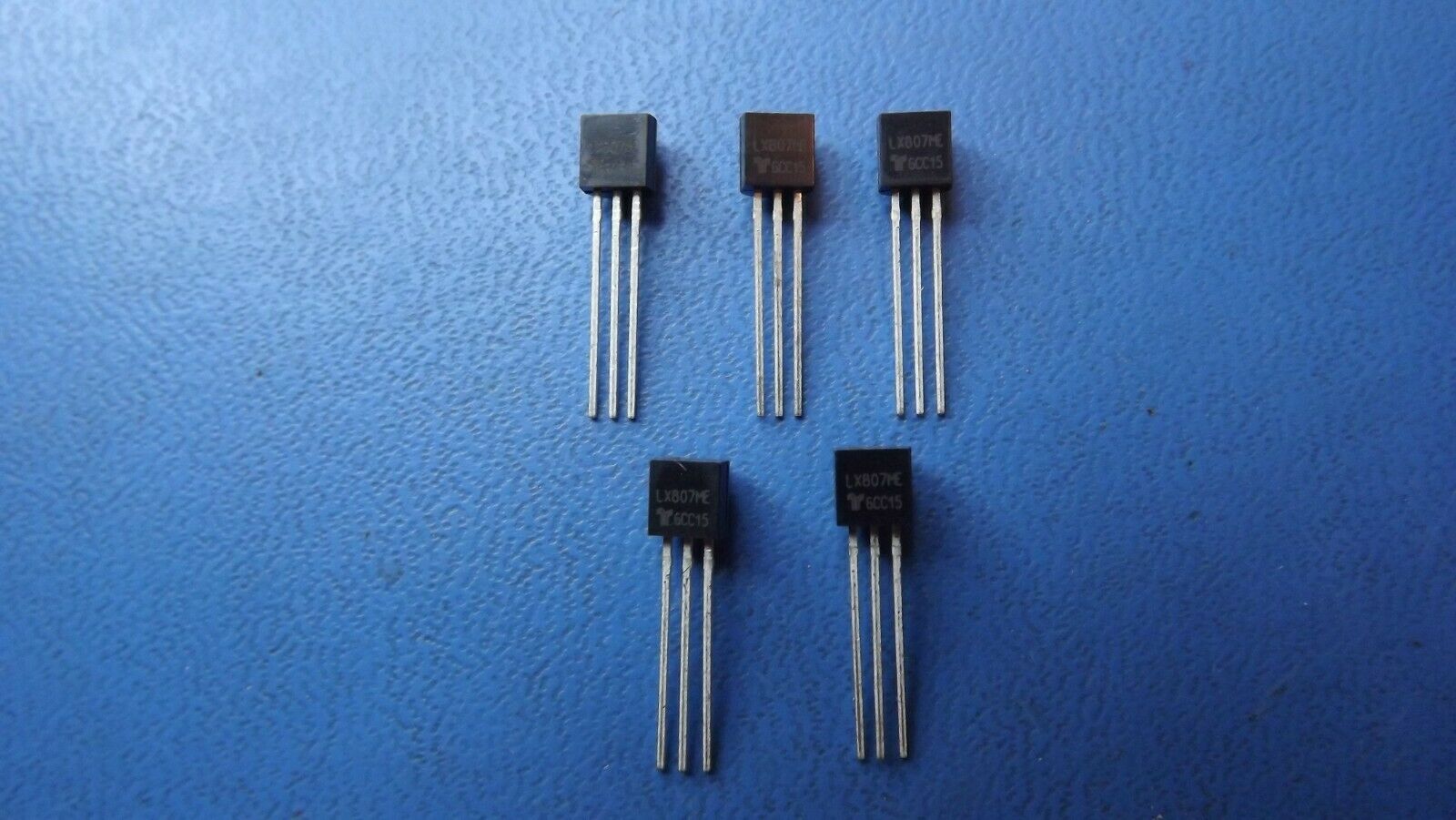

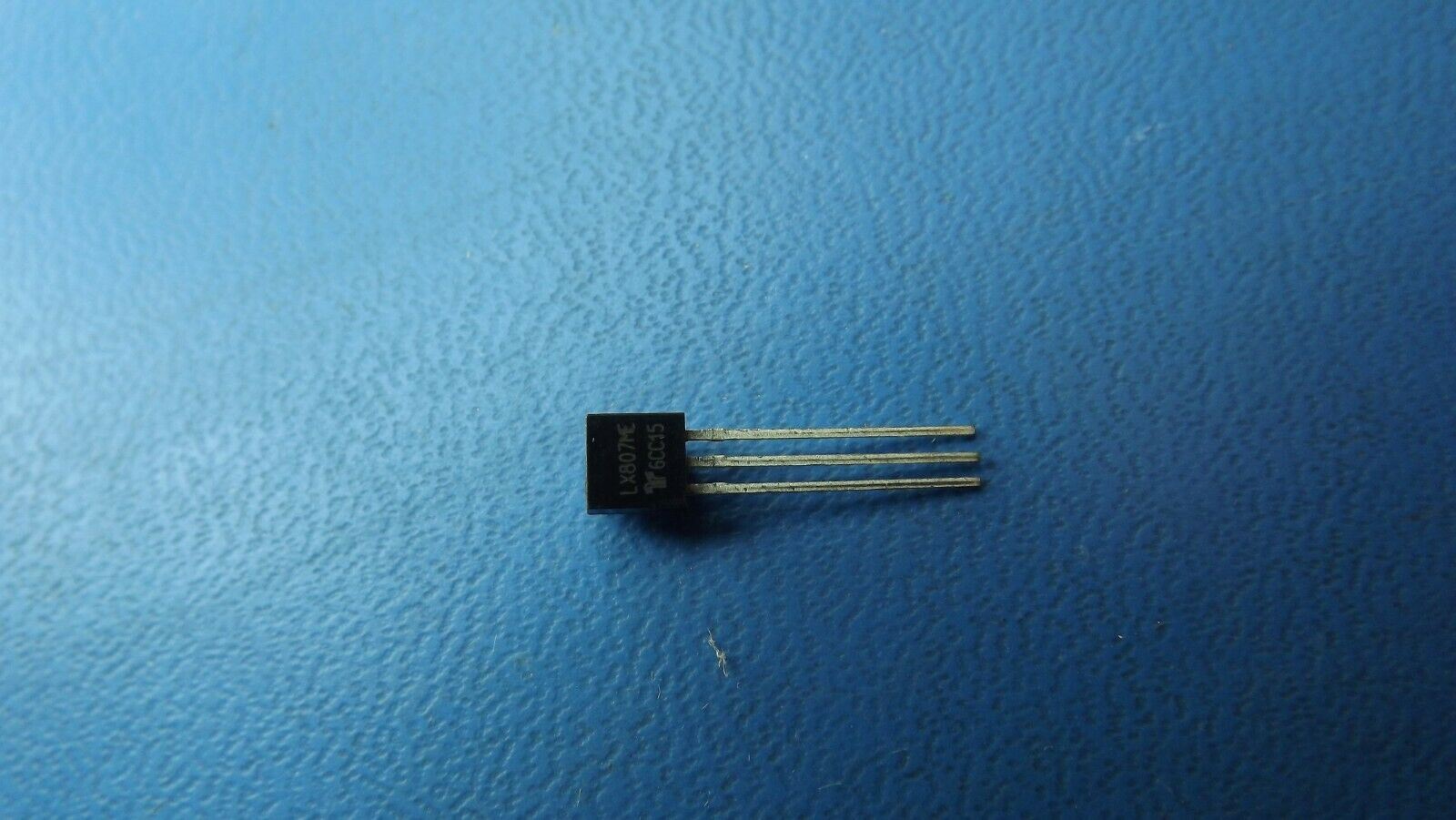

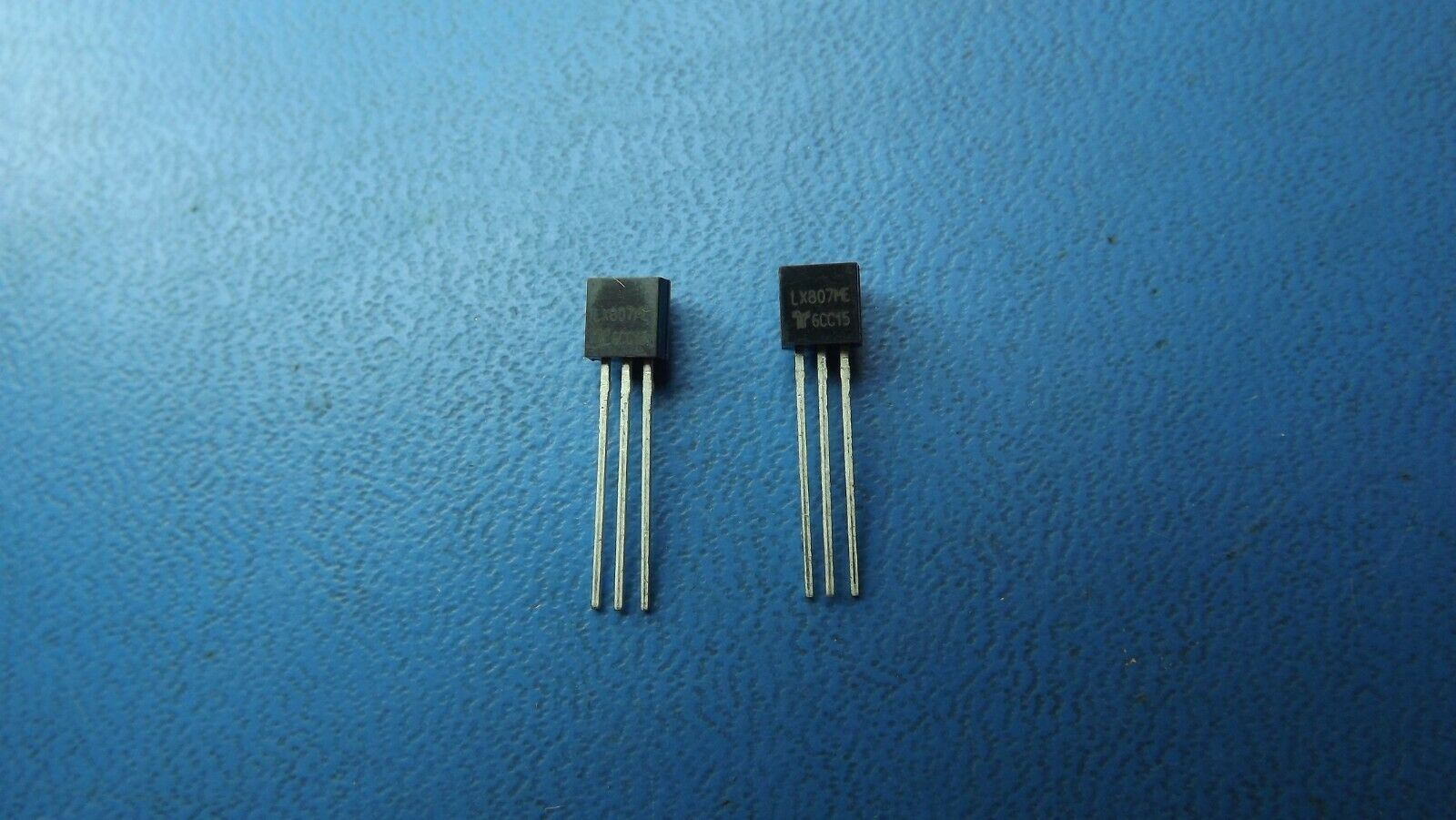

THIS LISTING IS FOR (5PCS) OF LX807ME BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description HALOGEN FREE AND ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Active
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Configuration SINGLE
Critical Rate of Rise of Commutation Voltage-Min 1.5  V/us
Critical Rate of Rise of Off-state Voltage-Min 10.0  V/us
DC Gate Trigger Current-Max 7.0  mA
DC Gate Trigger Voltage-Max 1.3  V
Holding Current-Max 5.0  mA
JEDEC-95 Code TO-92
JESD-30 Code O-PBCY-T3
JESD-609 Code e3
Leakage Current-Max 0.1  mA
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 110.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape ROUND
Package Style CYLINDRICAL
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600.0  V
RMS On-state Current-Max 0.8  A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 40
Additional Feature HIGH RELIABILITY
