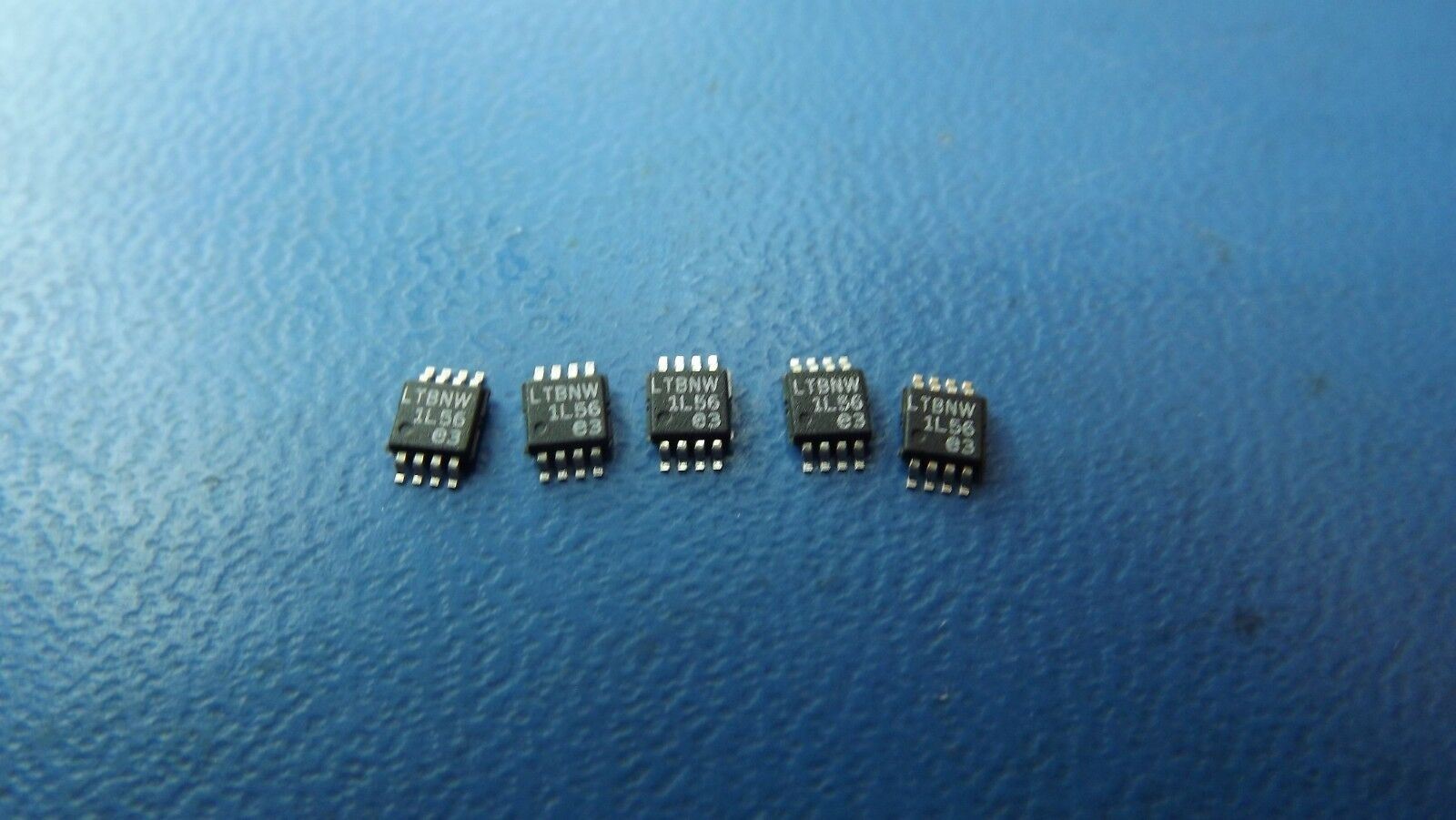

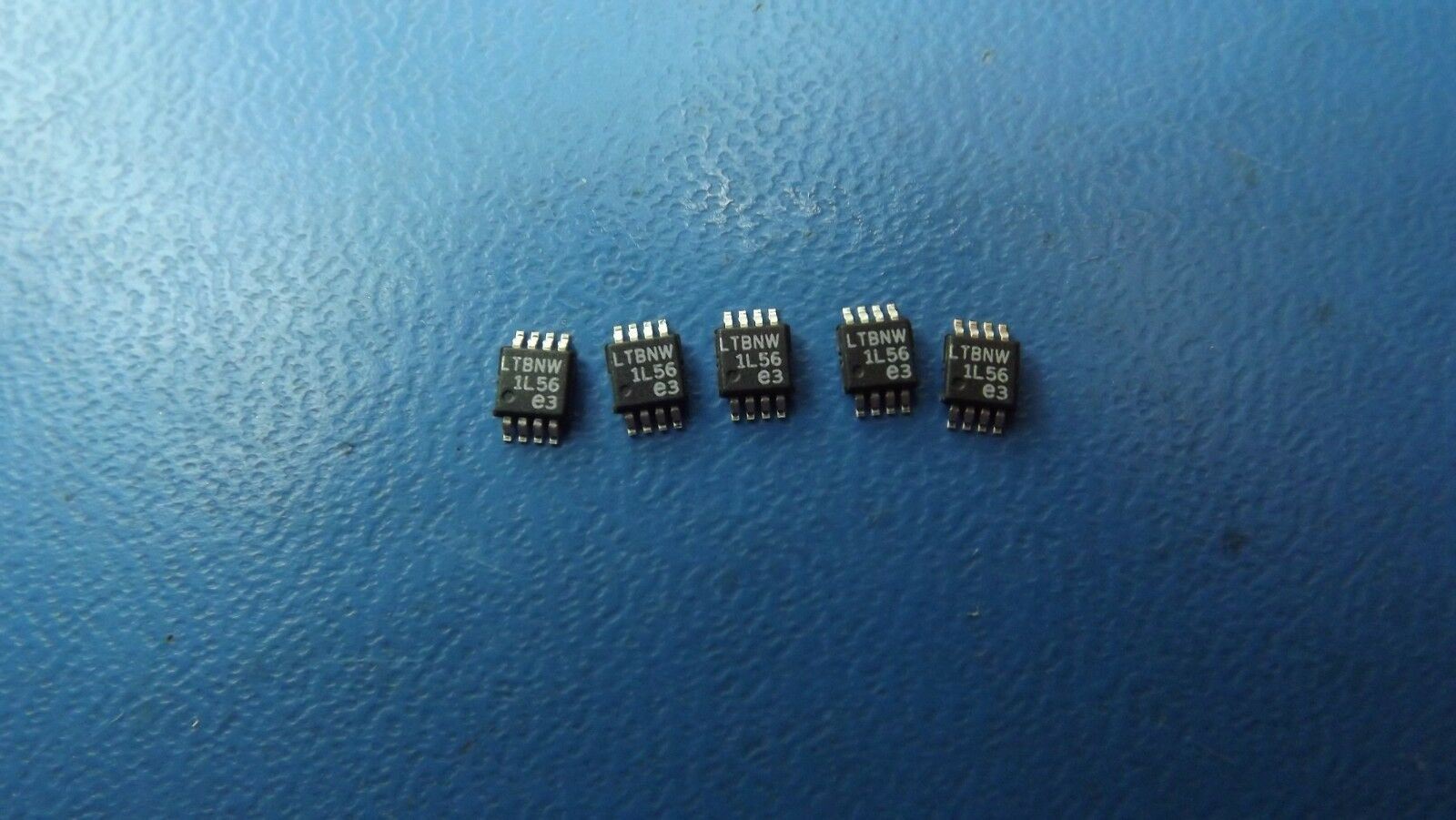

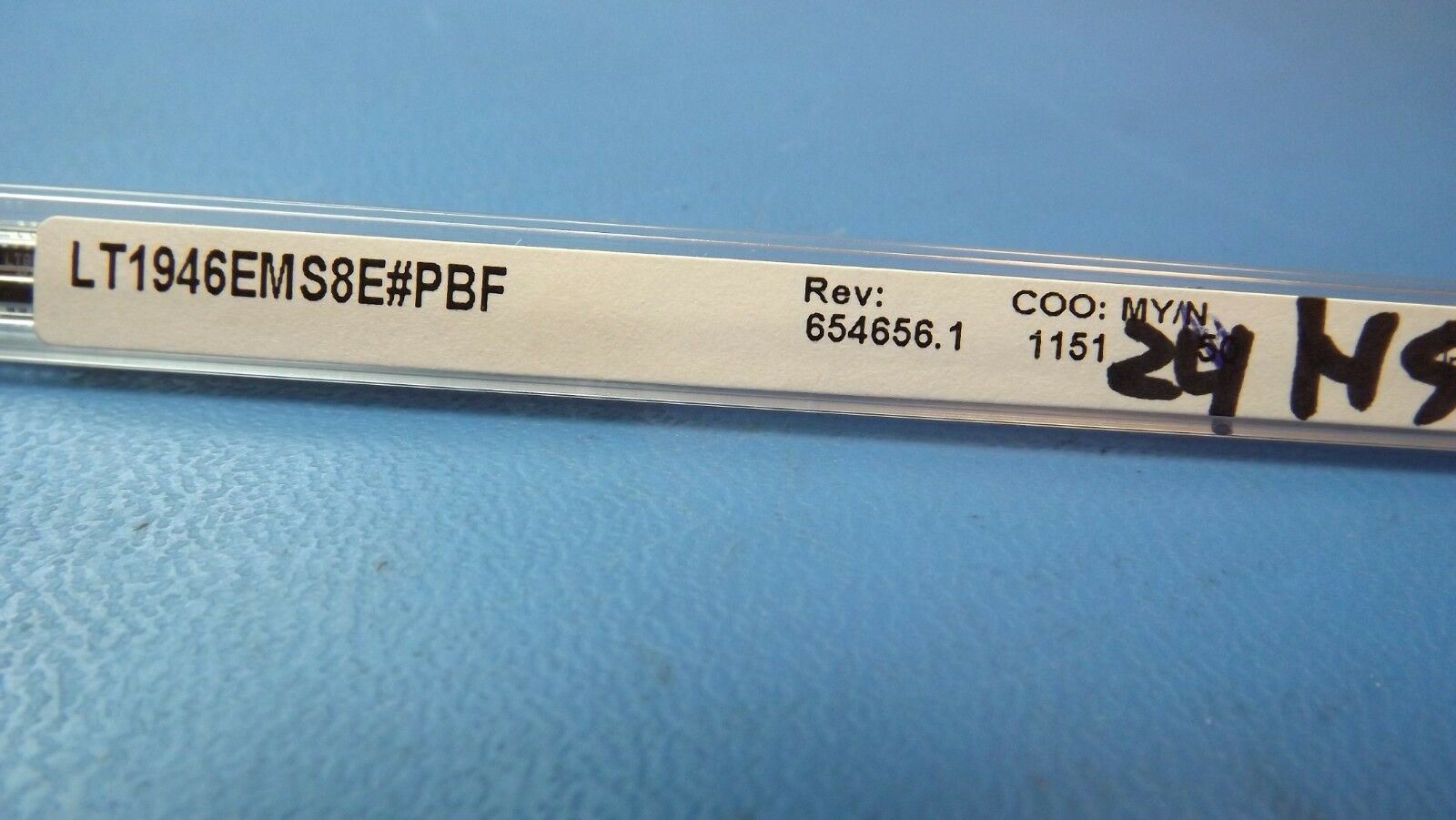

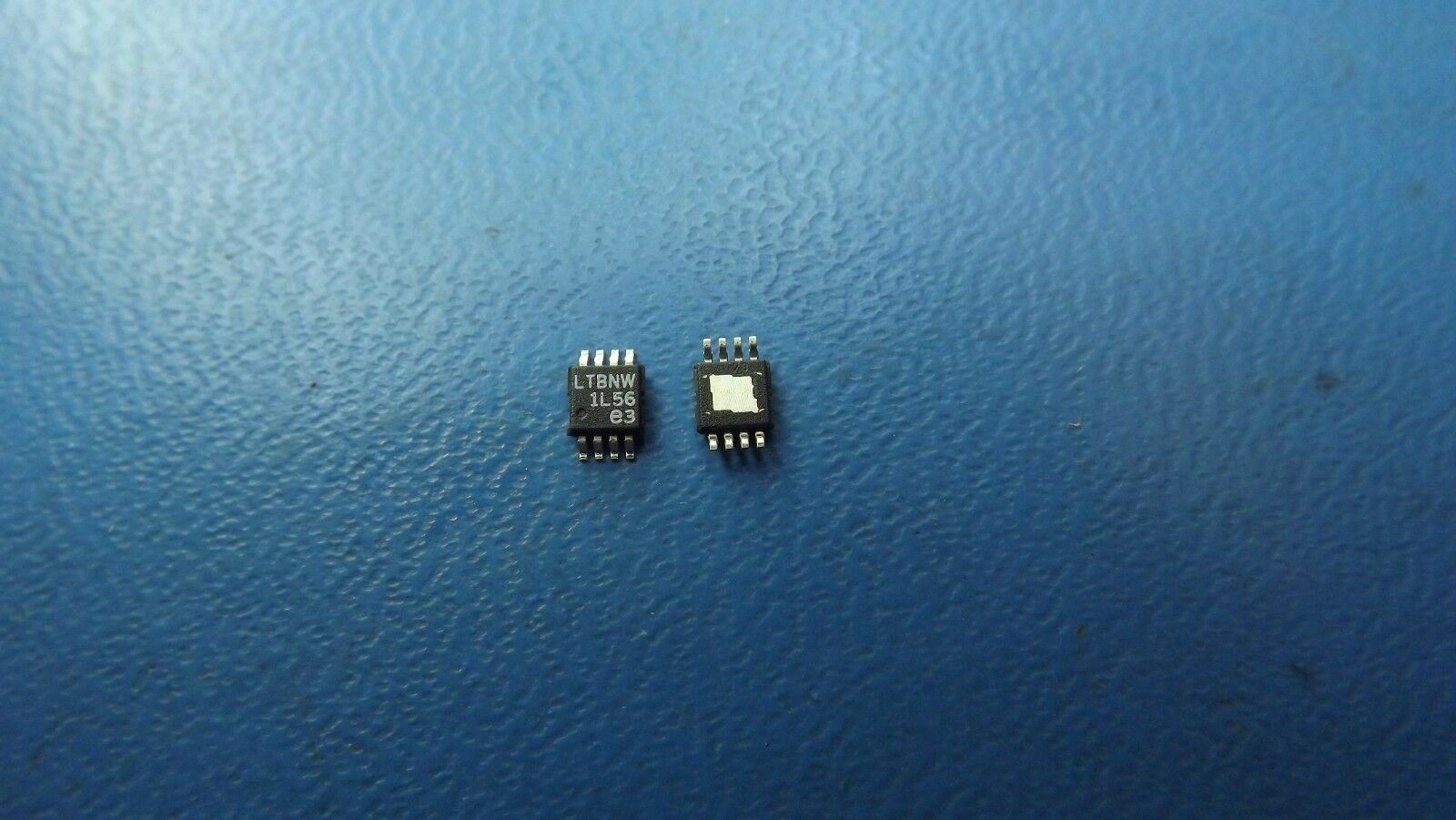

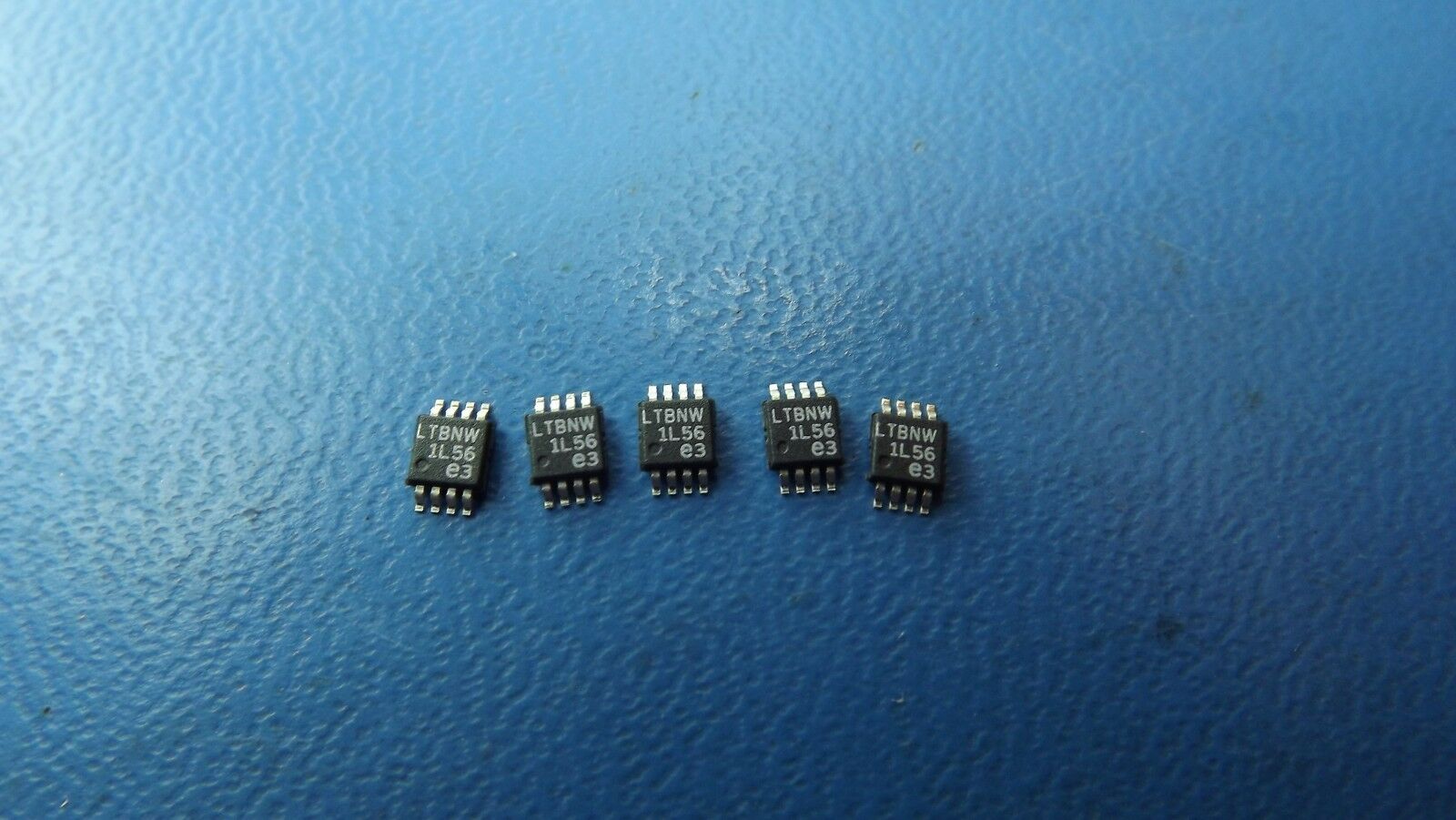

(5PCS) LT1946EMS8E#PBF LINEAR TECHNOLOGY IC REG BOOST ADJ 1.5A 8MSOP

  • $12.95
    Unit price per
Tax included.

Only 4 left!

THIS LISTING IS FOR (5PCS) OF LT1946EMS8E#PBF BY LINEAR TECHNOLOGY

SPECIFICATIONS

Mfr Package Description LEAD FREE, PLASTIC, MSOP-8
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Analog IC - Other Type SWITCHING REGULATOR
Control Mode CURRENT-MODE
Control Technique PULSE WIDTH MODULATION
Input Voltage-Nom 3.0  V
Input Voltage-Min 2.6  V
Input Voltage-Max 16.0  V
JESD-30 Code S-PDSO-G8
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Output Current-Max 3.1  A
Package Body Material PLASTIC/EPOXY
Package Code HTSSOP
Package Equivalence Code TSSOP8,.19
Package Shape SQUARE
Package Style SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Seated Height-Max 1.1  mm
Sub Category Switching Regulator or Controllers
Surface Mount YES
Switcher Configuration BOOST
Switching Frequency-Max 1500.0  kHz
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 3.0  mm
Width 3.0  mm
