(5PCS) LT1016CS8 Comparator, 1 Func, 3500uV Offset-Max, 10ns, BIPolar, SOIC-8
Tax included.

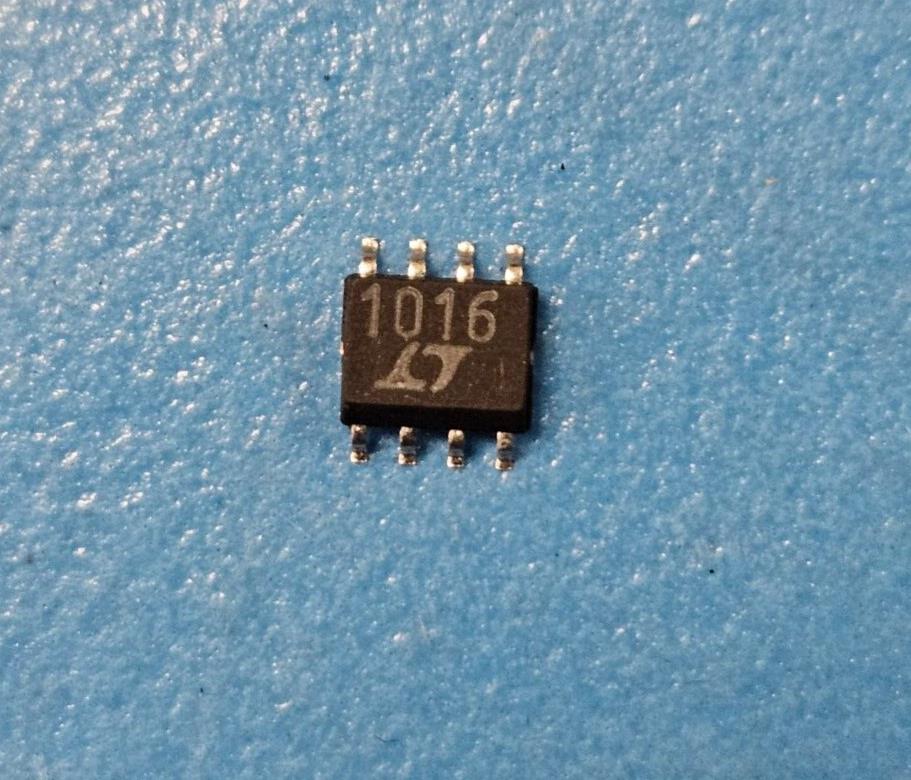

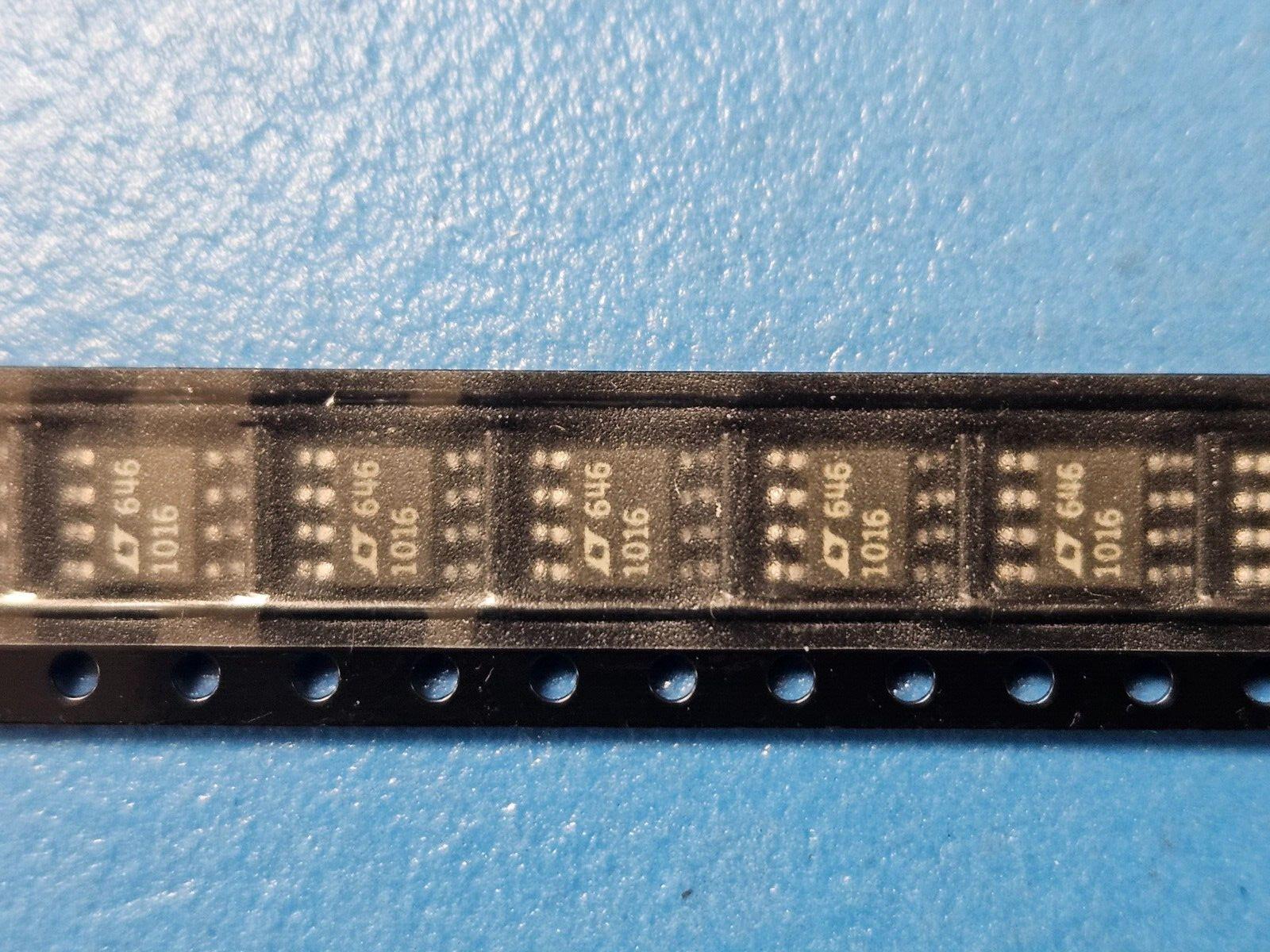

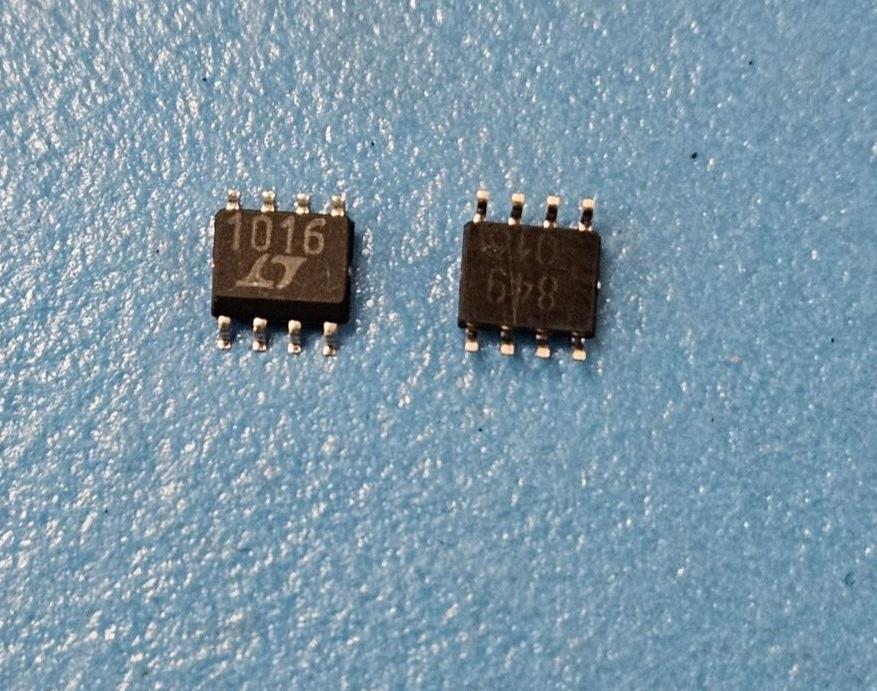

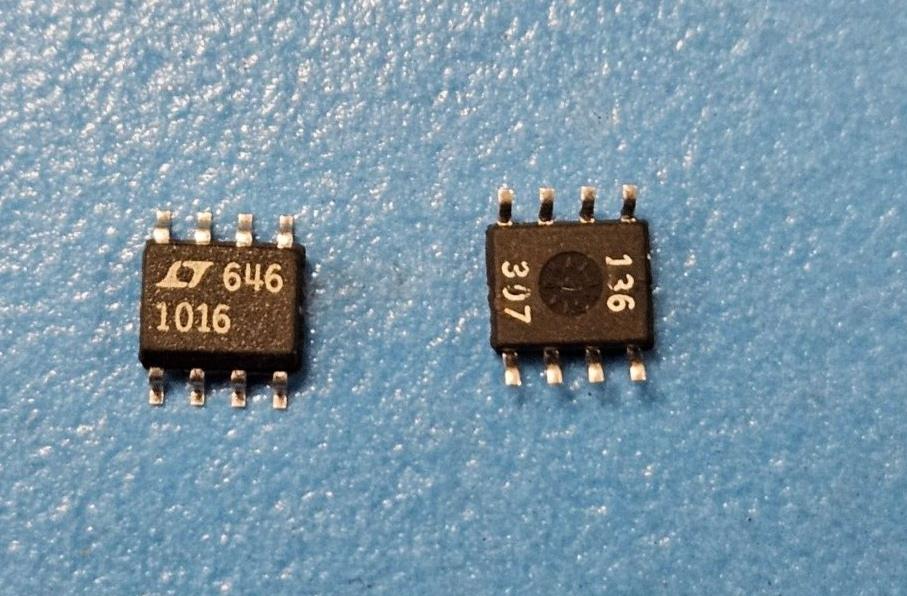

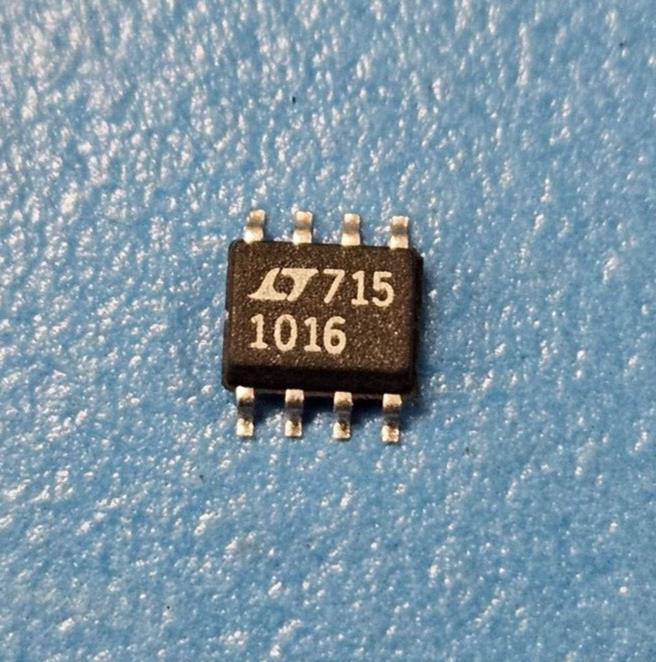

THIS LISTING IS FOR (5PCS) OF LT1016CS8 BY LINEAR TECHNOLOGY.
Mfr Package Description 0.150 INCH, PLASTIC, SOP-8
Status Transferred
Amplifier Type COMPARATOR
Average Bias Current-Max (IIB) 13.0 µA
Bias Current-Max (IIB) @25C 10.0 µA
Input Offset Voltage-Max 3500.0 µV
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Moisture Sensitivity Level 1
Neg Supply Voltage Limit-Max -7.0 V
Neg Supply Voltage-Nom (Vsup) -5.0 V
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP8,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Response Time-Nom 10.0 ns
Seated Height-Max 1.752 mm
Sub Category Comparator
Supply Current-Max 35.0 mA
Supply Voltage Limit-Max 7.0 V
Supply Voltage-Nom (Vsup) 5.0 V
Surface Mount YES
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9025 mm
Width 3.899 mm
