(5PCS) LM317LMX/NOPB NSC IC REG LIN POS ADJ 100MA 8SOIC
Tax included.

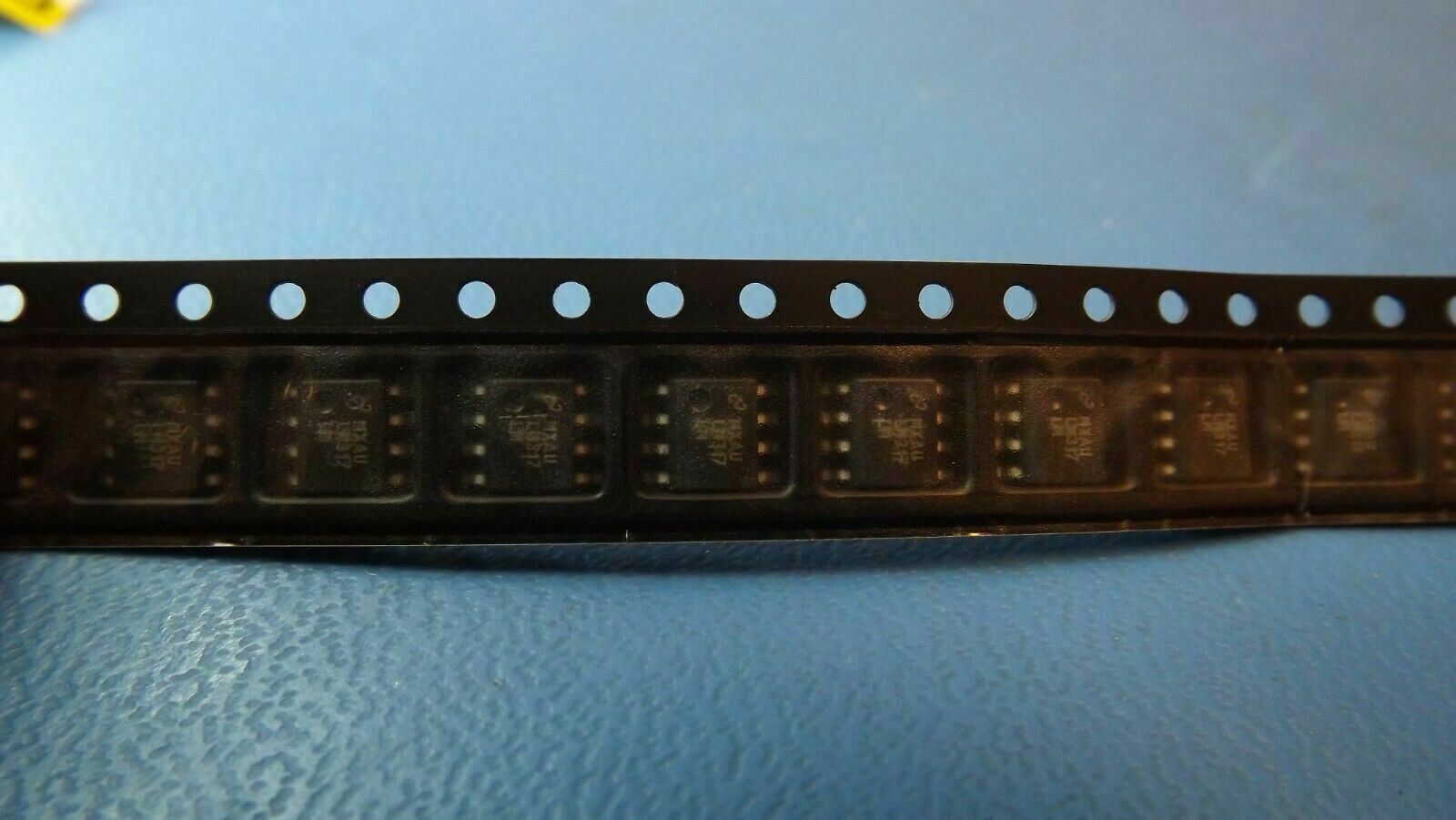

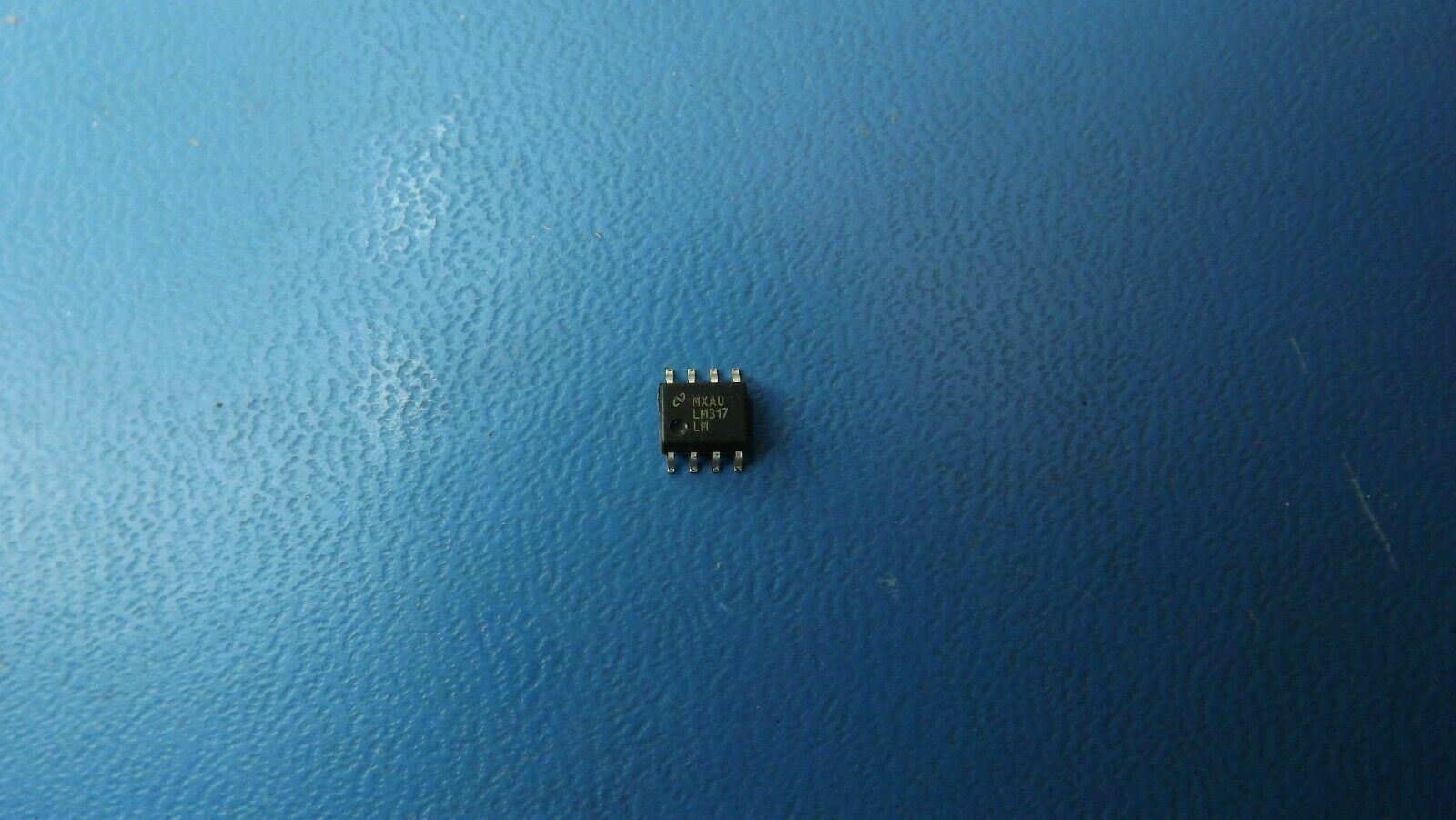

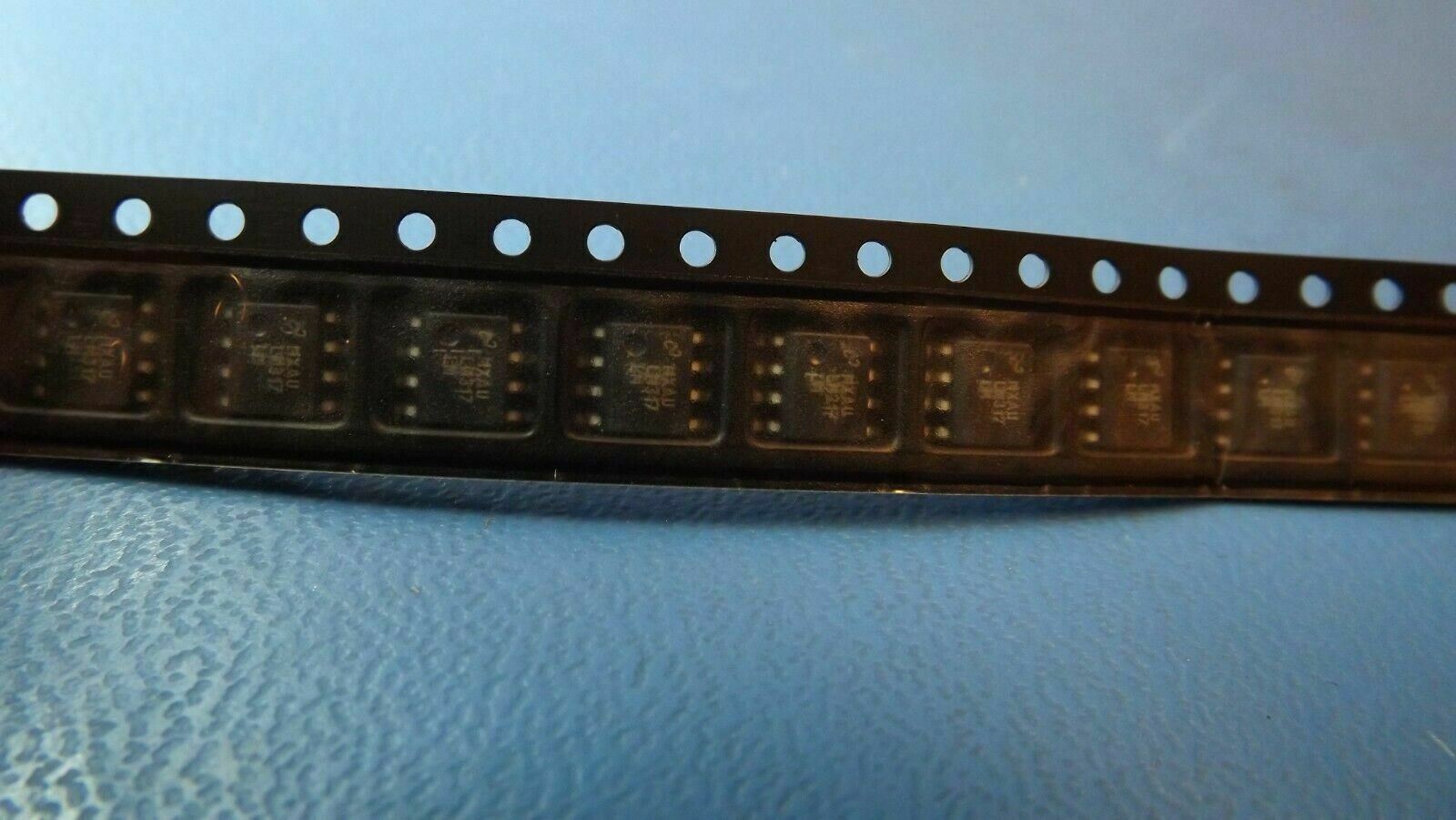

THIS LISTING IS FOR (5PCS) OF LM317LMX/NOPB BY NSC/TI
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, SOIC-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Transferred |
| Regulator Type | ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR |
| Adjustability | ADJUSTABLE |
| Dropout Voltage1-Nom | 3.0 V |
| Input-Output Voltage Differential-Min | 3.0 V |
| Input-Output Voltage Differential-Max | 40.0 V |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e3 |
| Line Regulation-Max (%/V) | 0.07 |
| Load Regulation-Max(%) | 1.5 % |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1.0 |
| Number of Terminals | 8 |
| Operating Temperature, TJ-Min | -40.0 Cel |
| Operating Temperature, TJ-Max | 125.0 Cel |
| Output Current1-Max | 0.1 A |
| Output Voltage1-Min | 1.2 V |
| Output Voltage1-Max | 37.0 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Packing Method | TAPE AND REEL |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Other Regulators |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 4.9 mm |
| Width | 3.9 mm |
