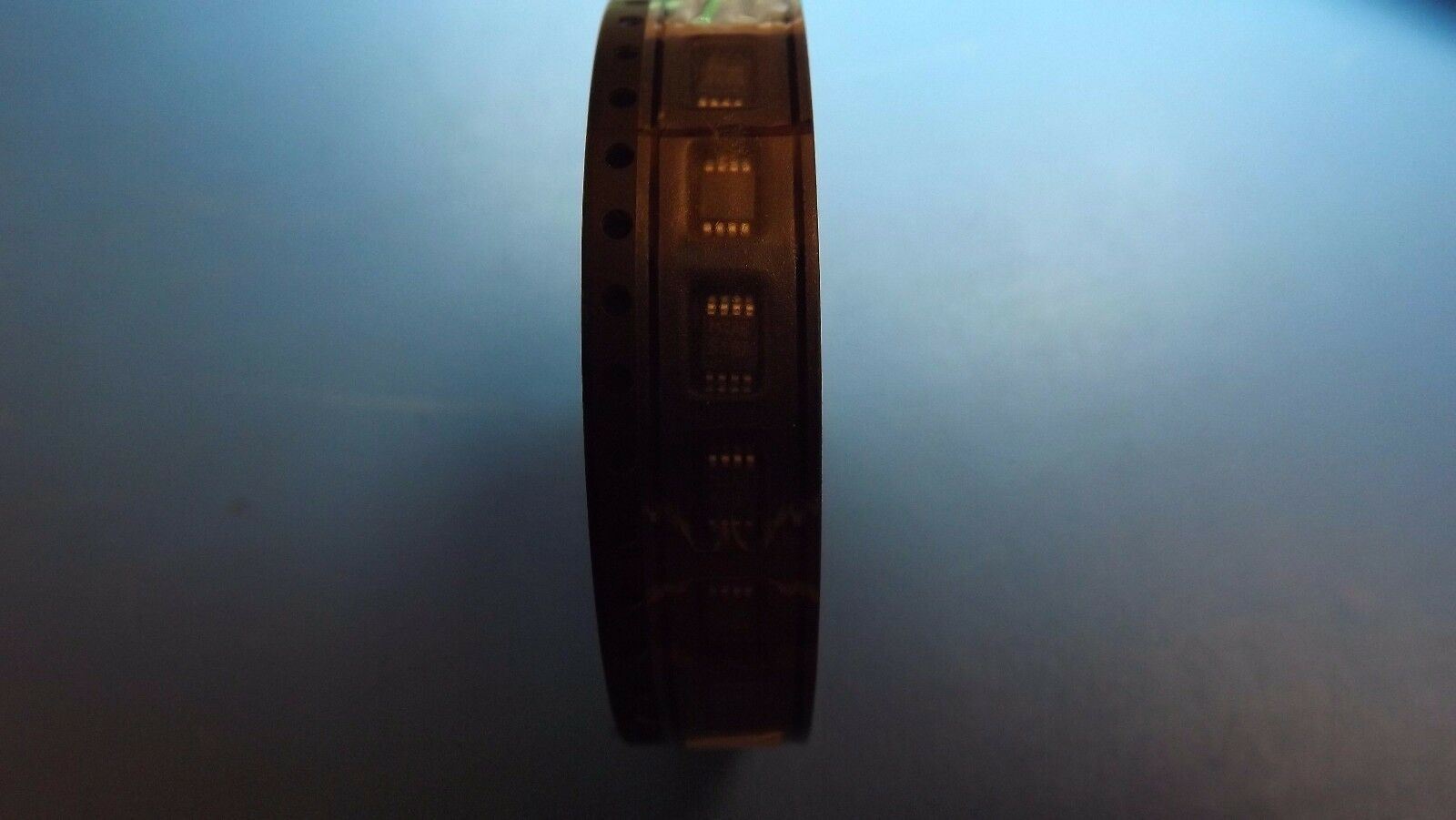

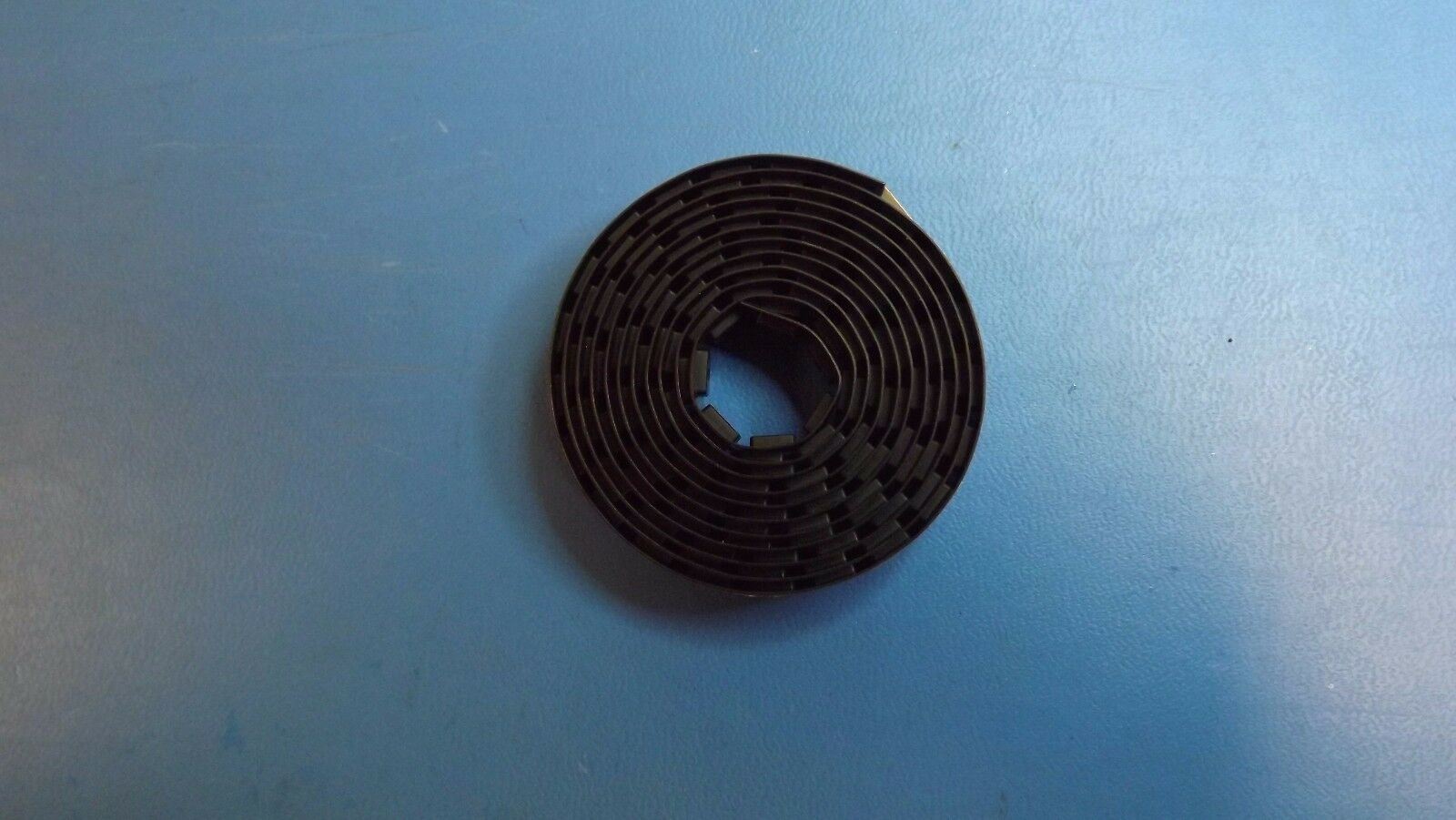

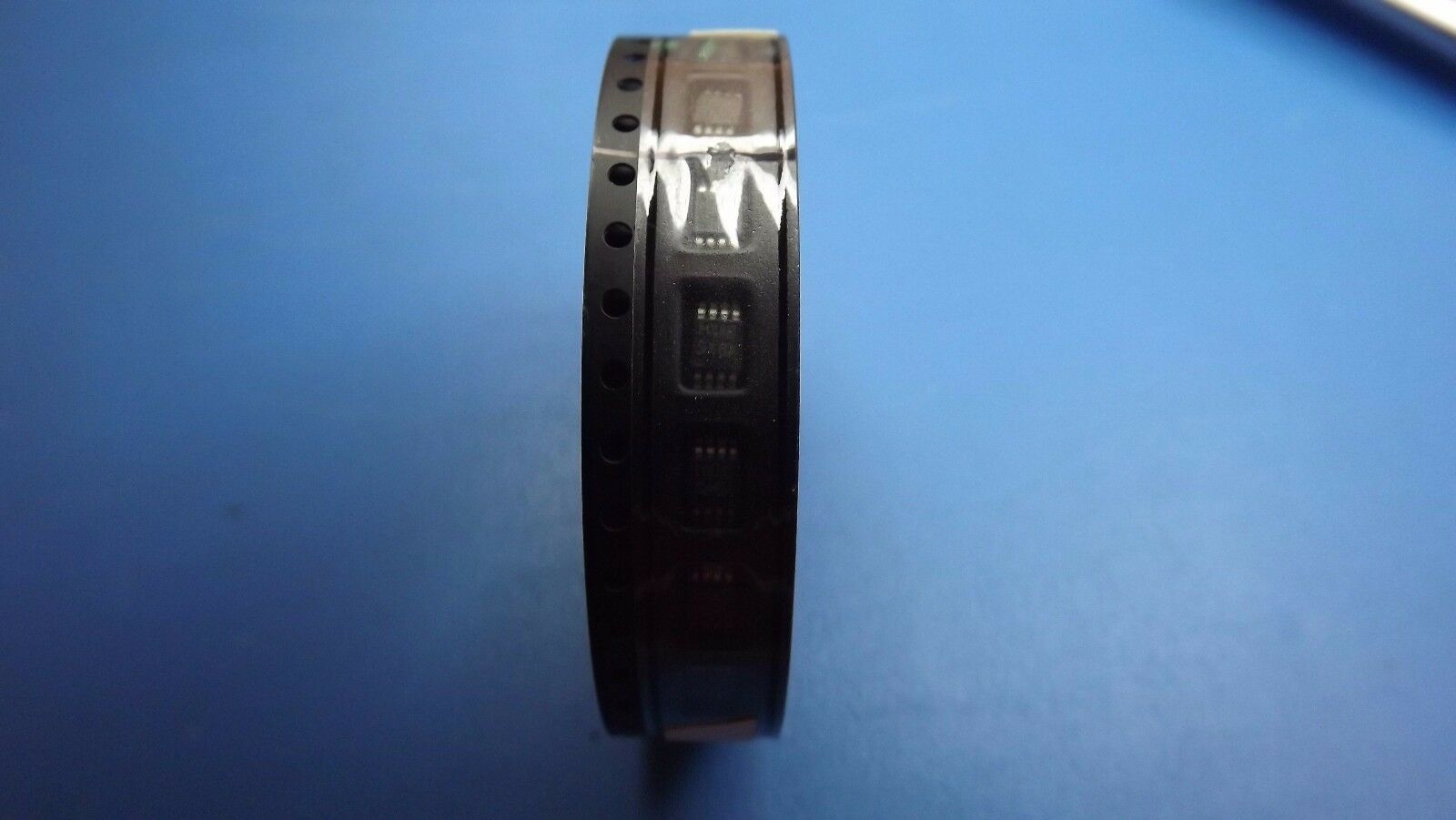

(5PCS) LM2623AMM DC-DC Single Step Up 0.8V to 14V 8-Pin VSSOP
Tax included.

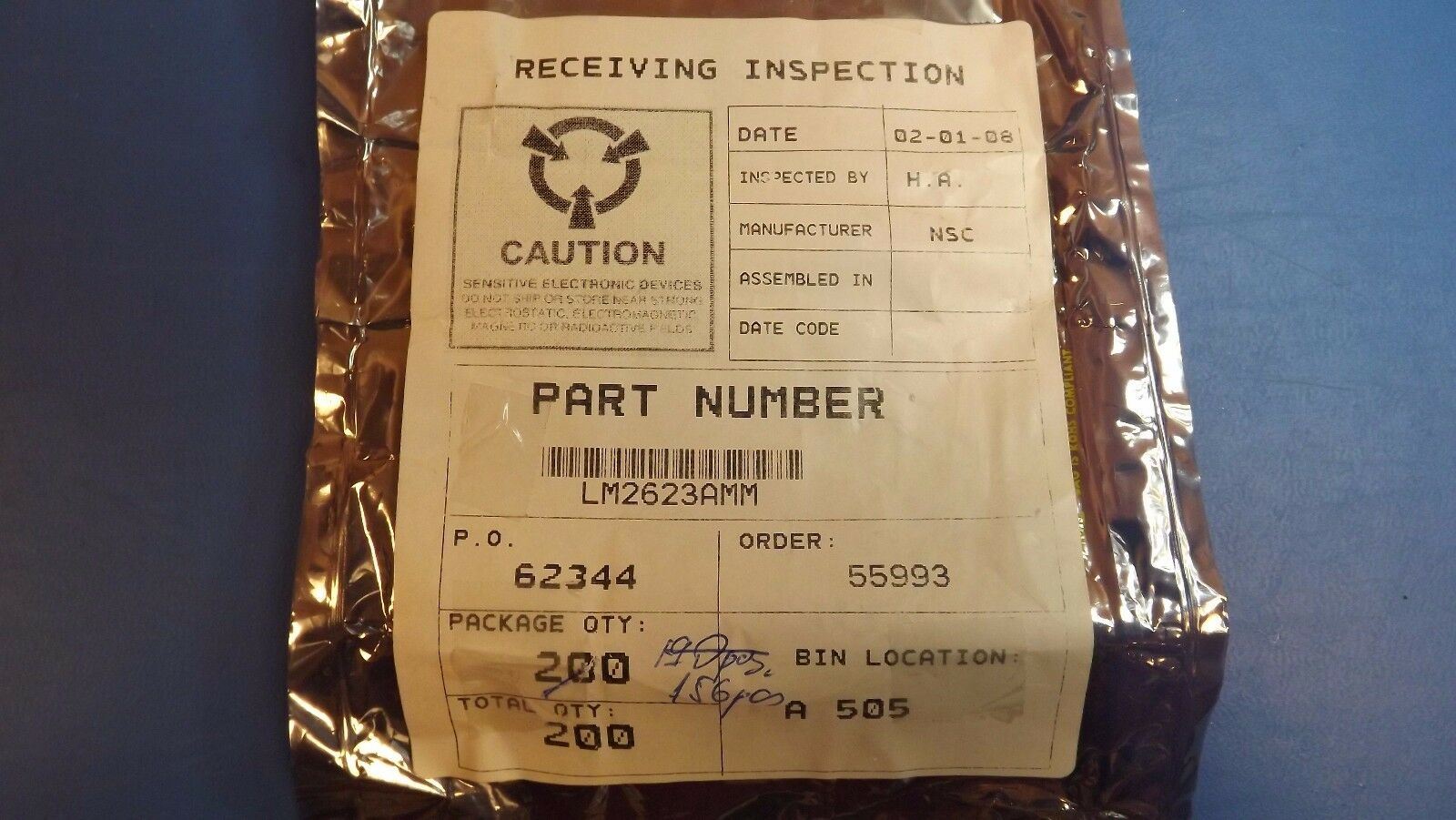

THIS LISTING IS FOR (5PCS) OF LM2623AMM BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | MINI, SO-8 |
| REACH Compliant | Yes |
| Status | NRFND |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE FREQUENCY MODULATION |
| Input Voltage-Nom | 3.3 V |
| Input Voltage-Min | 3.0 V |
| Input Voltage-Max | 5.0 V |
| JESD-30 Code | S-PDSO-G8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Output Current-Max | 2.2 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSSOP |
| Package Equivalence Code | TSSOP8,.19 |
| Package Shape | SQUARE |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.09 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BOOST |
| Switching Frequency-Max | 2000.0 kHz |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 3.0 mm |
| Width | 3.0 mm |
