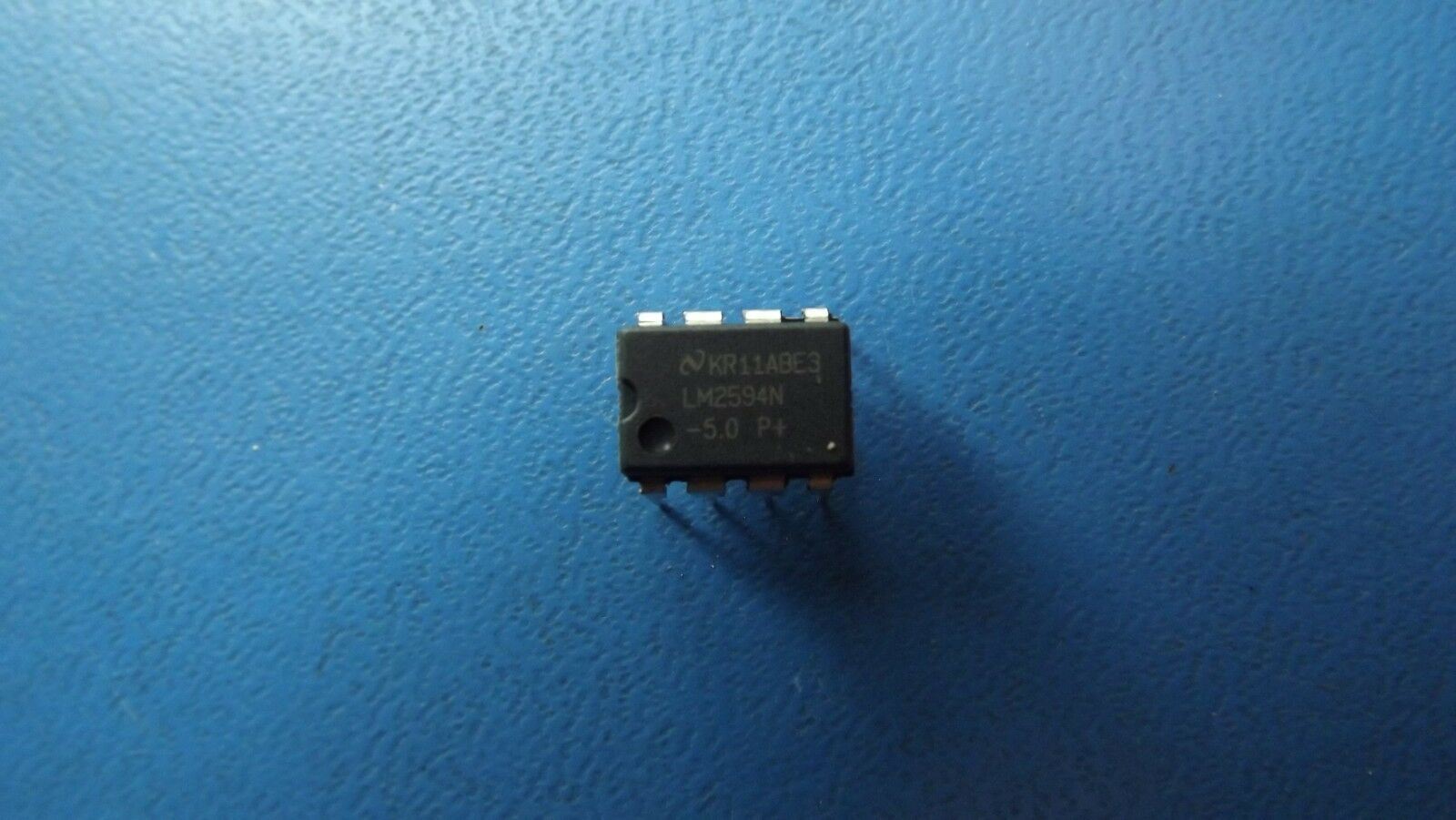

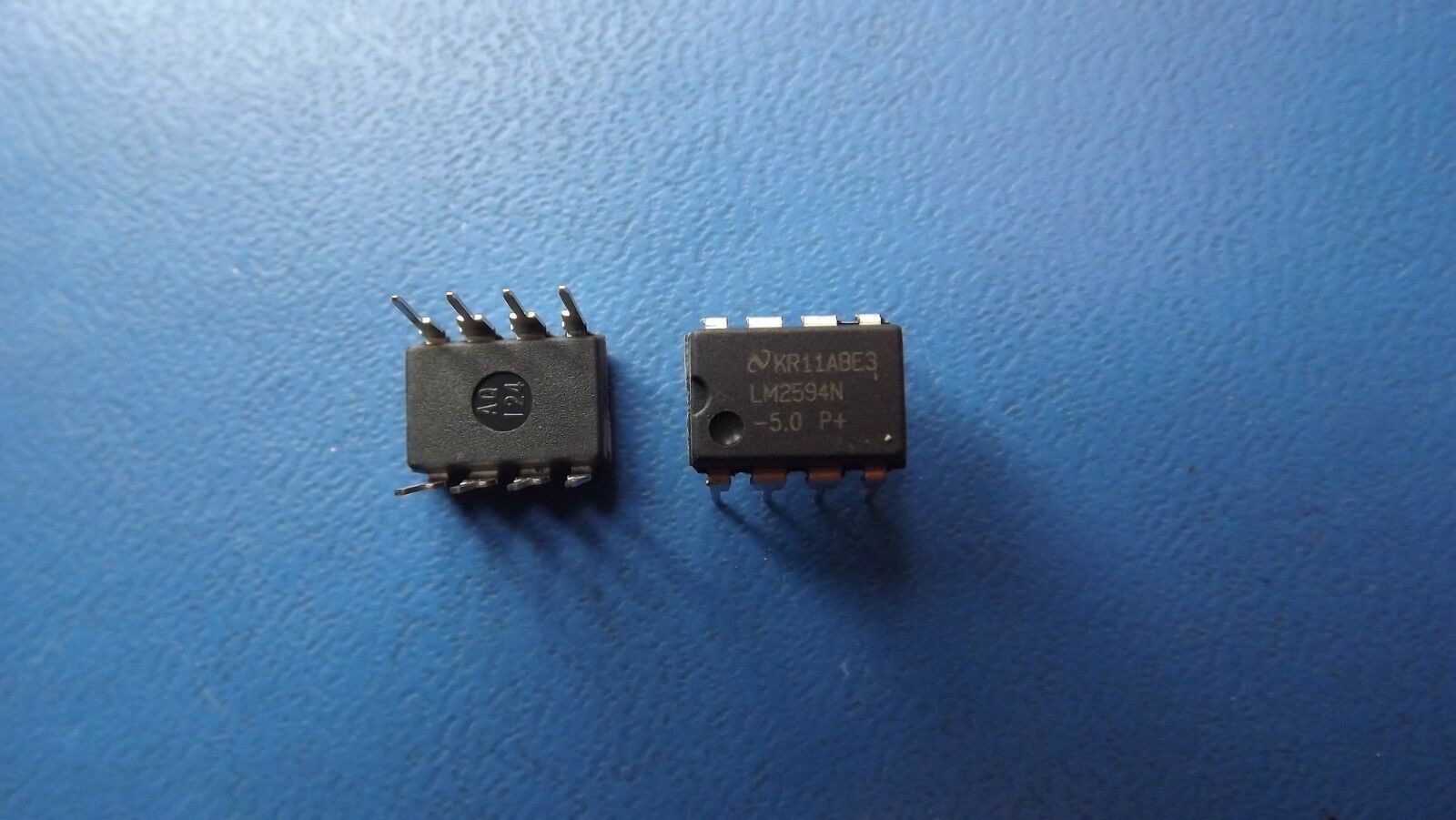

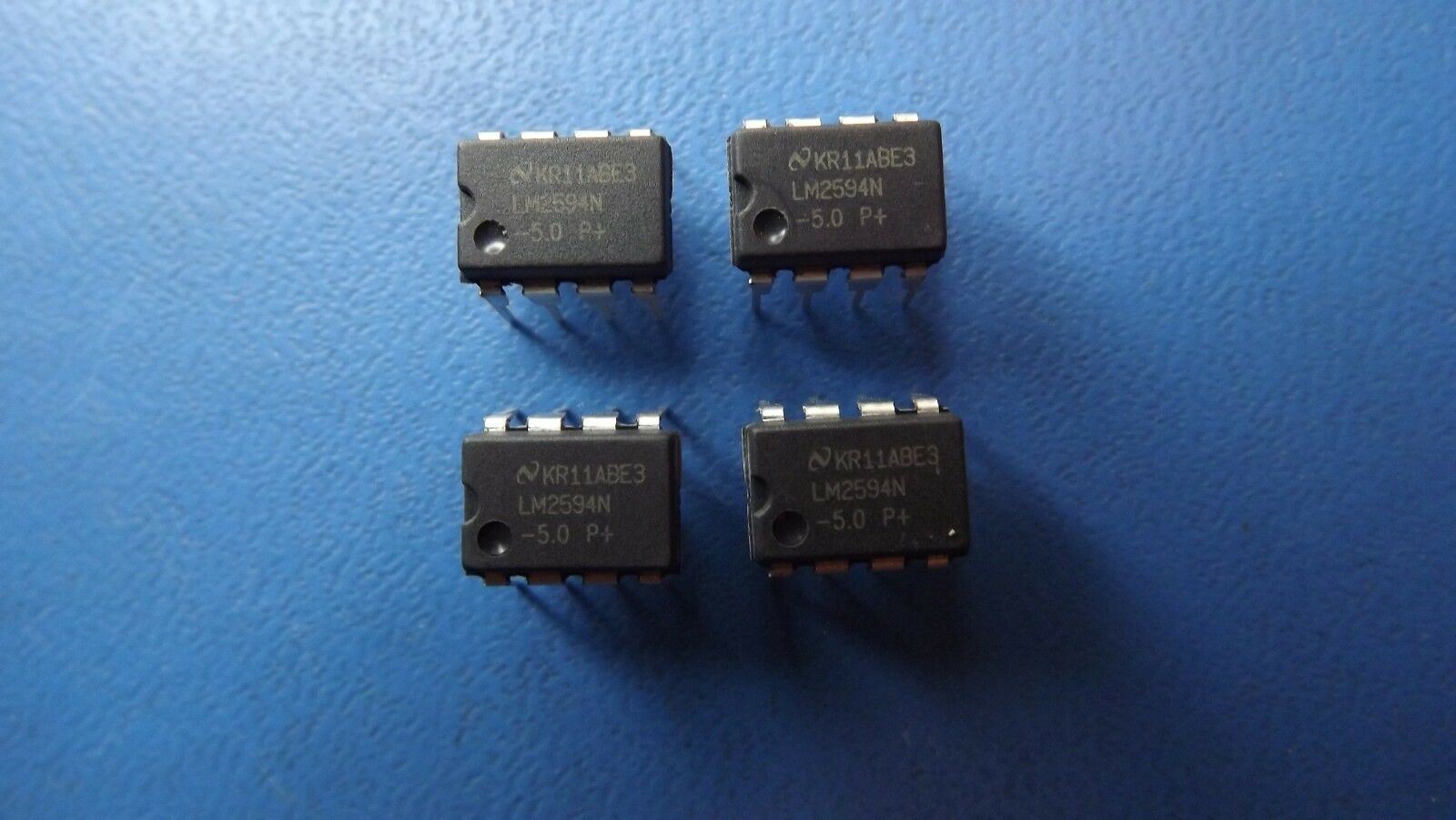

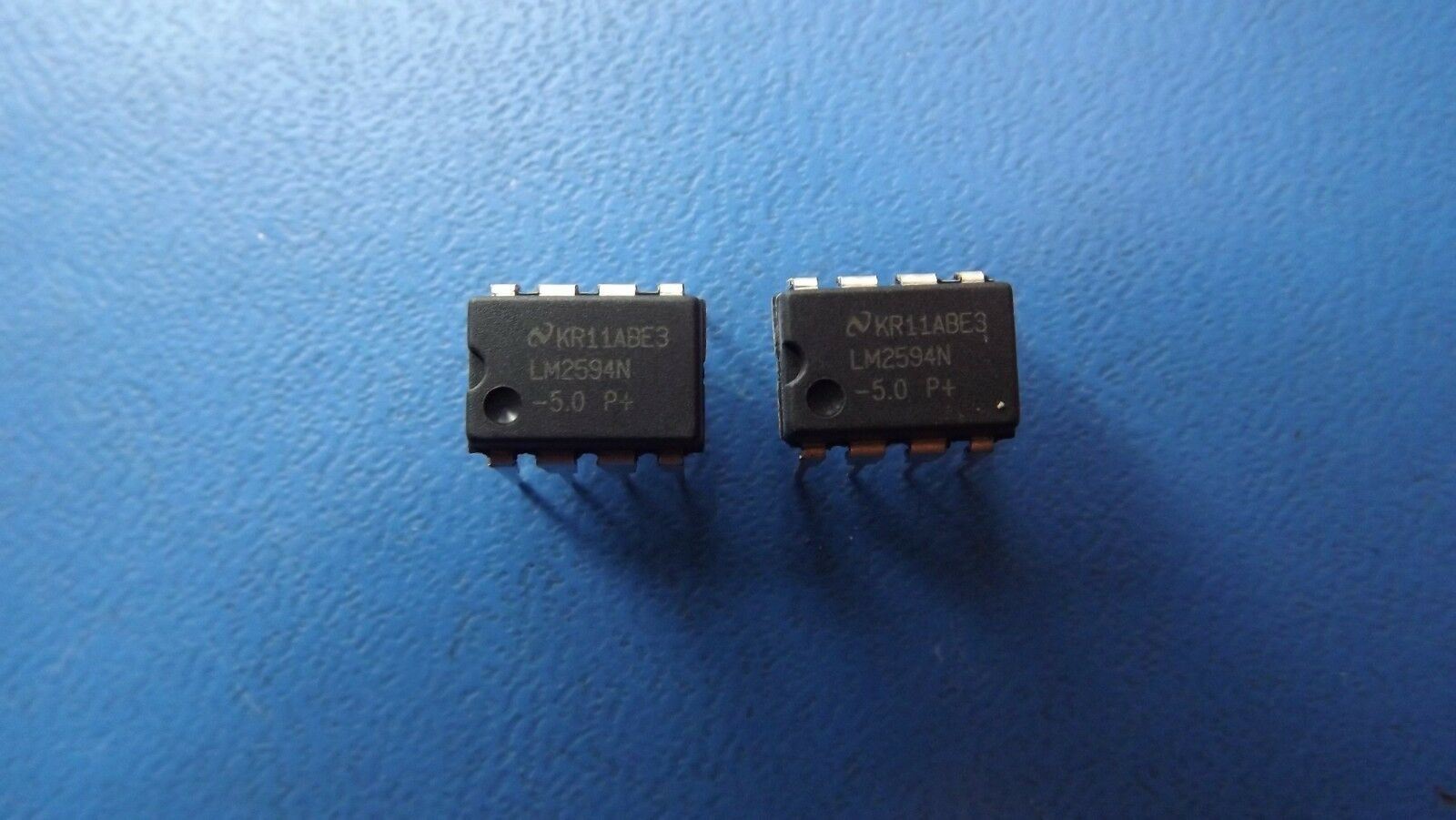

(5PCS) LM2594N-5.0 NSC IC REG BUCK 5V 0.5A 8-DIP
Tax included.

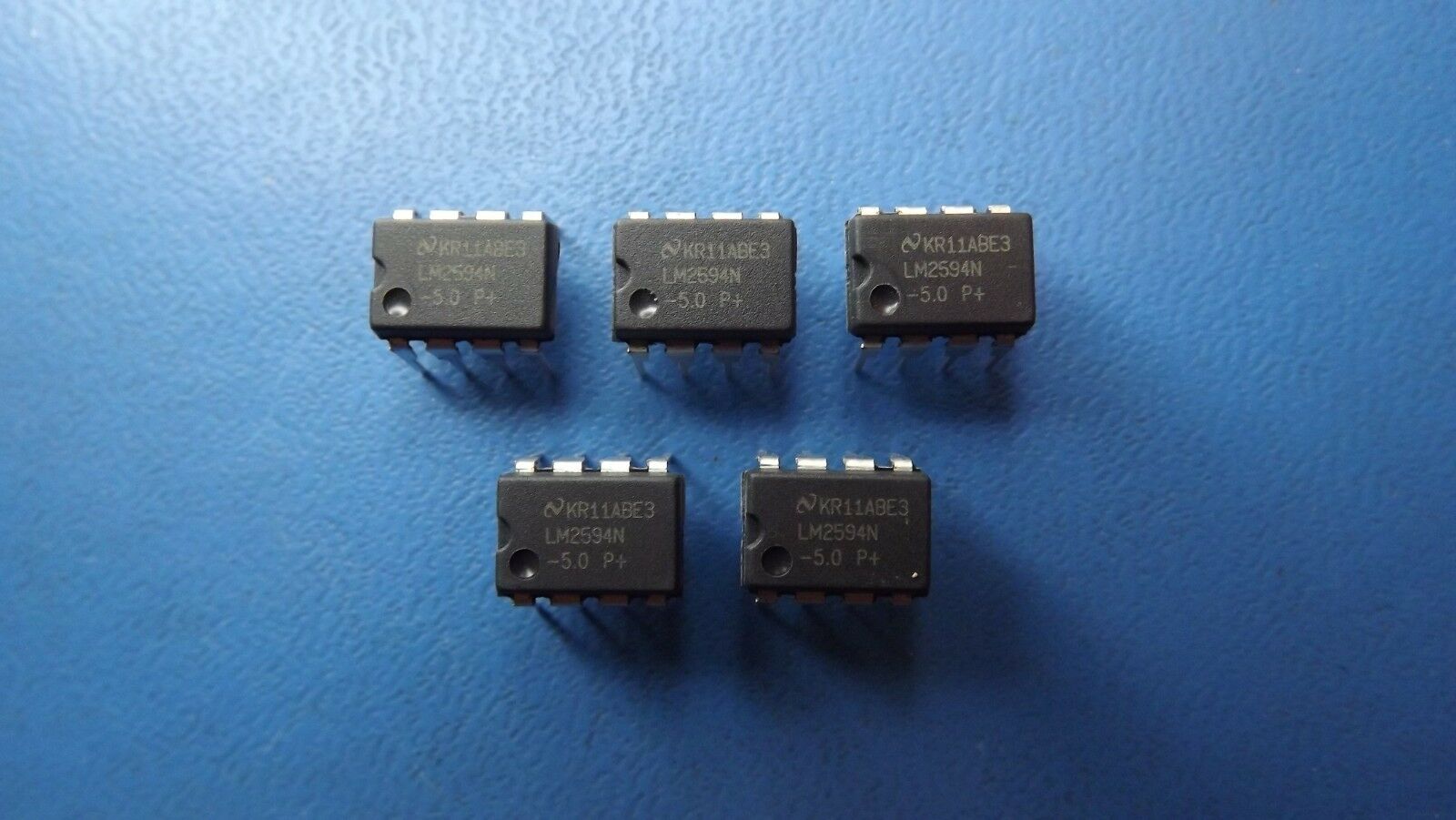

THIS LISTING IS FOR (5PCS) OF LM2594N-5.0 BY NSC
SPECIFICATIONS
| Mfr Package Description | 0.300 INCH, PLASTIC, DIP-8 |
| REACH Compliant | Yes |
| Status | Transferred |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Nom | 12.0 V |
| Input Voltage-Min | 4.5 V |
| Input Voltage-Max | 40.0 V |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Output Current-Max | 1.4 A |
| Output Voltage-Nom | 5.0 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | Switching Regulator or Controllers |
| Supply Current-Max (Isup) | 10.0 mA |
| Surface Mount | NO |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 173.0 kHz |
| Technology | BIPOLAR |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 9.817 mm |
| Width | 7.62 mm |
