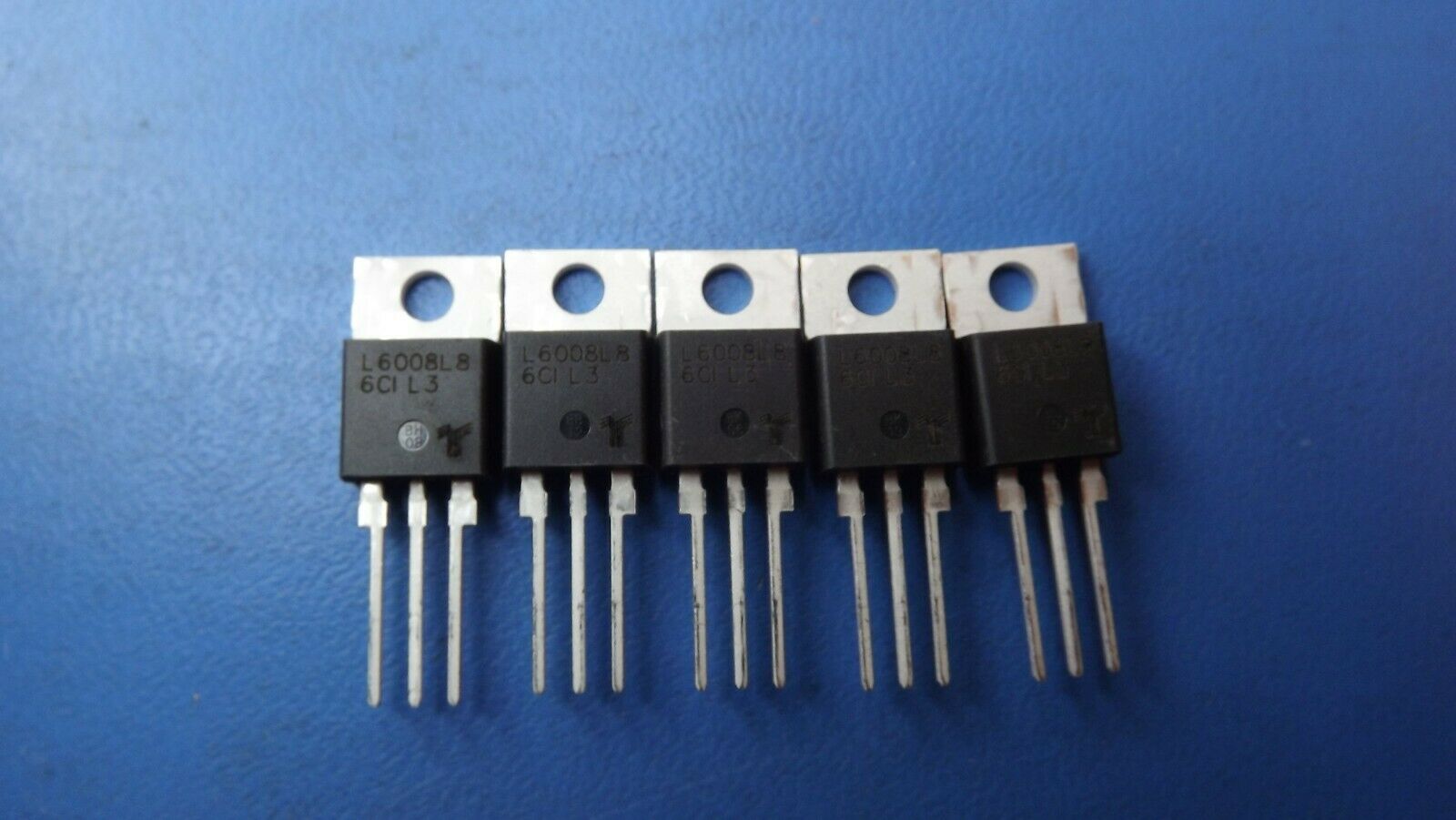

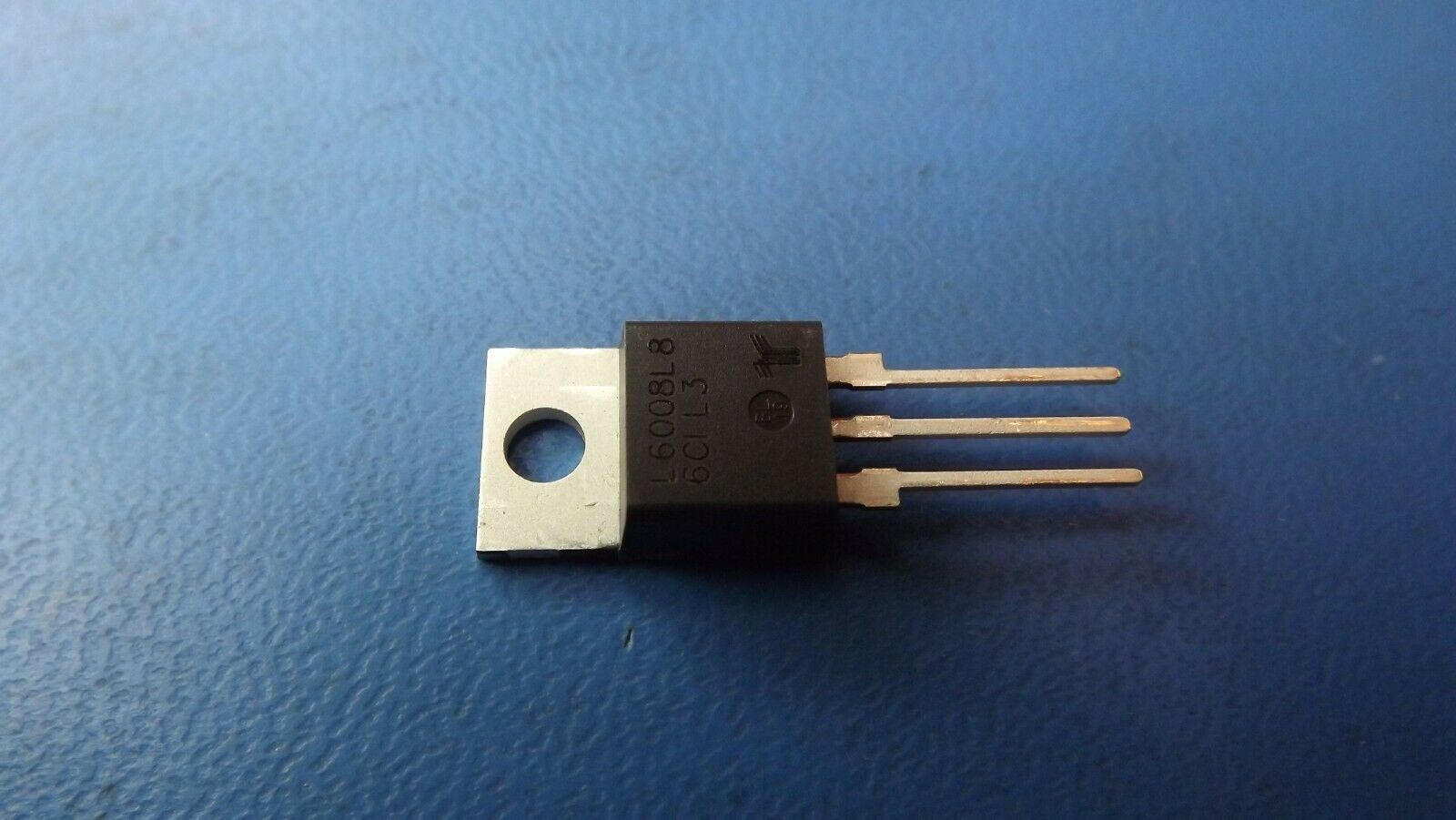

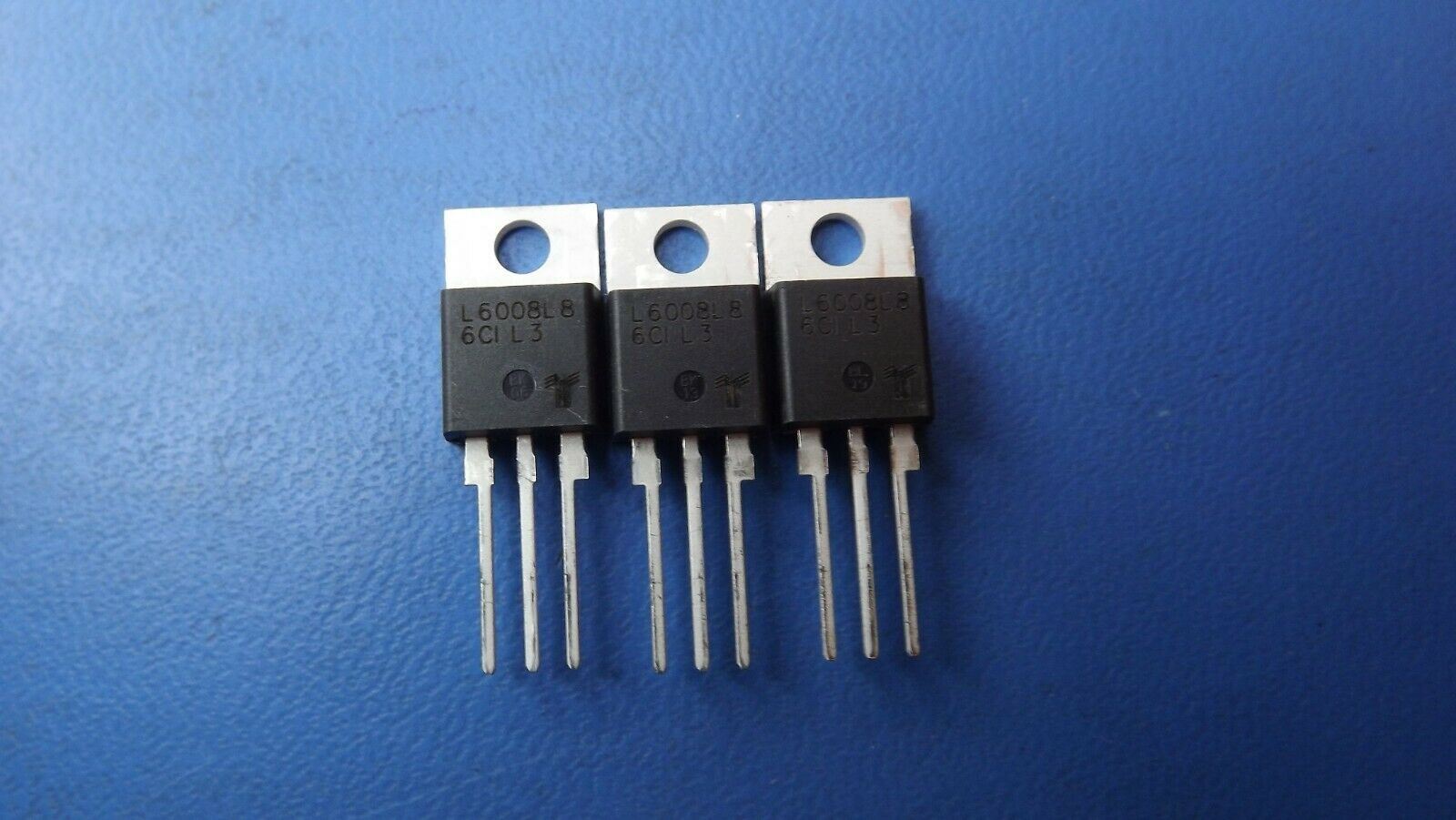

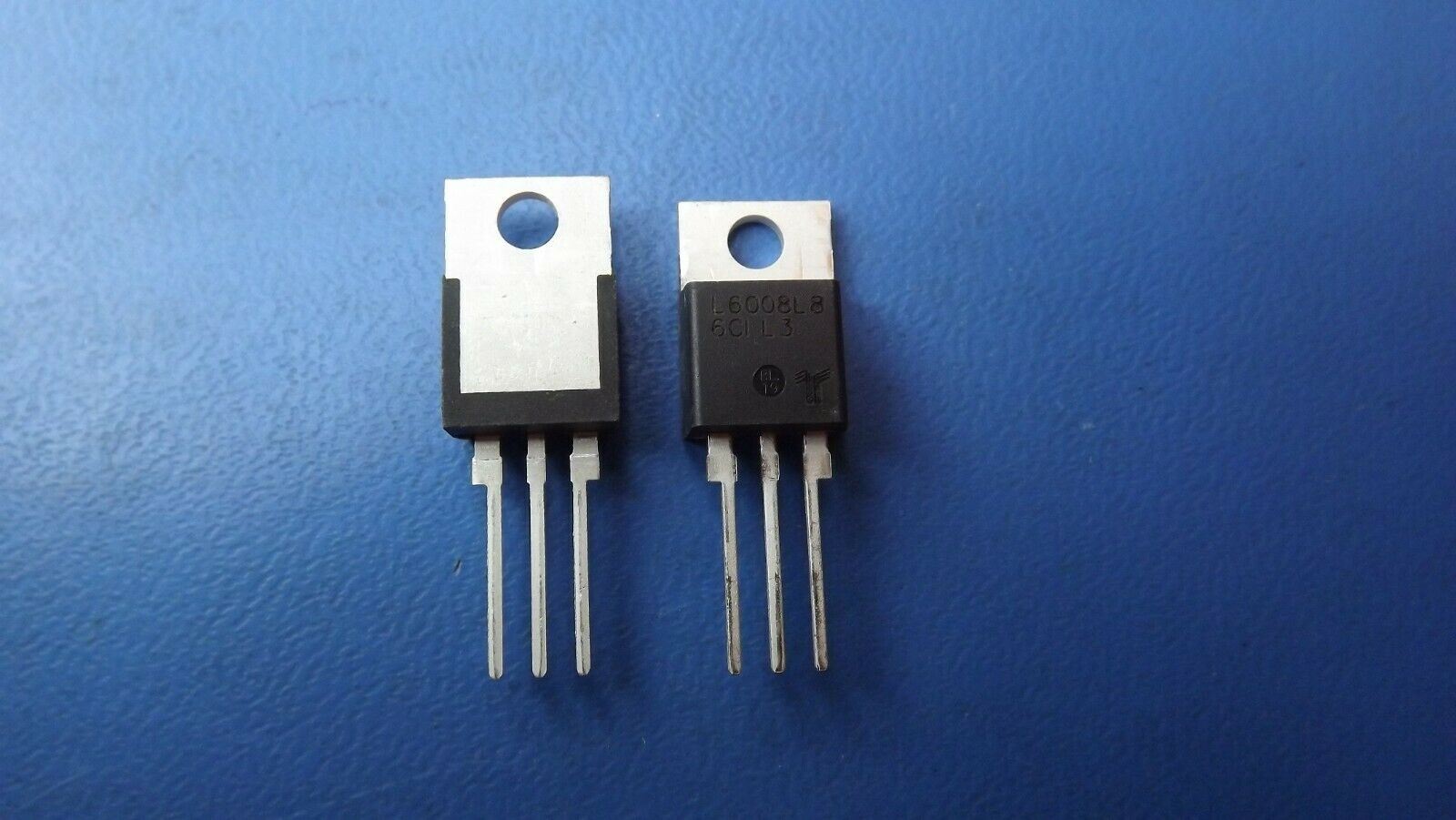

(5PCS) L6008L8TP LITTELFUSE Triacs 600V 8A Sensing 10-10-10-20mA

  • $9.95
    Unit price per
Tax included.

Only 20 left!

THIS LISTING IS FOR (5PCS) OF L6008L8TP BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description ISOLATED TO-220AB, 3 PIN
EU RoHS Compliant Yes
Status Active
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Case Connection ISOLATED
Configuration SINGLE
DC Gate Trigger Current-Max 20.0  mA
DC Gate Trigger Voltage-Max 1.3  V
Holding Current-Max 20.0  mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Leakage Current-Max 0.5  mA
Moisture Sensitivity Level 2
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0  Cel
Operating Temperature-Max 110.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 600.0  V
RMS On-state Current-Max 8.0  A
Sub Category TRIACs
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 10
Additional Feature HIGH RELIABILITY
