(5PCS) L4008L8 Thyristor TRIAC 400V 80A 3-Pin(3+Tab) TO-220AB
Tax included.

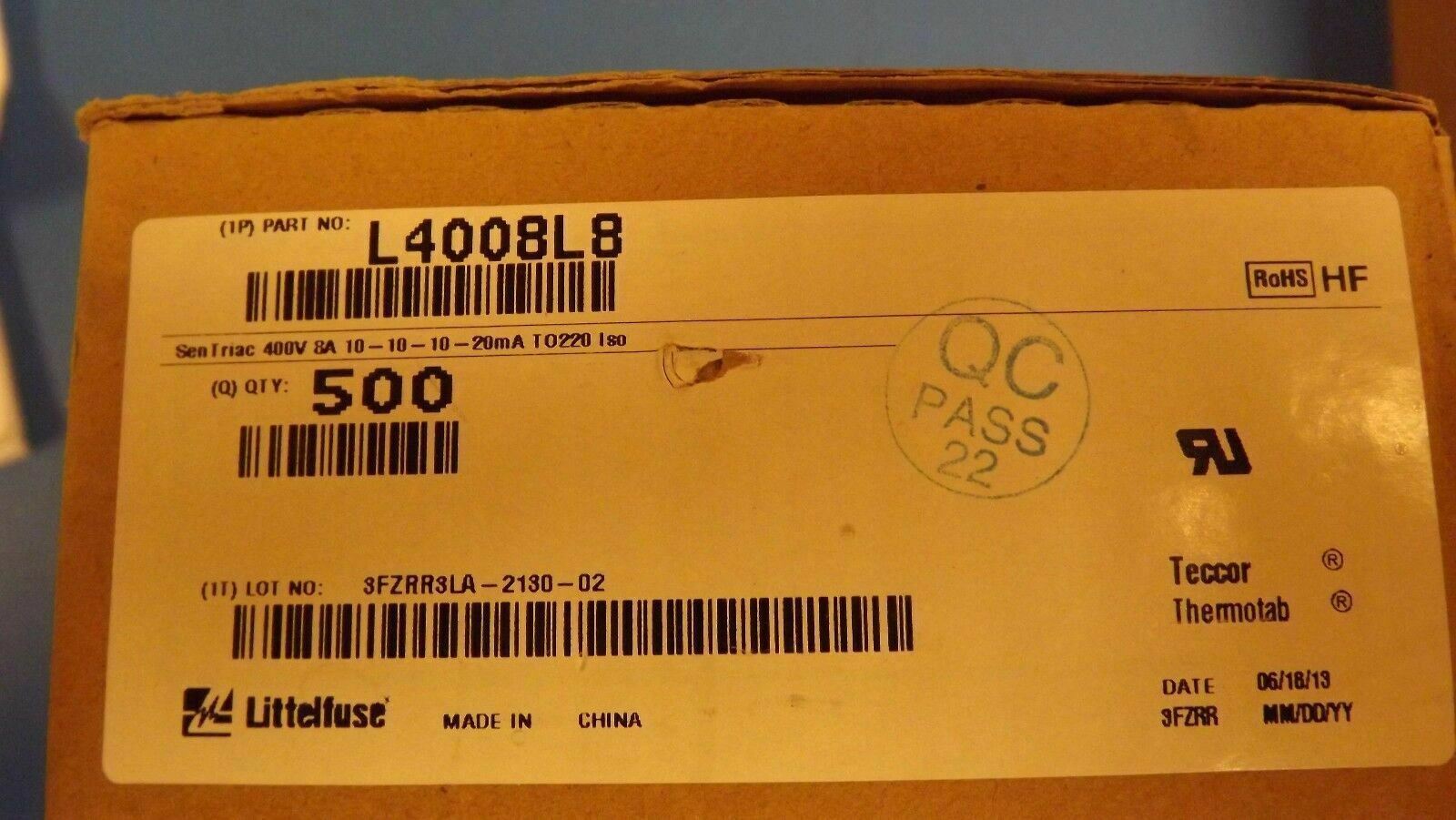

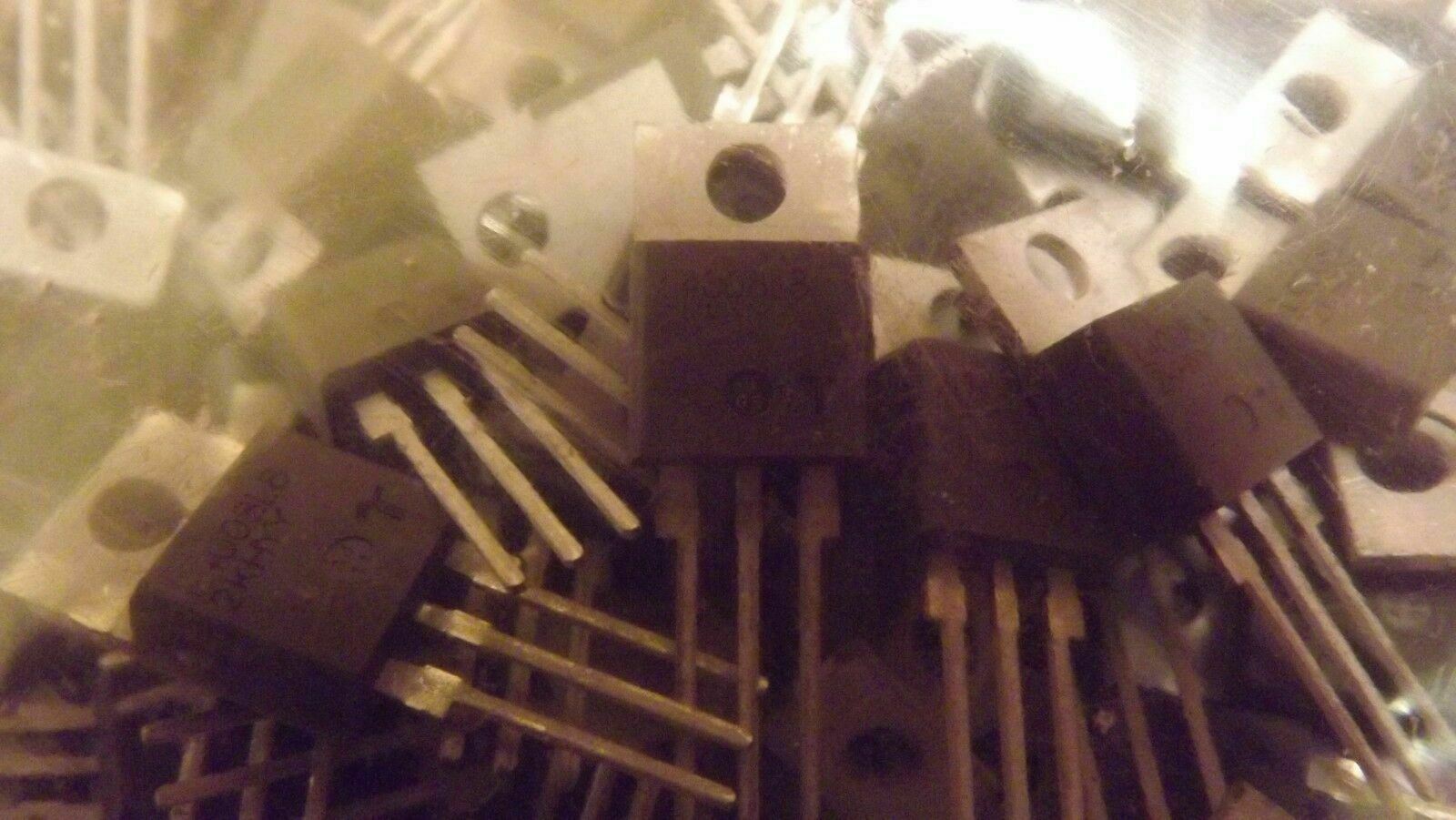

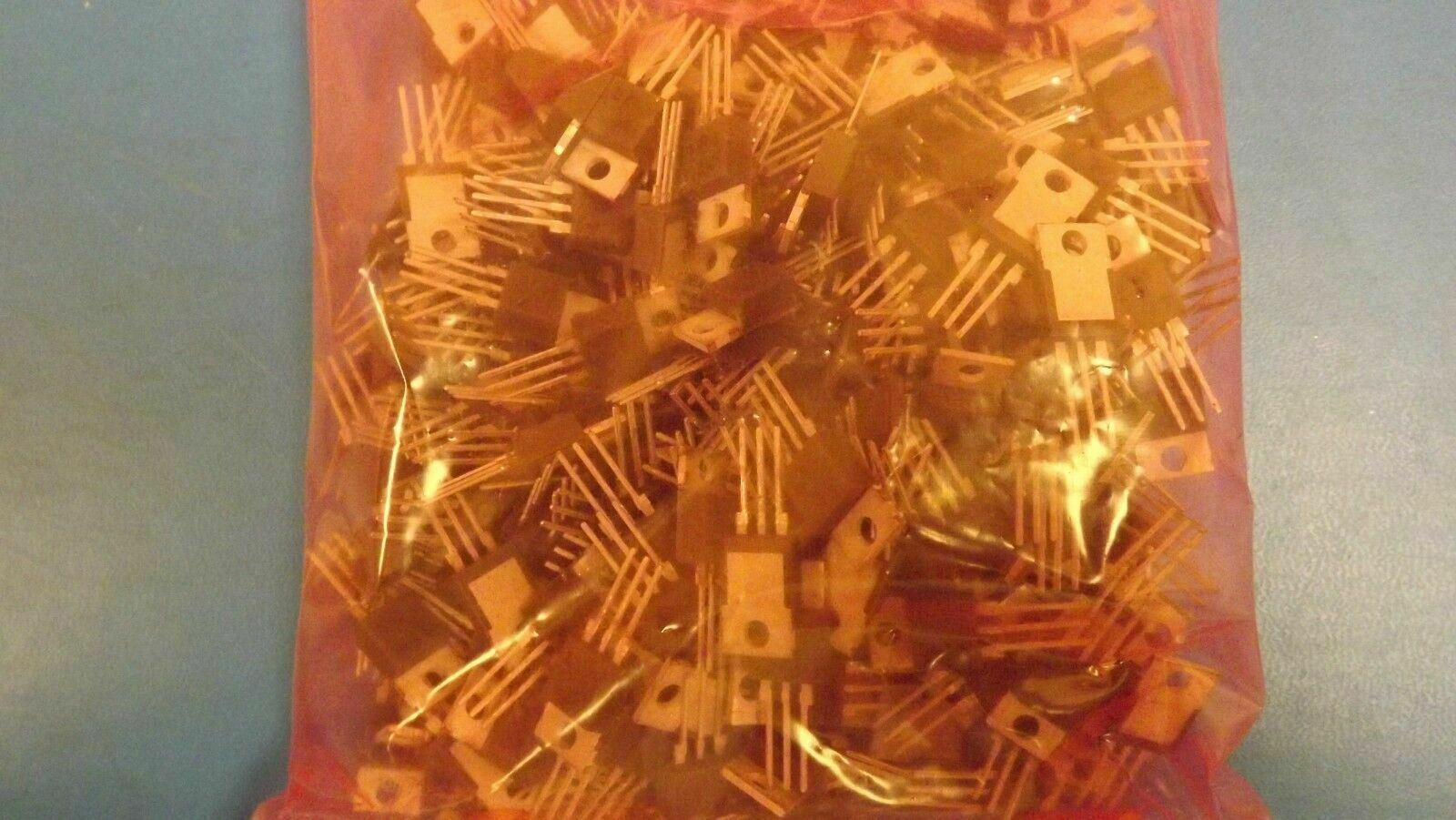

THIS LISTING IS FOR (5PCS) OF L4008L8 BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | ISOLATED TO-220, 3 PIN |
| Status | Transferred |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Commutation Voltage-Min | 2 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 40 V/us |
| DC Gate Trigger Current-Max | 10 mA |
| DC Gate Trigger Voltage-Max | 2 V |
| Holding Current-Max | 15 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e0 |
| Leakage Current-Max | 0.0200 mA |
| Number of Elements | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 110 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 20 µA |
| Repetitive Peak Off-state Voltage | 400 V |
| RMS On-state Current-Max | 8 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Additional Feature | HIGH RELIABILITY |
