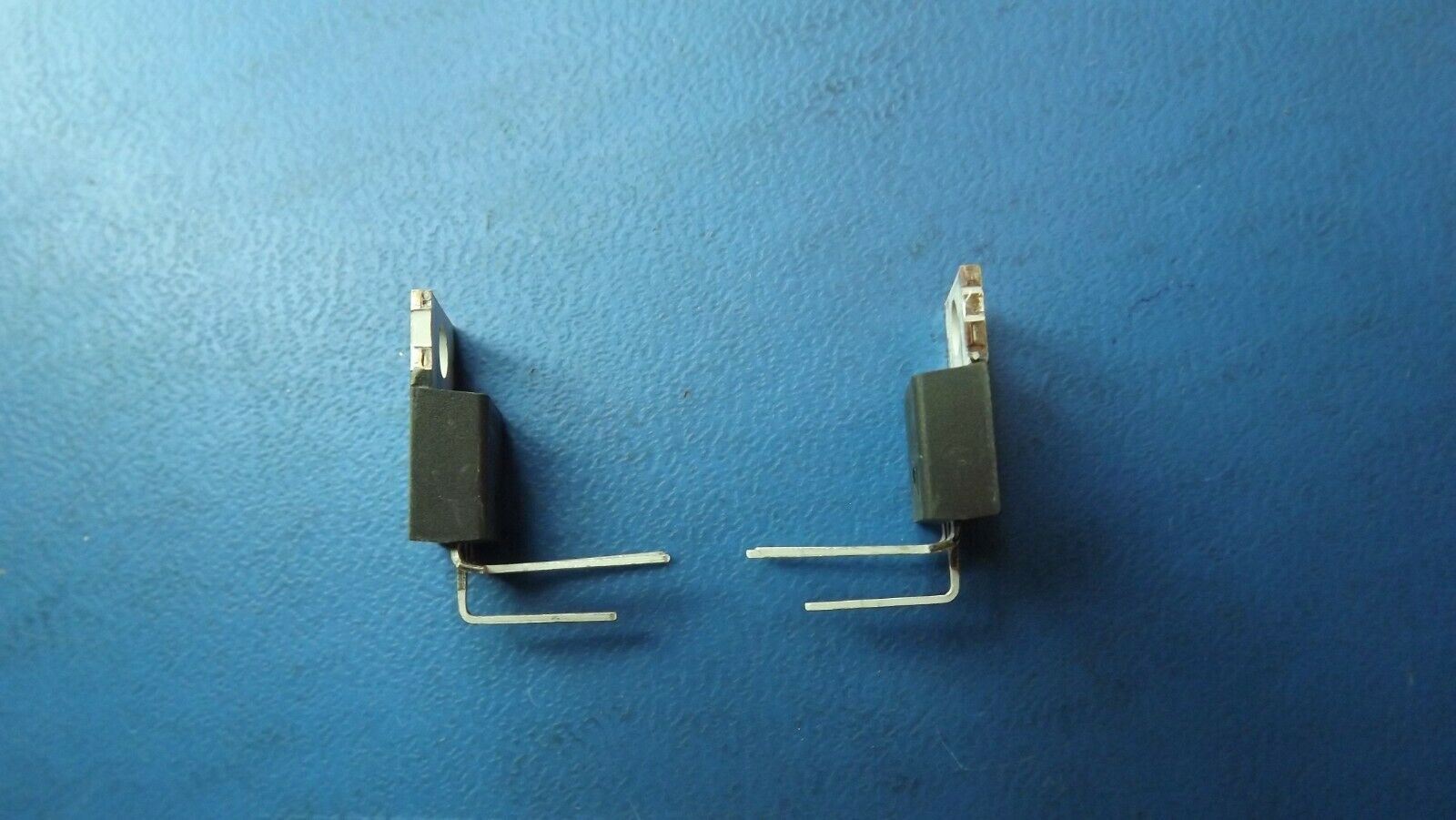

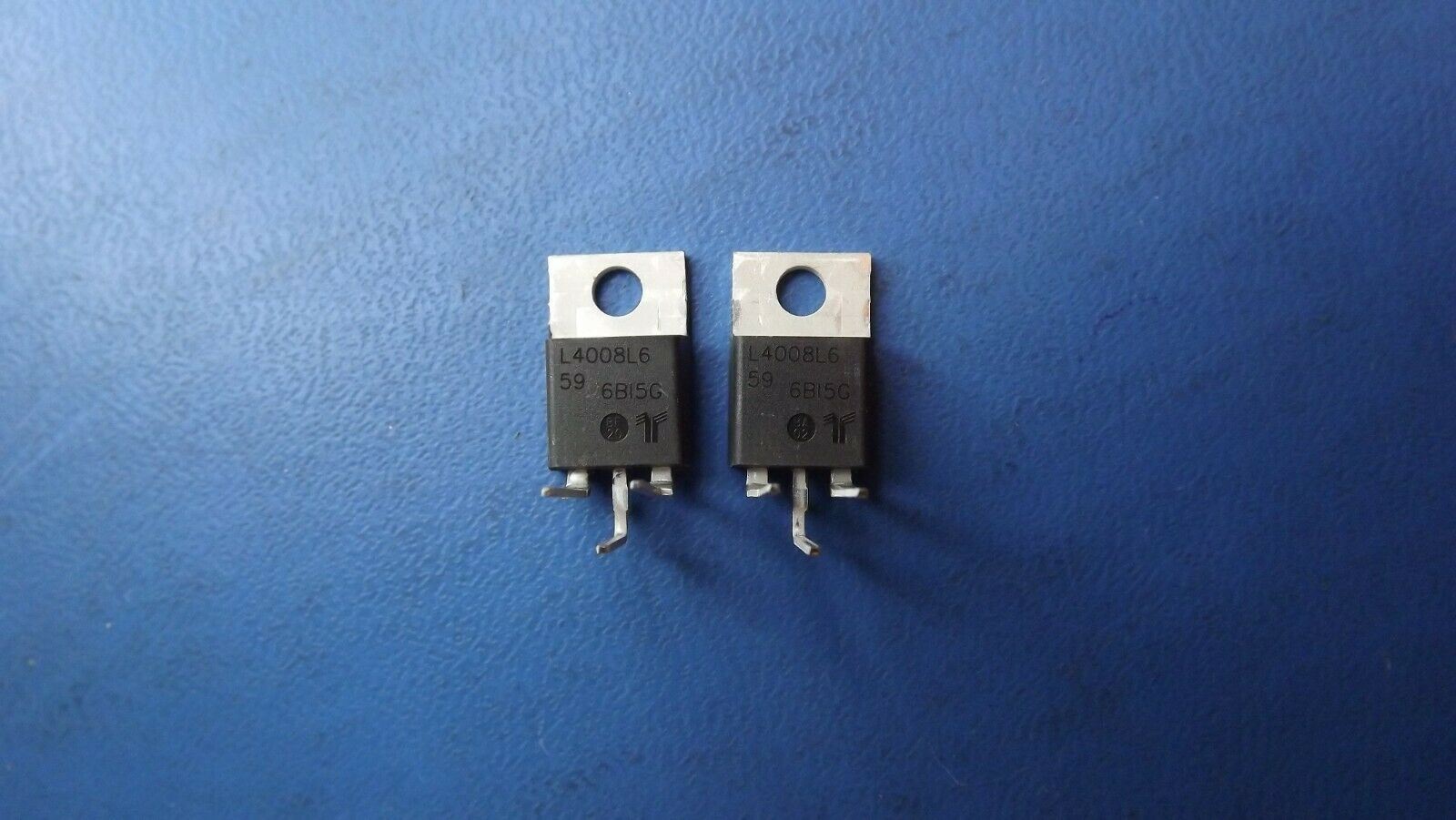

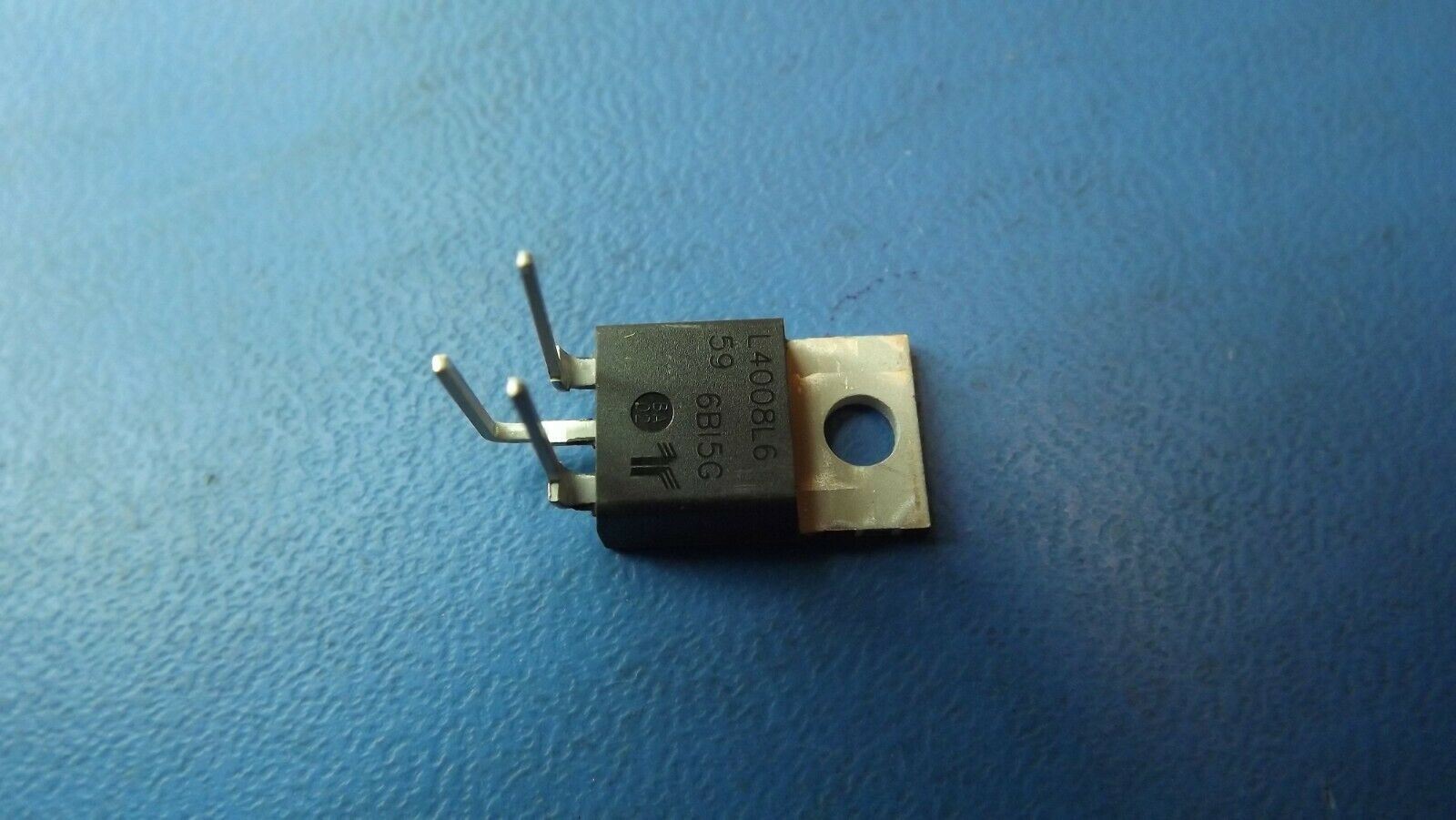

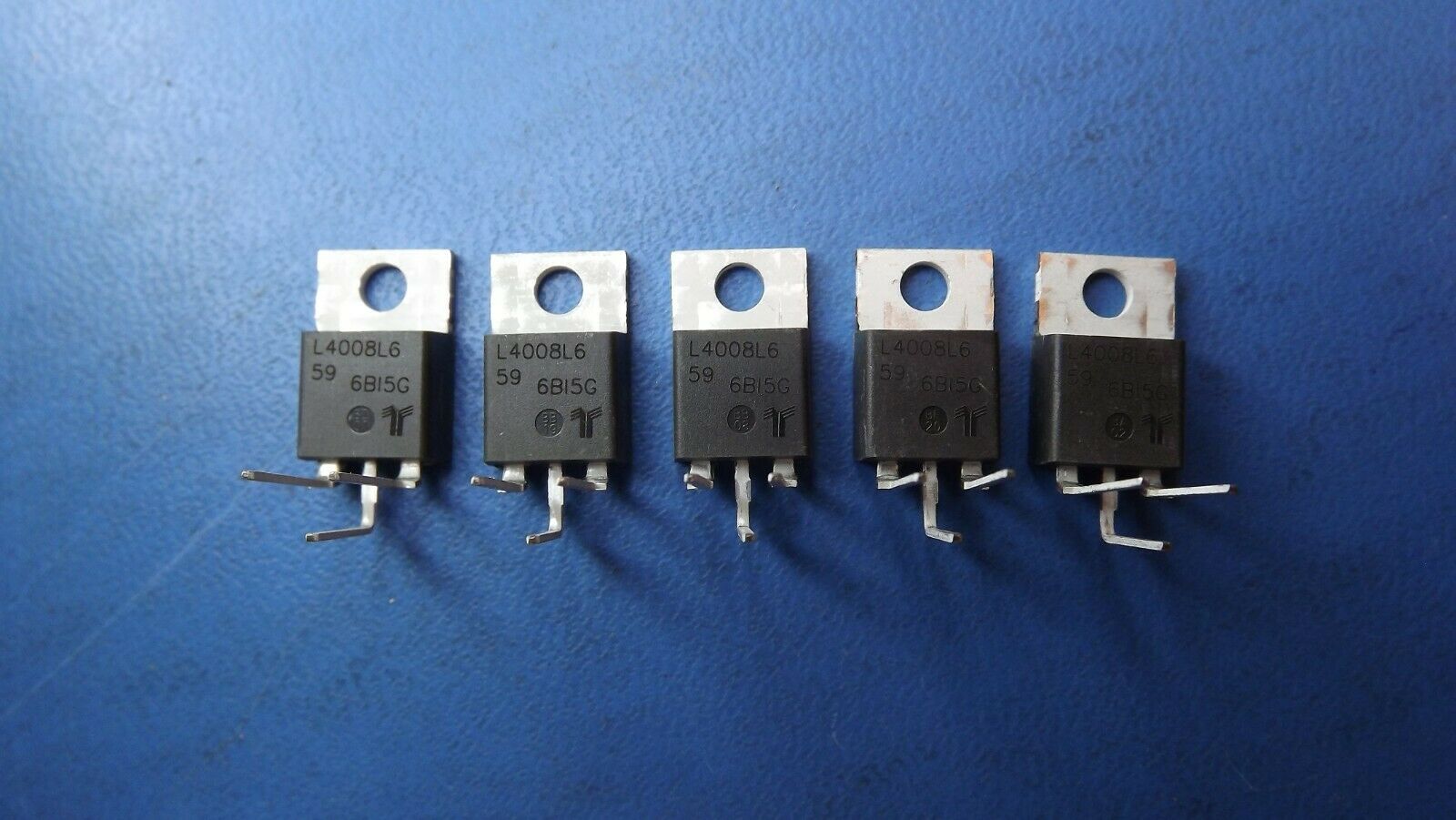

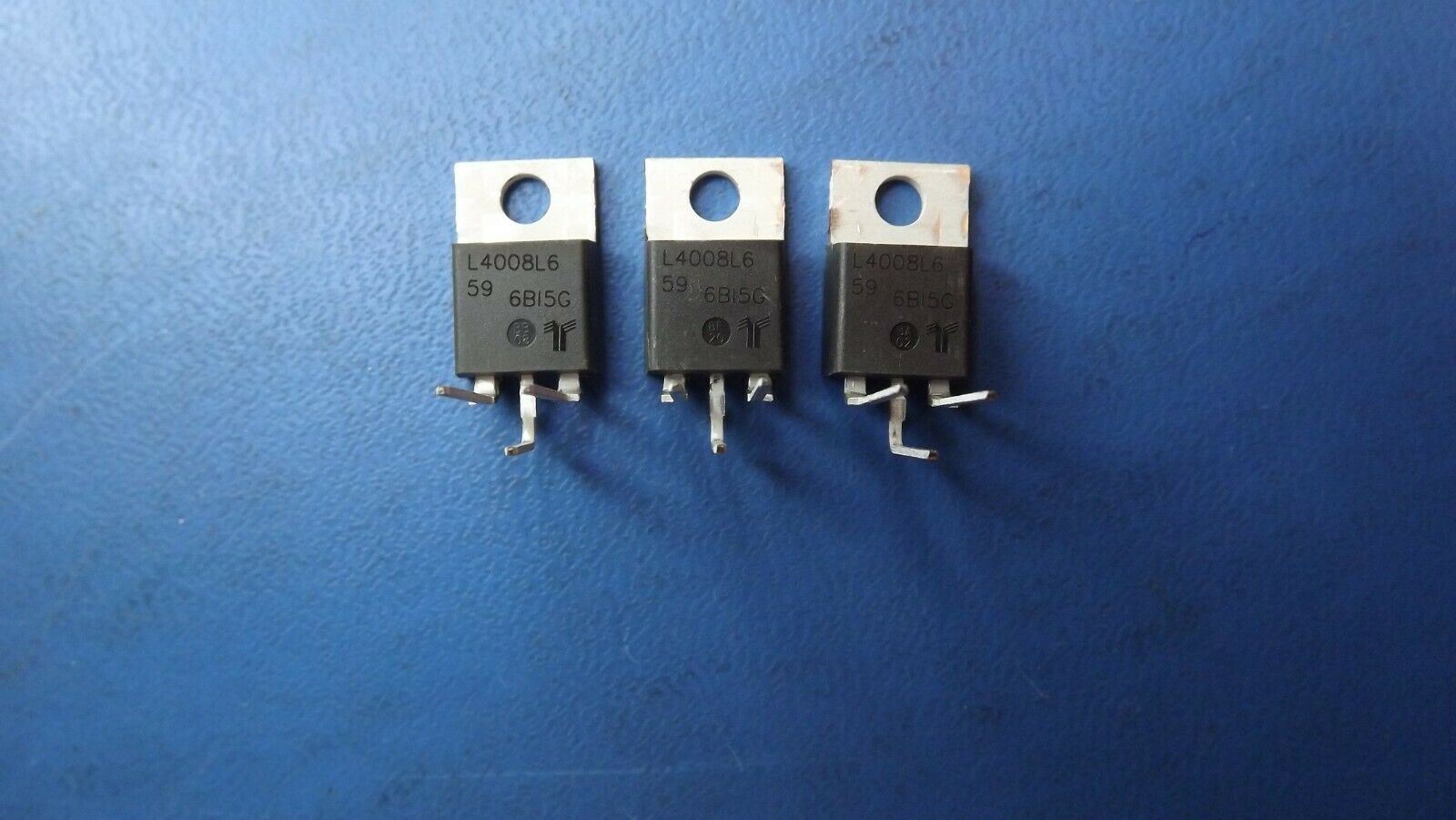

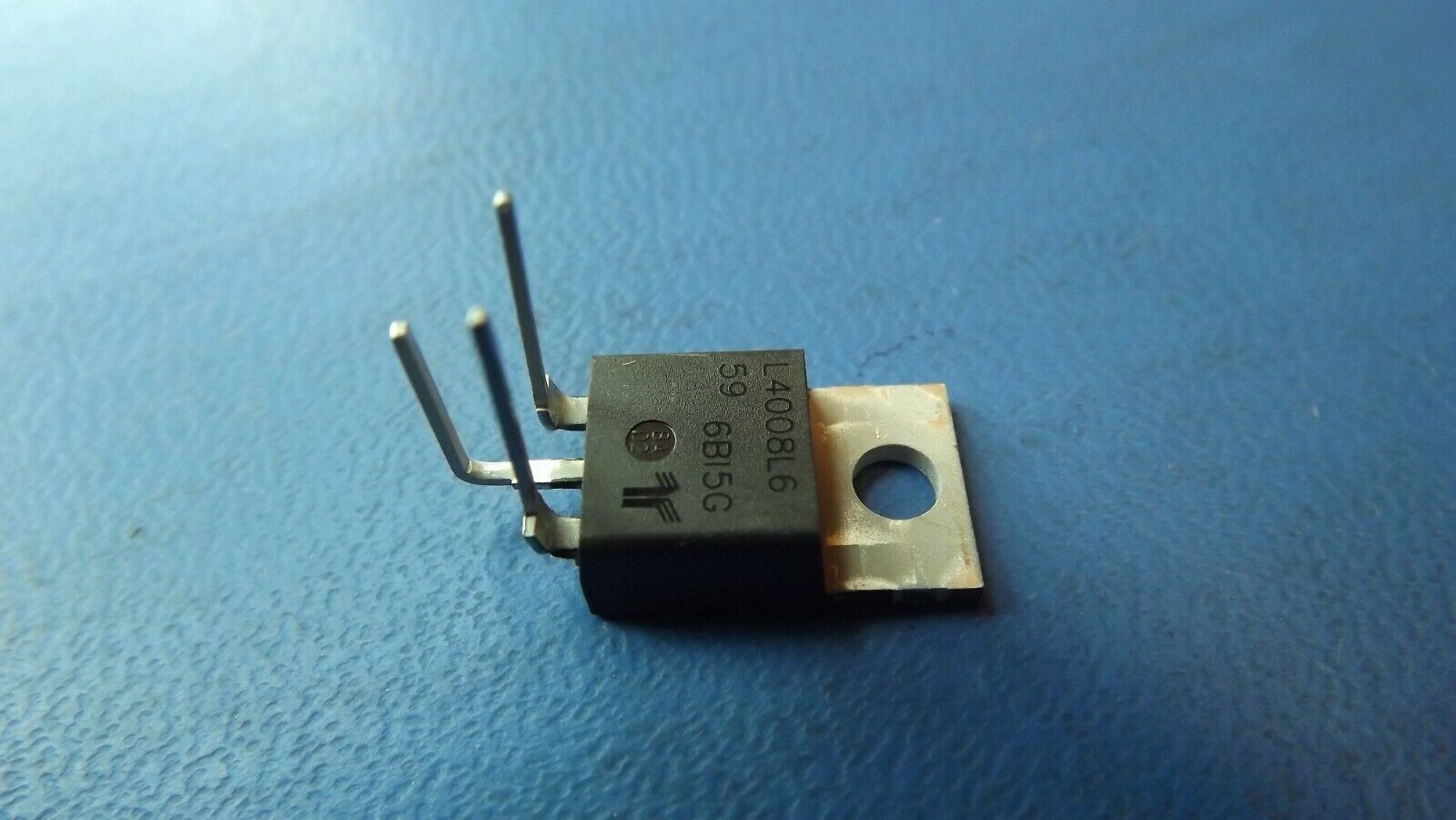

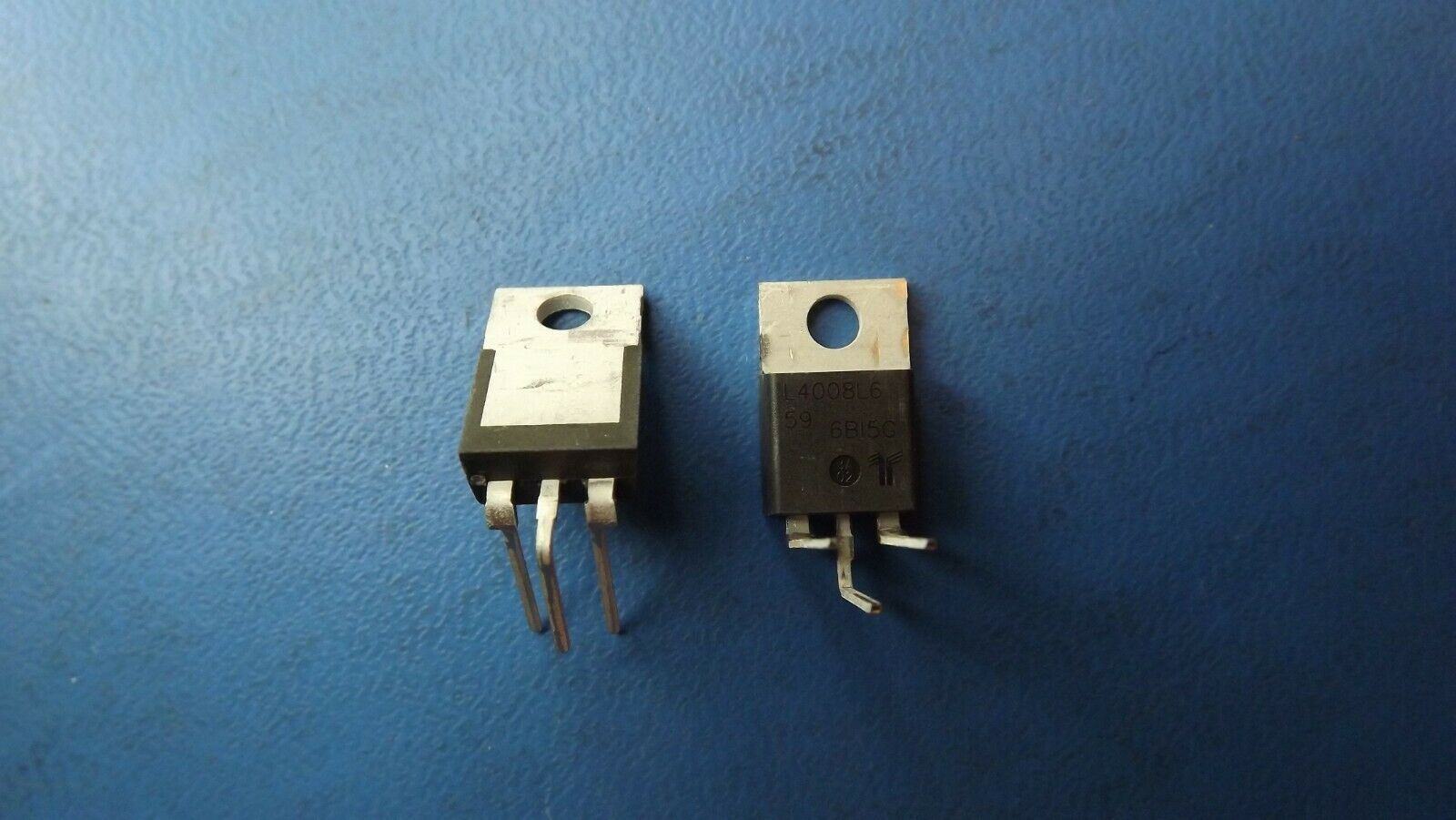

(5PCS) L4008L659TP LITTELFUSE TRIAC SENS GATE 400V 8A TO220
Tax included.
THIS LISTING IS FOR (5PCS) OF L4008L659TP BY LITTELFUSE
SPECIFICATIONS
| Status | Discontinued |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| DC Gate Trigger Current-Max | 5.0 mA |
| DC Gate Trigger Voltage-Max | 2.0 V |
| Holding Current-Max | 10.0 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 110.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 20.0 µA |
| Repetitive Peak Off-state Voltage | 400.0 V |
| RMS On-state Current-Max | 8.0 A |
| Surface Mount | NO |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
