(5PCS) L4004D5TP LITTELFUSE/TECCCOR TRIAC SENSING GATE 400V 4A TO252
Tax included.

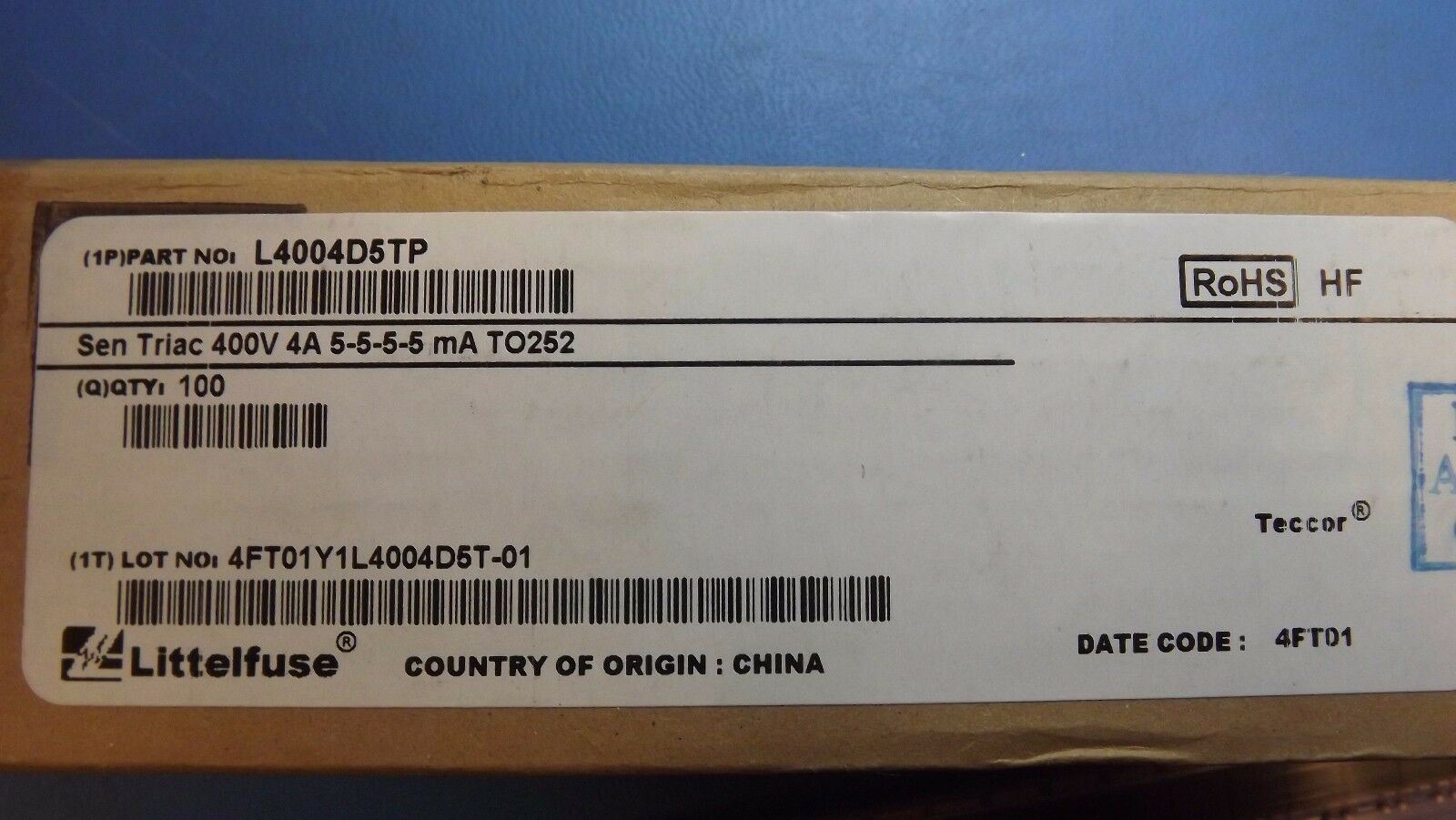

THIS LISTING IS FOR (5PCS) OF L4004D5TP BY LITTELFUSE/TECCOR
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, DPAK-3 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Case Connection | MAIN TERMINAL 2 |
| Configuration | SINGLE |
| DC Gate Trigger Current-Max | 5 mA |
| DC Gate Trigger Voltage-Max | 1.3 V |
| Holding Current-Max | 10 mA |
| JEDEC-95 Code | TO-252AA |
| JESD-30 Code | R-PSSO-G2 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 0.2000 mA |
| Moisture Sensitivity Level | 2 |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 110 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 400 V |
| RMS On-state Current-Max | 4 A |
| Sub Category | TRIACs |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 10 |
| Additional Feature | HIGH RELIABILITY |
