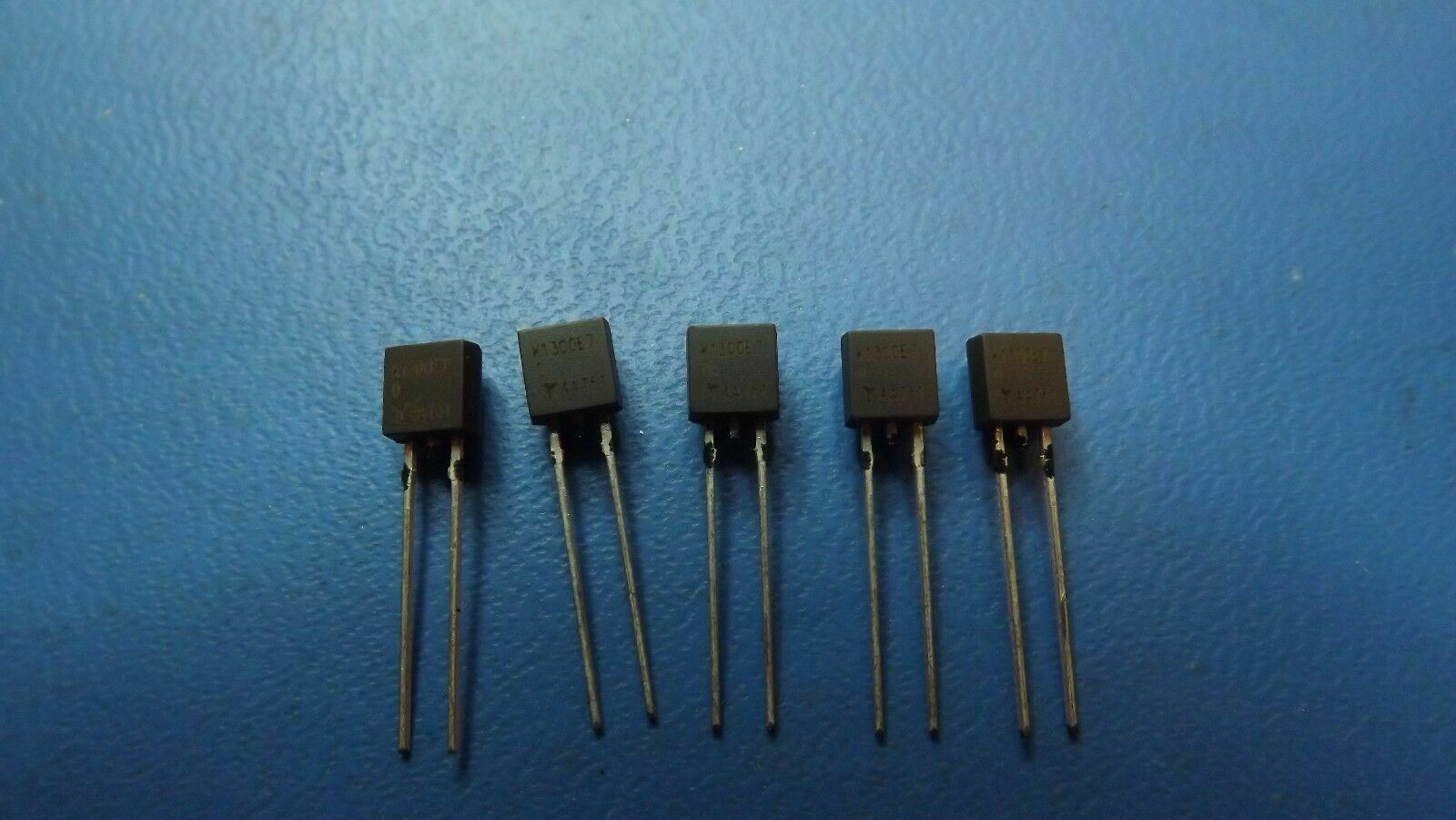

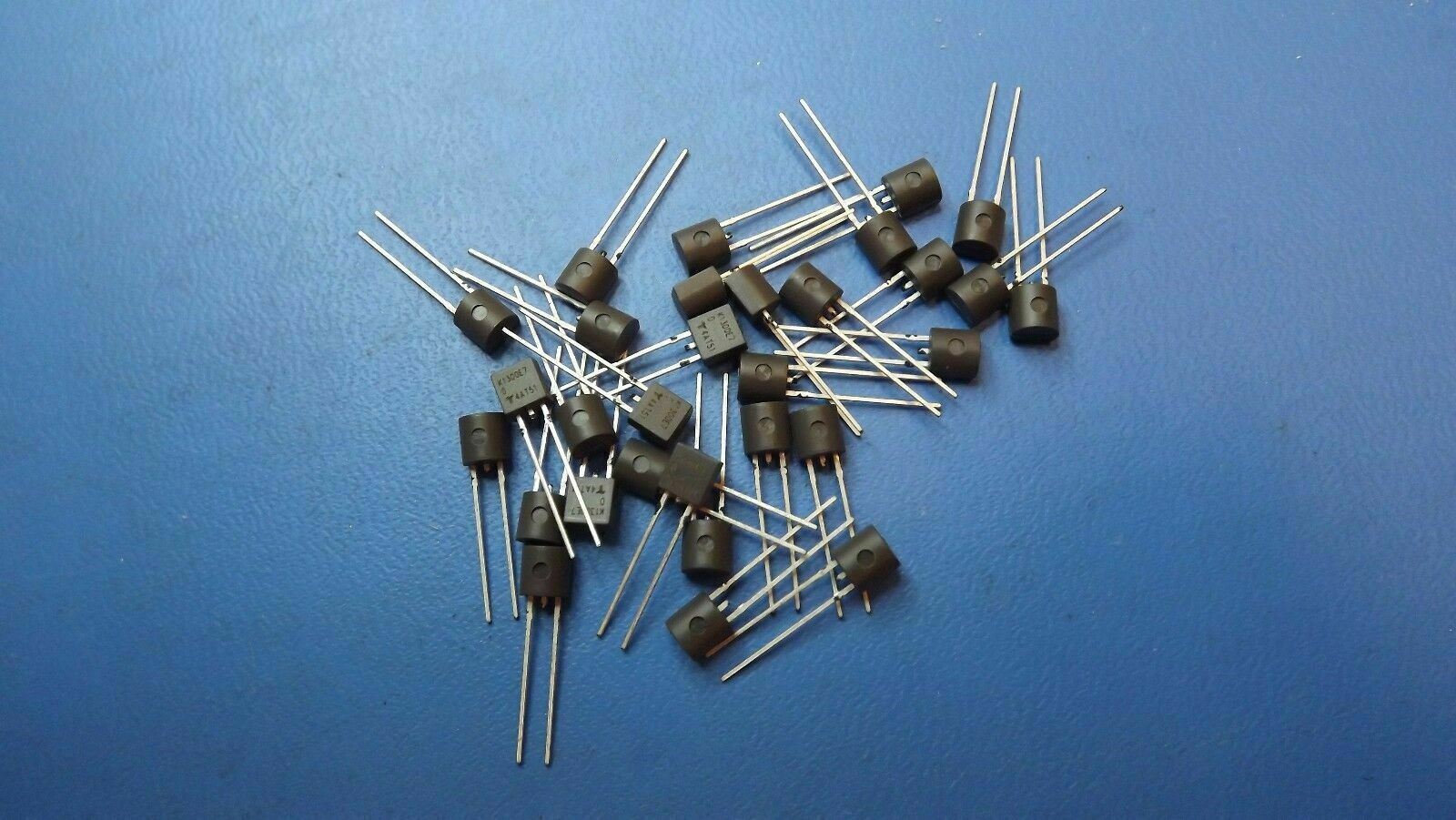

(5PCS) K1300E70 LITTELFUSE SIDAC 120-138V 1A TO92
Tax included.
THIS LISTING IS FOR (5PCS) OF K1300E70 BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | TO-92, 2 PIN |
| Status | Transferred |
| Trigger Device Type | SIDAC |
| Breakover Voltage-Min | 120.0 V |
| Breakover Voltage-Max | 138.0 V |
| Configuration | SINGLE |
| Holding Current-Nom | 60.0 mA |
| JEDEC-95 Code | TO-92 |
| JESD-30 Code | O-PBCY-T2 |
| JESD-609 Code | e0 |
| Non-Repetitive Pk On-state Cur | 20.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 110.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Repetitive Peak Reverse Voltage | 90.0 V |
| RMS On-state Current-Max | 1.0 A |
| Sub Category | Silicon Surge Protectors |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | BOTTOM |
