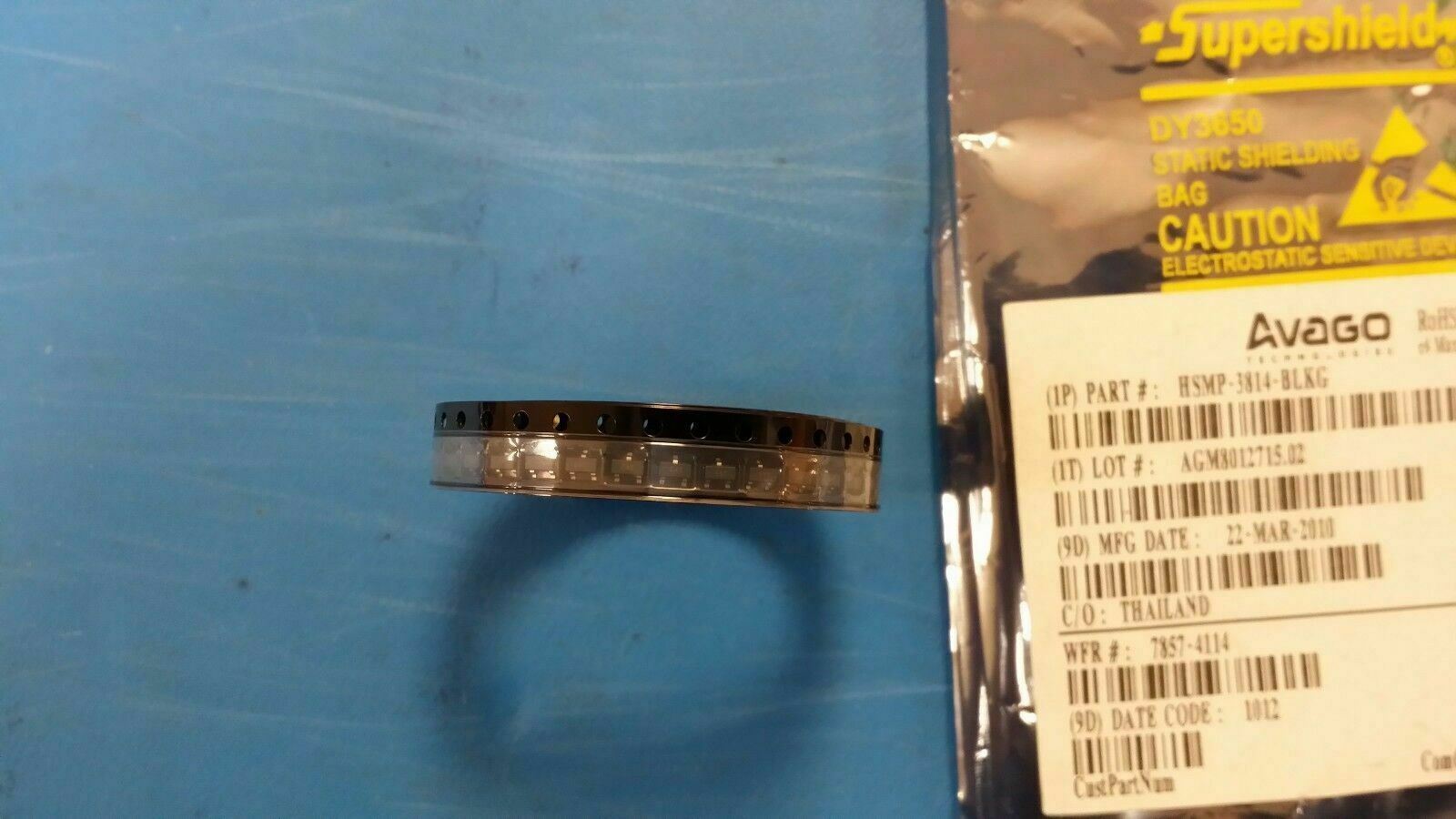

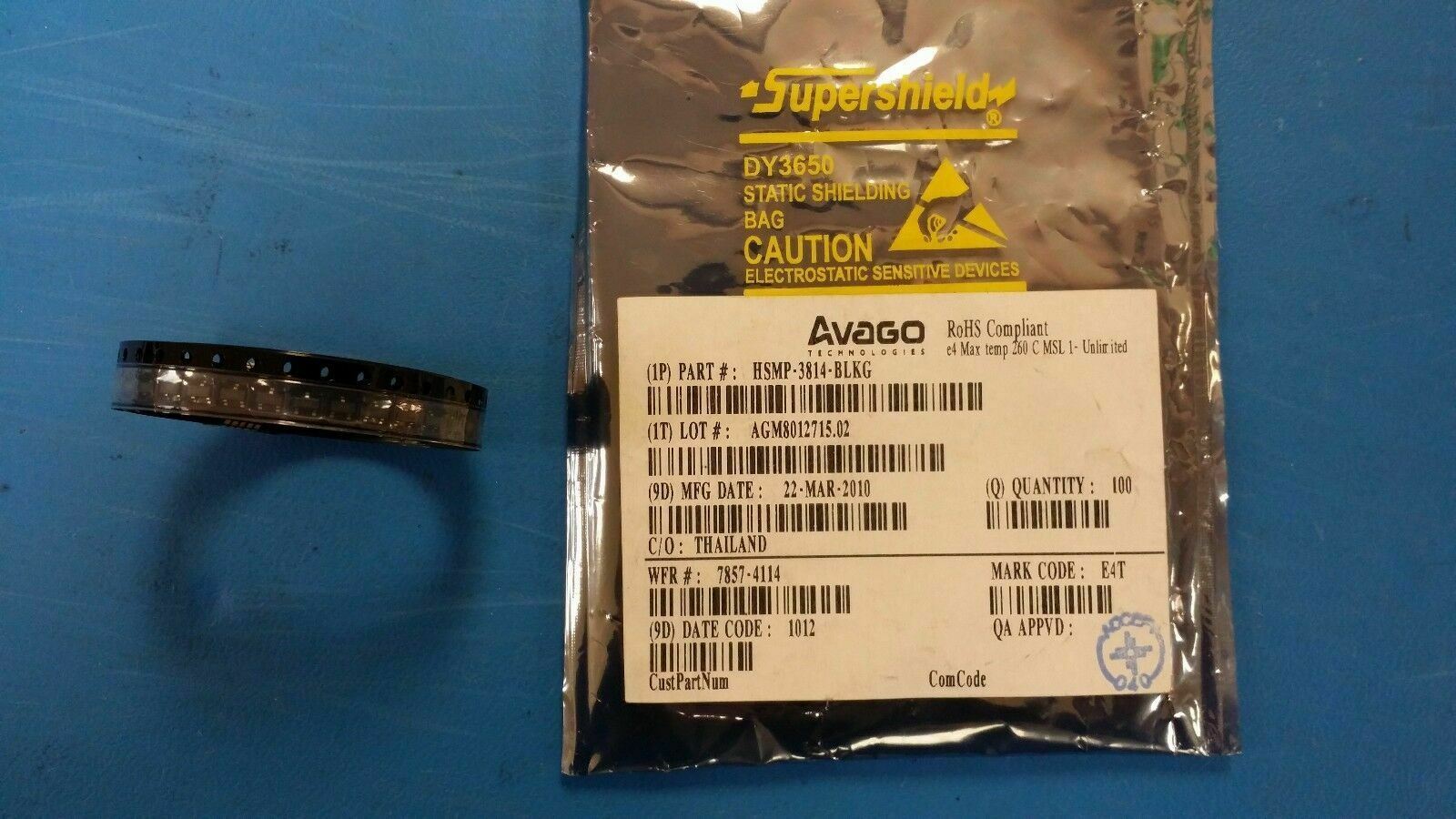

(5PCS) HSMP-3814-BLKG Diode PIN Attenuator 100V 3-Pin SOT-23
Tax included.
THIS LISTING IS FOR (5PCS) OF HSMP-3814-BLKG BY AVAGO.
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT PACKAGE-3 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Diode Type | PIN DIODE |
| Application | ATTENUATOR |
| Breakdown Voltage-Min | 100 V |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode Capacitance-Nom | 0.3500 pF |
| Diode Capacitance-Max | 0.3500 pF |
| Diode Element Material | SILICON |
| Diode Forward Resistance-Max | 3 ohm |
| Diode Res Test Current | 100 mA |
| Diode Res Test Frequency | 100 MHz |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e3 |
| Minority Carrier Lifetime-Nom | 1.5 µs |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 2 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.2500 W |
| Qualification Status | Not Qualified |
| Reverse Test Voltage | 50 V |
| Sub Category | PIN Diodes |
| Surface Mount | YES |
| Technology | POSITIVE-INTRINSIC-NEGATIVE |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Additional Feature | LOW DISTORTION |
