(5pcs) HD14011BRP NAND Gate, 4000/14000/40000 Series, 4-Func, 2-Input, SOIC14
Tax included.

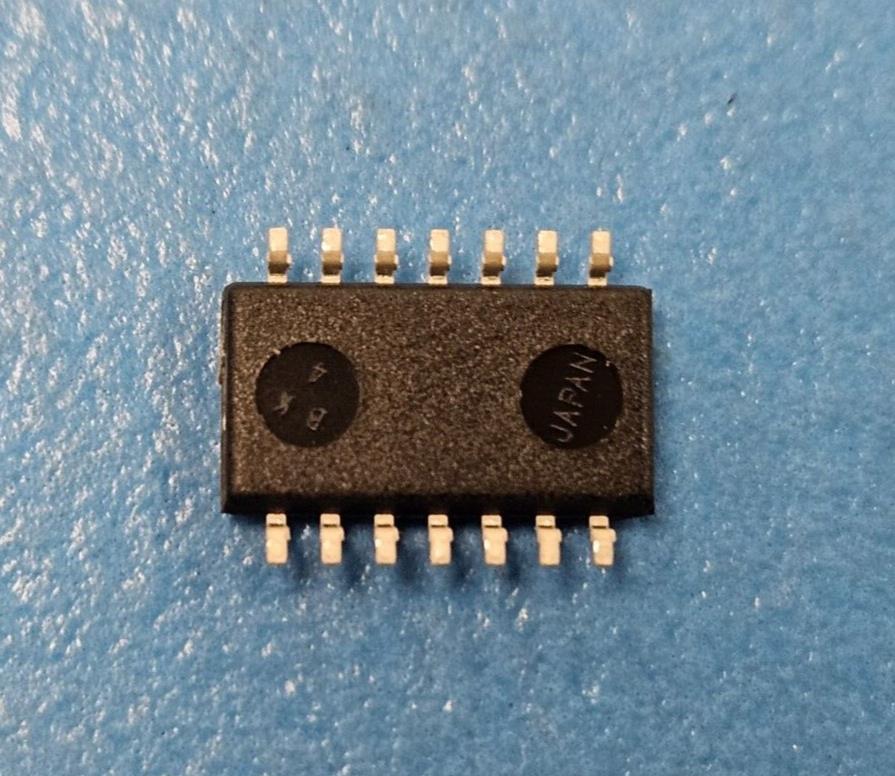

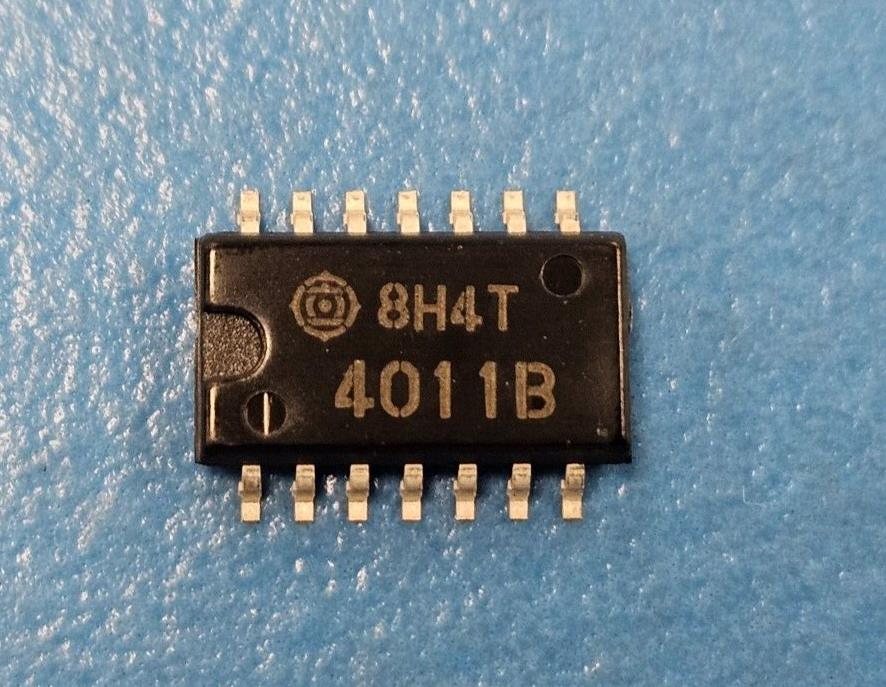

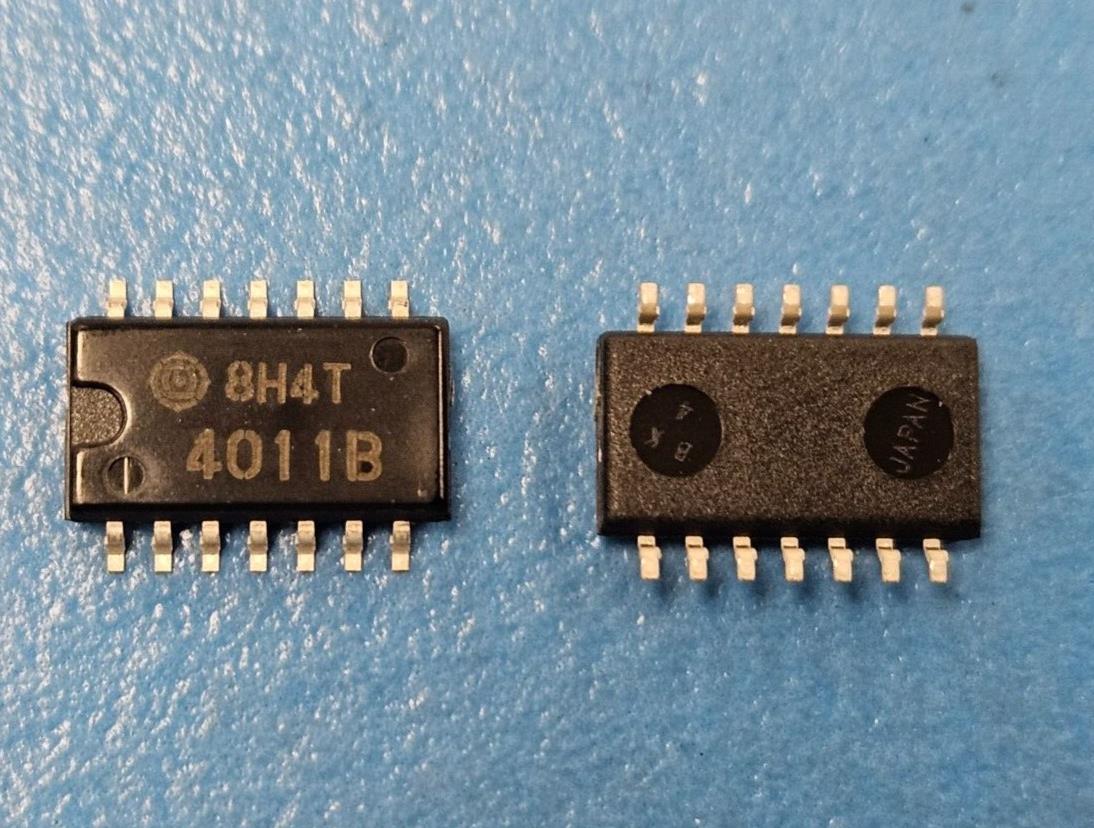

This listing is for (5PCS) of HD14011BRP by Hitachi
Mfr Package Description FP-14DN
Status Transferred
Logic IC Type NAND GATE
Family 4000/14000/40000
JESD-30 Code R-PDSO-G14
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Propagation Delay (tpd) 250.0 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 8.65 mm
Width 3.9 mm
