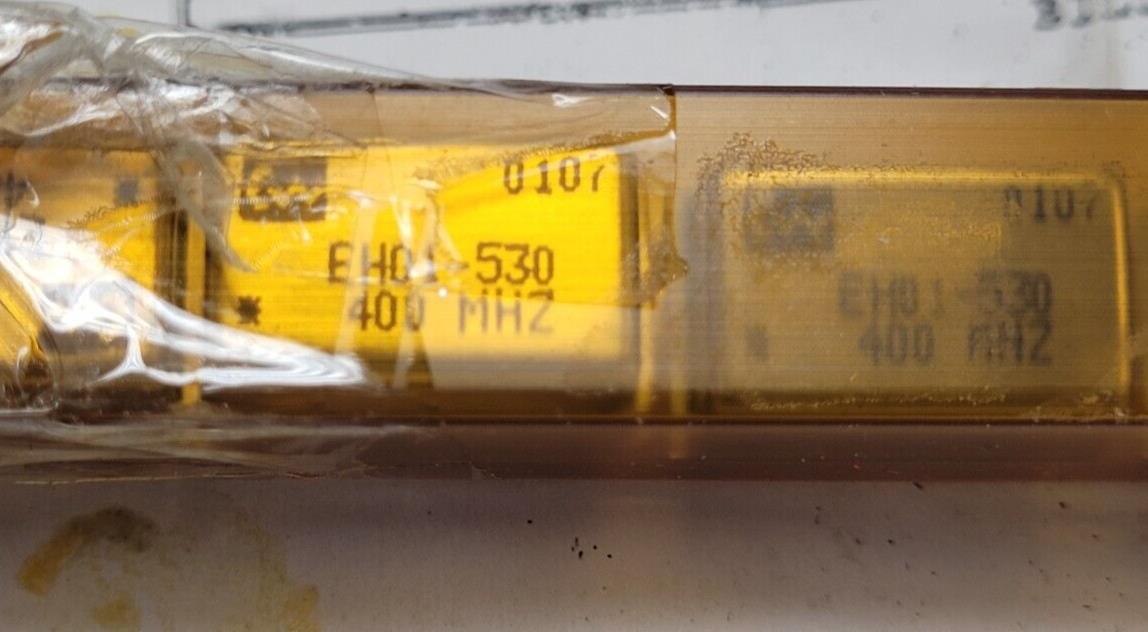

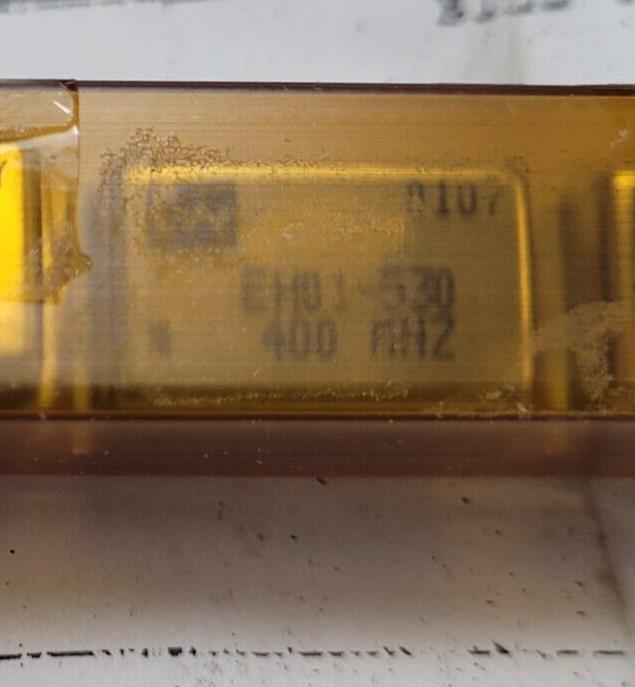

(5PCS) EH01530400 ECL 10K Output Clock Oscillator, 400MHz Nom
Tax included.
THIS LISTING IS FOR (1PC) OF EH01530400MHZ BY CONNOR-WINFIELD
Mfr Package Description HERMETIC SEALED, METAL, WELDED, DIP-14/4
Status Active
Oscillator Type ECL 10K
Fall Time-Max 2.3 ns
Frequency Adjustment-Mechanical NO
Frequency Stability 100.0 ppm
Mounting Feature THROUGH HOLE MOUNT
Number of Terminals 14
Operating Frequency-Nom 400.0 MHz
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Load 50 OHM
Physical Dimension 20.27mm x 12.62mm x 6.6mm
Rise Time-Max 2.3 ns
Supply Voltage-Nom -5.2 V
Supply Voltage-Min -4.94 V
Supply Voltage-Max -5.46 V
