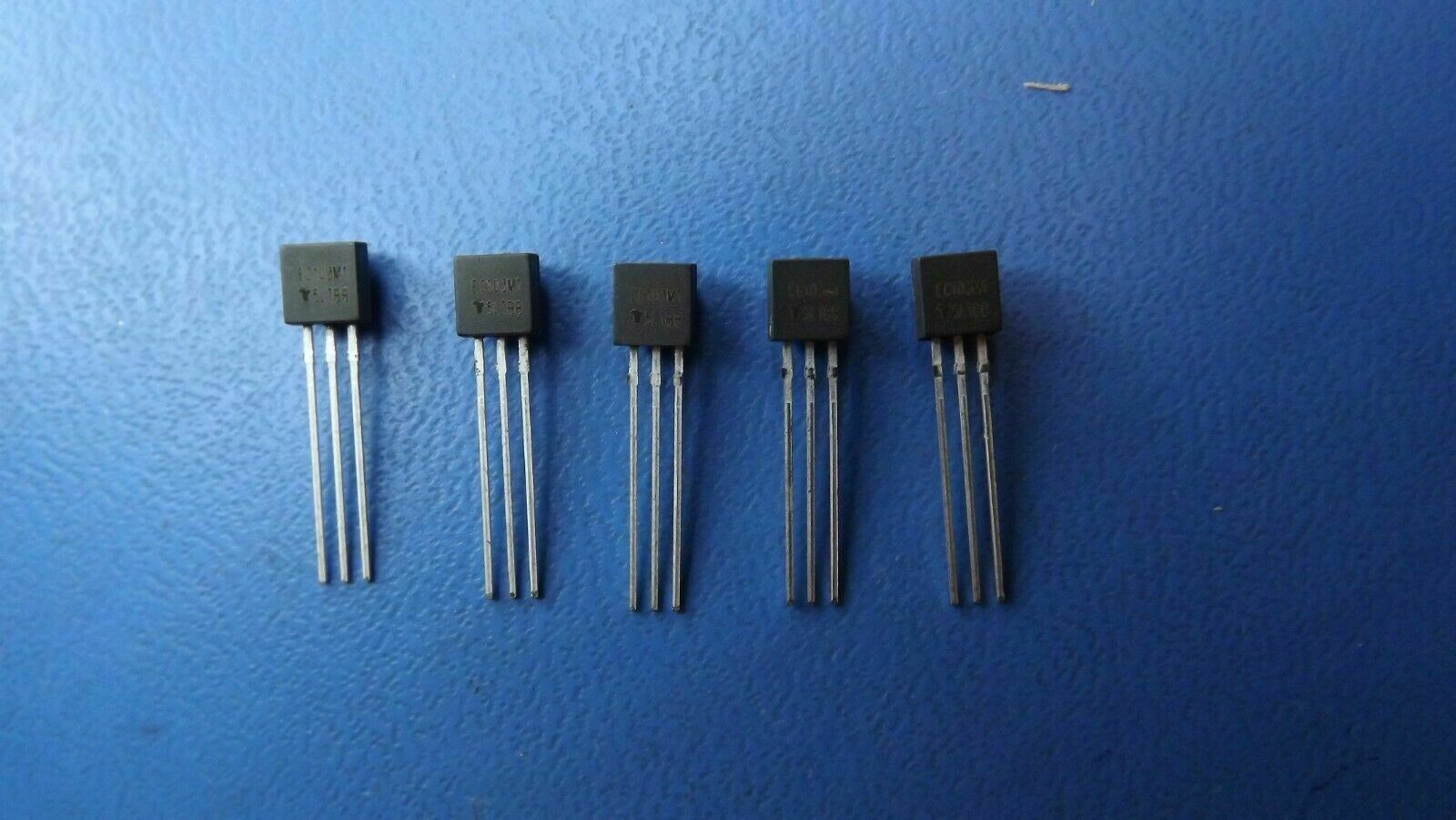

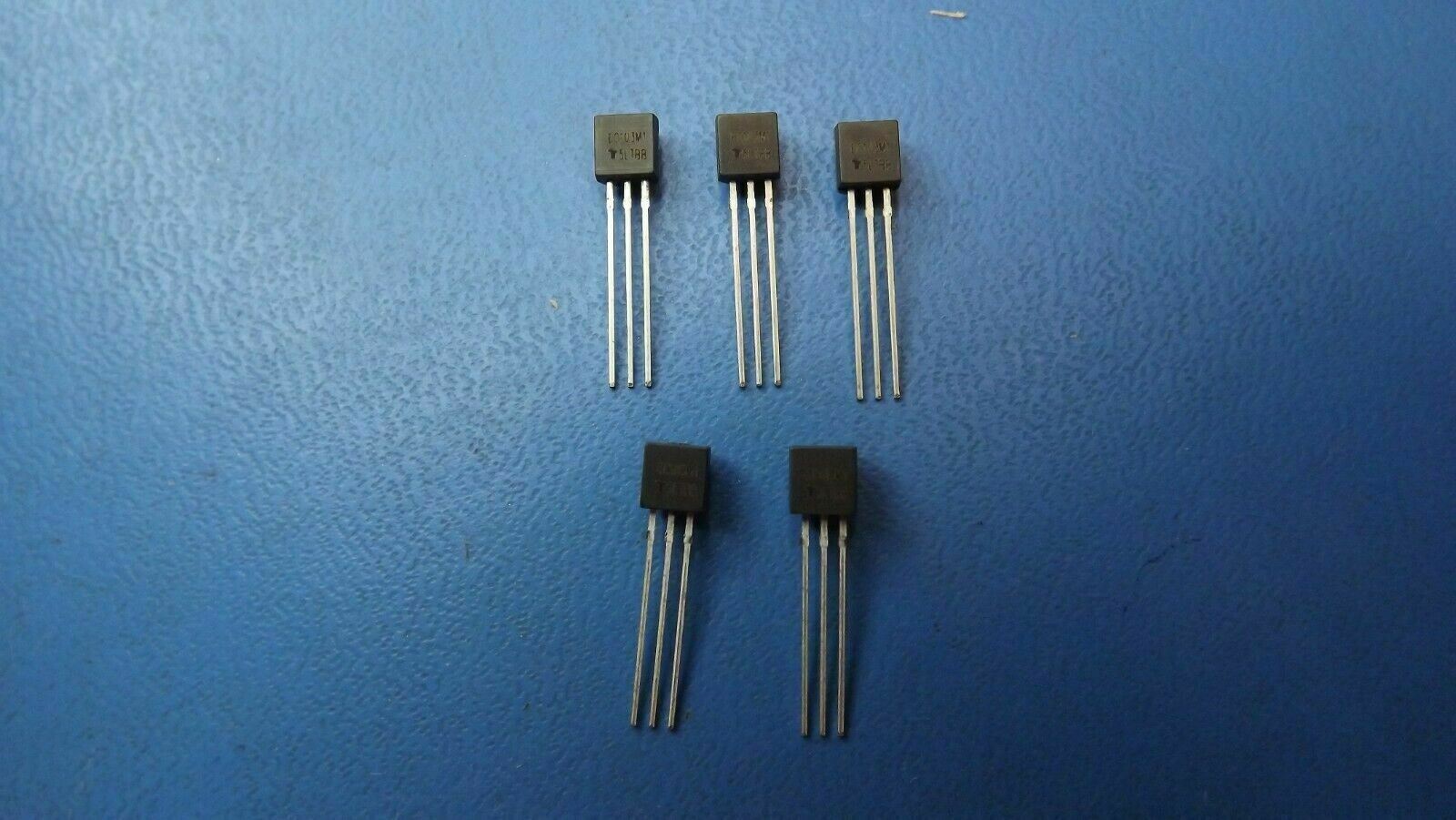

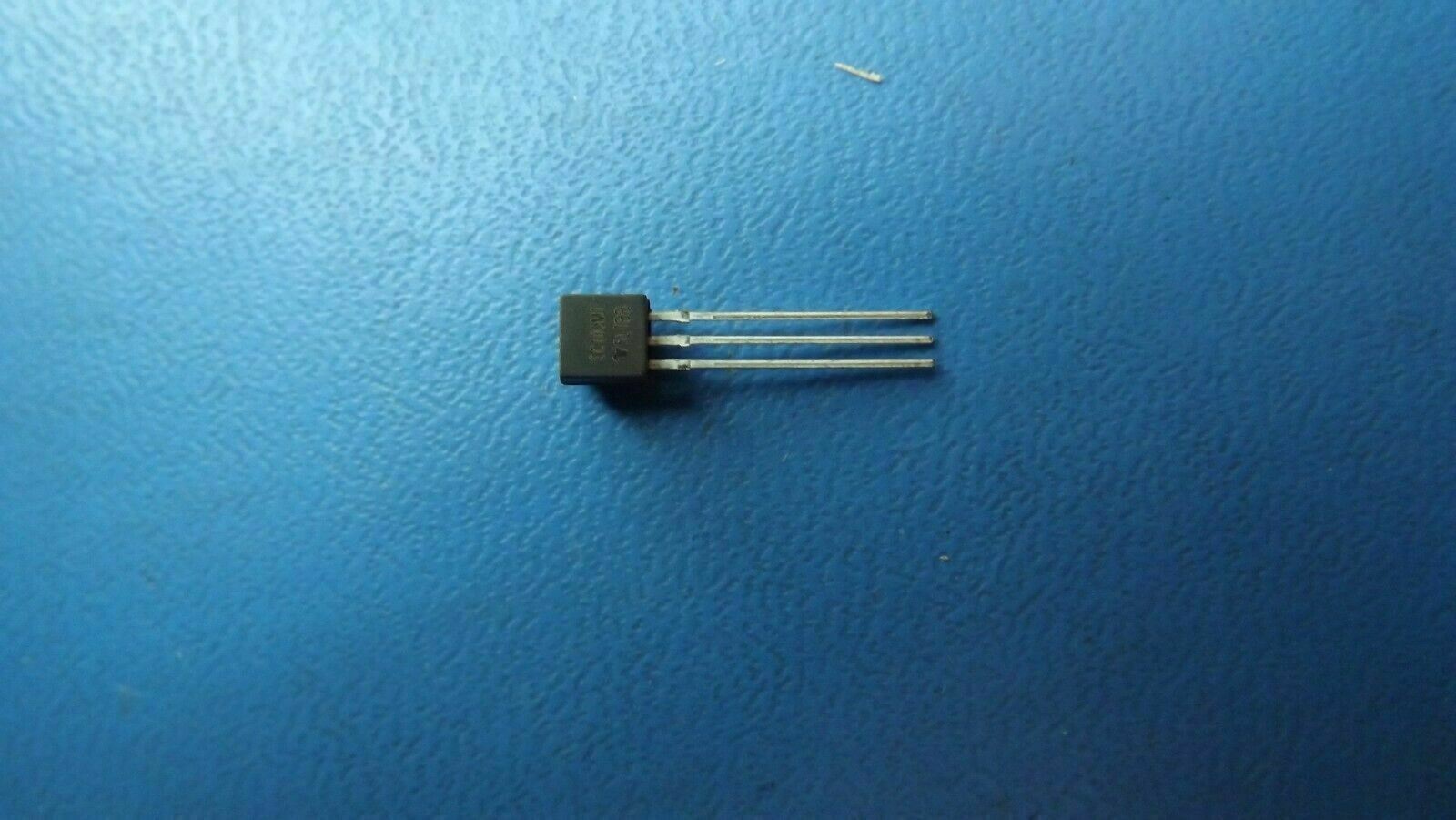

(5PCS) EC103M1 LITTELFUSE SCR SENS GATE 600V 0.8A TO-92
Tax included.
THIS LISTING IS FOR (10PCS) OF EC103M1 BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | TO-92, 3 PIN |
| Status | Transferred |
| Trigger Device Type | SCR |
| Circuit Commutated Turn-off Time-Nom | 60.0 µs |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 10.0 V/us |
| DC Gate Trigger Current-Max | 0.012 mA |
| DC Gate Trigger Voltage-Max | 0.8 V |
| Holding Current-Max | 5.0 mA |
| JEDEC-95 Code | TO-92 |
| JESD-30 Code | O-PBCY-T3 |
| JESD-609 Code | e0 |
| Leakage Current-Max | 0.05 mA |
| Non-Repetitive Pk On-state Cur | 20.0 A |
| Number of Elements | 1.0 |
| Number of Terminals | 3 |
| On-State Current-Max | 800.0 mA |
| Operating Temperature-Min | -65.0 Cel |
| Operating Temperature-Max | 110.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | CYLINDRICAL |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Leakage Current-Max | 2.0 µA |
| Repetitive Peak Off-state Voltage | 600.0 V |
| Repetitive Peak Reverse Voltage | 600.0 V |
| RMS On-state Current-Max | 0.8 A |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | NO |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | BOTTOM |
| Additional Feature | HIGH RELIABILITY |
