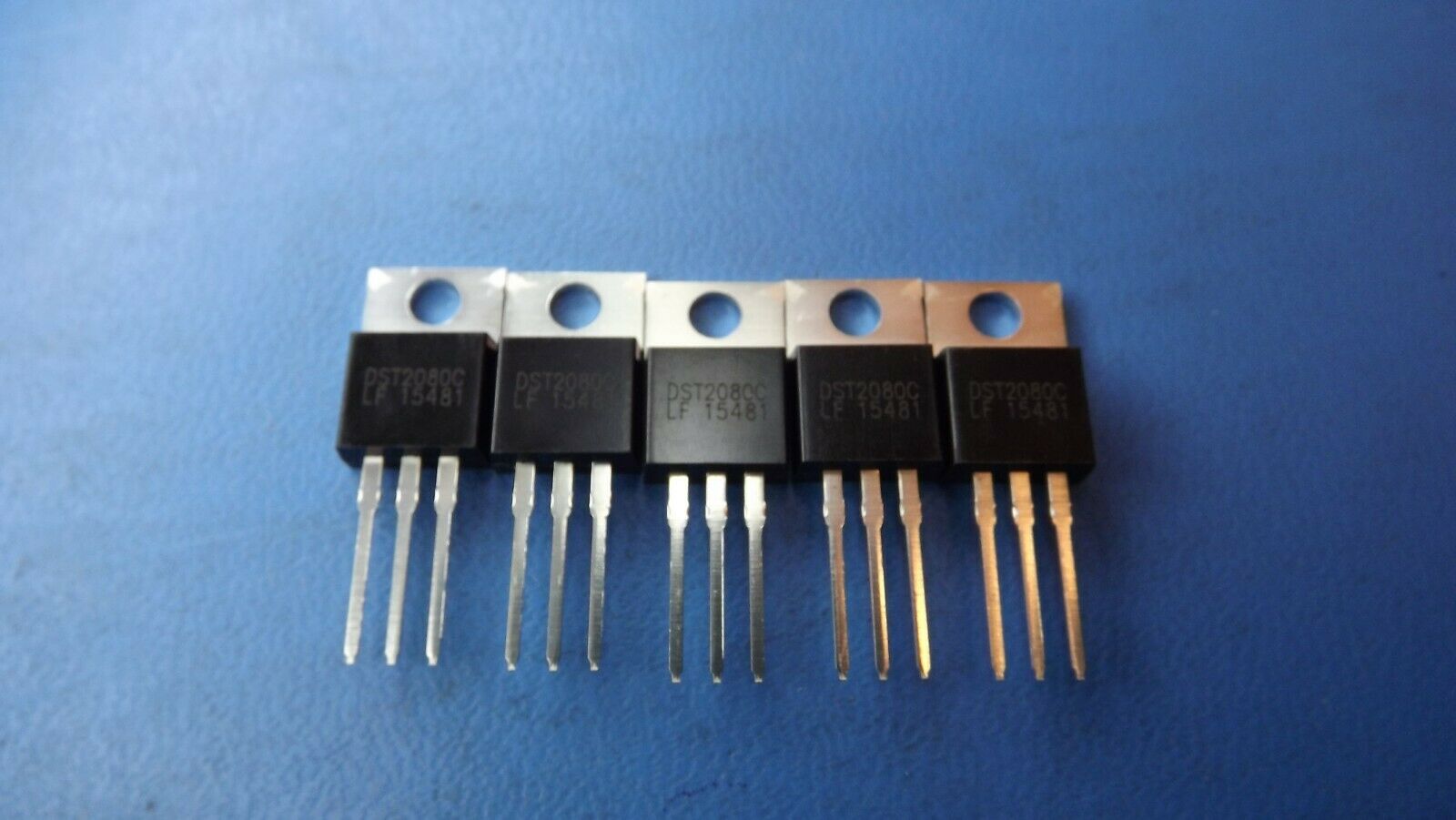

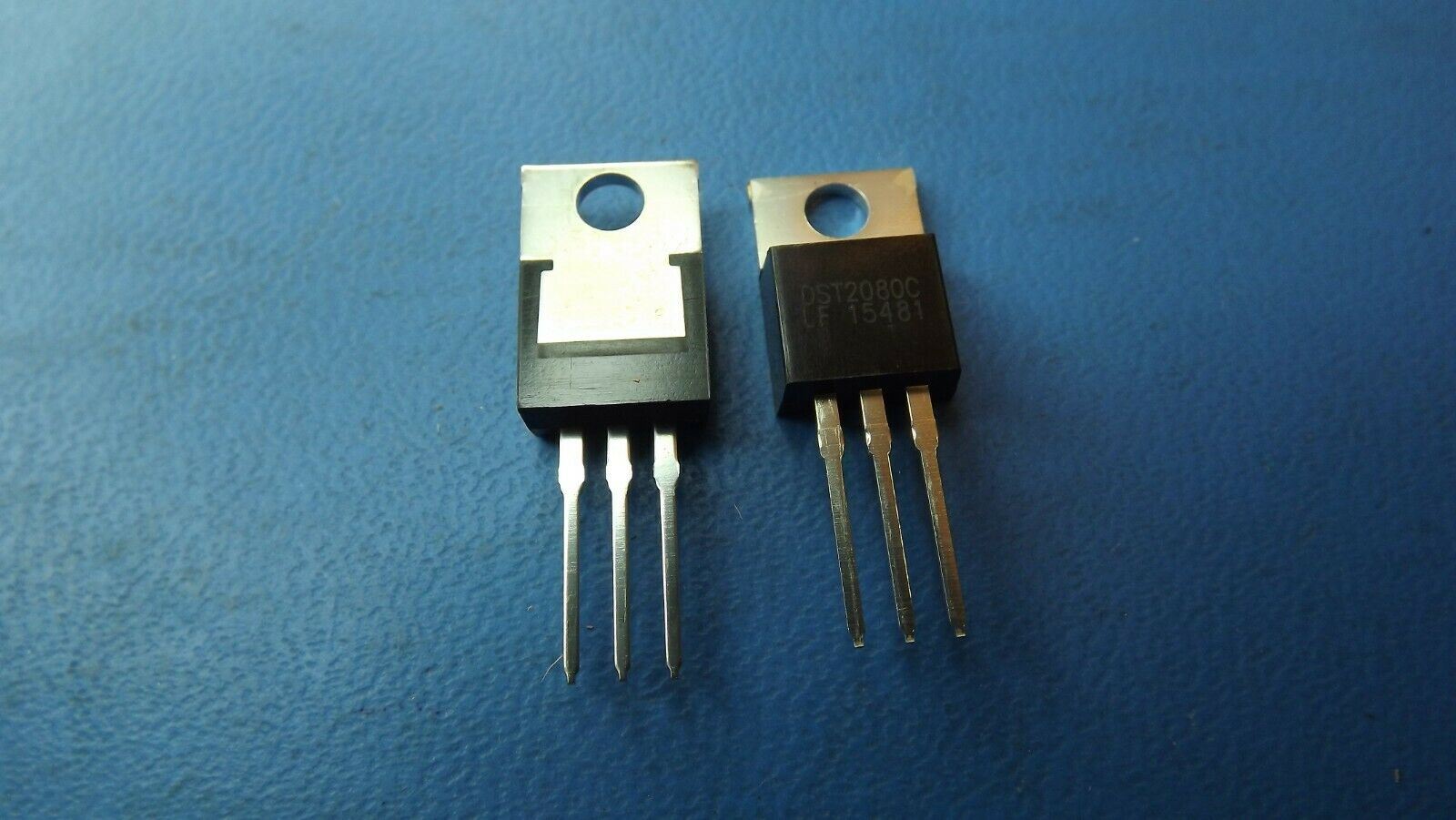

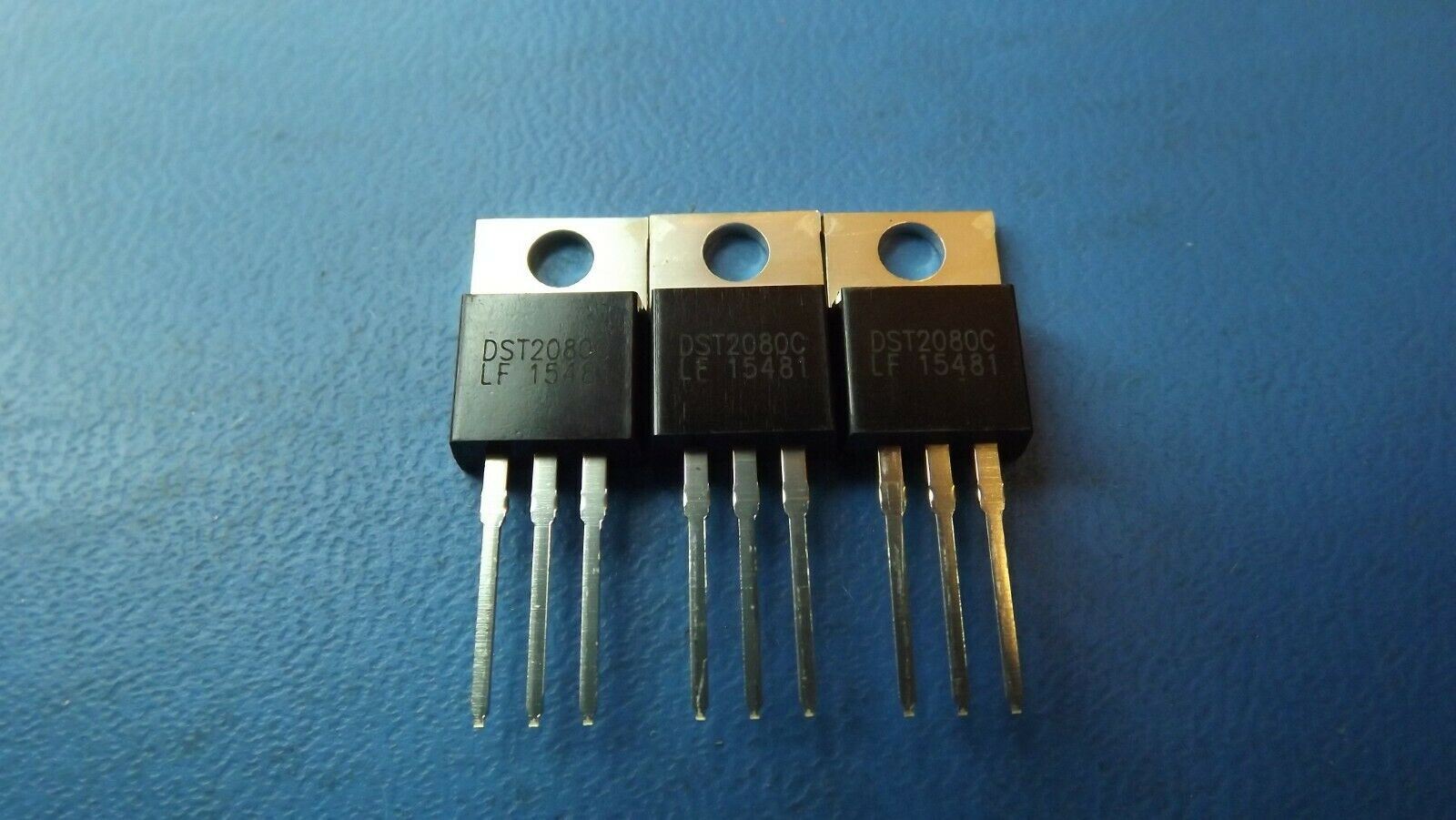

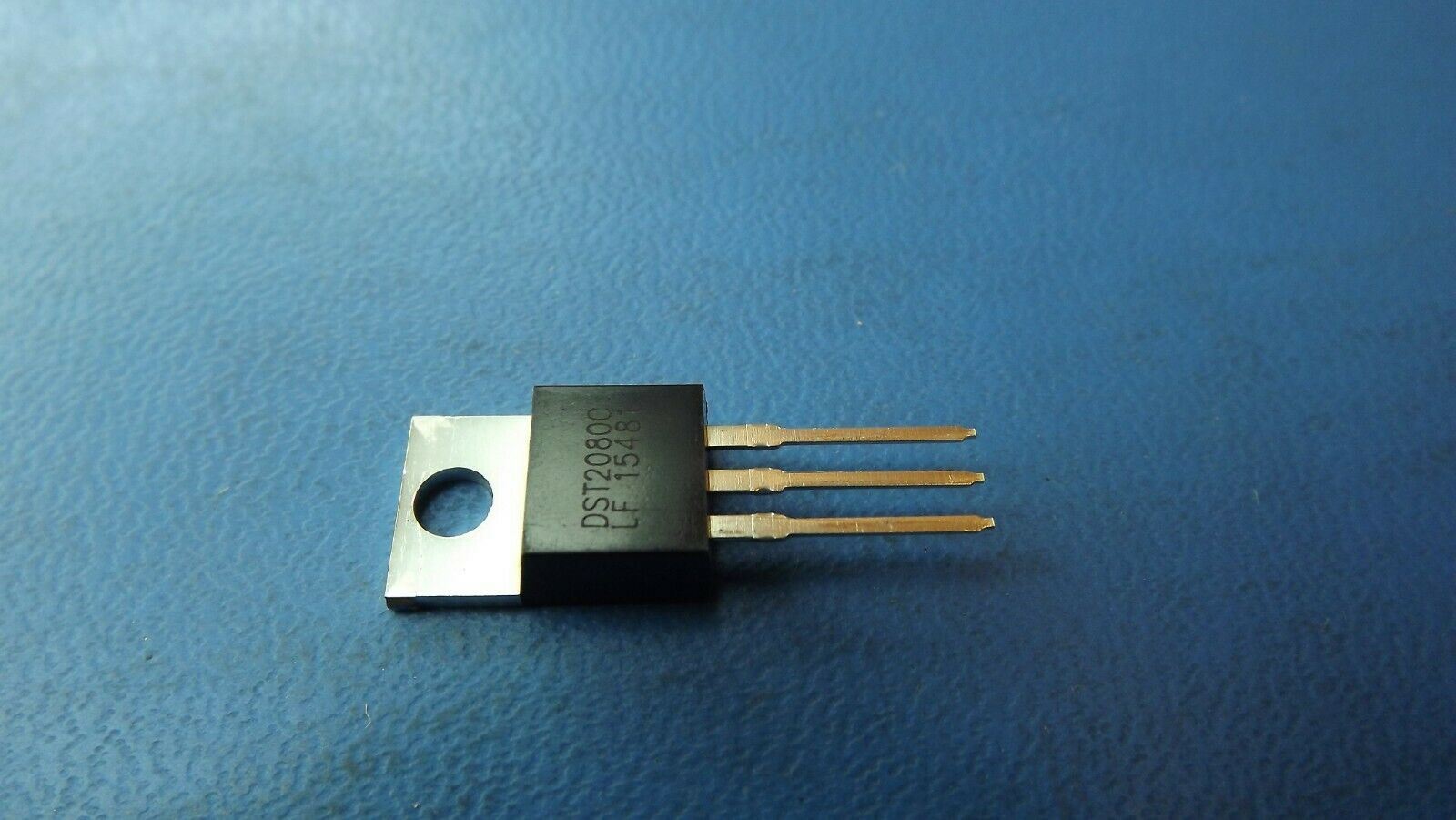

(5PCS) DST2080C LITTELFUSE DIODE ARRAY SCHOTTKY 80V TO220AB

  • $5.00
    Unit price per
Tax included.

Only 20 left!

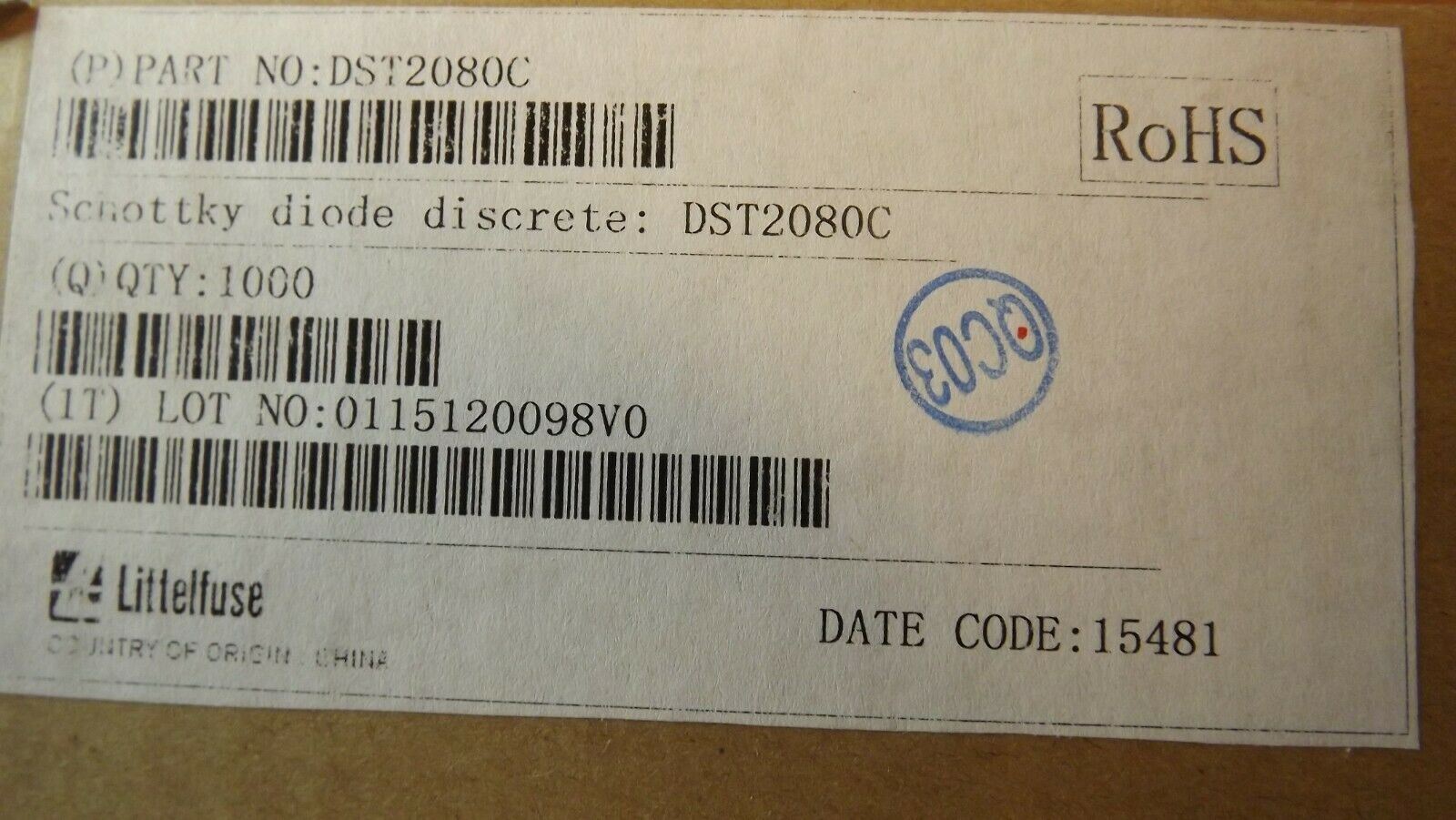

THIS LISTING IS FOR (5PCS) OF DST2080C BY LITTELFUSE

SPECIFICATIONS

EU RoHS Compliant Yes
Status Active
Diode Type RECTIFIER DIODE
Application GENERAL PURPOSE
Case Connection CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS
Diode Element Material SILICON
Forward Voltage-Max (VF) 0.81  V
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Non-rep Pk Forward Current-Max 100.0  A
Number of Elements 2.0
Number of Phases 1.0
Number of Terminals 3
Operating Temperature-Min -55.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Rep Pk Reverse Voltage-Max 80.0  V
Reverse Current-Max 600.0  µA
Surface Mount NO
Technology SCHOTTKY
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature FREE WHEELING DIODE
