(5PCS) CTX33-2 Ind Wirewound 31.77uH/127.09uH 100KHz Amorphous Metal 1.4A/0.7A
(5PCS) CTX33-2 Ind Wirewound 31.77uH/127.09uH 100KHz Amorphous Metal 1.4A/0.7A
(5PCS) CTX33-2 Ind Wirewound 31.77uH/127.09uH 100KHz Amorphous Metal 1.4A/0.7A

(5PCS) CTX33-2 Ind Wirewound 31.77uH/127.09uH 100KHz Amorphous Metal 1.4A/0.7A

Tax included.
Only 15 left!

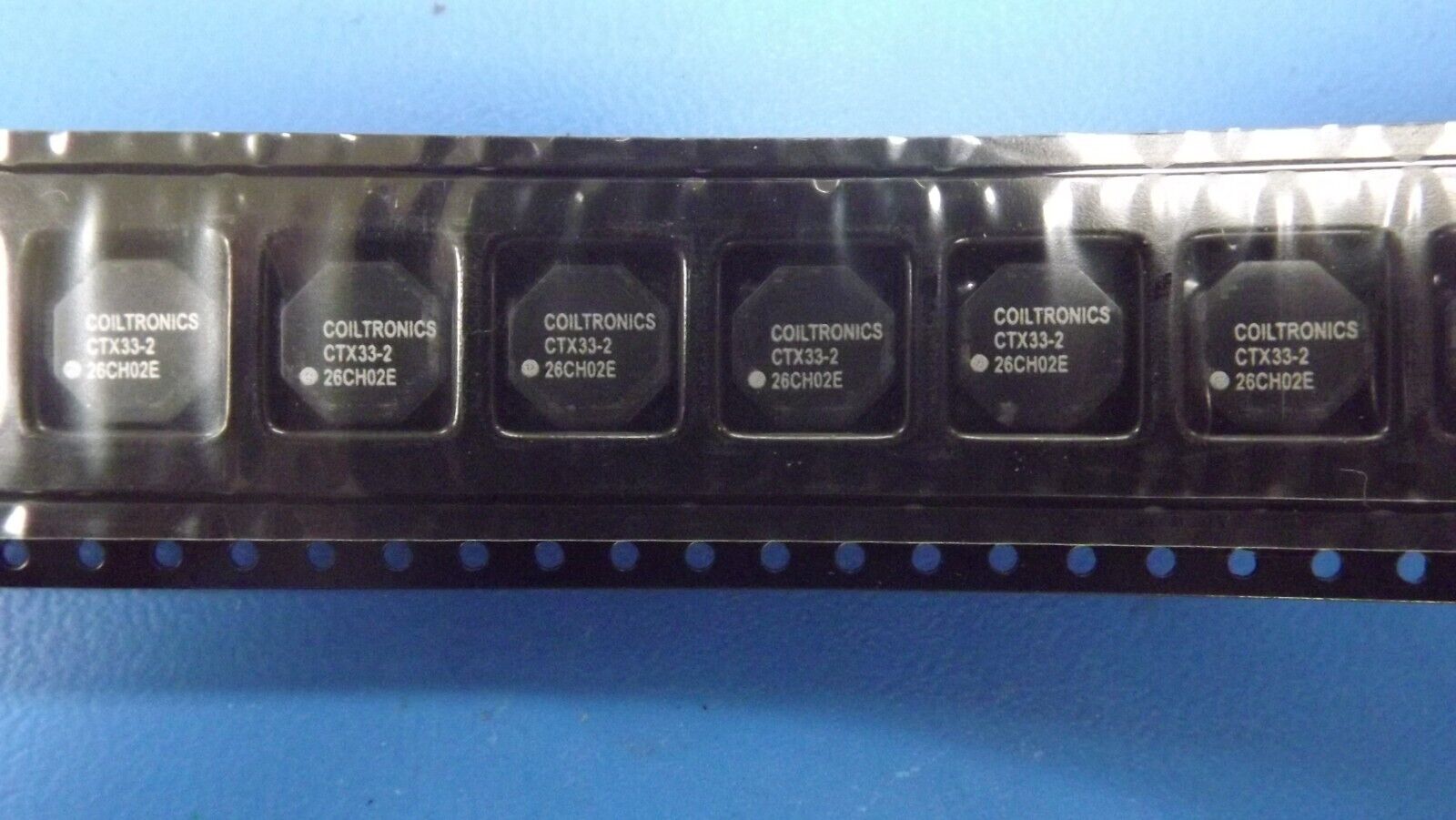

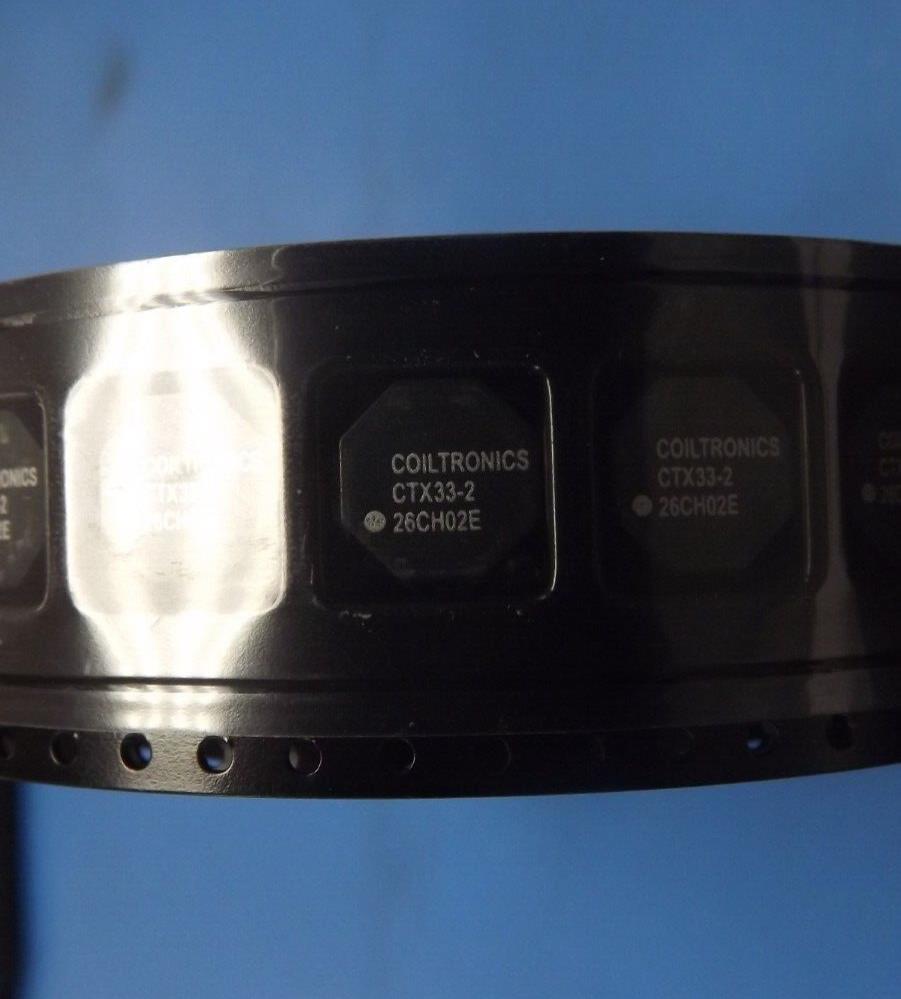

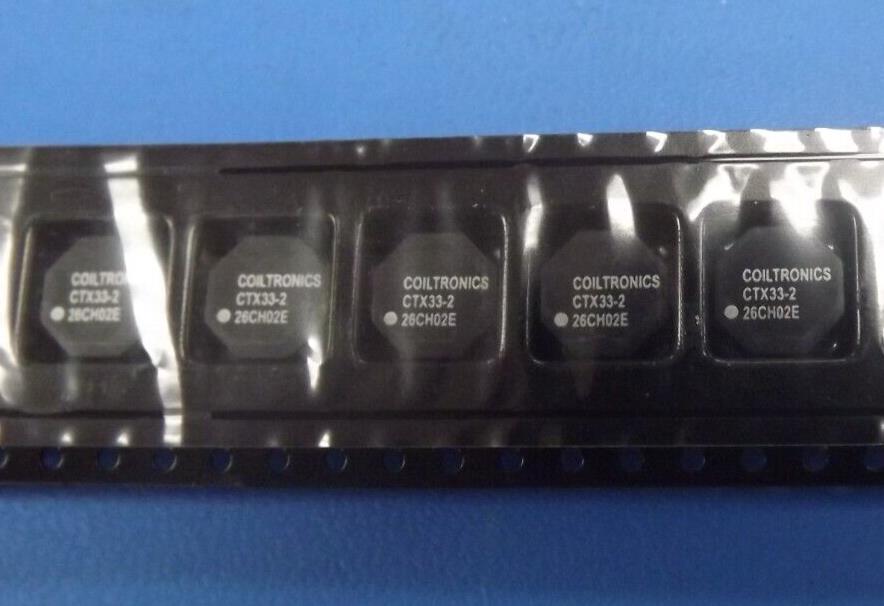

THIS LISTING IS FOR (5PCS) OF CTX33-2 BY COILTRONICS

Mfr
Eaton - Electronics Division
Series
OCTA-PAC®
Package
Tape & Reel (TR)
Cut Tape (CT)
Product Status
Obsolete
Number of Coils
2
Inductance - Connected In Parallel
31.77 µH
Inductance - Connected In Series
127.09 µH
Tolerance
±20%
Current Rating - Parallel
1.4 A
Current Rating - Series
700 mA
DC Resistance (DCR) - Parallel
105mOhm Max
DC Resistance (DCR) - Series
420mOhm Max
Shielding
Unshielded
Ratings
-
Operating Temperature
-40°C ~ 85°C
Mounting Type
Surface Mount
Package / Case
Nonstandard
Size / Dimension
0.450" L x 0.450" W (11.43mm x 11.43mm)
Height
0.235" (5.97mm)
