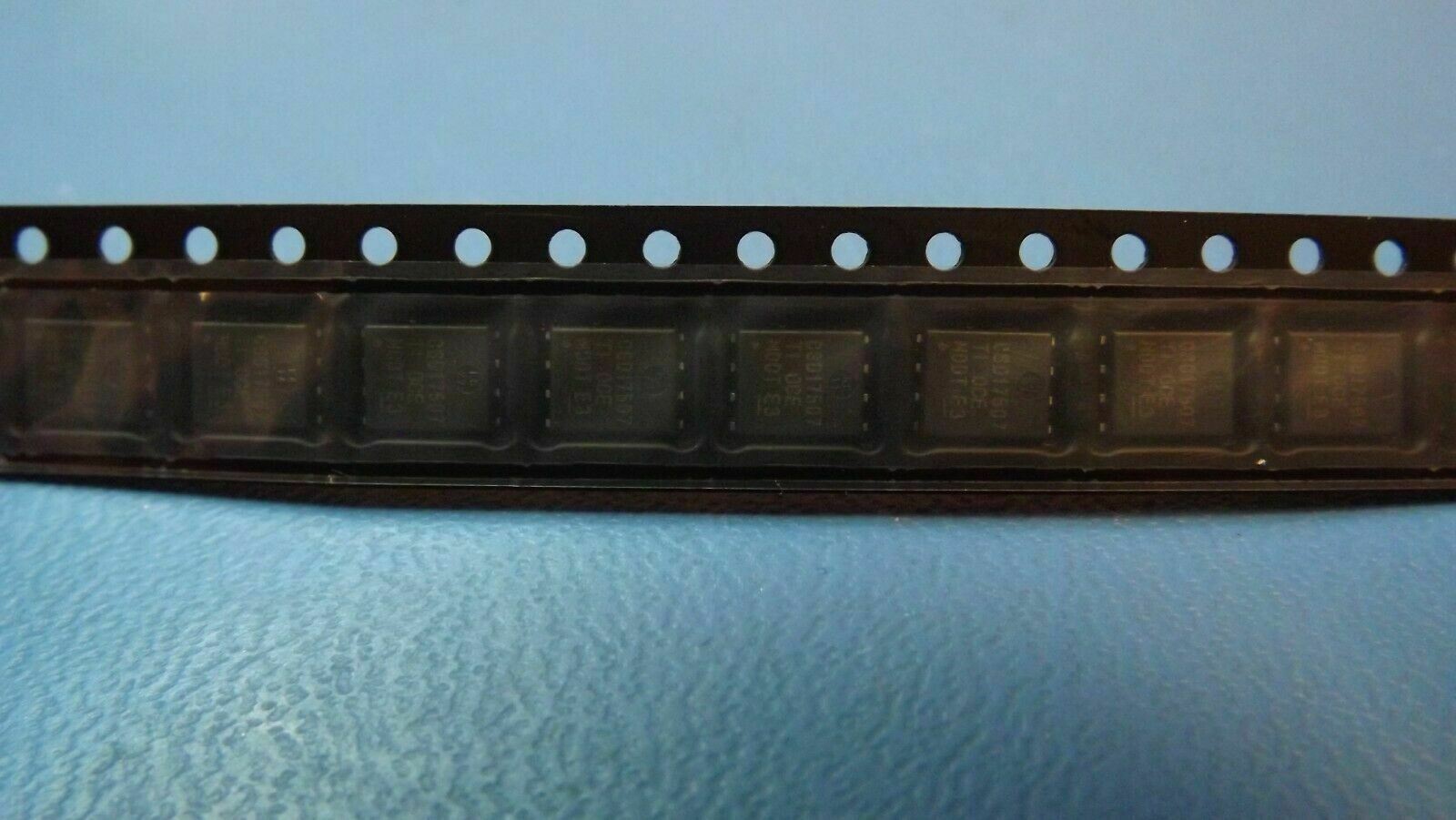

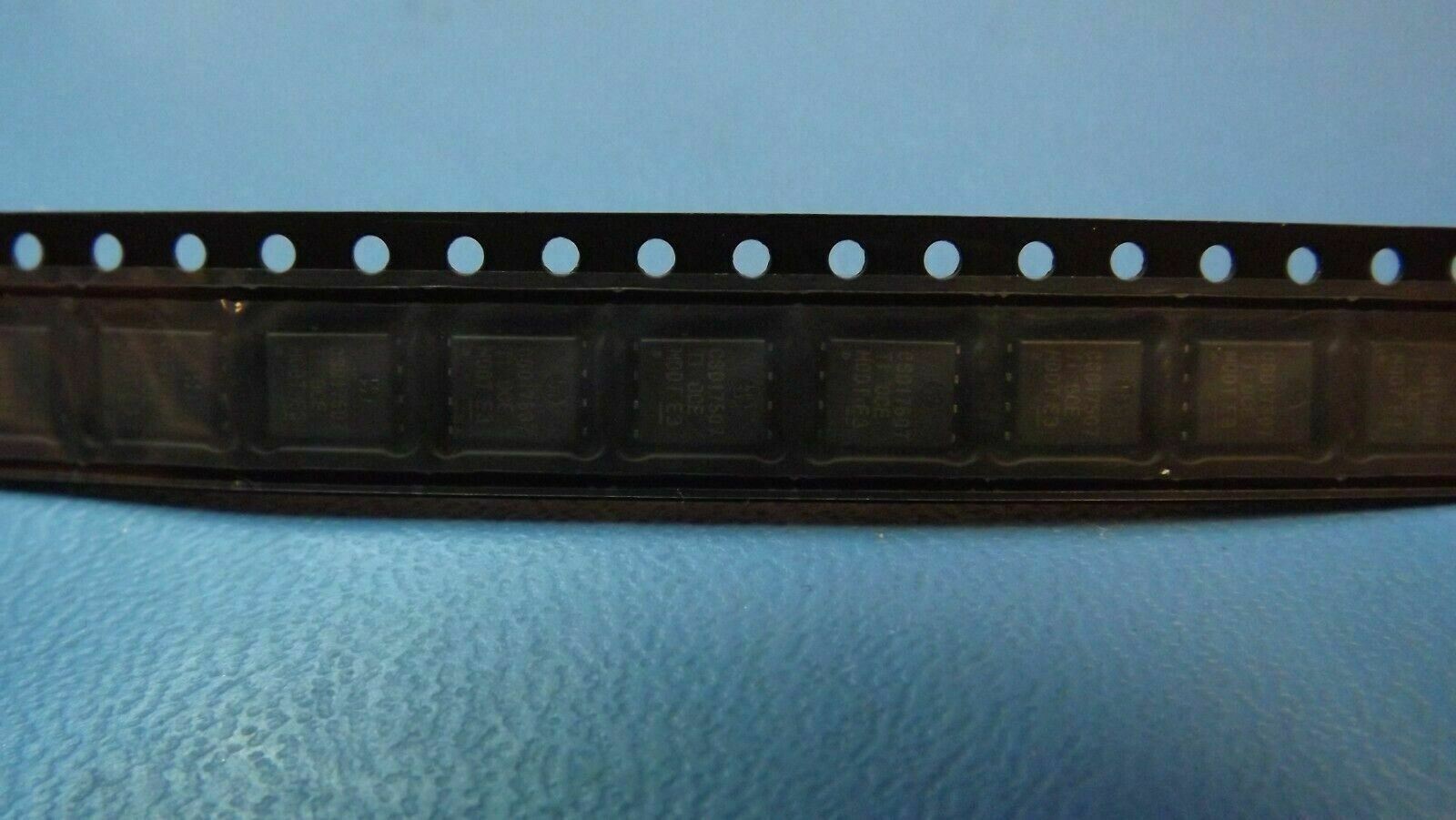

(5PCS) CSD17507Q5A TI Trans MOSFET N-CH 30V 13A 8-Pin VSONP
Tax included.
THIS LISTING IS FOR (5PCS) OF CSD17507Q5A BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | SON-8 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | NRFND |
| Avalanche Energy Rating (Eas) | 145.0 mJ |
| Case Connection | DRAIN |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Drain Current-Max (Abs) (ID) | 65.0 A |
| Drain Current-Max (ID) | 13.0 A |
| Drain-source On Resistance-Max | 0.0161 ohm |
| DS Breakdown Voltage-Min | 30.0 V |
| FET Technology | METAL-OXIDE SEMICONDUCTOR |
| JESD-30 Code | R-PDSO-F5 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Elements | 1.0 |
| Number of Terminals | 5 |
| Operating Mode | ENHANCEMENT MODE |
| Operating Temperature-Max | 150.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 3.0 W |
| Pulsed Drain Current-Max (IDM) | 85.0 A |
| Qualification Status | Not Qualified |
| Sub Category | FET General Purpose Power |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | FLAT |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Transistor Application | SWITCHING |
| Transistor Element Material | SILICON |
| Additional Feature | AVALANCHE RATED |
