(5PCS) BXRH-35A1001-C-22 LED COB H6 ARRAY WM WHT SQ 3500K
Tax included.

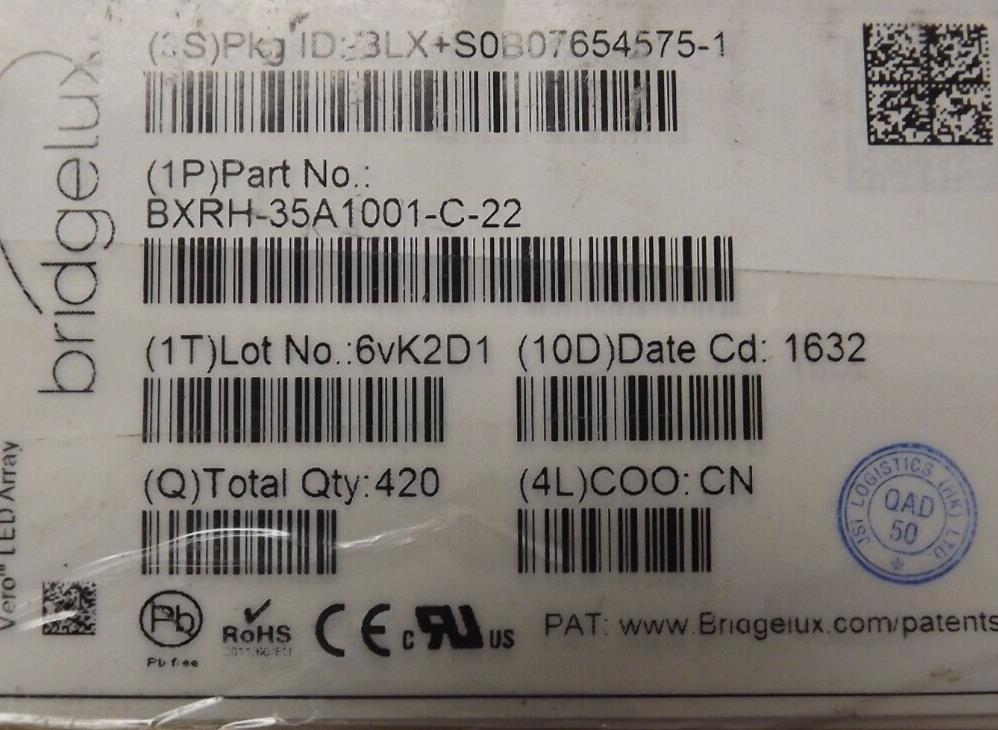

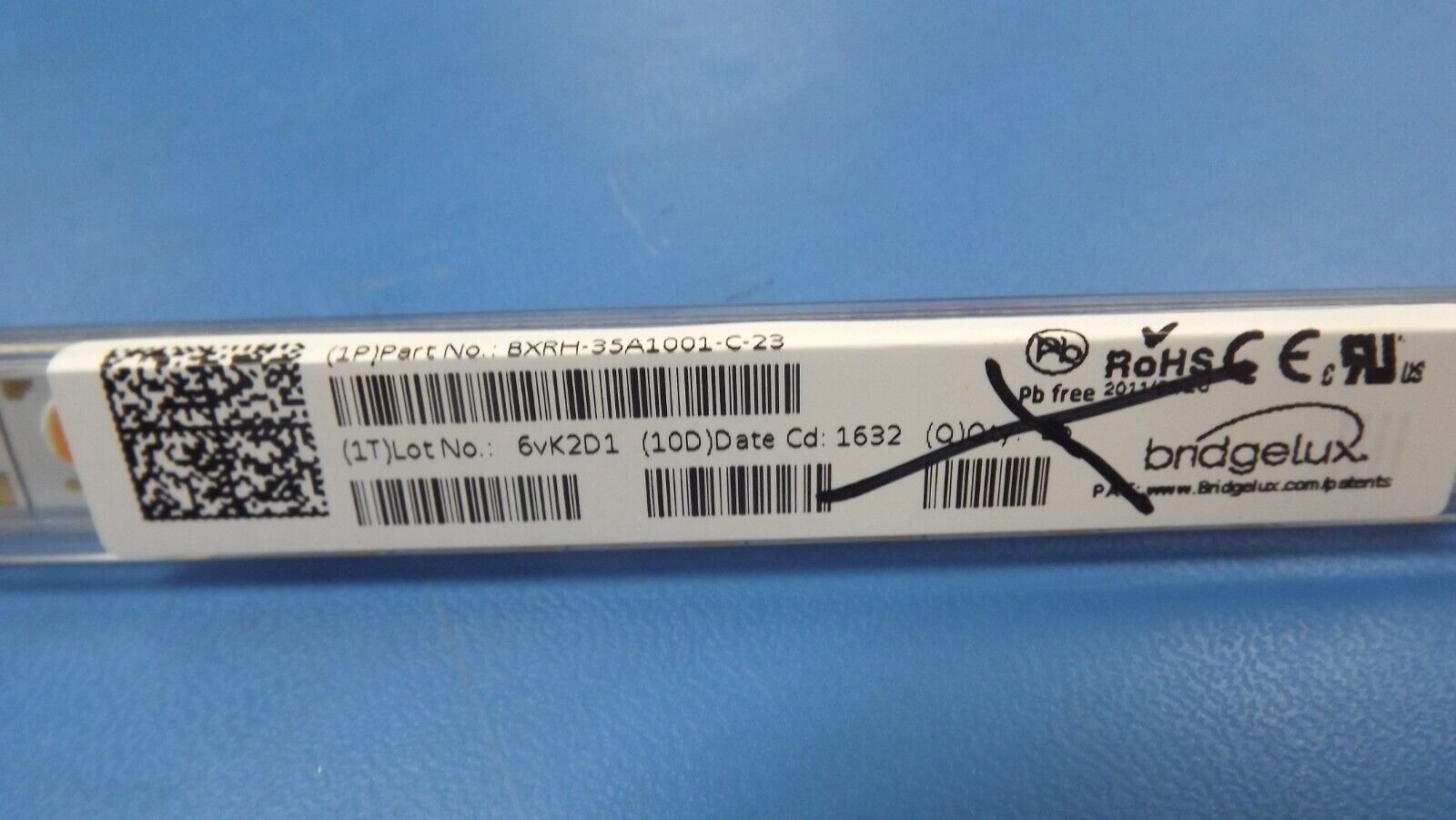

THIS LISTING IS FOR (5PCS) OF BXRH-35A1001-C-22 BY BRIDGELUX

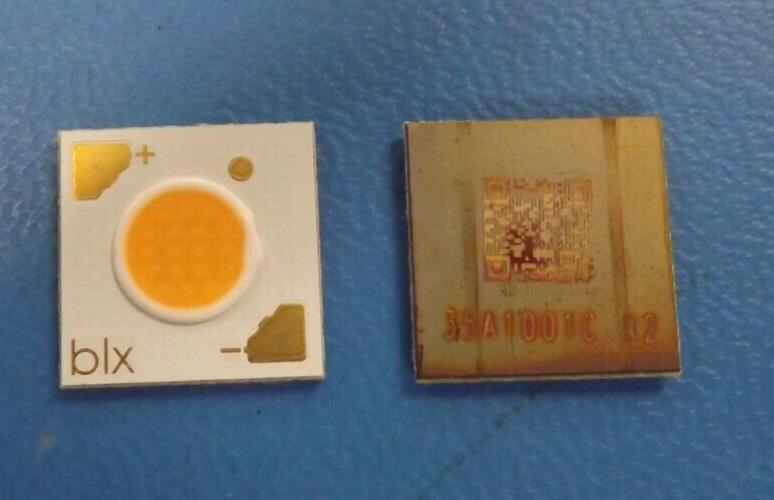

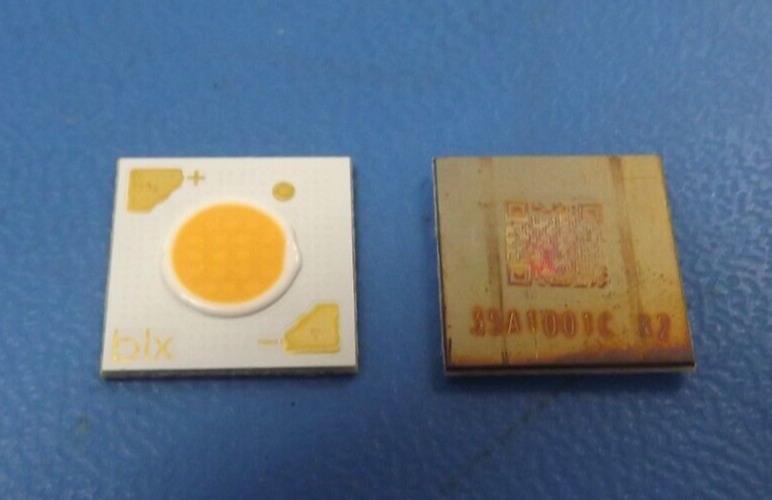

THESE COMPONENTS ARE TANISHED, BUT THEY WORK
Mfr
Bridgelux
Series
H6 Array
Package
Tube
Product Status
Obsolete
Type
Chip On Board (COB)
Color
White, Warm
CCT (K)
3000K 3-Step MacAdam Ellipse
Wavelength
-
Configuration
Square
Luminous Flux @ Current/Temperature
1084lm (Typ)
Current - Test
750mA
Temperature - Test
25°C
Voltage - Forward (Vf) (Typ)
18.3V
Lumens/Watt @ Current - Test
79 lm/W
Current - Max
1.05A
CRI (Color Rendering Index)
97 (Typ)
Viewing Angle
112°
Features
-
Size / Dimension
13.35mm L x 13.35mm W
Height
1.70mm
Light Emitting Surface (LES)
6.60mm Dia
Lens Type
Flat
Base Product Number
BXRH-30
