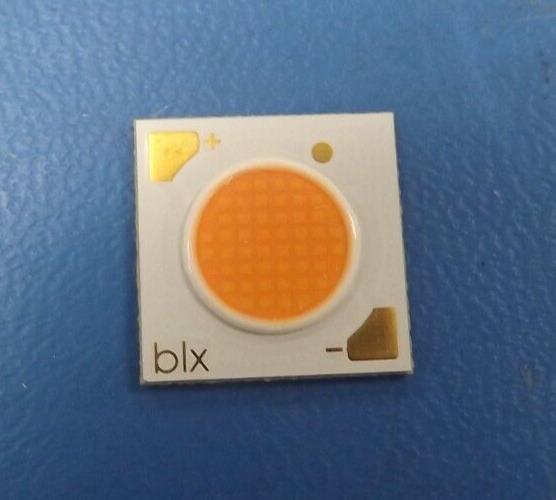

(5PCS) BXRH-27G3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
Tax included.
THIS LISTING IS FOR (5PCS) OF BXRH-27G3000-D-23 BY BRIDGELUX

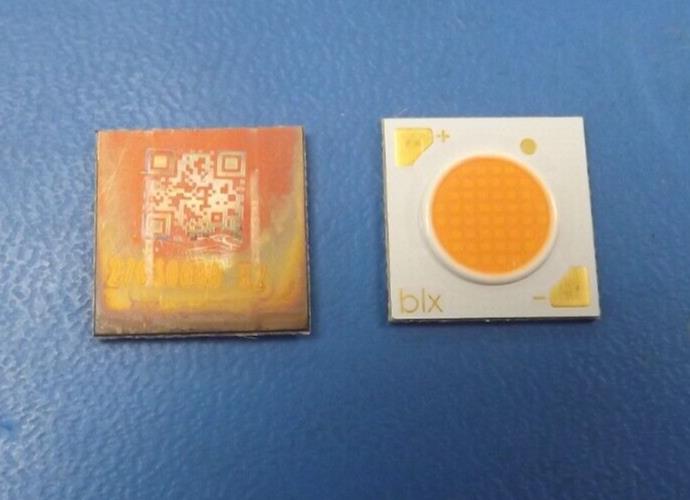

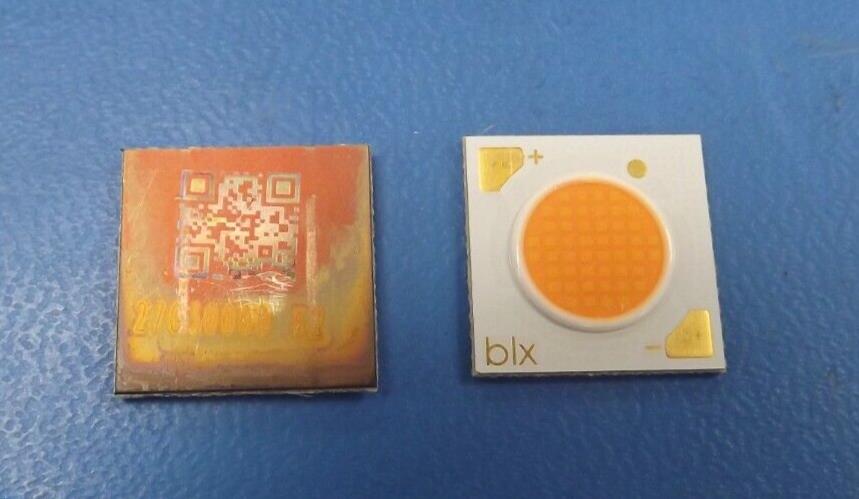

THESE COMPONENTS ARE TARNISHED, BUT THEY DO WORK.
Category
Optoelectronics
COBs, Engines, Modules, Strips
Mfr
Bridgelux
Series
H9 Array
Package
Tube
Product Status
Obsolete
Type
Chip On Board (COB)
Color
White, Warm
CCT (K)
2700K 3-Step MacAdam Ellipse
Wavelength
-
Configuration
Square
Luminous Flux @ Current/Temperature
2891lm (Typ)
Current - Test
1A
Temperature - Test
25°C
Voltage - Forward (Vf) (Typ)
36.6V
Lumens/Watt @ Current - Test
79 lm/W
Current - Max
1.4A
CRI (Color Rendering Index)
97 (Typ)
Viewing Angle
112°
Features
-
Size / Dimension
15.85mm L x 15.85mm W
Height
1.70mm
Light Emitting Surface (LES)
9.50mm Dia
Lens Type
Flat
Base Product Number
BXRH-27
