(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K
(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K

(5PCS) BXRH-27E3000-D-23 LED COB H9 ARRAY WM WHT SQ 2700K

Tax included.
Only 120 left!

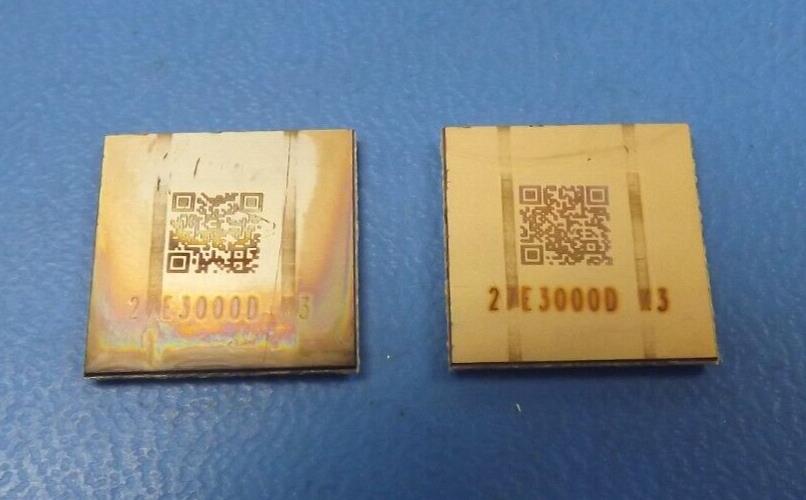

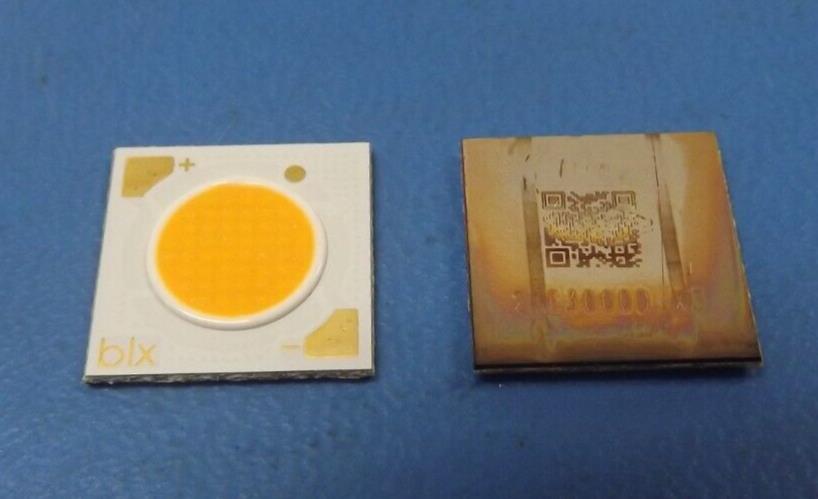

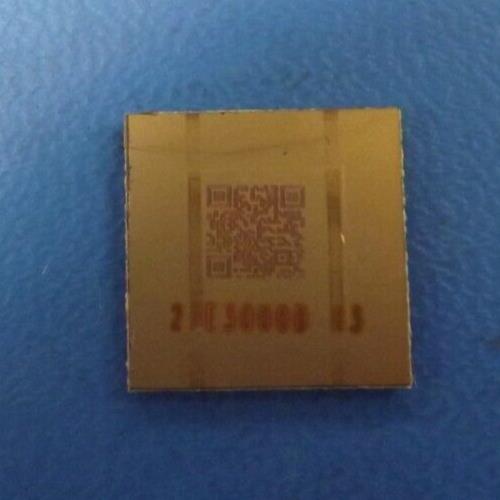

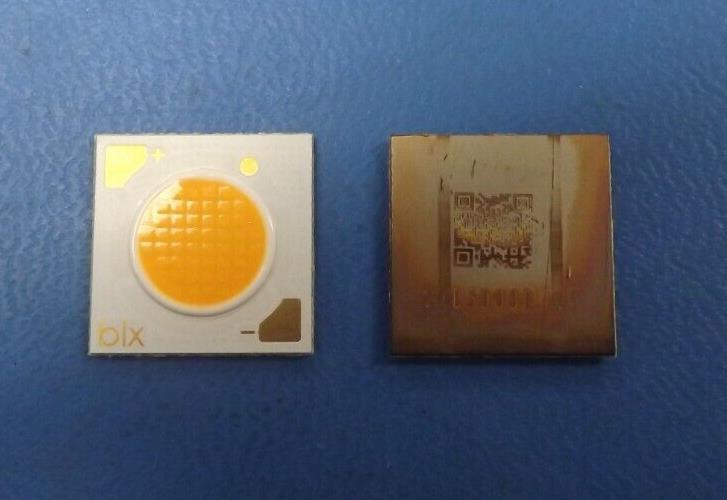

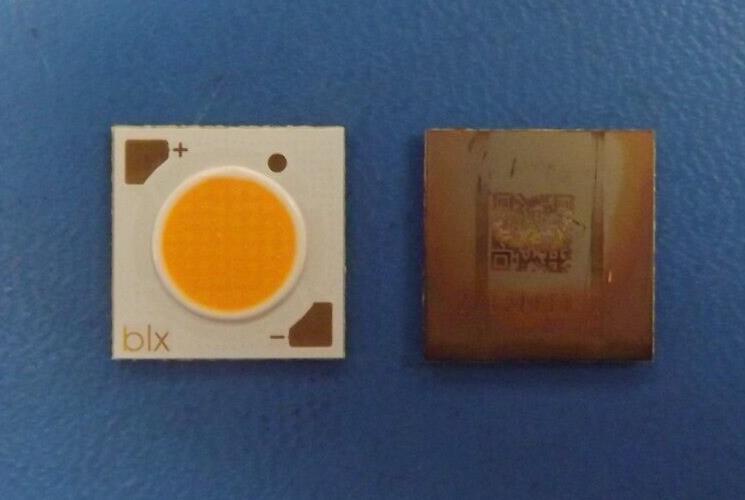

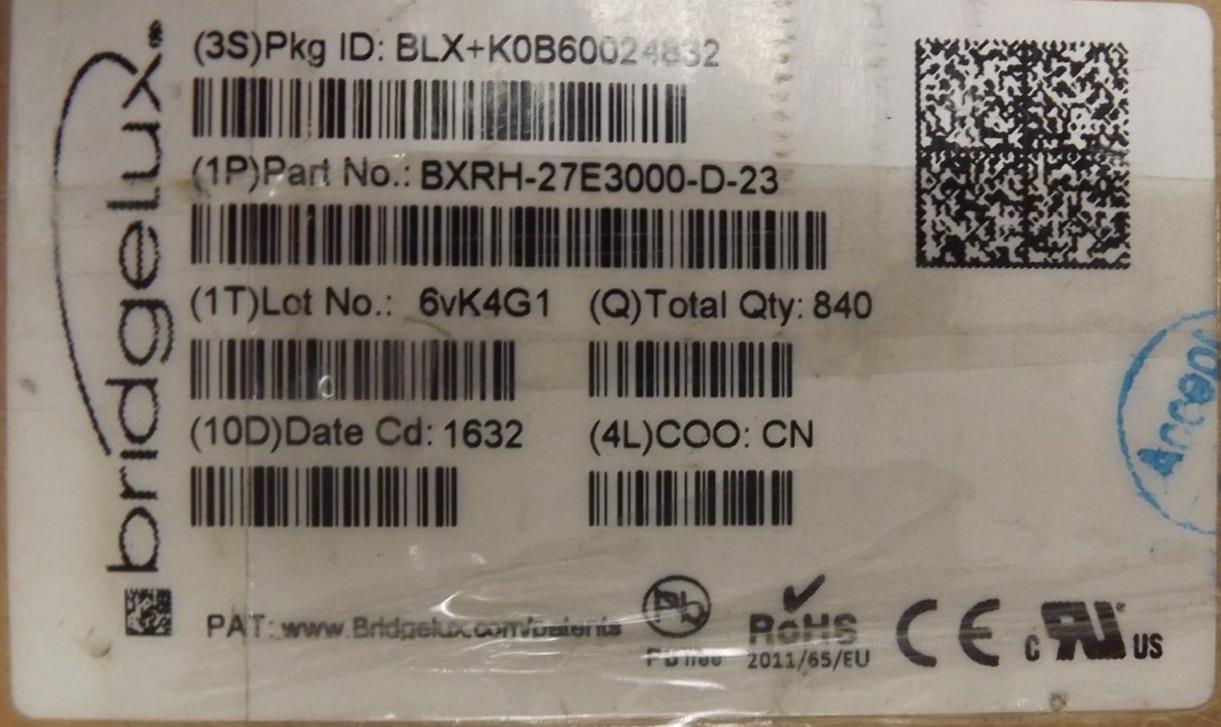

THIS LISTING IS FOR (5PCS) OF BXRH-27E3000-D-23 BY BRIDGELUX

Category
Optoelectronics
COBs, Engines, Modules, Strips
Mfr
Bridgelux
Series
H9 Array
Package
Tube
Product Status
Obsolete
Type
Chip On Board (COB)
Color
White, Warm
CCT (K)
2700K 3-Step MacAdam Ellipse
Wavelength
-
Configuration
Square
Luminous Flux @ Current/Temperature
3477lm (Typ)
Current - Test
1A
Temperature - Test
25°C
Voltage - Forward (Vf) (Typ)
36.6V
Lumens/Watt @ Current - Test
95 lm/W
Current - Max
1.4A
CRI (Color Rendering Index)
80
Viewing Angle
112°
Features
-
Size / Dimension
15.85mm L x 15.85mm W
Height
1.70mm
Light Emitting Surface (LES)
9.50mm Dia
Lens Type
Flat
Base Product Number
BXRH-27
