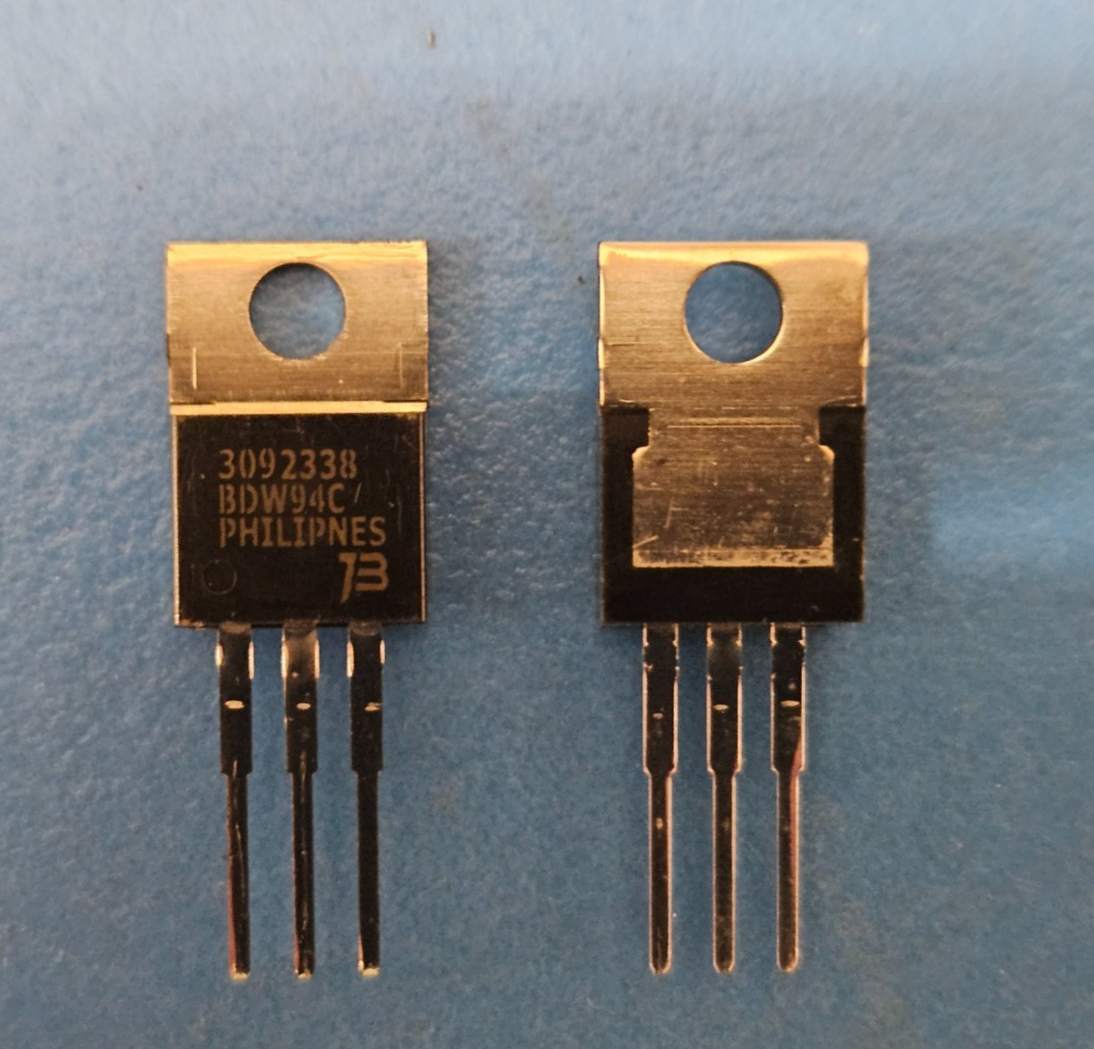

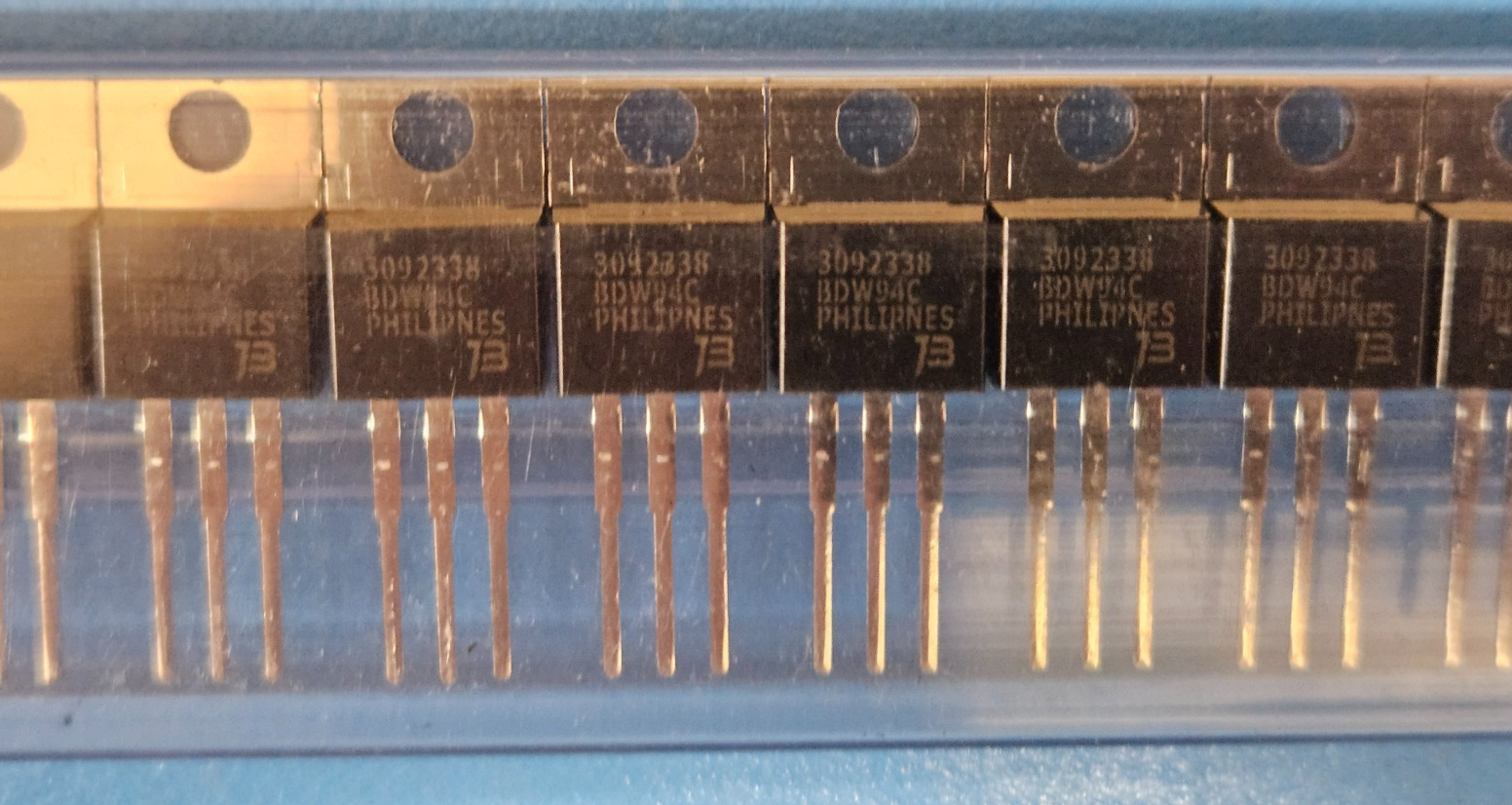

(5PCS) BDW94C Bipolar Transistor 12A, 100V, 1-Element, PNP, Silicon, TO-220AB
Tax included.
This listing is for (5PCS) of BDW94C by Bourns
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) (A) 12.0000000000000000
Collector-emitter Voltage-Max (V) 100.0000000000000000
Configuration DARLINGTON
DC Current Gain-Min (hFE) 100.0000000000000000
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1
Number of Terminals 3
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type PNP
DLA Qualification Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Element Material SILICON
