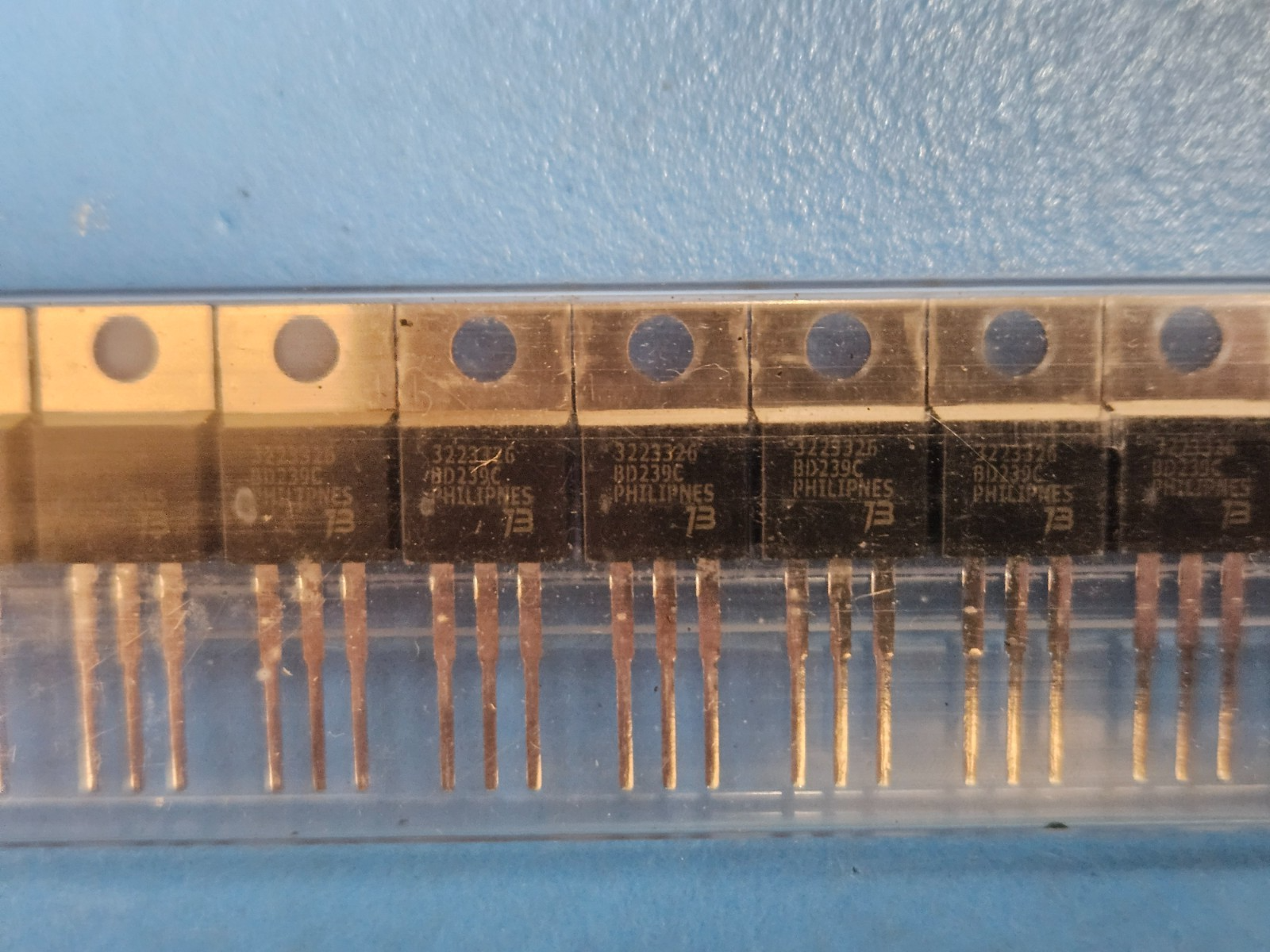

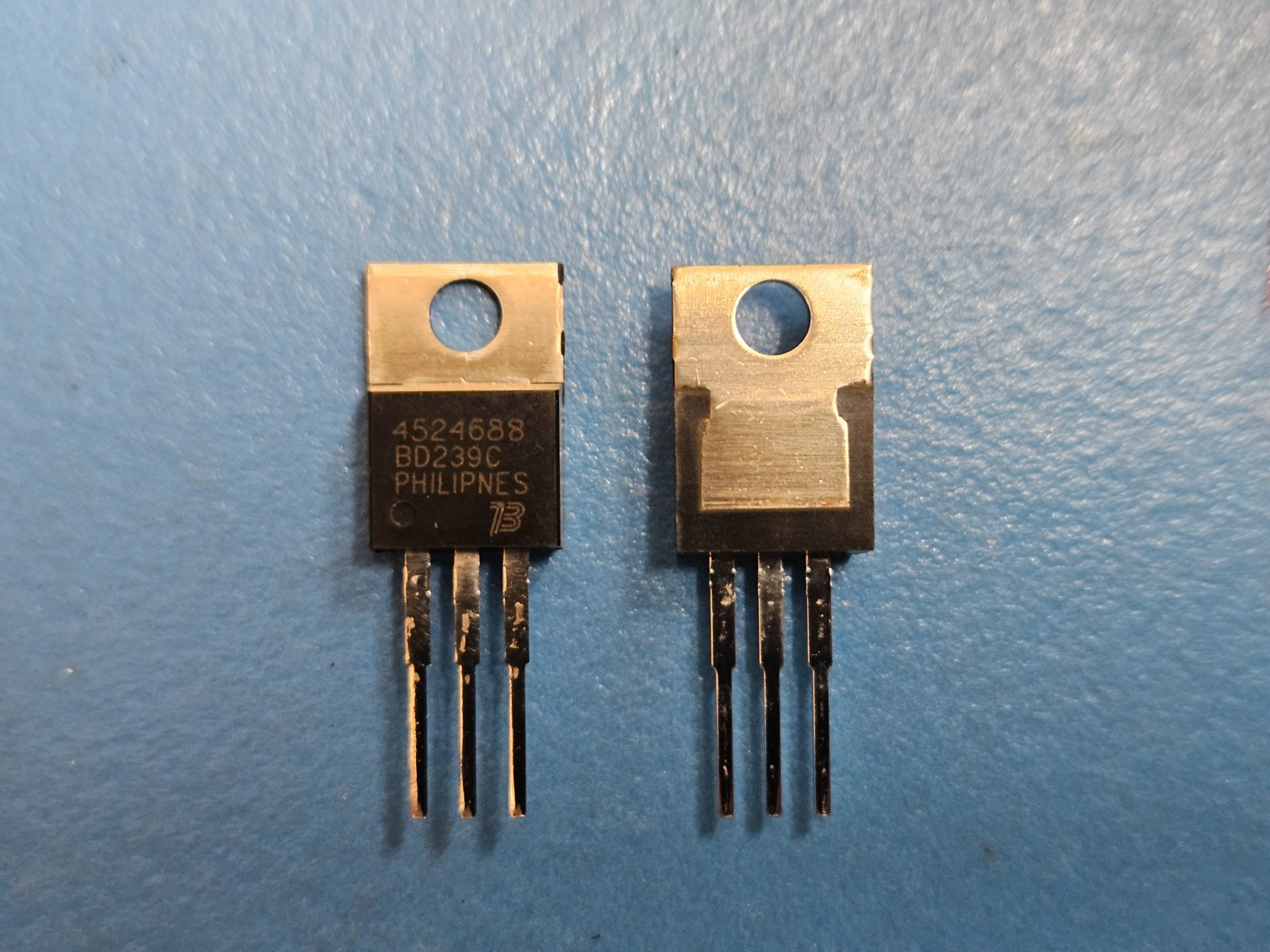

(5PCS) BD239C Bipolar Transistor, 2A, 100V, 1-Element, NPN, Silicon, TO-220AB
Tax included.
This listing is for (5PCS) of BD239C by Bourns
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) (A) 2.0000000000000000
Collector-emitter Voltage-Max (V) 100.0000000000000000
Configuration SINGLE
DC Current Gain-Min (hFE) 15.0000000000000000
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max (Cel) 150
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (W) 30.000000000000000
DLA Qualification Not Qualified
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Application SWITCHING
Transistor Element Material SILICON
