(5pcs) AT29C256-15JC Atmel Flash, 32KX8, 150ns, PLCC32
Tax included.

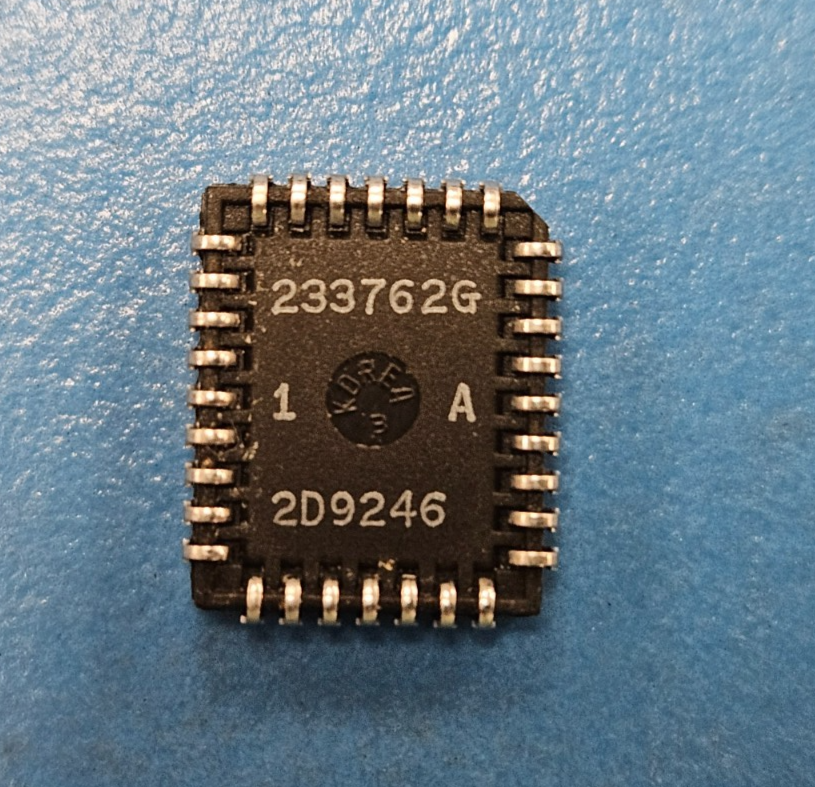

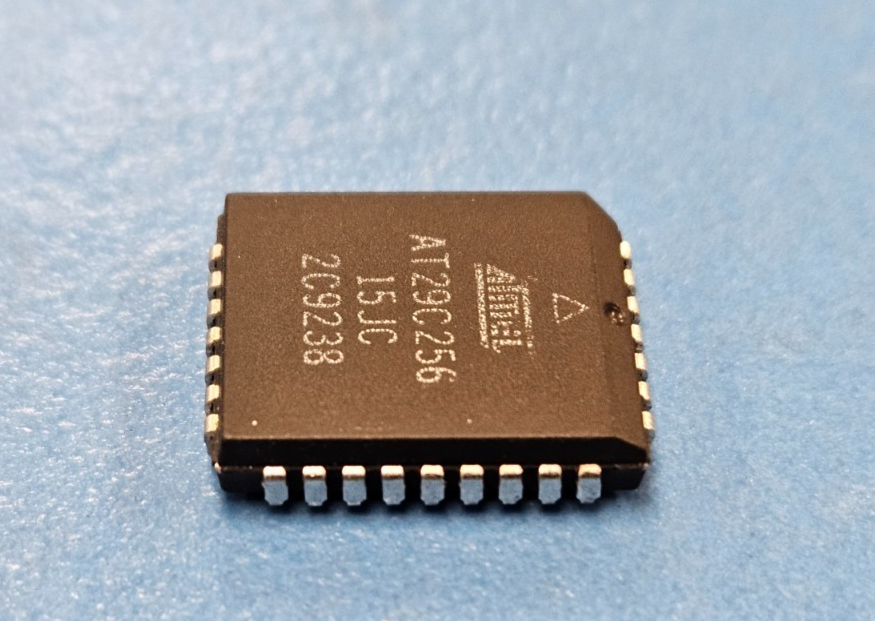

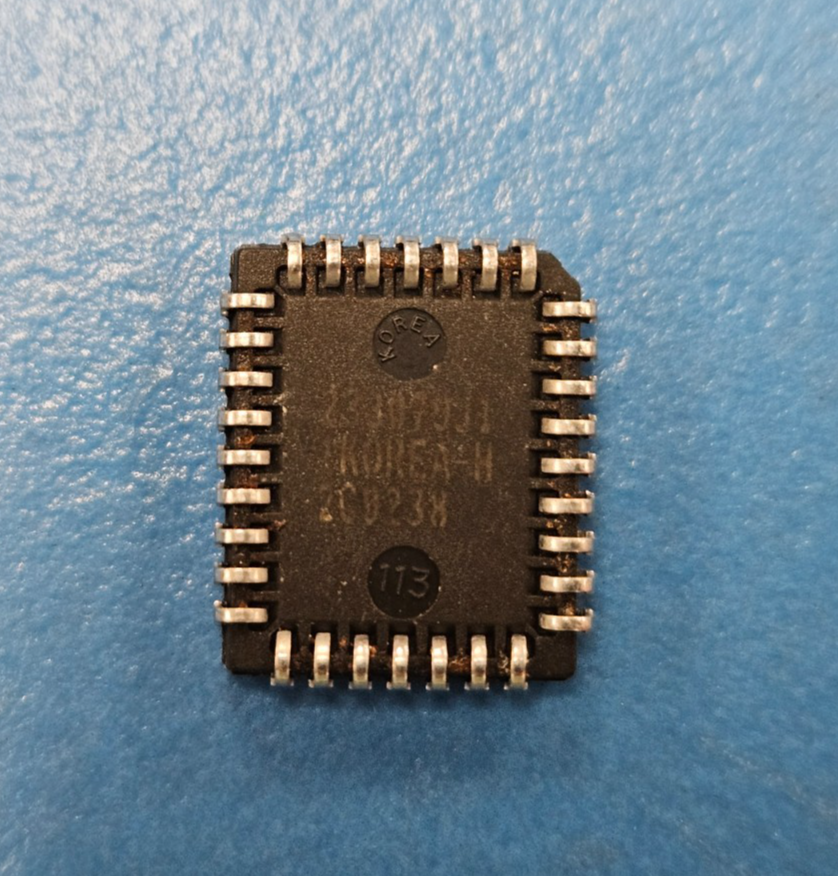

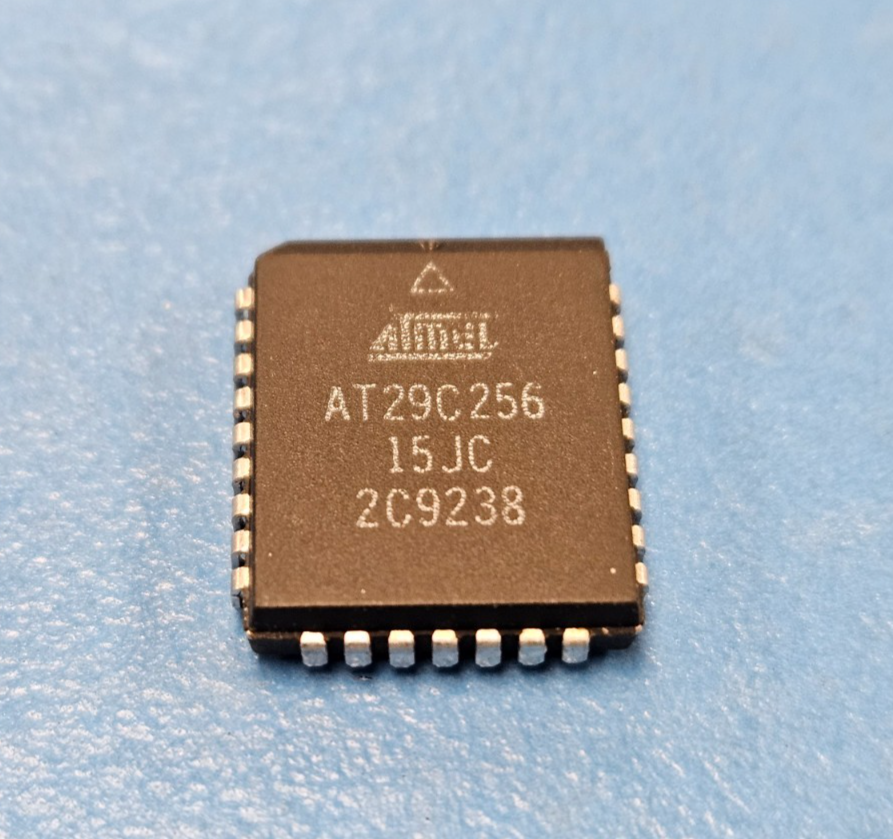

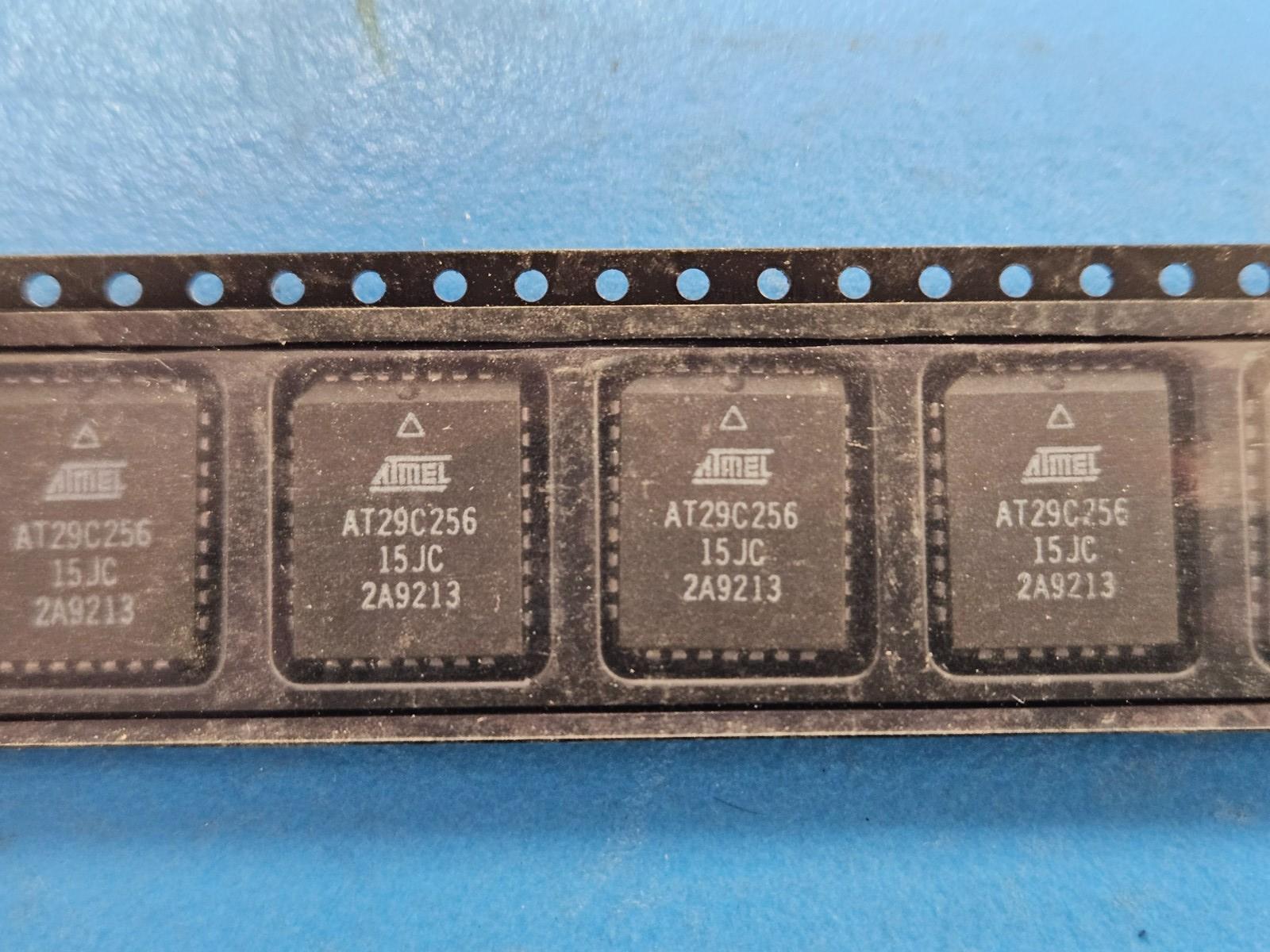

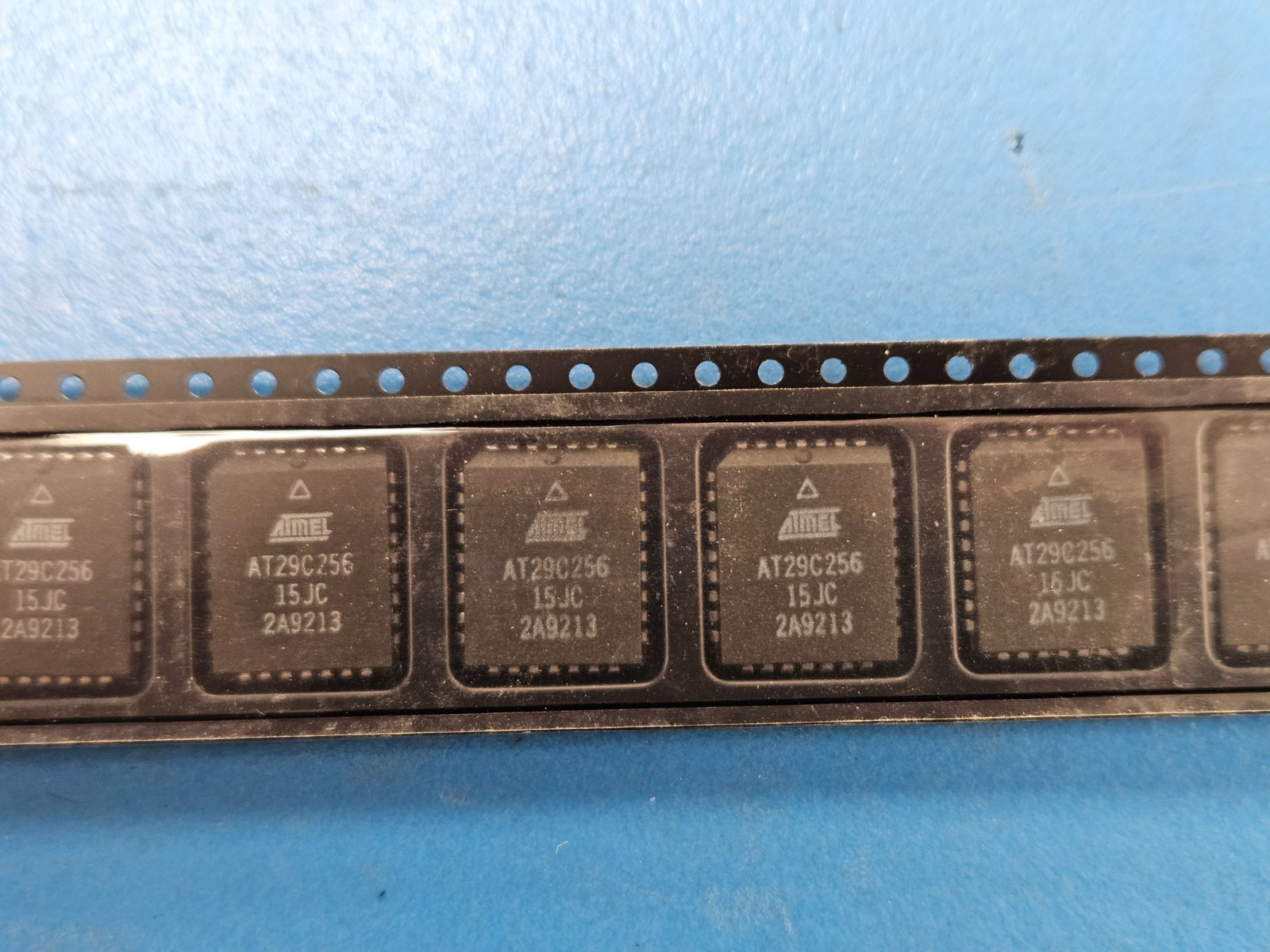

This listing is for (5pcs) of AT29C256-15JC by Atmel
Status Discontinued
Access Time-Max (ns) 150.0000000000000000
Additional Feature AUTOMATIC WRITE; HARDWARE & SOFTWARE DATA PROTECTION
Command User Interface NO
Data Polling YES
JESD-30 Code R-PQCC-J32
J-STD-609 Code e0
Length (mm) 13.9700
Memory Density (bits) 262144.0000000000000000
Memory IC Type FLASH
Memory Width 8
Moisture Sensitivity Level 2
Number of Functions 1
Number of Sectors/Size 512
Number of Terminals 32
Number of Words (words) 32768.0000000000000000
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Page Size (words) 64
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Programming Voltage (V) 5
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.5560
Sector Size (words) 64
Standby Current-Max (A) 0.000300000000000
Supply Current-Max (mA) 50.000000000000000
Supply Voltage-Max (V) 5.50000
Supply Voltage-Min (V) 4.50000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position QUAD
Toggle Bit YES
Type NOR TYPE
Width (mm) 11.4300
Write Cycle Time-Max (tWC) (ms) 10.0000000000000000
