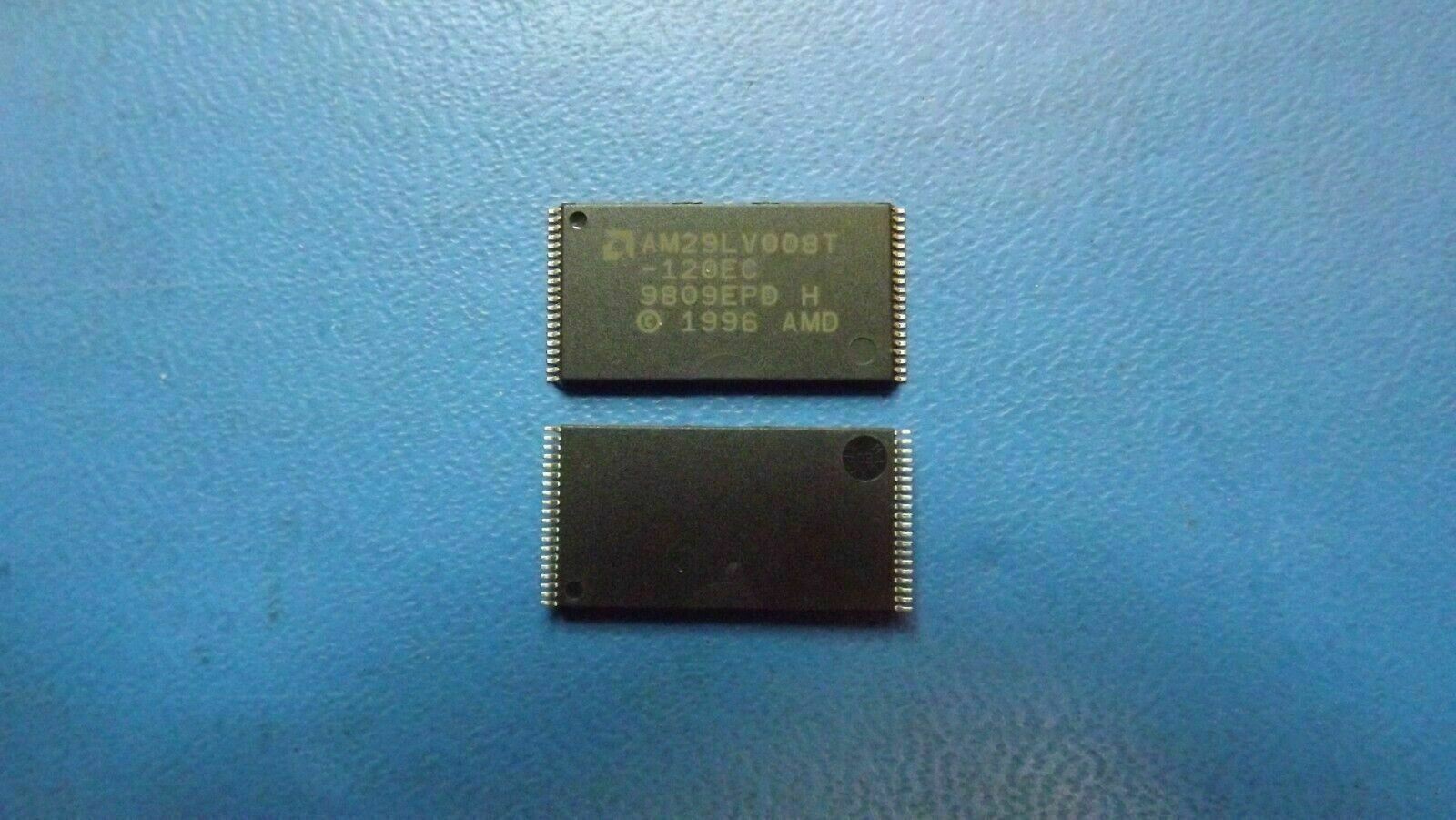

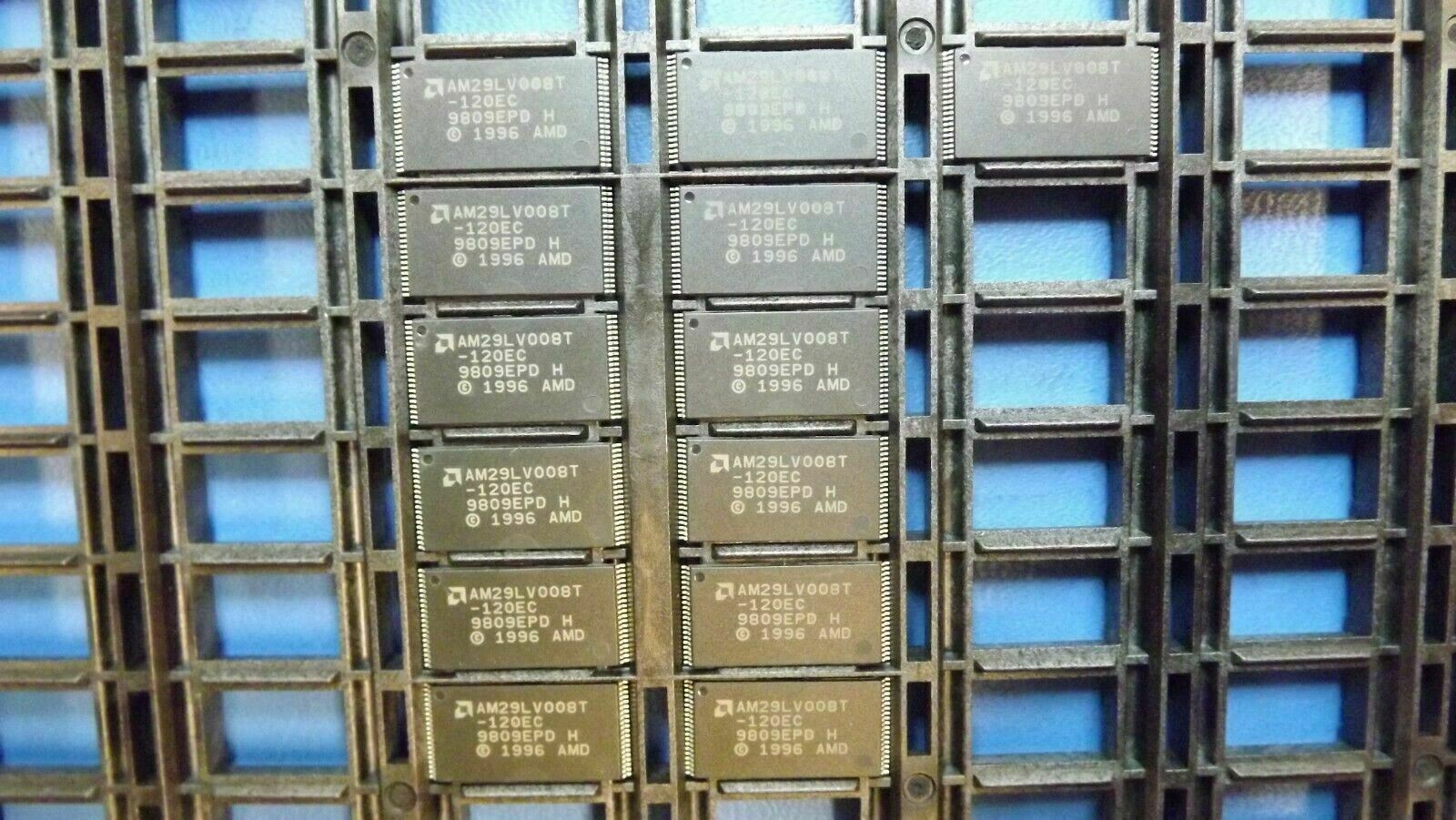

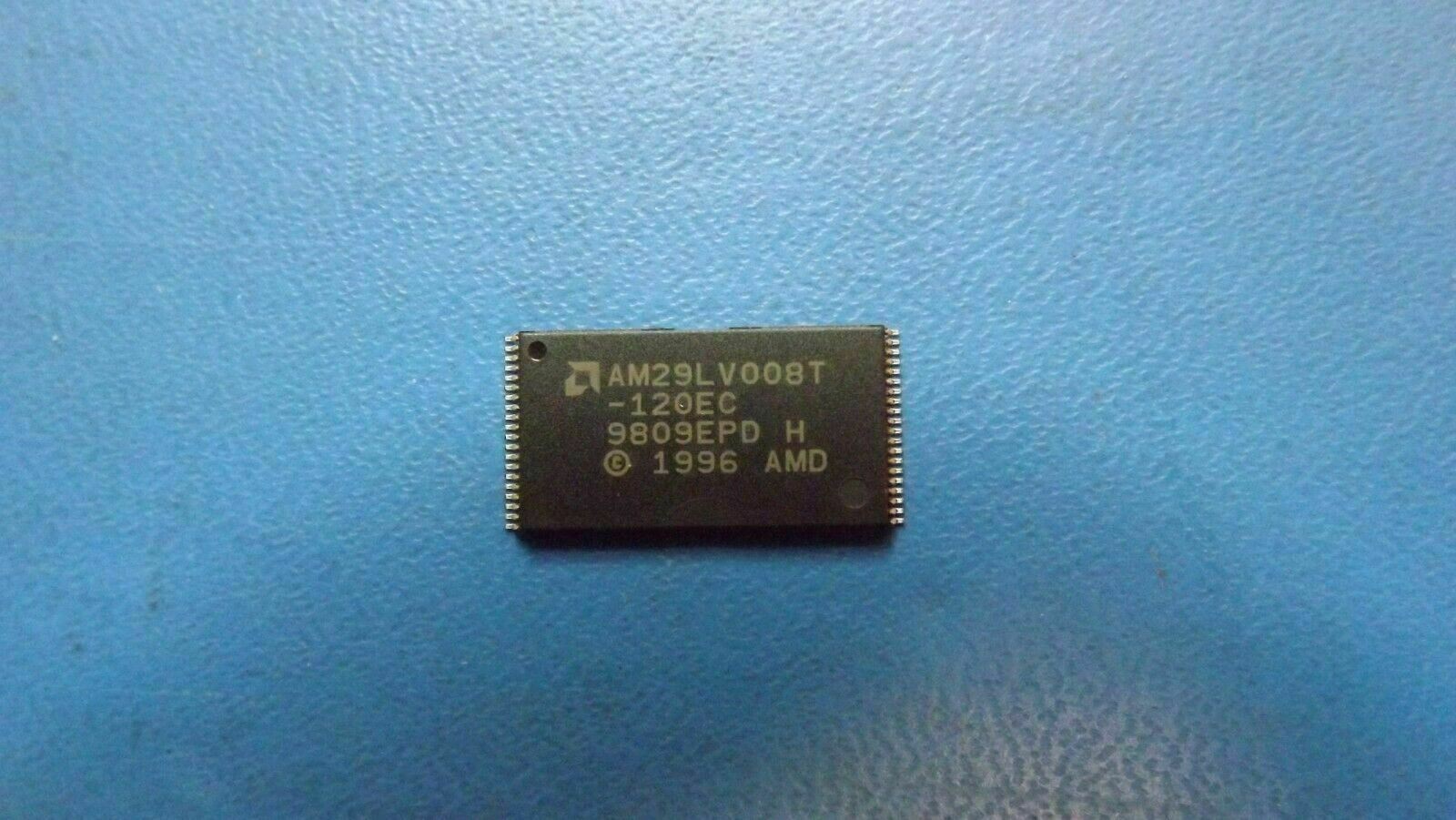

(5PCS) AM29LV008T-120EC AMD Flash, 1MX8, 120ns, TSOP-40
Tax included.
THIS LISTING IS FOR (5PCS) OF AM29LV008T-120EC BY AMD
SPECIFICATIONS
| Mfr Package Description | TSOP-40 |
| Status | Discontinued |
| Type | NOR TYPE |
| Sub Category | Flash Memories |
| Access Time-Max | 120.0 ns |
| Boot Block | TOP |
| Command User Interface | YES |
| Data Polling | YES |
| Endurance | 100000.0 Write/Erase Cycles |
| JESD-30 Code | R-PDSO-G40 |
| JESD-609 Code | e0 |
| Memory Density | 8388608.0 bit |
| Memory IC Type | FLASH |
| Memory Width | 8 |
| Number of Functions | 1 |
| Number of Sectors/Size | 1,2,1,15 |
| Number of Terminals | 40 |
| Number of Words | 1048576.0 words |
| Number of Words Code | 1M |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 1MX8 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TSOP1 |
| Package Equivalence Code | TSSOP40,.8,20 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 3/3.3 |
| Programming Voltage (V) | 3 |
| Qualification Status | Not Qualified |
| Ready/Busy | YES |
| Seated Height-Max | 1.2 mm |
| Sector Size (Words) | 16K,8K,32K,64K |
| Standby Current-Max | 5.0E-6 Amp |
| Supply Current-Max | 0.03 Amp |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Supply Voltage-Min (Vsup) | 2.7 V |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Toggle Bit | YES |
| Length | 18.4 mm |
| Width | 10.0 mm |
| Additional Feature | AUTOMATIC WRITE |
