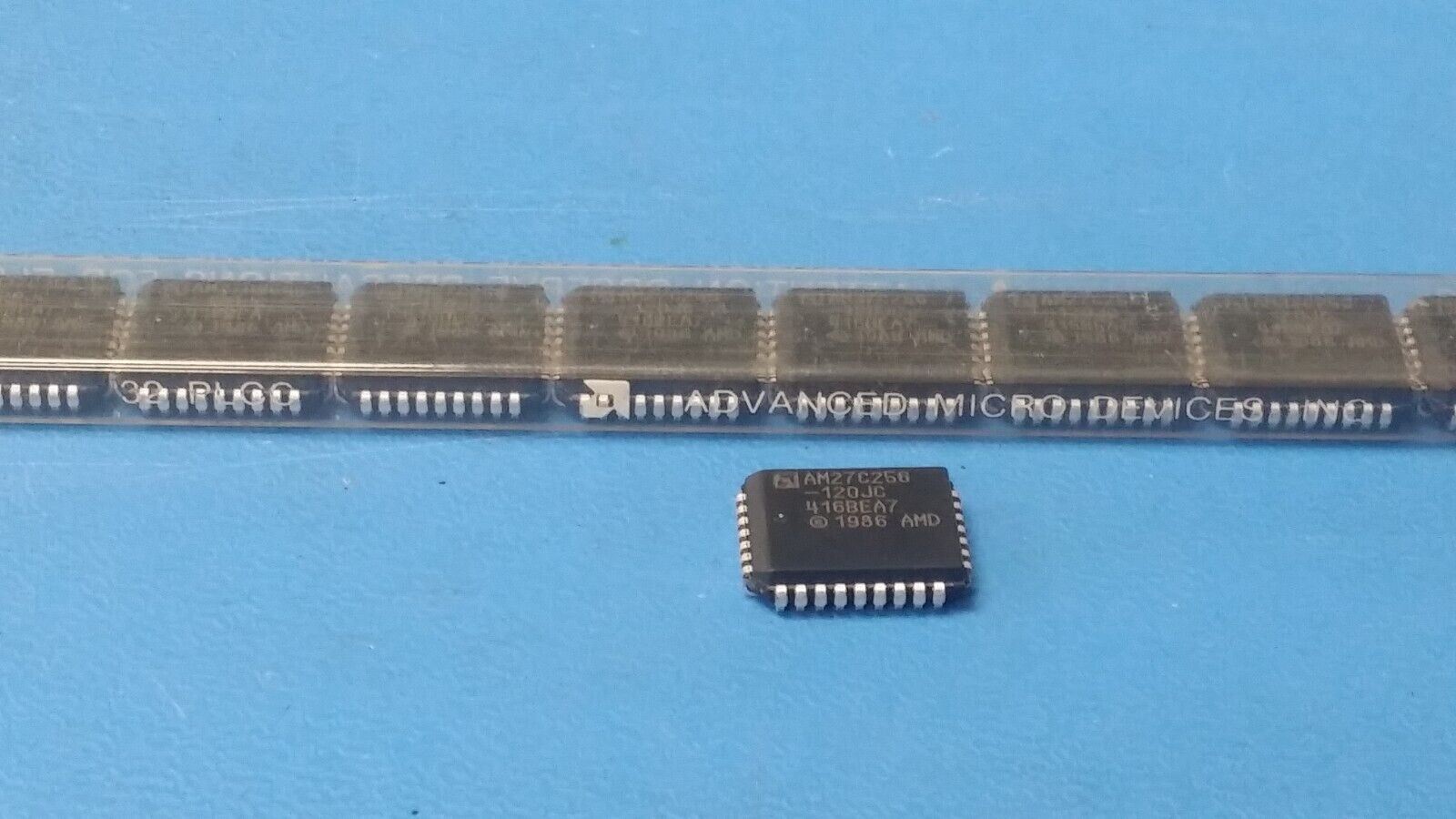

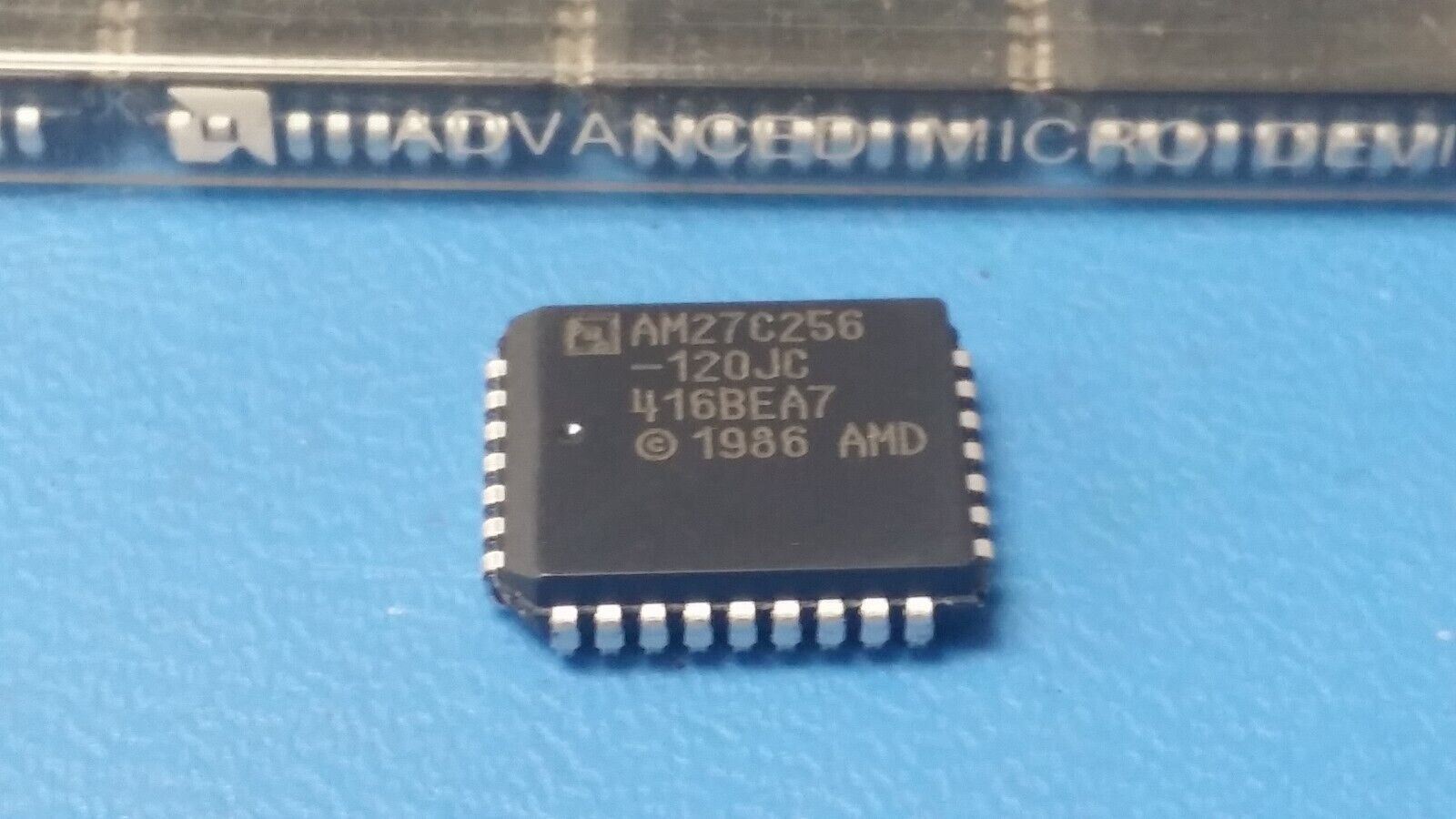

(5PCS) AM27C256-120JC AMD EPROM OTP 256K-Bit 32K x 8 120ns 32-Pin PLCC
Tax included.
THIS IS FOR (5PCS) OF AM27C256-120JC BY AMD
EPROM OTP 256K-Bit 32K x 8 120ns 32-Pin PLCC
Part #: AM27C256-120JC
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: OTP ROM, 32KX8, 120ns, CMOS, PQCC32
Mfr Package Description PLASTIC, LCC-32
Status Discontinued
Sub Category OTP ROMs
Access Time-Max 120.0 ns
I/O Type COMMON
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type OTP ROM
Memory Width 8
Moisture Sensitivity Level 2
Number of Functions 1
Number of Terminals 32
Number of Words 32768.0 words
Number of Words Code 32K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 32KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 220
Qualification Status Not Qualified
Seated Height-Max 3.55 mm
Standby Current-Max 1.0E-4 Amp
Supply Current-Max 0.025 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 20
Length 13.97 mm
Width 11.43 mm
