(5PCS) ADP1108AR DC-DC Single Non-Inv/Inv/Step Up/Step Down 2V to 30V 8-Pin SOIC
Tax included.

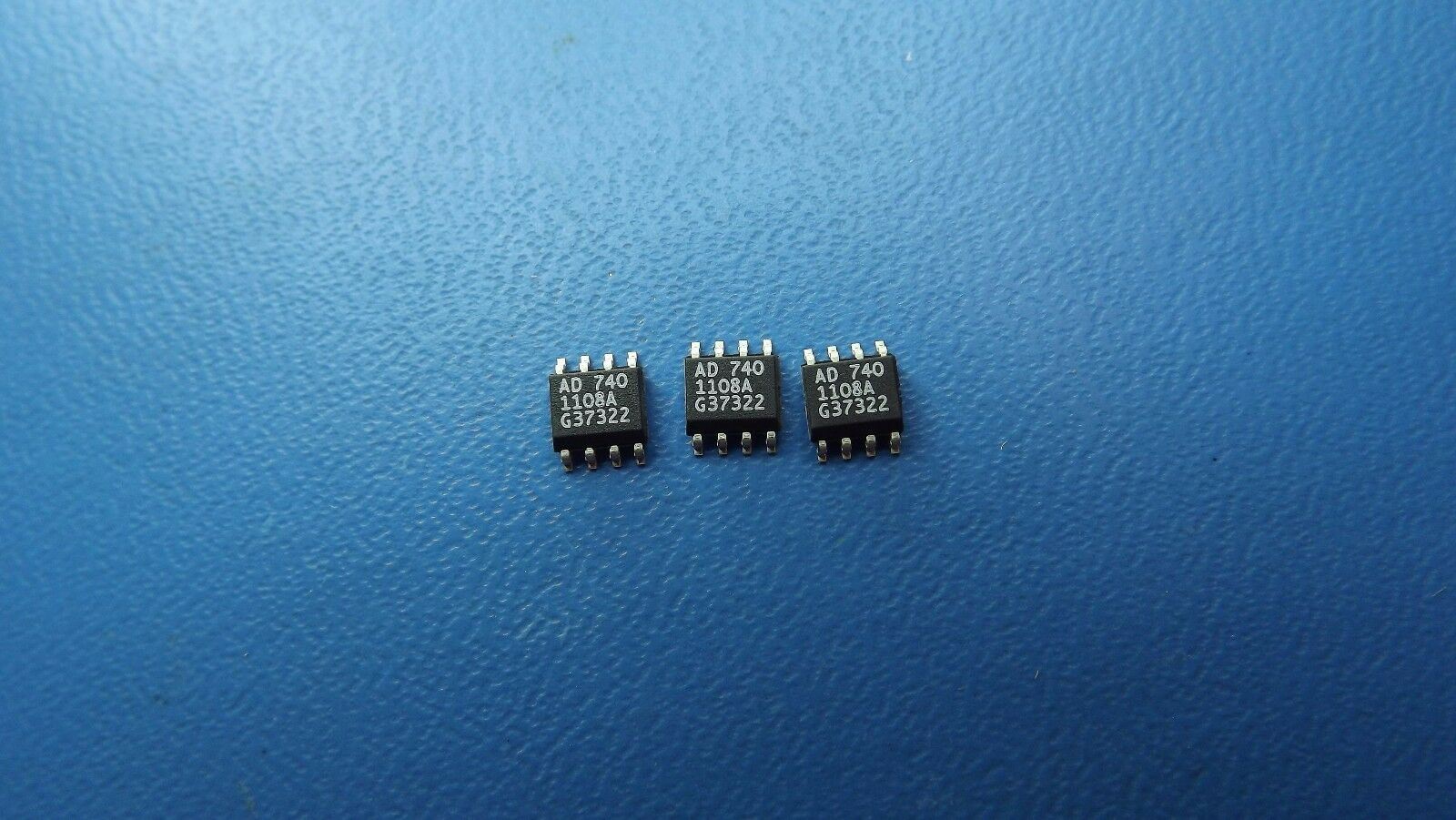

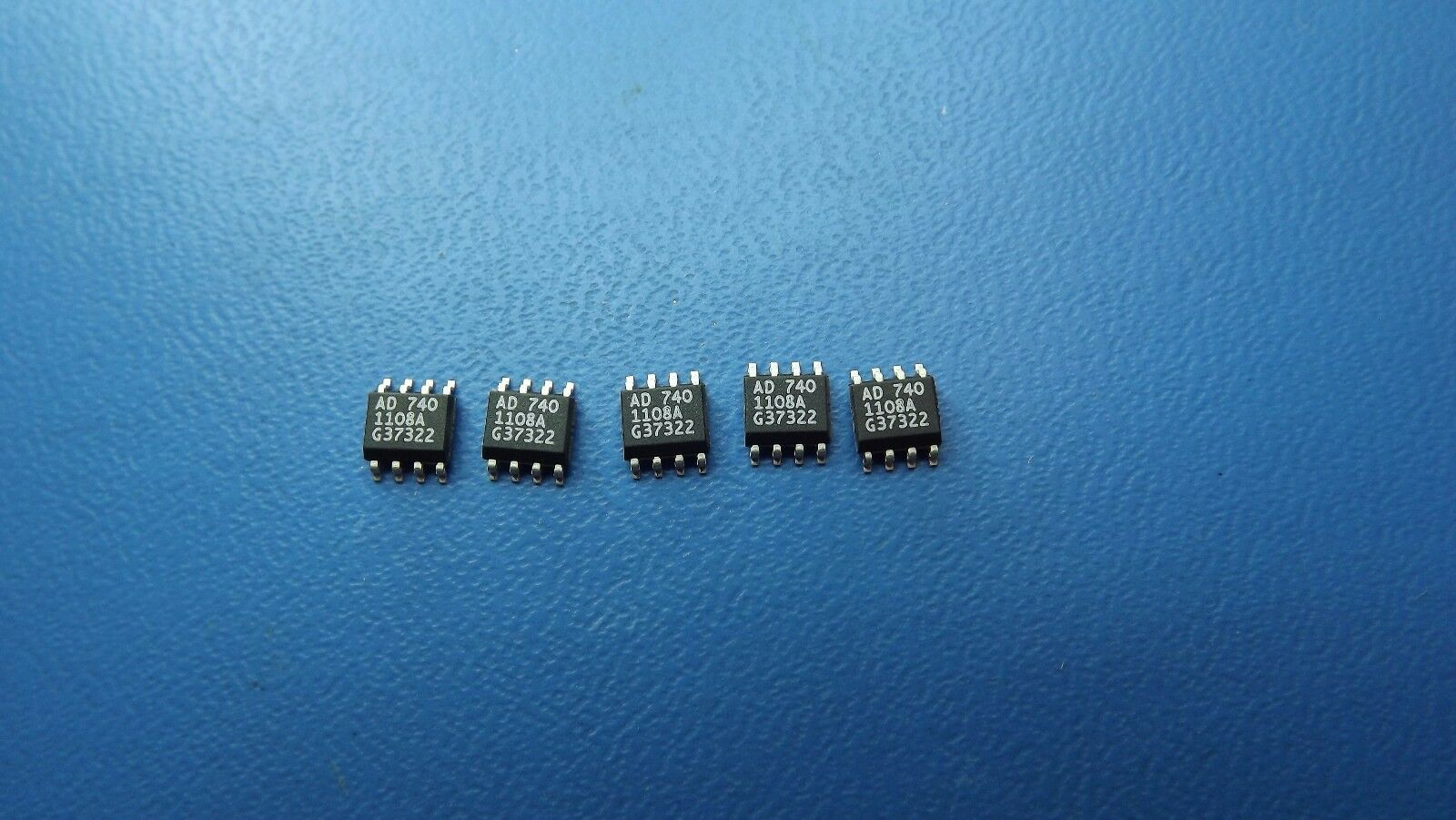

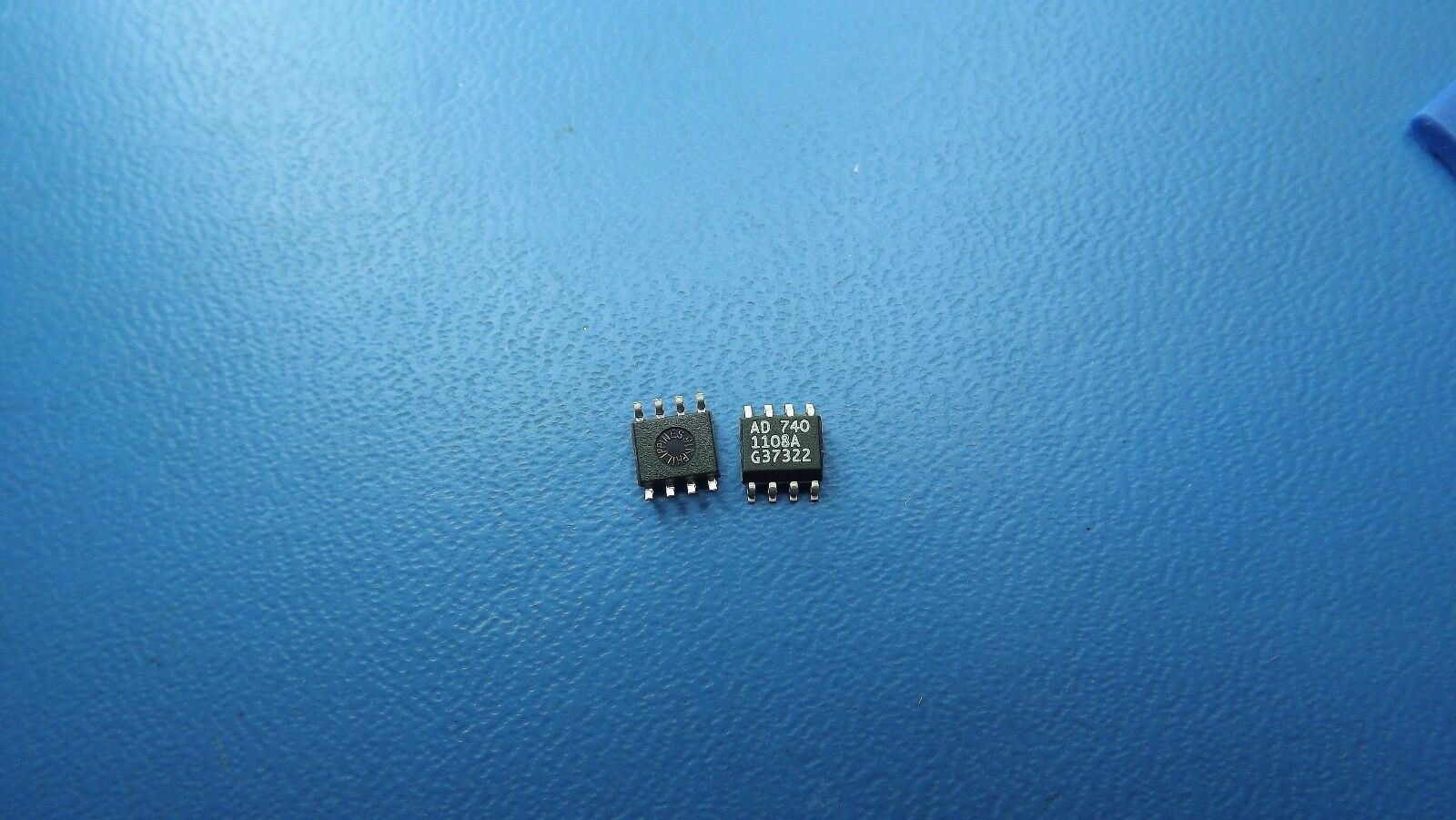

THIS LISTING IS FOR (5PCS) OF ADP1108AR BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | SOIC-8 |
| REACH Compliant | Yes |
| Status | Discontinued |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | VOLTAGE-MODE |
| Control Technique | PULSE FREQUENCY MODULATION |
| Input Voltage-Nom | 3.0 V |
| Input Voltage-Min | 2.0 V |
| Input Voltage-Max | 30.0 V |
| JESD-30 Code | R-PDSO-G8 |
| JESD-609 Code | e0 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Current-Max | 1.5 A |
| Output Voltage-Nom | 1.245 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP8,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.75 mm |
| Sub Category | Switching Regulator or Controllers |
| Supply Current-Max (Isup) | 0.15 mA |
| Surface Mount | YES |
| Switcher Configuration | SINGLE |
| Switching Frequency-Max | 25.0 kHz |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 4.9 mm |
| Width | 3.9 mm |
