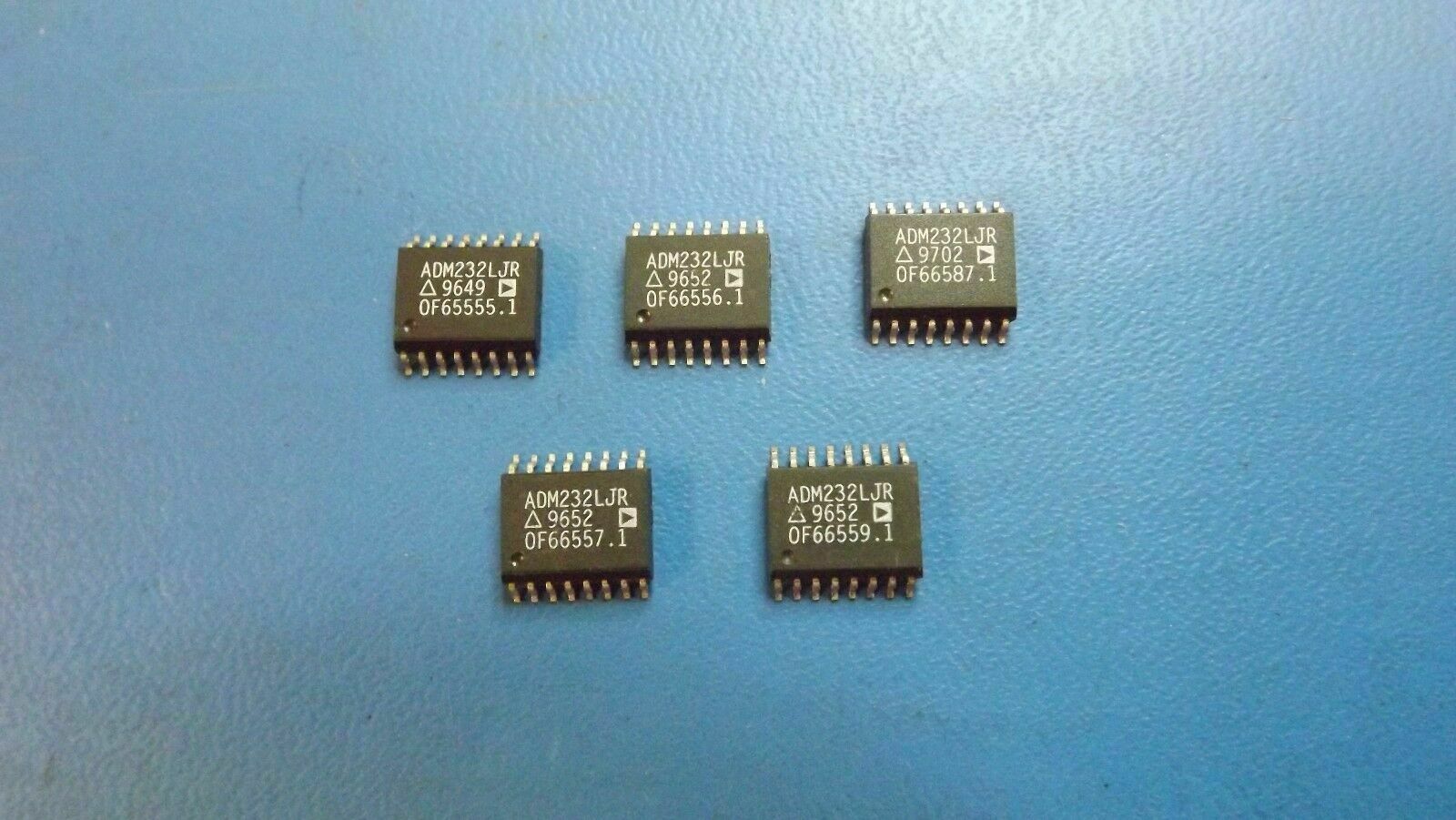

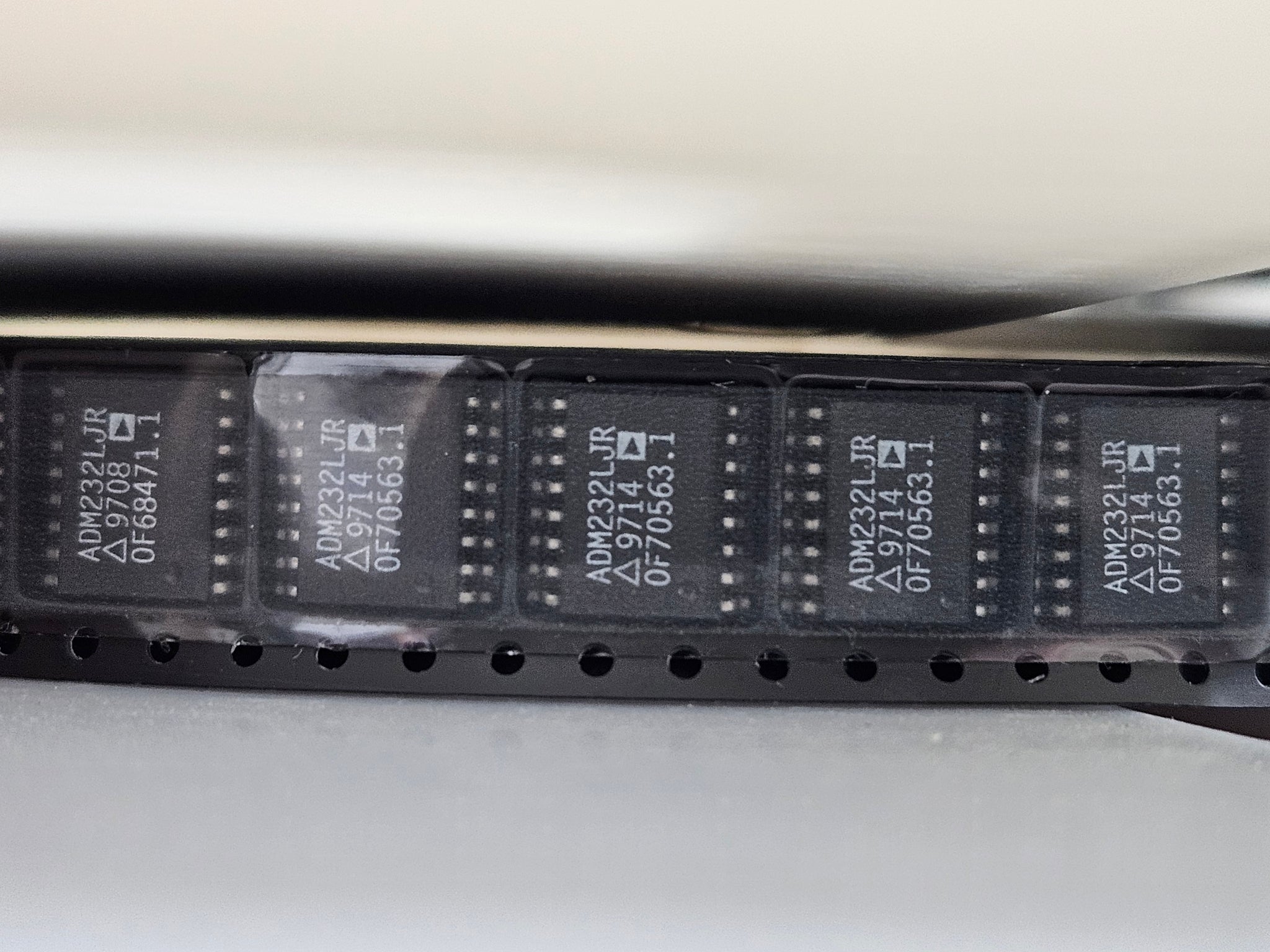

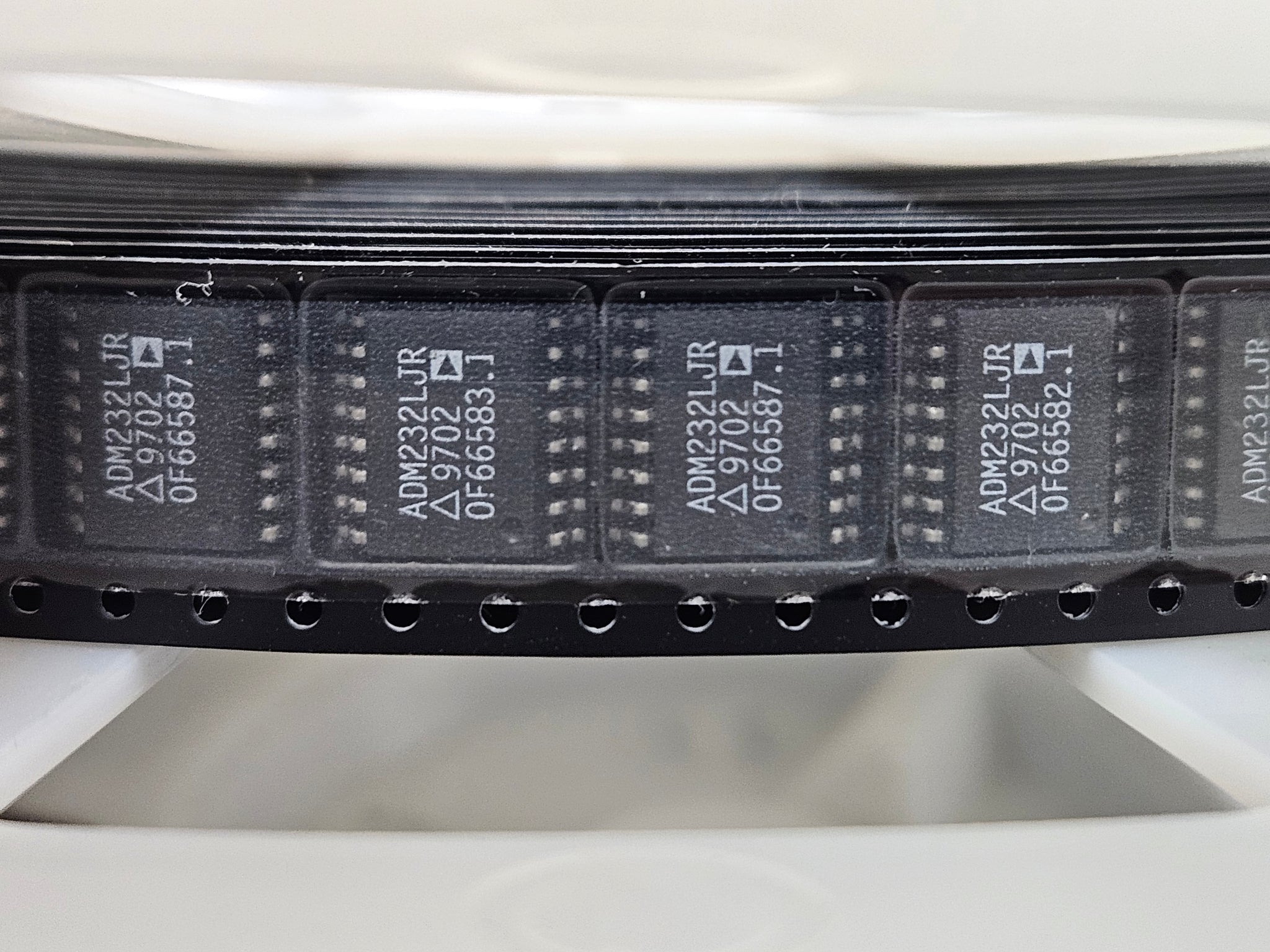

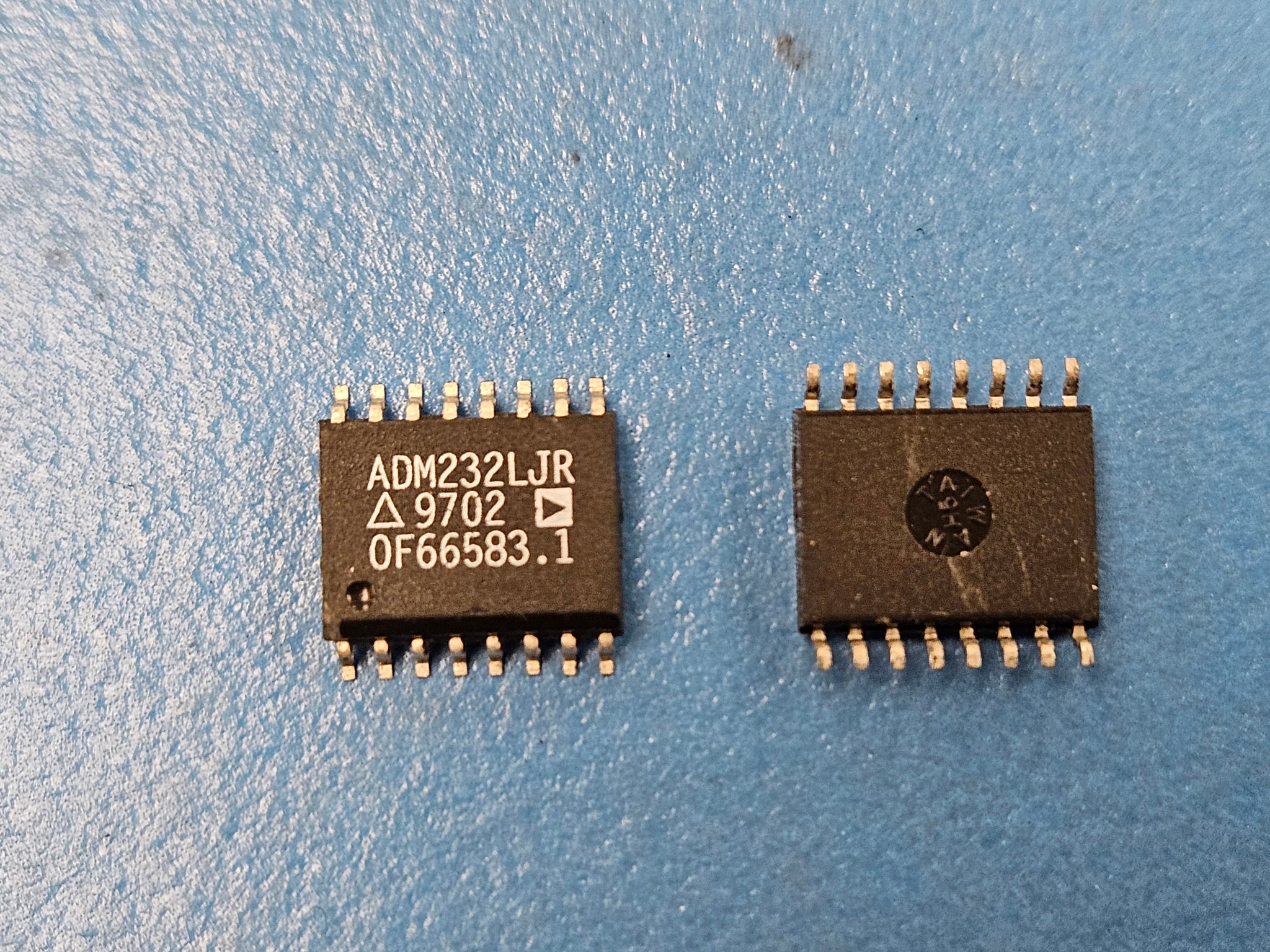

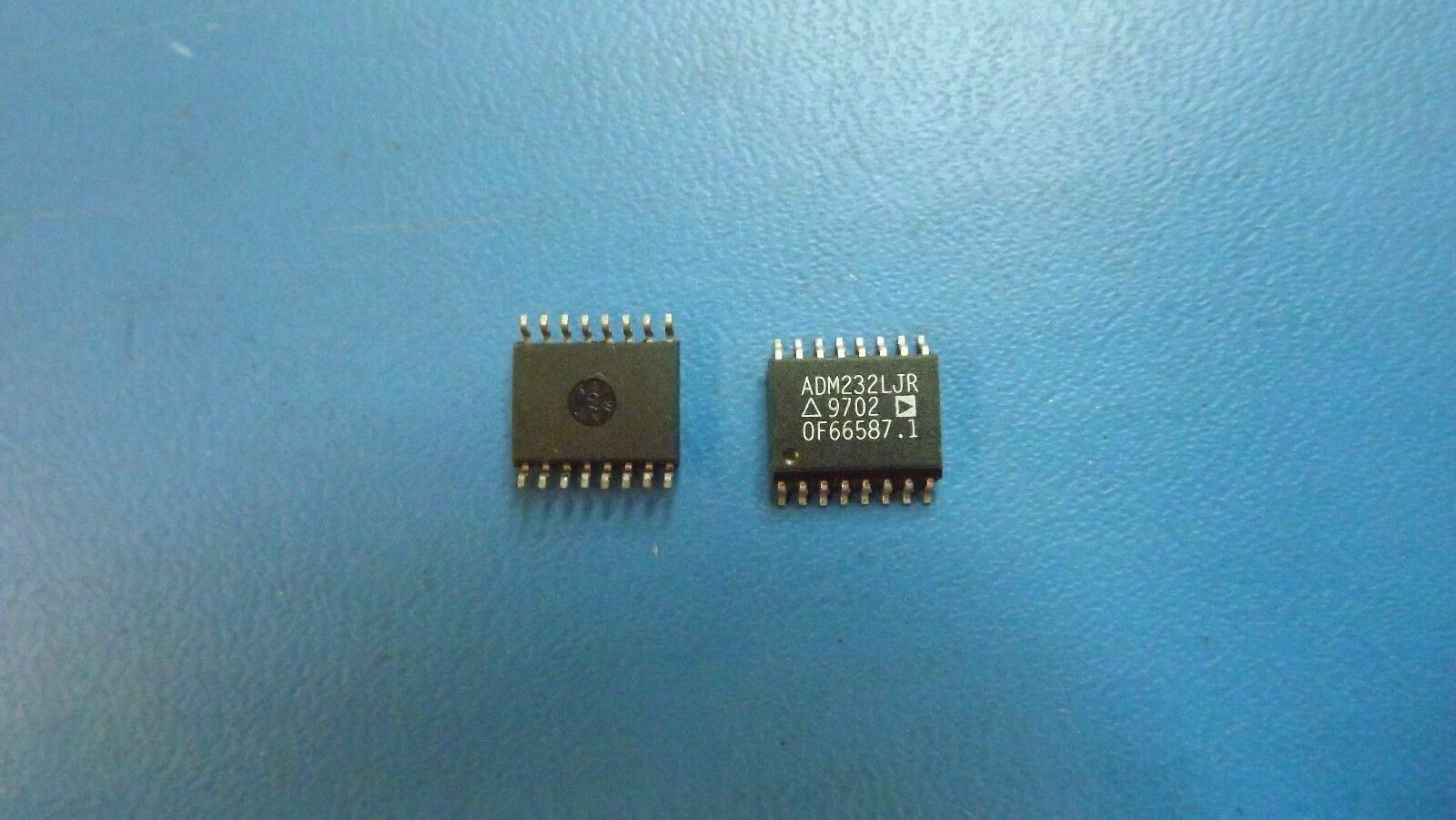

(5PCS) ADM232LJR Dual Transmitter/Receiver RS-232 16-Pin SOIC

THIS LISTING IS FOR (5PCS) OF ADM232LJR BY ANALOG DEVICES

SPECIFICATIONS
Mfr Package Description    MS-013AA, SOIC-16
REACH Compliant    Yes
Status    Active
Interface IC Type    LINE TRANSCEIVER
Differential Output    NO
Driver Number of Bits    2.0
High Level Input Current-Max    2.5E-5 Amp
Input Characteristics    SCHMITT TRIGGER
Interface Standard    EIA-232-E; V.28
JESD-30 Code    R-PDSO-G16
JESD-609 Code    e0
Moisture Sensitivity Level    1
Number of Functions    2
Number of Terminals    16
Operating Temperature-Min    0.0 Cel
Operating Temperature-Max    70.0 Cel
Out Swing-Min    10.0 V
Output Characteristics    TOTEM-POLE
Output Low Current-Max    0.0032 Amp
Output Polarity    INVERTED
Package Body Material    PLASTIC/EPOXY
Package Code    SOP
Package Equivalence Code    SOP16,.4
Package Shape    RECTANGULAR
Package Style    SMALL OUTLINE
Peak Reflow Temperature (Cel)    240
Power Supplies (V)    5
Qualification Status    Not Qualified
Receive Delay-Max    0.0 ns
Receiver Number of Bits    2.0
Seated Height-Max    2.65 mm
Sub Category    Line Driver or Receivers
Supply Current-Max    6.0 mA
Supply Voltage-Nom    5.0 V
Supply Voltage-Min    4.5 V
Supply Voltage-Max    5.5 V
Surface Mount    YES
Technology    CMOS
Temperature Grade    COMMERCIAL
Terminal Finish    Tin/Lead (Sn85Pb15)
Terminal Form    GULL WING
Terminal Pitch    1.27 mm
Terminal Position    DUAL
Time@Peak Reflow Temperature-Max (s)    30
Length    10.3 mm
Width    7.5 mm
Additional Feature    INTERNAL CHARGE PUMP
