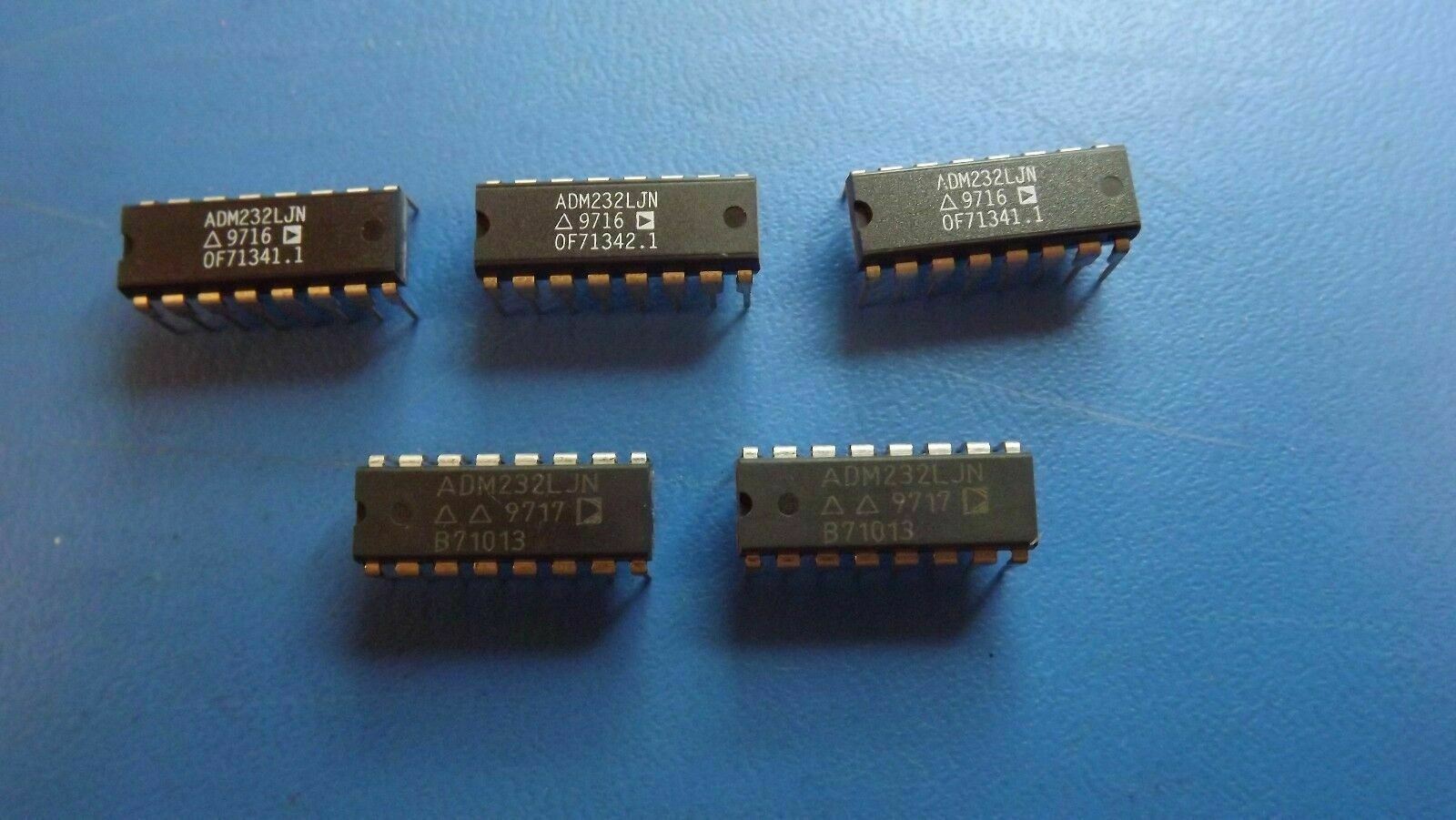

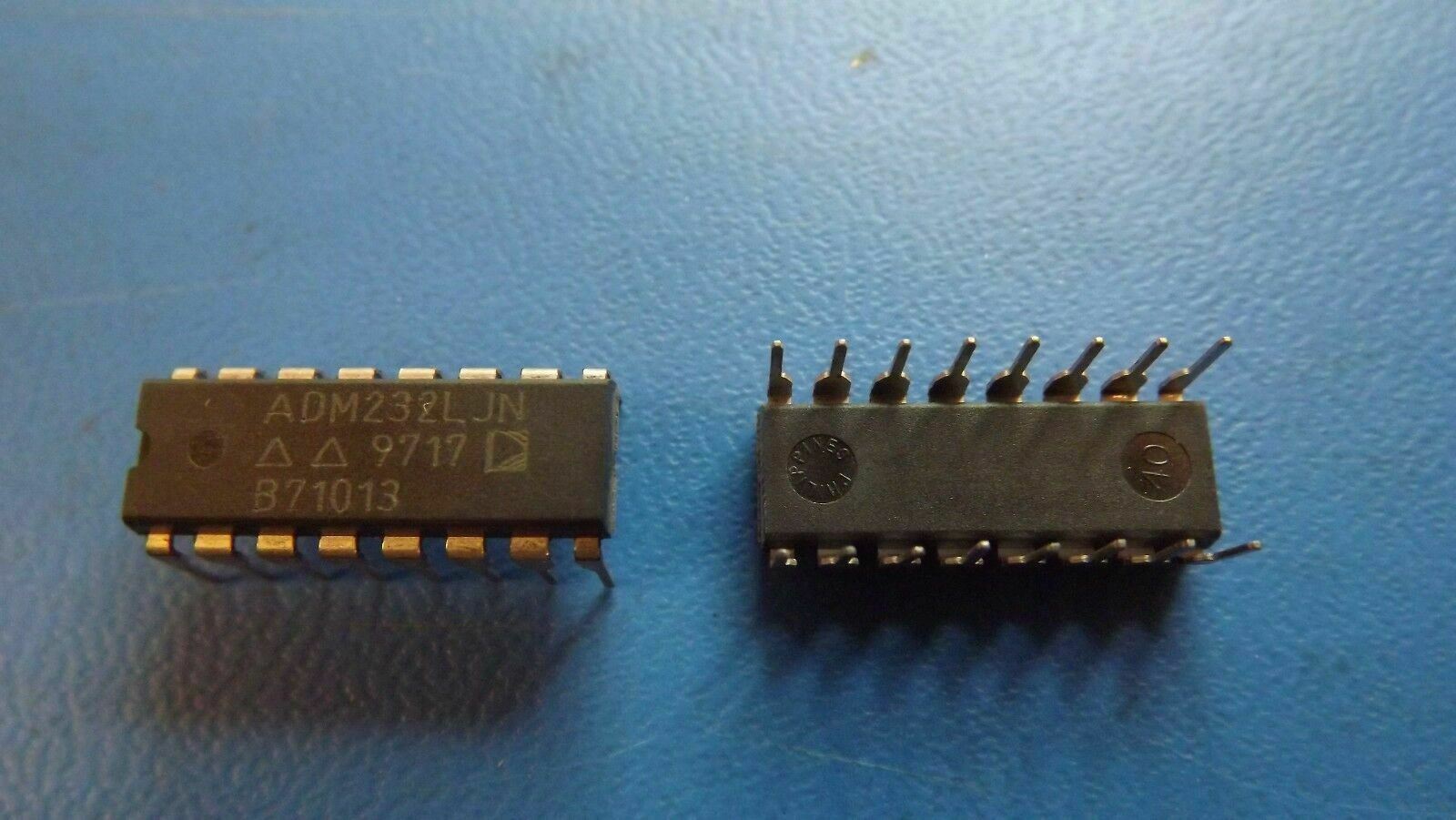

(5PCS) ADM232LJN ANALOG DEVICES Dual Transmitter/Receiver RS-232 16-Pin PDIP
Tax included.
THIS LISTING IS FOR (5PCS) OF ADM232LJN BY ANALOG DEVICES
SPECIFICATIONS
| Mfr Package Description | PLASTIC, MO-095AC, DIP-16 |
| REACH Compliant | Yes |
| Status | Active |
| Interface IC Type | LINE TRANSCEIVER |
| Differential Output | NO |
| Driver Number of Bits | 2.0 |
| High Level Input Current-Max | 2.5E-5 Amp |
| Input Characteristics | SCHMITT TRIGGER |
| Interface Standard | EIA-232-E; V.28 |
| JESD-30 Code | R-PDIP-T16 |
| JESD-609 Code | e0 |
| Moisture Sensitivity Level | NOT APPLICABLE |
| Number of Functions | 2 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Out Swing-Min | 10.0 V |
| Output Characteristics | TOTEM-POLE |
| Output Low Current-Max | 0.0032 Amp |
| Output Polarity | INVERTED |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT APPLICABLE |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 0.0 ns |
| Receiver Number of Bits | 2.0 |
| Seated Height-Max | 4.57 mm |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 6.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.5 V |
| Supply Voltage-Max | 5.5 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn85Pb15) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT APPLICABLE |
| Length | 19.43 mm |
| Width | 7.62 mm |
| Additional Feature | INTERNAL CHARGE PUMP |
