(5PCS) ADM232LAN Line Transceiver, 2 Func, 2 Driver, 2 Rcvr, CMOS, PDIP16
Tax included.

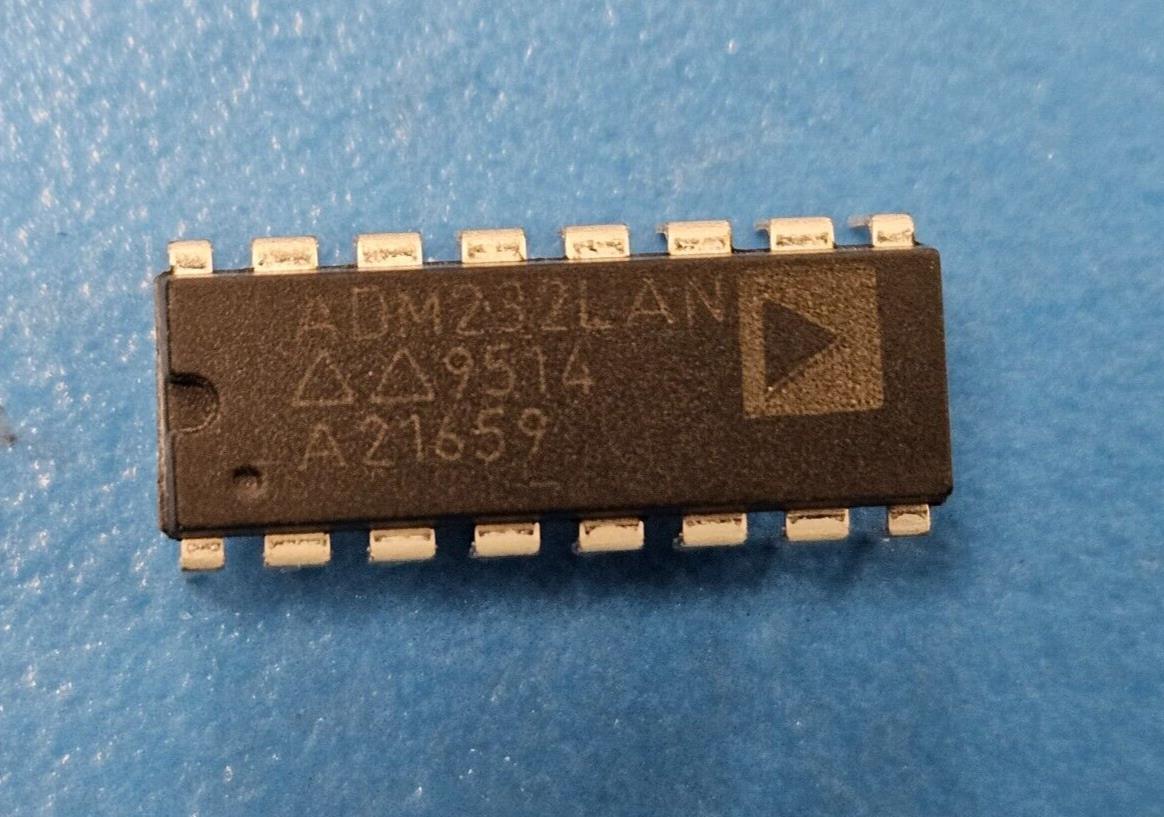

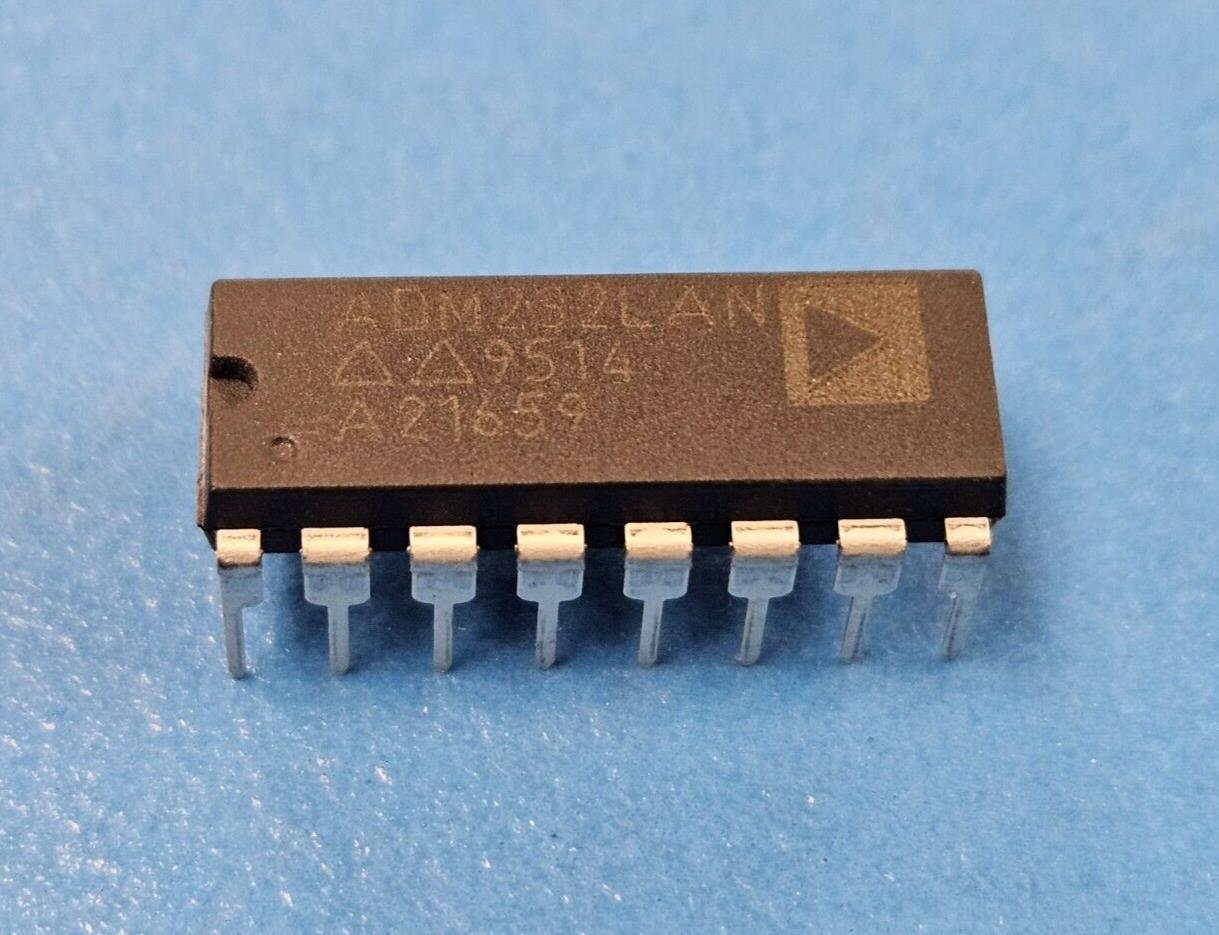

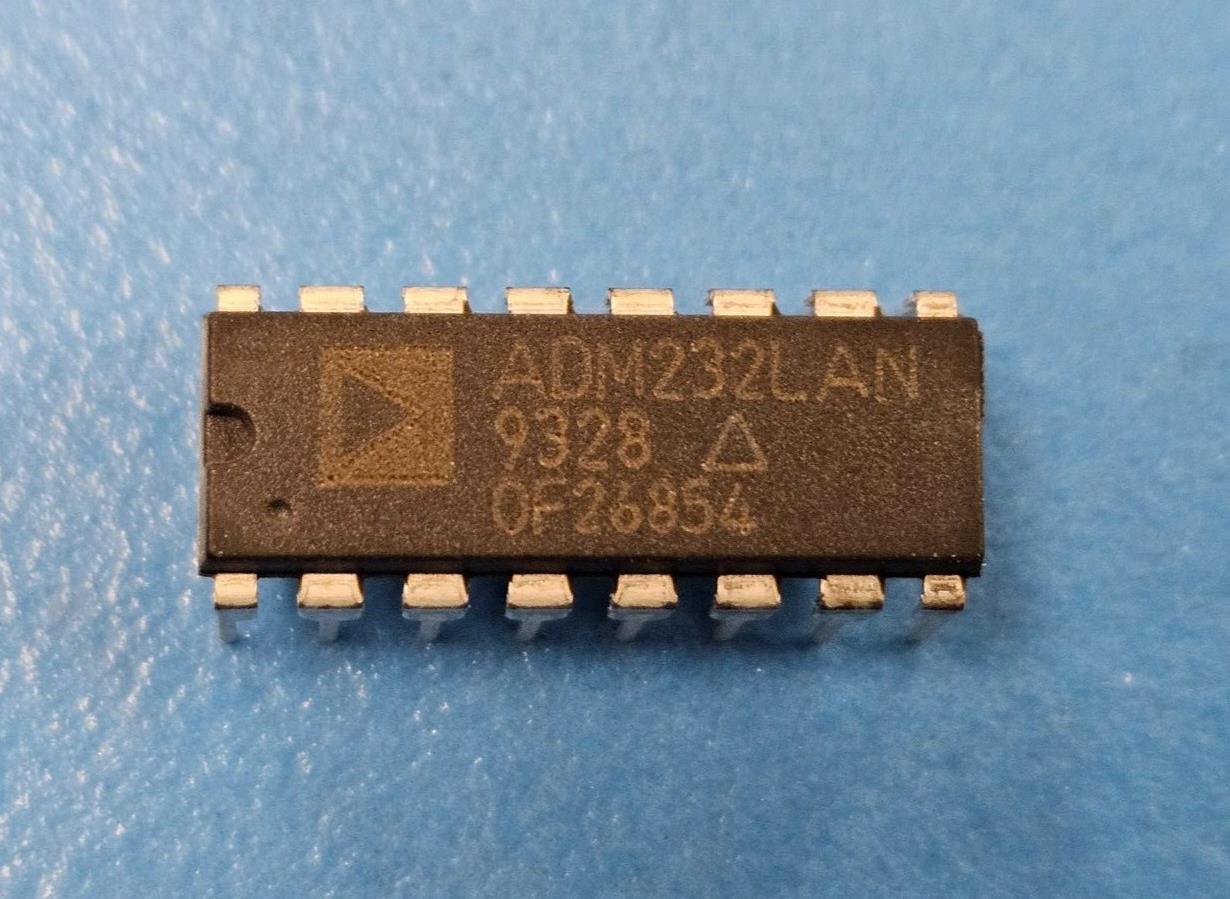

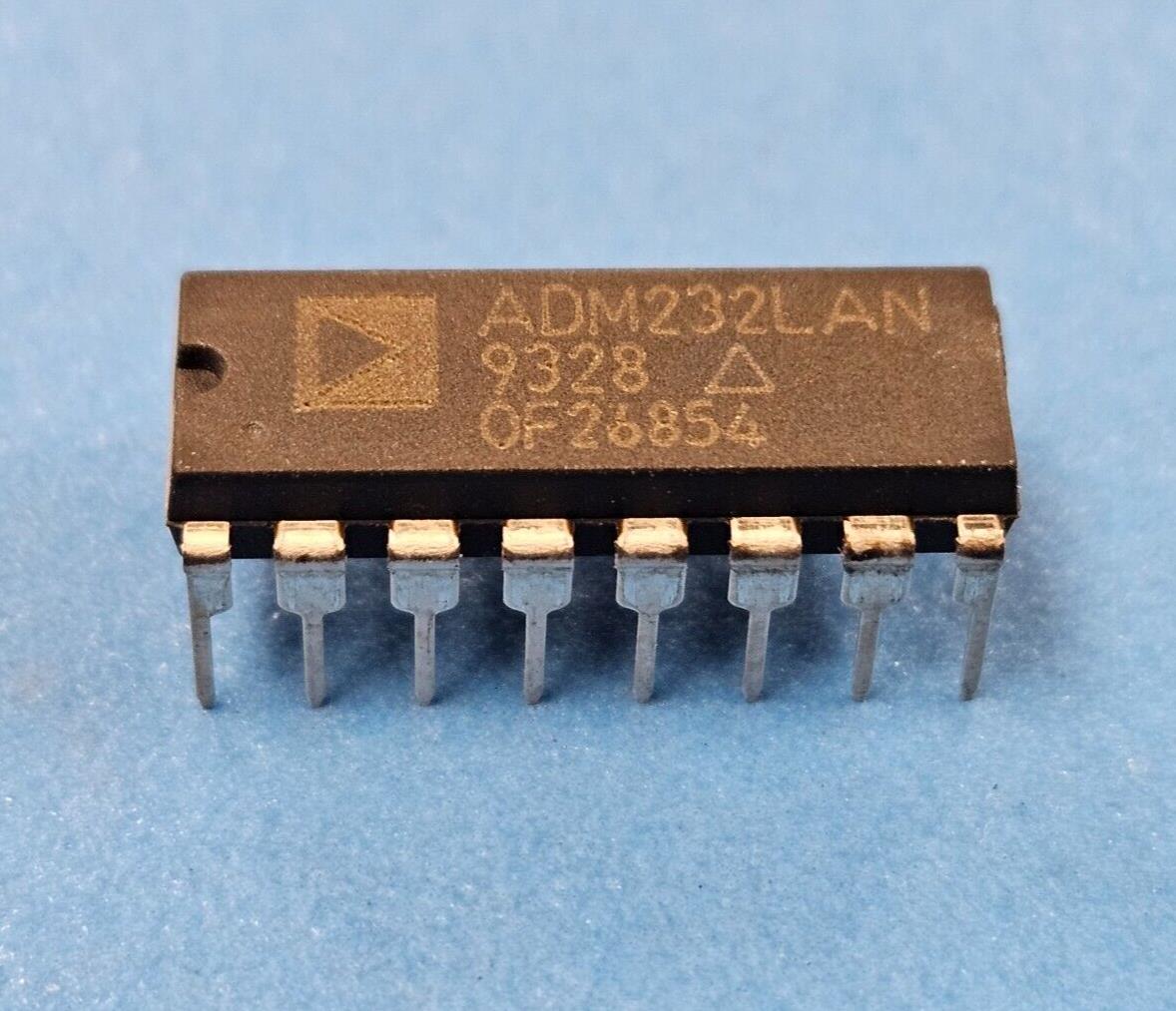

This listing is for (5pcs) of ADM232LAN by Analog Devices
Mfr Package Description PLASTIC, MO-095AC, DIP-16
REACH Compliant Yes
Status Discontinued
Interface IC Type LINE TRANSCEIVER
Differential Output NO
Driver Number of Bits 2.0
High Level Input Current-Max 2.5E-5 Amp
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-E; V.28
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Number of Functions 2
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Out Swing-Min 10.0 V
Output Characteristics TOTEM-POLE
Output Low Current-Max 0.0032 Amp
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 0.0 ns
Receiver Number of Bits 2.0
Seated Height-Max 4.57 mm
Sub Category Line Driver or Receivers
Supply Current-Max 6.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 19.43 mm
Width 7.62 mm
Additional Feature INTERNAL CHARGE PUMP
